Honeywell W8150 User manual

PRODUCT DATA

Put Bar Code Here

68-0282-07

Y8150 Fresh Air Ventilation System,

W8150 Fresh Air Ventilation Control

APPLICATION

The Y8150 Fresh Air Ventilation System, W8150 Fresh Air

Ventilation Control provide fresh air to a home. The control

operates a fresh air intake damper and, when necessary,

activates the main HVAC blower to efficiently meet ASHRAE

ventilation rates.

FEATURES

• Designed to help meet local ventilation codes and

standards, including ASHRAE 62.2-2010 standard,

“Ventilation and Acceptable Indoor Air Quality in

Low-Rise Residential Buildings.”

• Microcontroller optimizes the air delivery schedule to

make efficient use of normal HVAC run times.

• Easy-to-use input dials allow customized ventilation

for each installation.

• Test mode that includes immediate feedback to

installer to confirm that air delivery requirements of

selected ventilation standard are being met.

• Economical supply-only ventilation; works with forced

air system.

• Can be used with other equipment, such as an HRV/

ERV, for balanced ventilation.

IMPORTANT

Please read these instructions and keep them in your

records.

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07 2

SPECIFICATIONS

Y8150 includes:

W8150A Fresh Air Ventilation Control.

EARD6 Fresh Air Damper.

AT120B Transformer.

Mounting hardware for control.

Homeowner information label.

W8150 includes:

W8150 Fresh Air Ventilation Control.

Mounting hardware for control.

Homeowner information label.

Control (W8150A):

Power Supply: 20-30 Vac, 60 Hz.

Power Consumption: 3.5 VA at 24 Vac.

Thermostat Fan Load: 10 mA resistive at 24 Vac.

Thermostat Heat Load: 10 mA resistive at 24 Vac.

Remote Terminals: 10 mA resistive at 24 Vac.

Relay Contacts:

Fan: 1.5A full load, 7.5A locked rotor at 24 Vac.

Damper: 0.6A inductive, 3.1A locked rotor at 24 Vac.

Auxiliary: 0.5A inductive, 2.5A locked rotor at 24 Vac.

Damper (EARD6): 24 Vac, 12 VA, 60 Hz.

Operation: Power-open, spring-closed.

Diameter: 6 in.

Transformer (AT120):

Input: 120 Vac.

Output: 27 Vac open circuit, 24 Vac full load at 20 VA.

Mounting: Foot mounted.

Temperature: -20 °F to 160 °F (-29 °C to 71 °C).

Humidity: 5 to 90% RH, noncondensing.

Input Setting Ranges:

Bedrooms: 2-5.

Area: 1000-4600 sq ft.

Vent Airflow: 40-160 cfm.

Composite Setting Resolution: +/- 12% of ASHRAE

62.2-2010, recommended ventilation for single-system setup.

AT120B Approvals: UL Component Recognized: Class 2,

File No. 14881.

Location: Device can be installed in unconditioned space.

Multiple devices can be installed when operating multiple

HVAC systems.

Dimensions: See device dimension diagrams.

W8150A Ventilation Control dimensions in in. (mm).

EARD6 Fresh Air Damper dimensions in in. (mm).

AT120B Transformer dimensions in in. (mm).

M19988A

4-3/16 (106)

5-3/4

(146)

1-1/4

(32)

3-1/2 (89)

3-3/8

(86)

1-1/2

(38)

(152)

8 (203)

M19989

3/16

(5)

M22022

2-13/16 (71)

1-7/8 (48)

(25)

3/16

(5)

15/16

(24)

1-3/4

(44)

1-5/8

(41)

1/16 (2)

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

368-0282—07

W8150 QUICK GUIDE

No. Name Description Function

1GFEquipment fan Allows W8150 to pass thermostat calls and, when necessary, turn on

system fan for ventilation. This should be the only connection to G on the

HVAC equipment.

C24 Vac cooling system

power

Provides power to GFterminal to operate system fan, when necessary.

C24 Vac cooling system

common

Allows W8150 to monitor when system fan is energized.

H24 Vac heating system

common

Allows W8150 to monitor thermostat heat calls when W is energized.

5 W Heating Allows W8150 to monitor when heating is energized.

6GTThermostat (or other

control) fan terminal

Allows W8150 to monitor when GTis energized. All external equipment that

controls the system fan should be wired to this terminal.

7 Switch On (optimal ventilation)

Override

Off (Remote Only)

On (optimal ventilation) – W8150 ventilates, based on control settings.

Override – W8150 runs ventilation continuously.

Off (Remote Only) – W8150 supplies ventilation only when there is a

remote call.

8 Light Green Indicates device is powered and operating normally. Used in Test Mode to

signal if dial settings meet chosen standard.

9 Light Red Indicates the device is not operating normally. Used in Test Mode to signal

if dial settings do not meet chosen standard.

10 DIP1 Ventilation limit Choose between 60% (default) and 100% maximum fan run time allowed

by W8150 for ventilation.

11 DIP2 Ventilation standard Choose between ASHRAE 62.2 (default) and 62-1999 ventilation

standards.

12 BEDROOMS Number of bedrooms Used to calculate amount of ventilation necessary.

13 AREA

(SQ FT)

Square footage of

conditioned space

Used to calculate amount of ventilation necessary.

14 VENT

AIRFLOW

(CFM)

Air delivery rate through

fresh air duct.

Used to calculate amount of ventilation necessary.

15 Test Test button W8150 checks dial and switch settings, activates ventilation for up to three

minutes and provides feedback to validate if chosen standard can be met.

BEDROOMS AREA (SQFT) VENT AIRFLOW (CFM)

REMOTE AUX DAMPER

XFMR

M19990

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07 4

INSTALLATION

A fresh air duct and damper must be installed between the

outdoors and the return side of the HVAC equipment. The

W8150 control will be mounted near the HVAC system and

wired between the thermostat and the fan control.

You will need…

•W8150 Fresh Air Ventilation Control.

•damper.

•transformer.

•insulated ductwork.

•outdoor weather hood.

•starting collar.

•access to 120 Vac power.

•airflow measuring tool.

TIPS:

• To meet ASHRAE 62.2-2010, system must have at least a

MERV 6 filter installed.

• In cold climates, balanced ventilation is recommended. An

exhaust fan or heat recovery ventilator can be used.

• Humid climates may require additional dehumidification

equipment.

Choosing a location…

When choosing locations for equipment, duct connections,

and fresh air intake, be sure to consult local code

requirements.

16 REMOTE Remote switch (two

terminals)

24 Vac powered contacts allow a remote switch closure to call for

ventilation.

17 AUX Auxiliary (two terminals) 24 Vac dry contacts allow W8150 to control an auxiliary device, such as

exhaust fan or HRV/ERV, with a call for ventilation.

18 DAMPER Damper (two terminals) 24 Vac powered contacts control fresh air damper.

19 XFMR C 24 Vac ventilation control

common

Supplies power to W8150 and damper from transformer provided.

20 XFMR R 24 Vac ventilation control

power

Supplies power to W8150 and damper from transformer provided.

No. Name Description Function

Device

Number Component Location

1 Fresh air intake Install away from known sources

of pollutants such as auto

exhaust, dryer vent exhaust or

chimney smoke.

2 Fresh air duct Install between weather hood and

upstream of equipment filter and

downstream of any duct-mounted

sensor.

3 Damper Install damper in fresh air duct,

where convenient. Optionally,

install heat recovery ventilator.

4 Control Locate the control for convenient

access and for easy wire routing.

5 Transformer Locate where convenient for line

voltage connection.

6 Filter Locate filter downstream of fresh

air intake.

M19993

TYPICAL ATTIC

INSTALLATION

TYPICAL BASEMENT

INSTALLATION

TYPICAL HRV/ERV

INSTALLATION

2HRV/ERV

uto

Continuous

(RemoteOnly)

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

568-0282—07

Installing fresh air damper, ducting,

and control…

1. Disconnect power from HVAC system.

2. Install the weather hood, ducting, and damper following

local practices. Be sure all duct and insulation seams

are tightly sealed.

3. Mount the transformer and control.

TIPS:

• In general, larger ducting allows higher airflow, minimizes

additional fan run time and may be needed for larger

homes.

• Installing a damper directly to the return duct may be

convenient to support the damper and reduce ducting.

• Fresh air connection should be downstream of sensors

(such as a humidistat) in return air plenum.

• The EARD6 end stops can be used to reduce the amount

of airflow in the duct. To prevent complete opening, loosen

(but do not remove) the wing nut and move the upper lever

until the desired position is reached. Tighten the wing nut.

Keep the lower lever in the position shown.

Wiring the control…

CAUTION

Electrical Hazard.

Can cause personal injury or equipment damage.

Disconnect power to all systems before beginning

installation.

1. Wire the control. See wiring diagrams in Fig. 1-10 as

listed below. All wiring must comply with local codes,

ordinances, and regulations.

2. Reapply power to system and control.

TIP:

• Control package allows wire routing through side slots and

bottom openings.

UPPER LEVER

WING NUT

LOWER LEVER

M20155

System Hookup Diagrams Fig. No. Page No.

Single transformer, conventional 1 10

Dual transformer, conventional 2 10

Multi-stage, conventional 3 10

Heat pump without emergency heat 4 10

Heat pump with emergency heat 5 11

Accessory Hookup Diagrams Fig. No. Page No.

Wiring with a PC8900 Thermostat 6 11

Wiring with a remote switch/timer 7 11

Wiring to an HRV/ERV 8 11

Wiring an exhaust fan 9 11

Wiring a fan for a steam humidifier 10 12

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07 6

Measuring airflow…

1. Make sure all HVAC system air filters are clean and

installed.

2. Push Test button:

• Control opens damper and turns on HVAC fan for

three minutes.

• A red or green light is flashing; you can now measure

airflow.

3. Follow instrument instructions for measuring airflow.

TIPS:

• You can exit the test mode at any time by pressing the test

button again.

• See Conversion Table (located after wiring diagrams) for

quick area and airflow setting conversions.

• For future reference, record the air flow on the inside of the

device cover.

• Pitot Tubes and flow measuring stations are commonly

used airflow measuring devices.

About the control settings…

Dial Settings

These settings allow the installer to customize the control to

meet the ventilation requirements for the home.

Ventilation Standard

Building codes are different everywhere. The W8150

Ventilation Control can be configured to operate based on:

• ASHRAE 62.2.

• ASHRAE 62-1999

TIP:

• Clear understanding of local codes and practices is

required to make sure the ventilation system is installed

and configured correctly. Generally, ASHRAE 62.2 control

method is recommended and can meet many existing local

codes.

*In Canada, interlocking exhaust equipment

may be required for balanced ventilation.

Ventilation Limit

This setting determines the maximum amount of time that the

fan runs for ventilation.

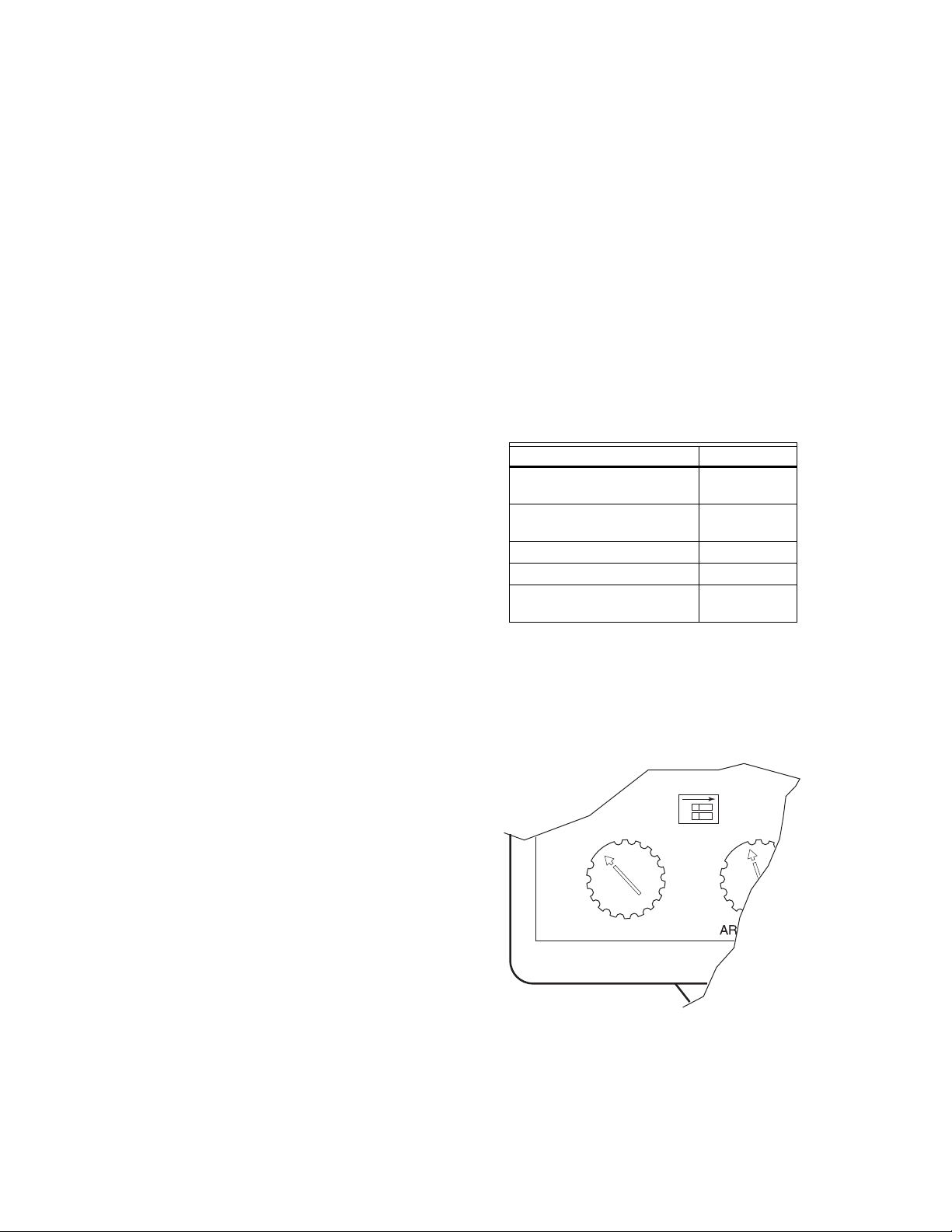

Setting ventilation limit and ventilation standard.

Code/Standard Setting

General Ventilation

Requirements

ASHRAE 62.2

Washington State Energy

Code

ASHRAE 62.2

Canadian Building Code* ASHRAE 62.2

Minnesota Energy Code 62-1999

2002 International

Residential Code

62-1999

BEDROOMS

M22009

Ventilation Limit*

Ventilation

Standard

60%

ASHRAE 62.2

100%

62-1999

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

768-0282—07

Setting the control...

1. Be sure power is turned on.

2. Set the Ventilation Standard on the control.

3. Set the bedrooms dial.

4. Set the area (sq ft) dial.

5. Set the airflow (cfm) dial.

6. Press the test button and observe the lights:

Green light is flashing.

The dial settings meet the chosen standard.

Red light is flashing.

There is not enough fresh air delivered to meet the

requirements of the selected standard. See

Troubleshooting section.

7. Record settings on the label inside the cover as shown

in the diagram.

TIPS:

• Ventilation control reads new dial setting only when test

button is pushed or power is cycled. To ensure dial settings

are read, push test button after any changes are made.

• For single bedroom homes, set the bedrooms dial to 2 (this

may result in more ventilation than the minimum required).

• For homes having more than five bedrooms and only a

single ventilation system, set the bedrooms dial to 5 (this

may result in less ventilation than the minimum required).

• For conditioned square feet, set area (sq ft) dial to the

nearest value.

• For airflow, set airflow (cfm) dial to the nearest value.

• Vaulted ceilings do not need to be considered when setting

this control.

• For homes with multiple systems: Honeywell recommends

a ventilation control and fresh air intake for each system.

Measure ventilation airflow for each system independently.

Refer to Multi-system Setup Example for further details.

Customizing the ventilation control.

Honeywell

Golden Valley, MN 55422

50001159-001 Rev. A

8150A

1001

www.honeywell.com/yourhome

or call 1-800-468-1502

_________

area (sq. ft.)

ing

Ventilation Limit*

Ventilation

Standard

60%

ASHRAE 62.2 100%

62-1999

Installer

Test

M19991

Para español ver las instrucciones

*See Instructions Voir mode d'emploi en français inclus

DMP

AUX

REM

24 VAC

XFRM

HVAC

Stat

Damper

ERV/Fan

Timer/Switch

Patent Pending

_________

bedrooms

_________

airflow (cfm)

Date installed:________________________

W8150A 1001

_________

area (sq. ft.)

Record settings above

Ventilation Limit*

Ventilation

Standard

60%

ASHRAE 62.2

100%

62-1999

Installer

Test

DMP

AUX

REM

24 VAC

XFRM

HVAC

Stat

Damper

ERV/Fan

Timer/Switch

_________

bedrooms

_________

airflow (cfm)

Date installed:________________________

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07 8

CHECKOUT

In this section, make sure the ventilation system is operating

correctly.

1. On thermostat, set Fan switch to Auto and System

switch to Off.

2. Set any remote switches throughout the house in the

Off position.

3. On the W8150, set the control switch to Off (remote

only).

4. Press Test button for two seconds to enter test mode:

• A light on the control begins flashing.

• The HVAC system fan comes on.

• The damper moves to the Open position.

5. Press the Test button again to exit test mode:

• No lights on the control are on.

• The HVAC system fan turns off.

• The damper returns to the closed position.

6. Return the thermostat, ventilation control, and remote

switches to the original settings.

7. Refer to Troubleshooting section, if needed.

TIP:

• W8150 Ventilation Control automatically exits test mode

after three minutes.

TROUBLESHOOTING

Problem Possible cause What to do

Flashing red light

during test mode

(The current settings

do not meet the

selected ventilation

requirement)

Not enough airflow •Measure airflow and check dial setting.

•See Problem: Not enough airflow.

Ventilation on-time limit

setting

• If the device is set to 60%: Set the ventilation control to 100% maximum

on time. This allows the HVAC fan to run up to 100% of the time. It may be

preferable to increase airflow.

• If the device is set to 100%: There is not enough airflow through the

fresh air duct.

•Ventilation continues to occur according to the settings but chosen

standard may not be met.

Flashing red light

during normal

operation

Low voltage •Check the voltage from the transformer for at least 20 Vac. If voltage is

OK, replace W8150 Control. If voltage is not OK, disconnect damper and

remote switch connections and check again. If voltage does not return to

at least 20 Vac, replace transformer.

No light on ventilation

control when switch

set to:

•On

•Override Off/

•Remote Only and a

remote switch is on.

No power to control •Verify 24 volt input to R and C terminals on ventilation control.

•Check wiring connections per appropriate system diagram and replace

transformer, if necessary.

Device malfunction •Cycle power off to control for ten seconds and recheck. If control does not

recover, replace ventilation control.

HVAC fan does not

come on after pressing

Test button.

Wiring •Check wiring connections per appropriate system diagram.

HVAC system does not

have power

•Restore power to the HVAC system.

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

968-0282—07

HVAC fan is running all

the time

Device is set to override •Move switch to On position to allow for automatic operation.

Remote switch is on •Adjust remote switch to desired position.

Thermostat Fan switch is

in On position

•Normal operation.

HVAC system is running

to satisfy heating or

cooling requirements.

•Normal operation.

Ventilation limit is set to

100% ventilation limit.

•Set ventilation limit to 60%. The control may not be able to meet the

recommended ventilation requirements.

•Increase ventilation airflow through fresh air duct and adjust settings.

Low ventilation air flow. •See Problem: Not enough airflow.

•Damper does not

open during

checkout or

•Damper does not

close.

Incorrectly wired. •Check wiring connections per appropriate wiring diagram.

Transformer output. •Verify 24 Vac applied to actuator.

Damper actuator motor

failure or mechanical

failure.

•Manually open damper and verify free movement; damper should return

to closed position when no power is applied.

•If damper moves freely but does not operate when 24 volts is applied,

replace damper actuator.

•If damper does not move freely, replace fresh air damper.

Cooling compressor

comes on when there

is no cooling call from

the thermostat.

Incorrectly wired. •Check wiring connections per appropriate system diagram.

•An isolation relay may be required when appliances are connected to the

GTterminals on the ventilation control. (For an example, see wiring a fan

for a steam humidifier diagram.)

Not enough airflow Obstruction or duct size •Check for obstructions in the fresh air duct and weather hood.

•Check for kinks in ductwork.

•Make sure all manual dampers are fully open.

•Make sure the stops on the EARD damper allow it to open fully.

•Increase duct size.

•Add a booster fan to the fresh air duct.

NOTE: After any changes to the ductwork, repeat the Measuring Airflow

section.

Problem Possible cause What to do

Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07 10

WIRING DIAGRAMS

Consult thermostat Installation Instructions for alternate

terminal designations.

Fig. 1. Single transformer, conventional system.

Fig. 2. Dual transformer, conventional system.

Fig. 3. Multi-stage conventional system.

Fig. 4. Wiring heat pump without emergency heat.

Wake

Room

System

Fan

Heat

Auto

DST

Tue

RCWYG

WYG

M19994A

W8150A

HVAC

Wake

Room

System

Fan

Heat

Auto

DST

Tue

HVAC

COOLINGHEATING

RC CYG

WYG

M19995A

NOTE:

REMOVE FACTORY

INSTALLED JUMPER

BETWEEN CCAND CH

ON W8150.

W8150A

Wake

Room

System

Fan

Heat

Auto

DST

Tue

CRW

M19996

HVAC

W8150A

Wake

Room

System

Fan

Heat

Auto

DST

Tue

RCYGO

R W Y G O/B

M19997A

HVAC

W8150A

This manual suits for next models

Table of contents

Other Honeywell Fan manuals

Honeywell

Honeywell HT-112E User manual

Honeywell

Honeywell Carnegie User manual

Honeywell

Honeywell HYF500E User manual

Honeywell

Honeywell CARMEL 50196 User manual

Honeywell

Honeywell HZ-0300 - Allseason Comfort Fan User manual

Honeywell

Honeywell HSF1630E User manual

Honeywell

Honeywell HY-200 Series User manual

Honeywell

Honeywell SUPER TRADELINE L4064B User manual

Honeywell

Honeywell HS-120C Series User manual

Honeywell

Honeywell QUIETSET HY-254 Series User manual

Honeywell

Honeywell HT-900 Series TURBO FORCE User manual

Honeywell

Honeywell HW-HELIS1E User manual

Honeywell

Honeywell HYF013 series User manual

Honeywell

Honeywell HY254E User manual

Honeywell

Honeywell QUIETSET HS1655 Series User manual

Honeywell

Honeywell ESSER 781443 User manual

Honeywell

Honeywell HSF600BE User manual

Honeywell

Honeywell HHV180E User manual

Honeywell

Honeywell DreamWeaver HTF400 Series User manual

Honeywell

Honeywell 527HHON001BLK User manual

Honeywell

Honeywell Turbo Force HYF550 Series User manual

Honeywell

Honeywell PERFECT WINDOW HR150 Operation manual

Honeywell

Honeywell HY108E User manual

Honeywell

Honeywell HT-800 Series User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
