Honeywell CARMEL 50196 User manual
CARMEL 48” CEILING FAN
MODELS #50196, 50197
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday,
8 am - 5 pm, EST.
Español p. 21
2
WELCOME
PREPARATION
Before beginning the assembly of this product, ensure
that all parts are present. Compare all parts with the
package contents list and hardware contents list. If
any part is missing or damaged, do not attempt to
assemble the product.
After opening the top of the carton, remove the
mounting hardware package from the foam inserts,
then remove the motor from the packaging and
place it on a soft surface, such as a carpet, to avoid
damage to the nish.
Estimated Assembly Time: Under 60 minutes
Tools Required for Assembly (not included): Electrical
Tape, Phillips Screwdriver, Pliers, Safety Glasses,
Step Ladder, and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape
Measure, Wiring Handbook, and Wire Cutters
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check
the downrod assembly, and then tighten all screws
on the fan. Clean the motor housing with only a soft
brush or lint-free cloth to avoid scratching the nish.
Clean the blades with a lint-free cloth. You may
occasionally apply a light coat of furniture polish to
wood blades for added protection.
Important: Shut off the main power supply before you
begin any maintenance tasks. Do not use water or a
damp cloth to clean the ceiling fan.
FAN WEIGHT
The net weight of this fan is: 17.6 lbs. (8,0 kg).
TABLE OF CONTENTS
ATTACH YOUR RECEIPT HERE
Serial Number
Purchase Date
Care and Maintenance ........................2
Package Contents ...........................3
Safety Information ...........................4
Mounting Options ............................5
Mounting Bracket Installation ...................6
Standard or Angle Mounting Instructions . . . . . . . . . .7
Closemount Instructions......................10
Wiring ....................................11
Canopy Installation..........................12
Blade Installation ...........................13
Light Kit Installation .........................14
Operating Instructions .......................16
Replacement Parts List ......................18
Troubleshooting ............................19
Limited Lifetime Warranty.....................20
3

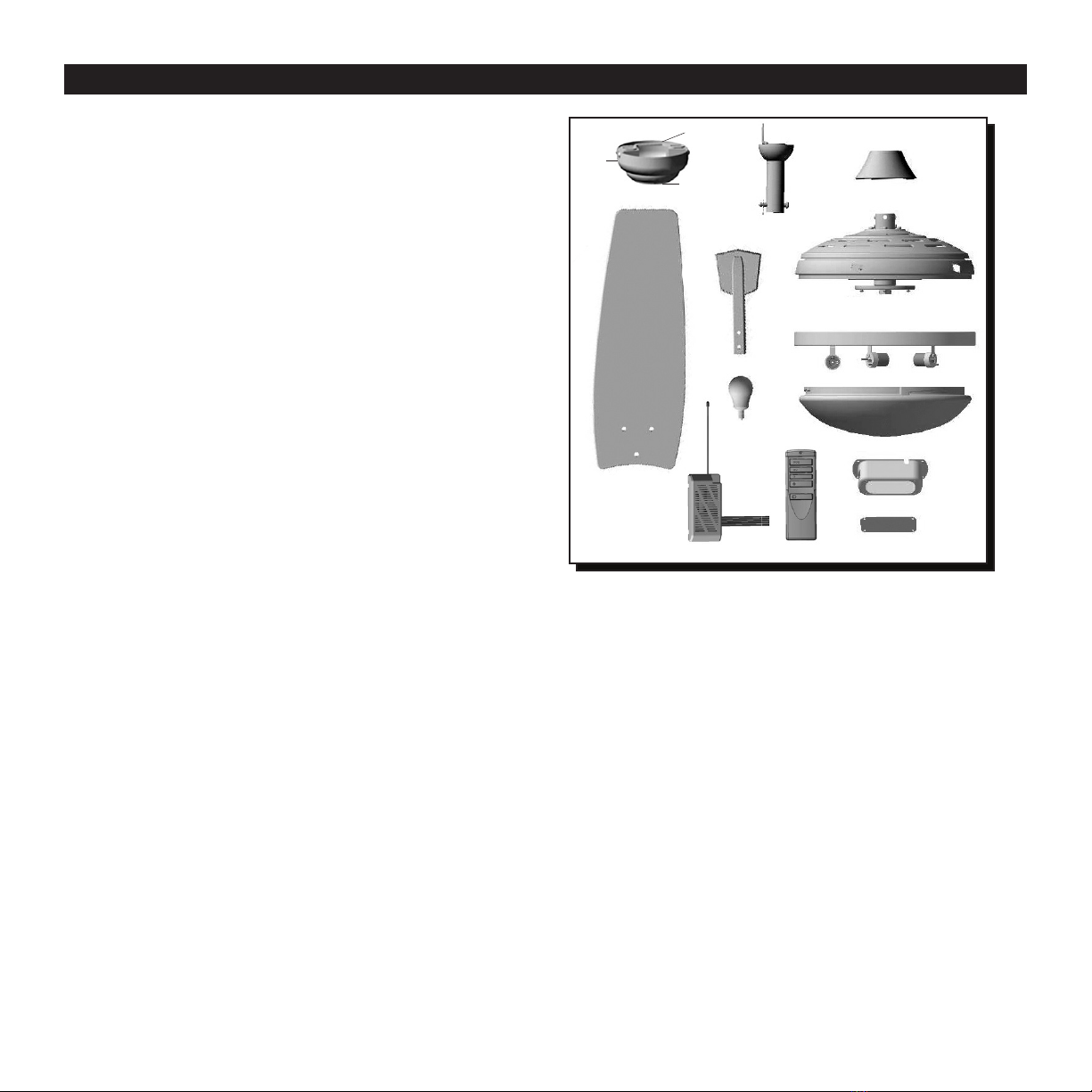

PACKAGE CONTENTS
Unpack your fan and check the contents. You
should have the following items:
1. Canopy
2. Mounting Bracket
3. Canopy Cover
4. Blades (5)
5. Downrod
6. Blade Arm (5)
7. Bulb (3)
8. Receiver
9. Remote Control
10. Yoke Cover
11. Motor Assembly
12. Light Kit
13. Glass Globe
14. Switch Housing
15. Switch Housing Cover
16. Loose parts bags containing (not shown):
Mounting hardware, blade attachment
hardware, electrical hardware and wire
connectors, etc.
1
2
6
3
7
4
11
10
5
12
13
15
14
8 9
4
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate, or install the product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning off the
circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical
Code, and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring handbook if
you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to the
oor and at least 30 in. from the end of the blades to any obstruction.
DANGER
WARNING
WARNING
When using an existing outlet box, make sure
the outlet box is securely attached to the building
structure and can support the full weight of
the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is
essential in minimizing wobble and noise in the
fan after installation is complete.
To reduce the risk of re or electric shock, do not
use the fan with any solid-state speed-control
device or control the fan speed with a full-range
dimmer switch.
To reduce the risk of re, electric shock, or personal
injury, mount the fan to an outlet box marked
“ACCEPTABLE FOR FAN SUPPORT” and use the
mounting screws provided with the outlet box. Most
outlet boxes commonly used for the support of
lighting xtures are not acceptable for fan support
and may need to be replaced. Consult a qualied
electrician if in doubt. Secure the outlet box directly
to the building structure. The outlet box and its
support must be able to support the moving weight
of the fan (at least 35 lbs.). Do NOT use a plastic
outlet box.
WARNING
CAUTION
CAUTION
CAUTION
To reduce the risk of re, electric shock, or
personal injury, do not bend the blade arms
when installing them, balancing the blades, or
cleaning the fan. Do not insert objects between
the rotating fan blades. Read all instructions and safety information
before installing your new fan. Review the
accompanying assembly diagrams.
Be sure the outlet box is properly grounded or
that a ground (green or bare) wire is present.
Be sure the outlet box is properly grounded or
that a ground (green or bare) wire is present.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
5

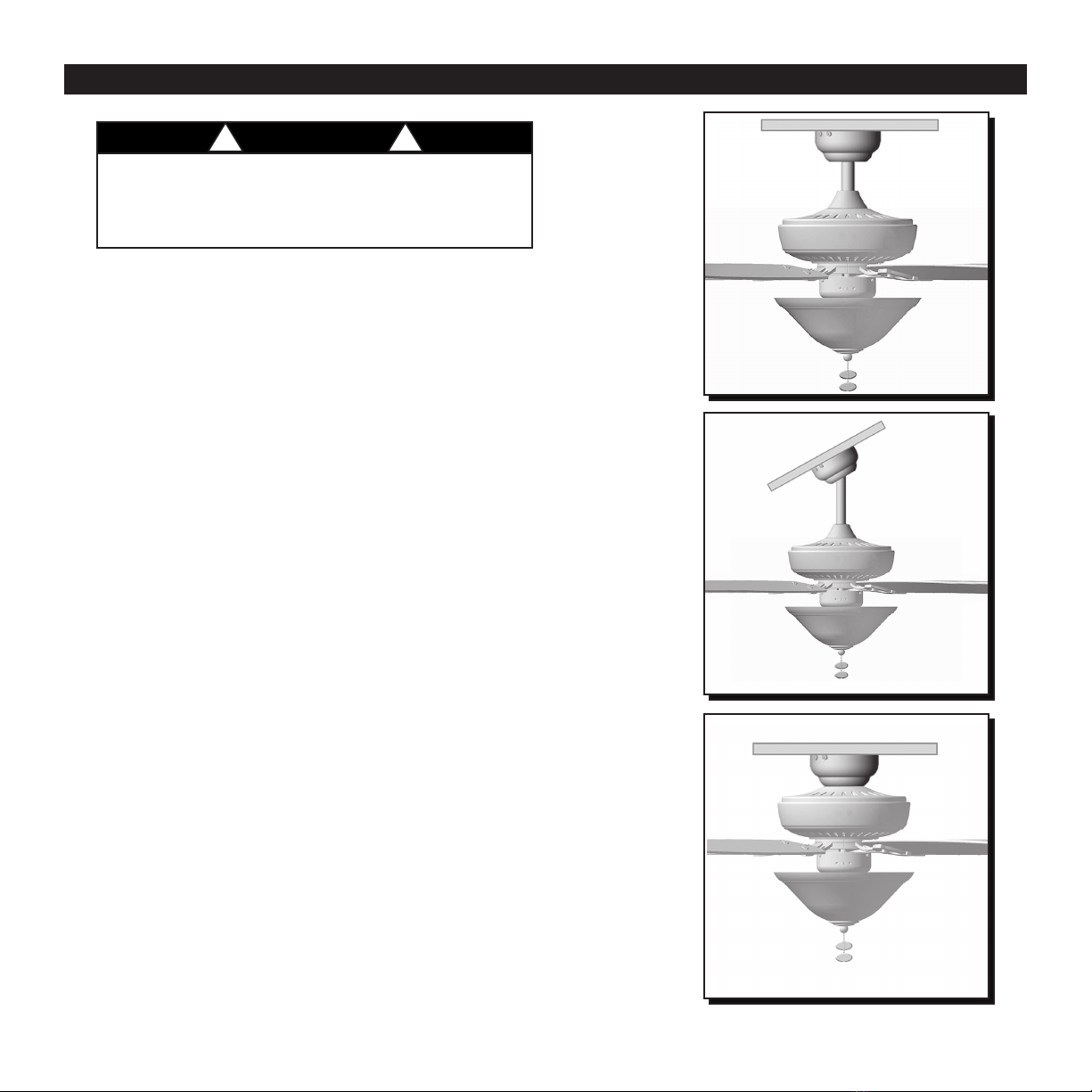

MOUNTING OPTIONS
DANGER
Turn off the circuit breakers and the wall switch to
the fan supply line leads. Failure to disconnect
the power supply prior to installation may result in
serious injury or death.
1. Your fan has 3 mounting options:
• Standard (Fig. 1)
• Angled (Fig. 2)
• Closemount (Fig. 3)
Note: The fans in gures 1 through 3 are not the actual
fan in your package, they are representation of the
3 different mounting options.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 10°.
Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. or higher. For taller ceilings you may
want to use a longer downrod (sold separately).
Angled mounting is best suited for angled or
vaulted ceilings. A longer downrod is sometimes
necessary to ensure proper blade clearance.
Closemount-style mounting is more suitable for
ceilings lower than 8 ft. (2,44 m) high.
2. Ensure that the blades of the fan are 30 in. (76 cm)
from any obstruction.
3. Check the downrod length to ensure the blades will
be at least 7 ft. (2,14 m) above your oor.
Fig. 1
Fig. 2
Fig. 3
! !

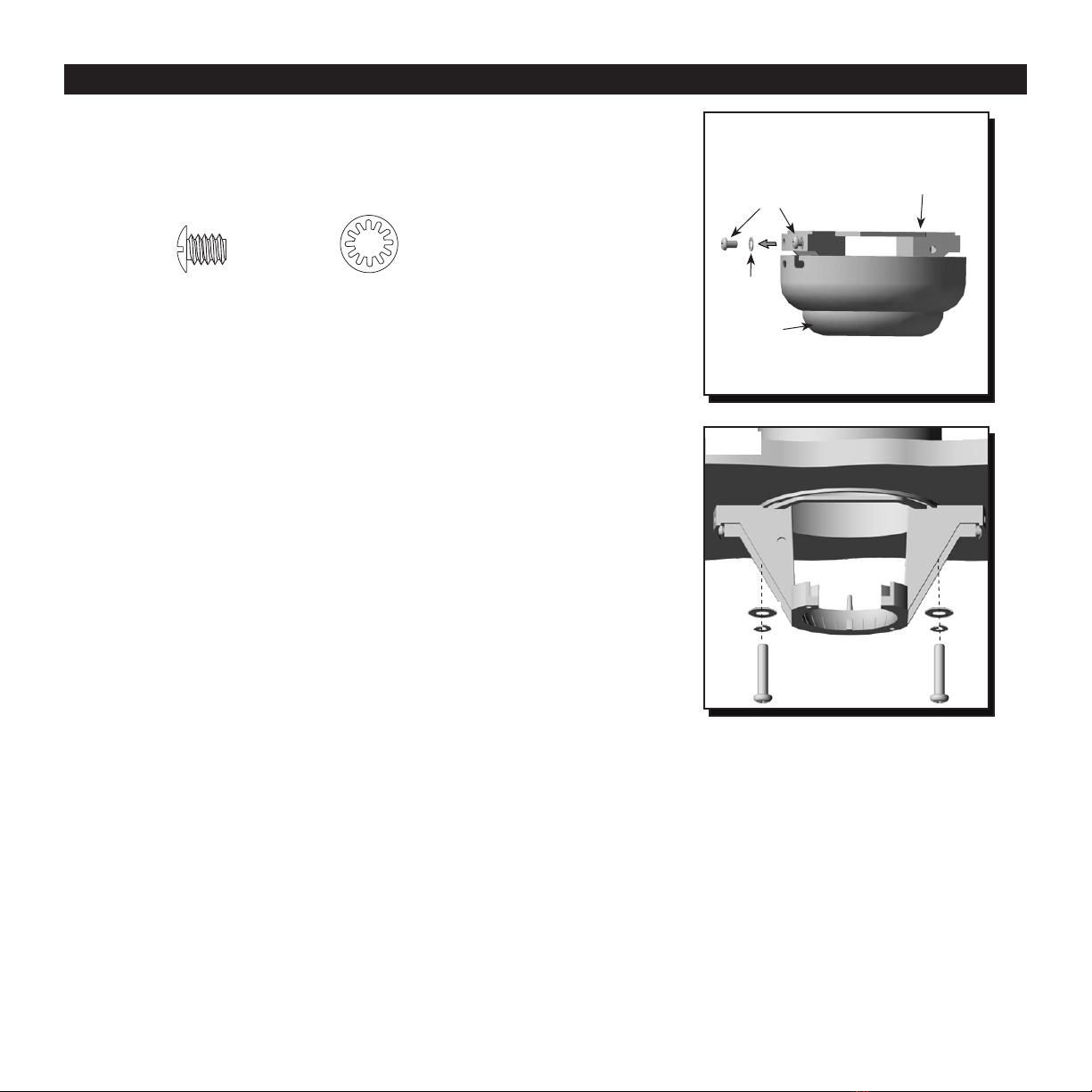

4. Remove the two mounting bracket screws and
washers from the round holes in the canopy and
loosen the other two screws. Set aside for later
use. Detach mounting bracket from canopy (Fig. 4).
5. Secure the mounting bracket to the outlet box using
screws and washers provided with the outlet box
(not included) (Fig. 5).
Note: It is very important that you use proper hardware
when installing the mounting bracket as it supports
the fan.
Important: If using the angle mount, ensure that the
open end of the mounting bracket is installed facing
the peak of the ceiling.
Fig. 4
Fig. 5
Mounting
Bracket
Screws
Mounting
Bracket
Canopy
Washer
6
MOUNTING BRACKET INSTALLATION
Mounting Bracket
Screw
Washer
Set Screw
7
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

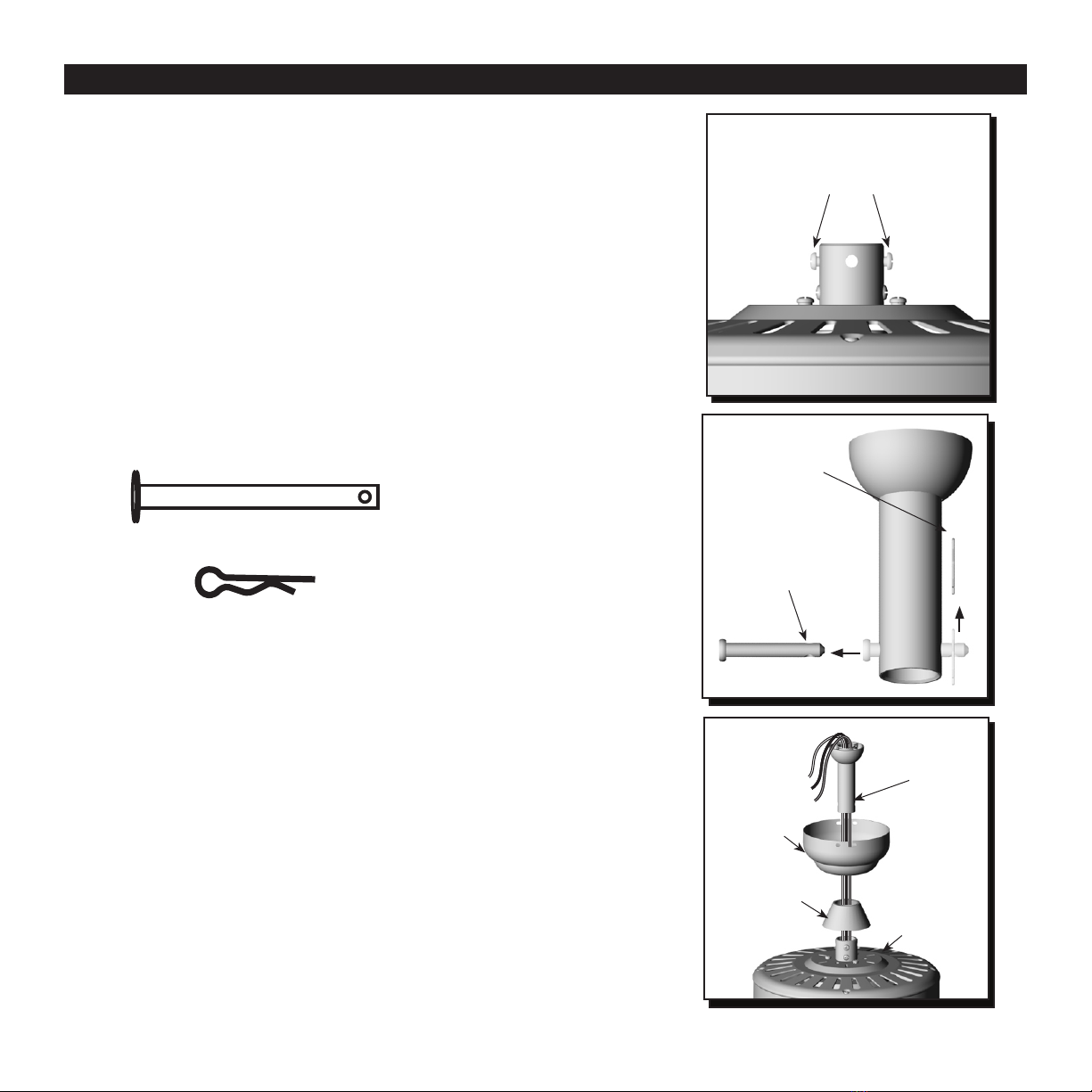

7. Remove the downrod pin and downrod clip from
the downrod (Fig. 7).
Downrod
Clip
Downrod
Pin
Fig. 7
Fig. 6
Fig. 8
Downrod
Canopy
Yoke
Cover
Motor
Assembly
Downrod Pin
Downrod Clip
8. Thread the wires from the motor assembly through
the yoke cover, canopy and out the top of the
downrod (Fig. 8).
6. Partially loosen the motor housing set screws in the
yoke at the top of the motor housing (Fig. 6).
Fig. 10
Cut Wires
Downrod
Downrod
Pin
Set Screw
Downrod
Clip
Fig. 9
8
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

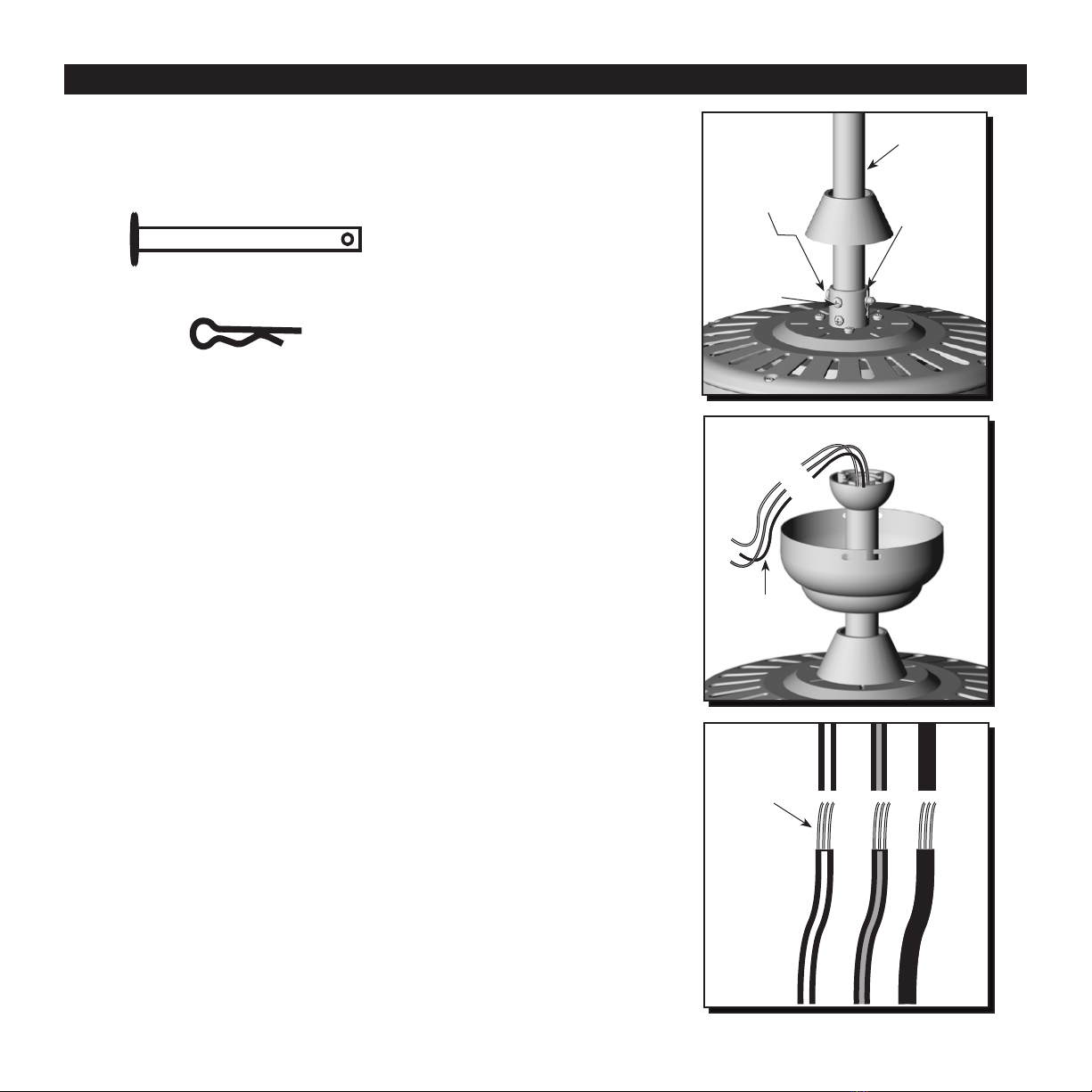

9. Slide the downrod into the yoke of the motor
assembly, align the holes, and re-install the
downrod pin and downrod clip. Then re-tighten the
set screws (Fig. 9).
10. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires,
it is suggested that you do so in the following
manner: Take the lead wires and make sure that
you have pulled them all the way through the top
of the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included) (Fig. 10).
11. If you cut back the lead wire in Step 10, strip 1/2
in. of insulation from the end of each wire. Twist
the stripped ends of each strand of wire within the
insulation with pliers (not included) (Fig. 11).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to
Step 12 instead.
Fig. 11
Stripped
Wires
Downrod Pin
Downrod Clip
9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS

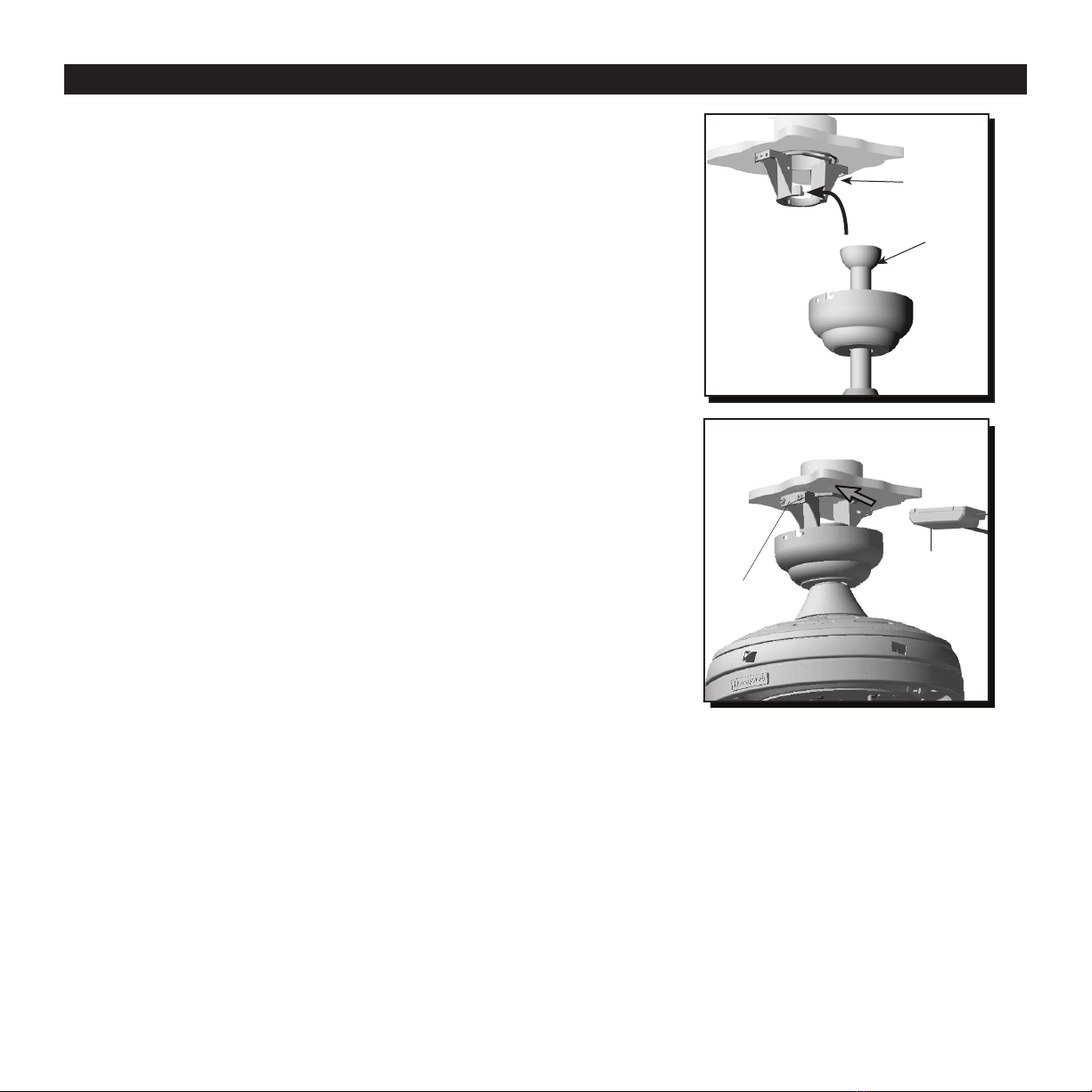

12. Install the ball end of the downrod into the
mounting bracket opening. Align the slot in the
ball with the tab in the mounting bracket. The rod
should not rotate if installed correctly (Fig. 12).
13. Insert the receiver into the mounting bracket with
the at side toward the ceiling (Fig. 13).
Mounting
Bracket
Downrod
Ball
Fig. 12
Mounting
Bracket
Receiver
Fig. 13
Closemount
Screws
Spring
Washer
Fig. 15
10
CLOSEMOUNT INSTRUCTIONS

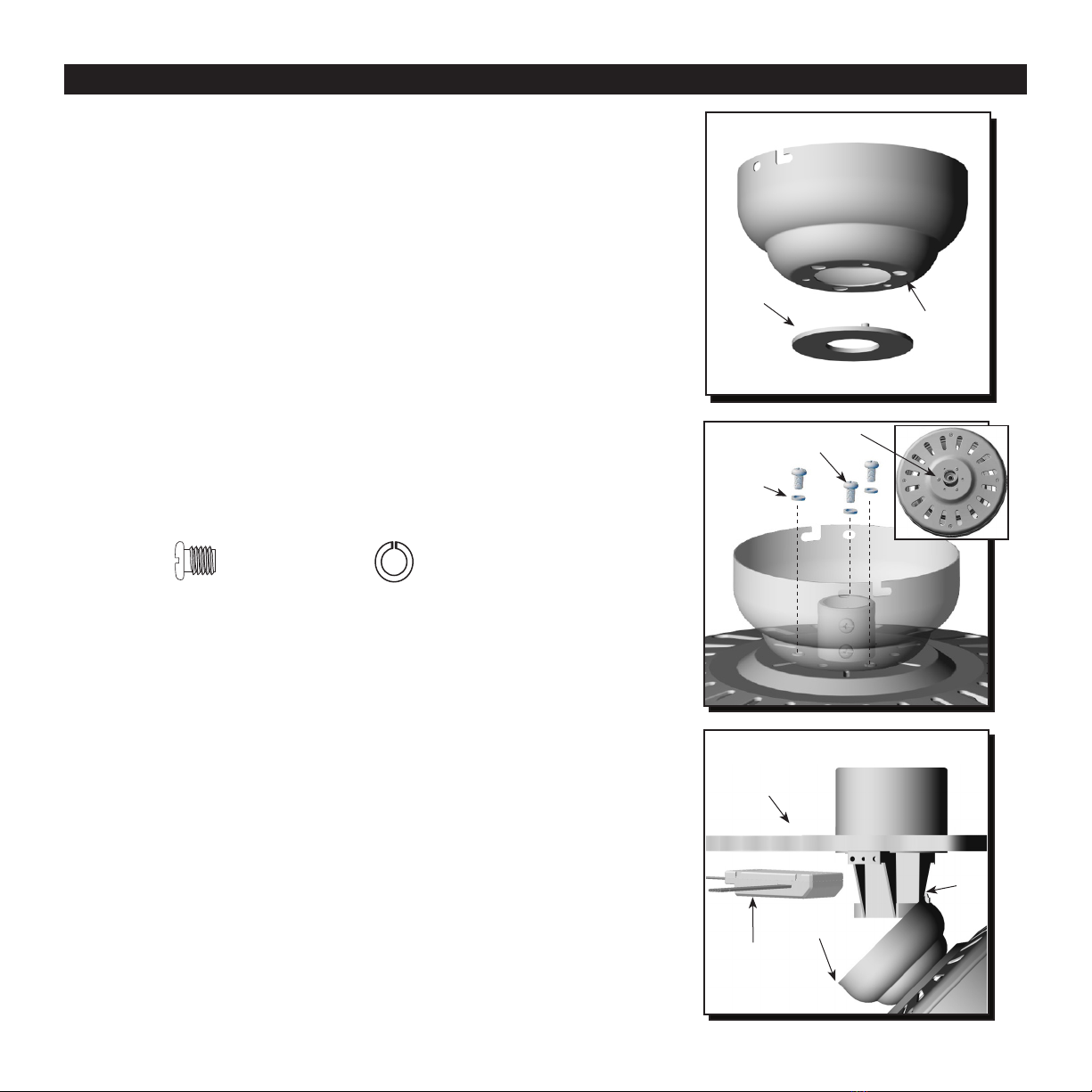

16. Raise the fan and place the canopy on the
mounting bracket hook for wiring. Insert the
receiver into the mounting bracket with the at side
facing the ceiling (Fig. 16).
Canopy
Canopy
Receiver
Hook
Canopy
Cover
Fig. 14
Fig. 16
14. Remove the canopy cover from the bottom of the
canopy (Fig. 14).
Helpful Hint: Closemount mounting is more suitable
for ceilings lower than 8 ft. (2,44 m) high. The
downrod, hanging ball, and canopy cover are not
used in this type of installation.
Closemount Screw Spring Washer
15. Align the canopy with the closemount screw
holes in the top of the motor assembly. Secure
the canopy to the top of the motor assembly by
installing three closemount screws and spring
washers into the top of the motor housing (Fig. 15).
Ceiling
This manual suits for next models
1
Table of contents
Other Honeywell Fan manuals
Honeywell
Honeywell 40011 User manual
Honeywell
Honeywell TOUCHDOWN User manual
Honeywell
Honeywell HT-800 Series User manual
Honeywell
Honeywell TURBO FORCE HT-906 Series User manual
Honeywell
Honeywell LMB HYPER 120-03 Setup guide
Honeywell
Honeywell HTF090B User manual
Honeywell
Honeywell HO-1100RE User manual
Honeywell
Honeywell Myers Park 51861 User manual
Honeywell
Honeywell ST9103A User manual
Honeywell
Honeywell HSF1630E User manual
Honeywell
Honeywell HYF260W Series User manual
Honeywell
Honeywell HT-112E User manual
Honeywell
Honeywell HF71X Series User manual
Honeywell
Honeywell TURBO FORCE HT-910 Series User manual
Honeywell
Honeywell Graceshire 51859 User manual
Honeywell
Honeywell PERFECT WINDOW HR150 User manual
Honeywell
Honeywell HTF090 Series User manual
Honeywell
Honeywell DREAMWEAVER User manual
Honeywell
Honeywell HY254E User manual
Honeywell
Honeywell L4064A-F User manual
Popular Fan manuals by other brands
ELTA FANS
ELTA FANS H03VV-F installation guide
Hunter
Hunter 20714 Owner's guide and installation manual
Emerson
Emerson CARRERA VERANDA CF542ORB00 owner's manual
Hunter
Hunter Caraway Owner's guide and installation manual
Panasonic
Panasonic FV-15NLFS1 Service manual
Kompernass
Kompernass KH 1150 operating instructions
