HR150 and HR200

Perfect Window™ Fresh Air

Ventilation Systems

OWNER’S MANUAL

M11706

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

69-0994—4 2

TABLE OF CONTENTS

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Feeling right at home . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

What your Perfect Window™ Fresh Air Ventilation System consists of . . . . . . . . . . .4

Operating your Fresh Air Ventilation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Getting the most from your Fresh Air Ventilation System. . . . . . . . . . . . . . . . . . . . . .7

Maintenance of your Fresh Air Ventilation System. . . . . . . . . . . . . . . . . . . . . . . . . . .8

Perfect Climate® Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

3 69-0994—4

Introduction

We take it for granted that our homes will protect us from the elements, but because of

tighter, better quality home construction, our indoor environment may be exposing us

to unacceptable levels of the very things we are trying to escape. Excessive heat,

dryness, humidity, toxic gases and dust contaminants can be sealed in securely by

weatherproofing.

So what’s the forecast for indoors?

Today’s indoor forecast is stormy weather for many homeowners. But rapid clearing

and fresh breezes are just around the corner!

Feeling right at home

Unlike what the outdoors brings us, you can have control of indoor conditions.

Temperature, humidity levels and air quality can all affect physical health, mental

attitude, general comfort and energy savings. With today’s technological advances,

you can achieve a “Perfect Climate” indoors.

After all, people look to their homes as a place to escape the stress of work, a busy

lifestyle and an increasingly polluted outdoor environment. Creating a perfect indoor

climate is becoming critical to feeling right at home.

The Honeywell Perfect Window™ Fresh Air Ventilation System removes stale,

unhealthy air and replaces it with a stream of fresh air. Its powerful centrifugal blowers

bring fresh air into your home and at the same time, exhaust stale humid air in an

equal amount. Both incoming and outgoing airstreams pass through a heat exchange

core where the energy from the exhaust air is efficiently transferred to the incoming

fresh air. An air duct system supplies the fresh air brought in by the Perfect Window™

ventilator and distributes it throughout your home. Another duct draws the existing

stale, humid air back to the Perfect Window™ ventilator and then exhausts it outdoors.

It’s really very simple ... and remarkably effective!

What your Perfect Window™ Fresh Air Ventilation System

consists of ...

1. Air Circulation Pan and Motor

Inside the casing are two fans, one for exhaust and one for fresh air supply. The

electric motor that operates the fan is 1/15 hp to 1/20 hp (depending on the ven-

tilator model) and uses the same amount of power as a 100 watt lightbulb.

2. Air Filters

There are two permanent washable air filters in your ventilator. The filters lower

the amount of dust and outside particulates entering the ventilator core and your

fresh air supply.

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

69-0994—4 4

3. Condensate Tray and Drain

Condensation normally forms on the heat exchange core during the cold

weather (below 29°F or -2°C). Moisture can build up when the warm air from

your home comes in contact with the cold air from outside. The tray collects the

moisture and funnels it to the drain. The drain pans are made of therrnoformed

plastic for easy cleaning.

4. Defrost Mechanism

The built-in defrost mechanism will remove frost which can accumulate in colder

weather (21°F [-6°C] and colder). The type of defrost mechanism used is known

as “damper style”. This consists of an electronically controlled damper door

(attached to a small electric motor) that moves to block off the outside cold air

entering the ventilator. If the outside temperature drops below 27°F (-3°C), the

defrost timer is activated. The timer activates the motor driven damper door

mechanism which temporarily moves to close off the outdoor air supply and

opens another port on the ventilator that allows warm indoor air to enter the core

to help the defrost. Approximately three minutes after the defrost cycle is acti-

vated, the timer will signal the damper to return to its original position for a

2.7 minute period. The defrost cycle will repeat until the outside temperature

rises above 27°F (-3°C).

5. Thermally Conductive Core

The cross flow heat recovery core transfers heat between the two airstreams.

The core removes easily for cleaning or service.

6. Controls - Speed Control

Easy operation, simply rotate the Perfect Window™ ventilator fan speed control

to your desired setting.

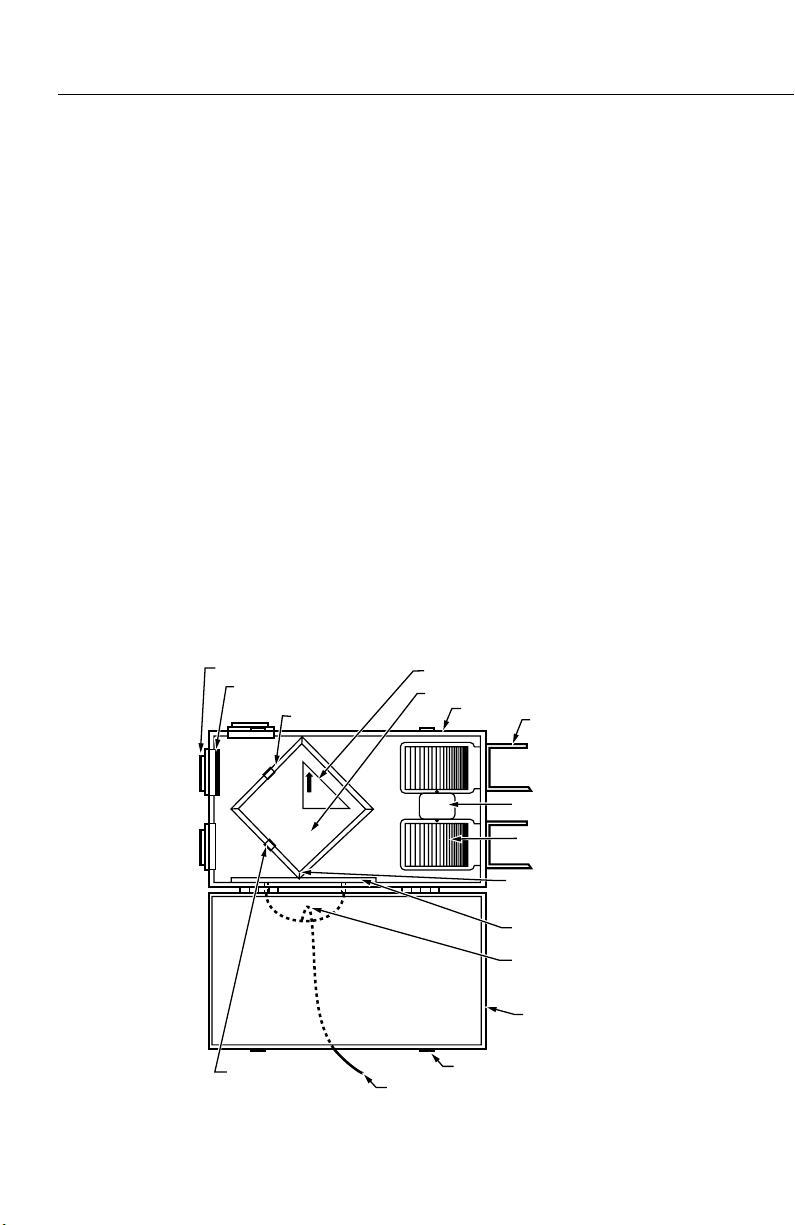

DAMPER DEFROST

(MOTOR AND DOOR)

CORE INSTRUCTIONS

CABINET

DEFROST PORT (NON-DUCTED)

FILTER CLIPS (2)

HEAT EXCHANGE CORE

FILTERS (2)

H CHANNEL

(CORE GUIDE) (4)

DRAIN P TRAP

DUCTING

(4 PORTS)

SQUIRREL

CAGE FAN

MAIN MOTOR

DRAIN PANS

DRAIN LINE

DOOR KEEPER PLATE (2)

INSULATED

ACCESS DOOR

M11705A

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

5 69-0994—4

Operating your Fresh Air Ventilation System

Changing Fan Speed

The control fan speed is conveniently located on the ventilator. The rotary fan speed

control knob can be manually set from the off (standby) position through speeds 1 to 4.

Note the fifth speed (high) is accessible only by a remote control.

Off/standby mode may be used if intermittent ventilation is desired. In the off/standby

position, the ventilator will not function until energized by a remote control, see

information below.

It is up to the individual homeowner to set their system to a speed which they find

comfortable. If you feel your house is stuffy or there is an above average occupancy

rate, you may need to increase your ventilation. In most applications a low to medium

speed setting is comfortable.

Connecting a Remote Device

Your ventilator comes equipped with a low voltage terminal strip for connection to

several optional control devices.

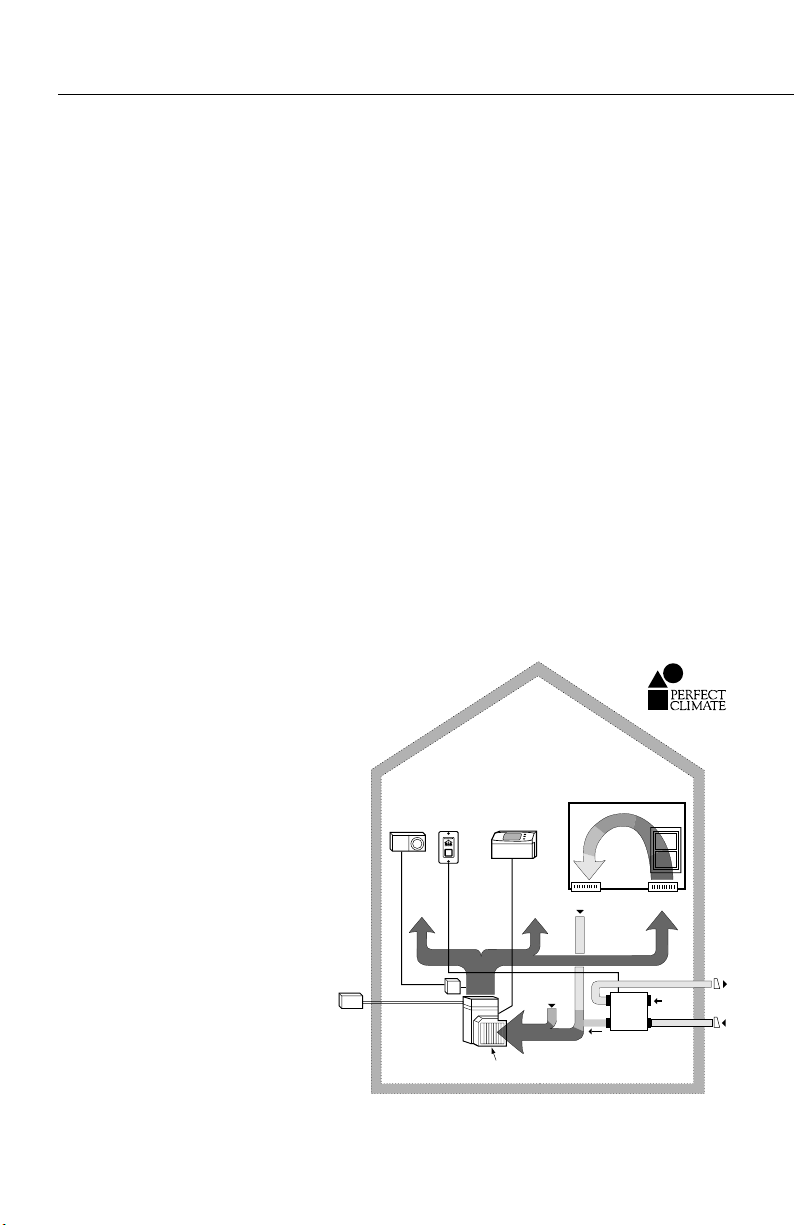

PERFECT CLIMATE COMFORT CENTER™ CONTROL

The Honeywell Perfect Climate Comfort Center™ unit controls your ventilator

automatically by using the programmed times or manually by pressing the Ventilate

key. See the Perfect Climate Comfort Center™ users guide (form 69-0891) for

complete instructions.

POWER CORD

4-SPEED CONTROL

WITH STANDBY POSITION

RECOMMENDED

MAINTENANCE

M11704A

PRODUCT

IDENTIFICATION LABEL*

*NOTE: THIS INFORMATION IS VERY IMPORTANT WHEN MAKING

INQUIRIES ABOUT YOUR ERV.

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

69-0994—4 6

EXTERNAL REMOTE WALL CONTROL (DEHUMIDISTAT)

The dehumidistat (connected to your ventilator) is designed to control the operation of

the ventilator fan to help keep the humidity level in your home comfortable. If an

independent humidifier is installed and set at 30% (a normal indoor winter level) then

the dehumidistat (for the ventilator) should be set at least 10% higher, in this case

40%. With the ventilator operating on low speed and no one is home to produce

humidity, the humidifier will keep the humidity level to its setpoint. If the humidity levels

rise (due to occupant activity) above the 40% level, then the dehumidistat will

automatically increase the speed of the ventilator fan to high until the humidity level

falls below 40%.

TIMER

For your convenience, Honeywell provides a timer control that can fit a wide variety of

needs, for example, exhaust humid air from the bathroom or kitchen (see the

installation guide for selection and part numbers).

WALL SWITCH

A wall switch can also be used to switch your ventilator fan speed to high. The fan will

run at high speed until the wall switch is turned off.

When any remote device is activated the ventilator will run at high speed. All remote

devices must be in the off position to return the fan to the speed manually selected on

the rotary fan speed control knob.

Getting the most from your Fresh Air Ventilation System

HOW MUCH VENTILATION DO I NEED?

During the seasons that your windows and doors are closed (winter and summer if you

have air conditioning), the ventilator should operate continuously when the home is

occupied, and either continuously or intermittently when not occupied.

For most installations, the ventilator will normally be set to operate continuously on low

speed with the option of going to high speed as the need arises. For example, if you

are entertaining and there is a large number of people present (some may be

smoking), the ventilator should be switched to high speed.

YOUR VENTILATOR MAY BE SET TO HIGH SPEED BY:

1. selecting the highest speed on the ventilator or

2. if the system includes an optional remote control, switch it to the ON position.

NOTE: To set the dehumidistat, refer to the previous section of this booklet. To oper-

ate other remote devices, refer to the device owner’s manual.

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

7 69-0994—4

Maintenance Instructions for your Fresh Air Ventilation System

WARNING

Electrical Shock Hazard.

Can cause personal injury or equipment damage.

Disconnect power supply before performing maintenance.

The Perfect Window™ Fresh Air Ventilation System must be maintained on a regular

basis for best efficiency. Honeywell recommends that the ventilator be cleaned and

checked at least twice a year, preferably at the beginning of each heating and cooling

season.

Check and Clean

EXTERIOR HOODS

Exterior hoods should be inspected at least once a month. Be sure exhaust and fresh

air supply hoods are not blocked up or restricted by leaves, grass or snow. In winter, it

is especially important to make sure snow is not blocking the hoods or that frost has

not built up on the wire mesh (bird screen).

WARNING

Can cause personal injury or equipment damage.

Hood blockage can cause a change of pressure in building which can lead to

possible spillage from combustible appliances.

AIR FILTERS

Air filters should be cleaned twice a year. The standard filters supplied with your

ventilator are removable and washable.

1. Open access door and slide out core. Refer to Core Maintenance section for

cleaning instructions.

2. Remove filter clip.

3. Remove filters from the core and rinse with water or a combination of soap and

water. Do not clean in a dishwasher.

4. After cleaning, place filters (wet or dry) back in their position and reattach the

retaining clip.

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

69-0994—4 8

CORE

Clean the core twice each year.

1. Open the access door and carefully grip the ends of the core and pull evenly out-

ward. The core can be snug, but it will slide out of the cabinet.

NOTE: Do not handle the fins because damage can occur.

2. Once out of the cabinet, remove the filters (refer to Air Filter Maintenance sec-

tion).

3. Wash the core in warm soapy water—do not use a dishwasher.

4. Reinstall the clean filters.

5. Reinstall the clean core.

NOTE: Do not detach the foam on the ends of the core or the core label, water does

not damage them.

To install the clean core:

1. First mount the bottom core guide into the bottom H channel.

2. Mount either side core guide, followed by the other side.

3. Mount the top core guide into the top H channel.

4. With all four comers in place and the core straight and even, push on the core

center until the core slides to the back of the cabinet.

NOTE: The core will appear to stick out from the cabinet approximately 1/8 in.

(3mm). It is designed this way, so that the access door will fit tightly against

the core.

MANUAL CONTROL MODEL

FILTER

FILTER CLIP

CORE GUIDE

M11702A

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

9 69-0994—4

DRAIN LINE

Clean the drain line once a year.

1. Inspect the drain line, drain spout and P trap for blockage, mold or kinks.

2. Flush with warm soapy water and replace if worn or bent, or if it can not be

cleaned.

GENERAL MAINTENANCE

Twice a year wipe down the inside of the cabinet with a damp cloth to remove dirt,

bugs and debris that can be present.

FANS

If the fans accumulate dirt, it could cause an imbalance and excessive vibration of the

ventilator. A reduction in air flow can also occur. In a newly constructed house, this

often happens within the first year due to heavy dust residue in the entire system. It

can also occur periodically depending on the outdoor conditions. If you suspect that

service is required, please contact the ventilator installer or your local HVAC

contractor.

HR150 AND HR200 Perfect Window™ FRESH AIR VENTILATION SYSTEMS

69-0994—4 10

Perfect Climate® Control

Describing Perfection

The most convenient, most energy efficient, cleanest, healthiest and most comfortable

indoor environment, possible today! Perfect climate is achieved when the six core

components of your homes climate system work together:

• optimal efficiency of heating and cooling equipment

• precise, programmable temperature control

• effective indoor air quality control

• controlled humidity

• proper ventilation and air distribution

• zone control for personalized room-to-room temperature control.

Products for a Perfect Climate® Home

HEATING AND COOLING SYSTEM

This is the workhorse of your indoor climate system. Have your local heating/cooling

contractor tune up your system annually for comfort, safety and most economical

operation. If your heating equipment is old, think about replacing it with a modern and

improved unit. Recent advances in product technology have substantially increased

efficiency of equipment. Improved performance often pays back much of the cost of

installation within a few short years.

• Honeywell Perfect Window™

Fresh Air Ventilation System.

• Honeywell Perfect Climate

Comfort Center™ control or

Chronotherm® IV

programmable thermostat.

• Honeywell F35 media air

cleaner or F50 electronic air

cleaner.

• Honeywell humidistat and

humidifier.

• Honeywell digital electronic

timer. CONDITIONED

AIR CONDITIONED

AIR

RETURN AIR

STALE AIR

EXHAUST

FRESH AIR

INTAKE

PERFICT

WINDOW™

FRESH AIR

VENTILATION

SYSTEM

HONEYWELL

ELECTRONIC AIR CLEANER

OPTIMAL

EFFICIENCY

FORCED AIR

FURNACE

FRESH

AIR TO

HOME

HUMIDIFIER

OPTIMAL

EFFICIENCY AIR

CONDITIONER

OR HEAT PUMP

THE

HONEYWELL

PERFECT WINDOW™

FRESH AIR VENTILATION SYSTEM

IS ONE PART OF A PERFECT CLIMATE®

INDOOR ENVIRONMENT THAT PROVIDES TOTAL

INDOOR COMFORT. IT MAKES YOU FEEL BETTER, AND

ALLOWS YOU TO LIVE AND WORK IN A MORE

COMFORTABLE ENVIRONMENT.

COLD AIR

RETURN STALE

AIR FROM

BATHS

M11703

How it works...

HONEYWELL

HUMIDISTAT

DIGITAL

ELECTRONIC

TIMER

HONEYWELL

CHRONOTHERM®lV

PROGRAMMABLE

THERMOSTAT

FANTIMER

20 40 60

Other manuals for PERFECT WINDOW HR150

This manual suits for next models

Table of contents

Other Honeywell Fan manuals

Honeywell

Honeywell L4064A-F User manual

Honeywell

Honeywell HY-023 Series User manual

Honeywell

Honeywell HT-908 Series TECH FORCE User manual

Honeywell

Honeywell 51851 User manual

Honeywell

Honeywell HT-109E User manual

Honeywell

Honeywell HF71X Series User manual

Honeywell

Honeywell TOUCHDOWN User manual

Honeywell

Honeywell HFT-114B Series User manual

Honeywell

Honeywell HT-380 Series User manual

Honeywell

Honeywell 527HHON001BLK User manual

Honeywell

Honeywell QUIETSET HS1655 Series User manual

Honeywell

Honeywell HYF290E User manual

Honeywell

Honeywell QUIETSET HY-254 Series User manual

Honeywell

Honeywell EA122A User manual

Honeywell

Honeywell HY-200 Series User manual

Honeywell

Honeywell HT-800 Series User manual

Honeywell

Honeywell HT-112E User manual

Honeywell

Honeywell Myers Park 51861 User manual

Honeywell

Honeywell HT-900 Series TURBO FORCE User manual

Honeywell

Honeywell HS-160R Series User manual

Honeywell

Honeywell HT900E User manual

Honeywell

Honeywell Turbo Force HYF550 Series User manual

Honeywell

Honeywell HT-800 Series User manual

Honeywell

Honeywell Kaliza User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
