Honeywell LCBS Connect User manual

INSTALLATION INSTRUCTIONS

31-00084-01

LCBS Connect Wall Module

PRODUCT DESCRIPTION

The LCBS Connect Wall Module is a Sylk bus

communicating device which is exclusively compatible

with the LCBS Connect controller. It contains integral

temperature and humidity sensors to control any given

space’s comfort. This device enables local controller

configuration through an easy-to-use touch screen

interface with menu driven selections. The wall module

communicates and is powered by the Sylk bus, so no

additional wiring is necessary.

Dimensions

The TS120 consists of a back plate and a front cover which

contains a circuit board.

Fig. 1. Dimensions in in. (mm).

INSTALLATION

1. Read these instructions carefully. Failure to follow

them could damage the product or cause a hazard-

ous condition.

2. Check ratings given in instructions and on the prod-

uct to ensure the product is suitable for the applica-

tion.

3. Installer must be a trained, experienced service tech-

nician.

4. After installation is complete, check out product

operation as provided in these instructions.

MOUNTING

Mount the wall module on an inside wall approximately 48

in (1.2m) from the floor (or in the specified location) to

allow for exposure to the average zone temperature. Do

not mount the device on an outside wall, on a wall

containing water pipes or near air ducts. Avoid locations

that are exposed to discharge air from registers or

radiation from appliances, lights or the sun.

M36282

4-49/64

(121)

3-5/16

(84)

53/64

(21)

LCBS CONNECT WALL MODULE

31-00084—01 2

Do not install the wall module where it can be affected by:

— drafts or dead spots behind doors and in corners.

— hot or cold air from ducts.

— radiant heat from sun or appliances.

— concealed pipes and chimneys.

— unheated (uncooled) areas such as an outside wall

behind the thermostat.

WHEN USED TO SENSE ROOM TEMPERATURE

Install the wall module about 4 ft. (1.2m) above the floor in

an area with good air circulation at average temperature.

(See Fig. 2.) Confirm mounting height meets Americans

with Disabilities Act requirements.

WHEN NOT USED TO SENSE ROOM TEMPERATURE

When using the remote-mounted temperature (and

humidity) sensor(s) to sense ambient conditions, install

the wall module in an area that is accessible for setting

and adjusting the temperature and settings.

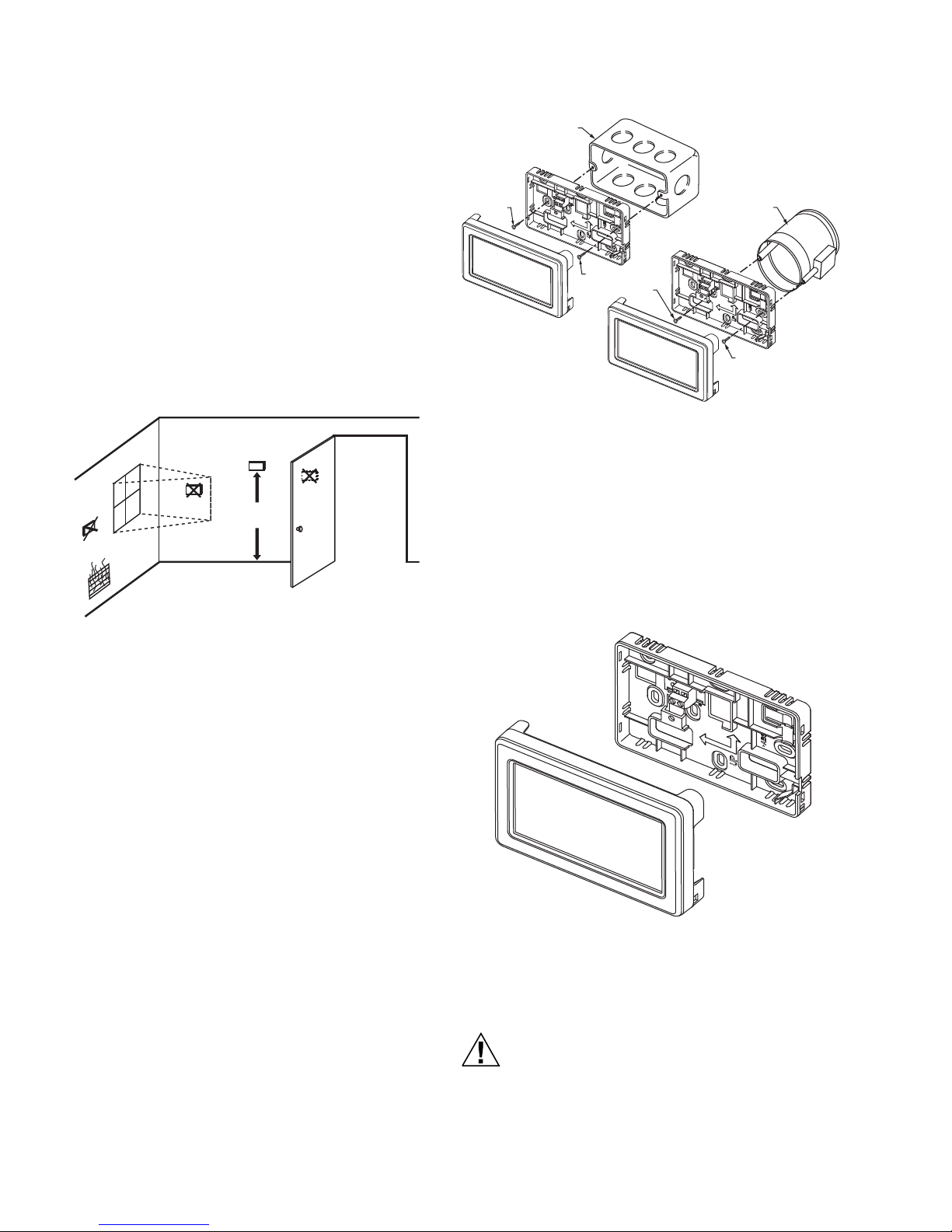

Fig. 2. Typical location of wall module

or remote-mounted sensor.

When mounting the wall module to the wall, note the

arrows indicating which direction is up, as indicated on

the inside of the back plate. The wall module can only be

mounted horizontally, so it is important to properly

identify a suitable mounting location.

The wall module can be mounted on a wall, on a standard

utility conduit box using No. 6 (3.5 mm) screws or on a 60

mm wall outlet box (see Fig. 3). When mounting directly on

a wall, use screws appropriate for the wall material. Use a

wall plate, 50028399-001, to cover any visible screw

holes.

Fig. 3. Mounting the wall module to electrical boxes.

WIRING

The wall module is shipped with the front cover and

subbase assembled together. These two parts need to be

separated (see Fig. 4) in order to properly wire the device.

There are no field adjustable/replaceable components

inside the module.

Fig. 4. Separate the front cover from the subbase.

IMPORTANT

All wiring must comply with local electrical codes

and ordinances or as specified on wiring diagrams.

CAUTION

Improper Electrical Contact Hazard

Screw-type terminal blocks are designed to accept

no more than one 14AWG (2.5mm sq) conductor.

4 FEET

(1.2 METERS)

YES

M36229

M36283

SCREW

STANDARD UTILITY

CONDUIT BOX

SCREW

WALL

OUTLET BOX

SCREW

M36296

LCBS CONNECT WALL MODULE

331-00084—01

Wire the terminal block as shown in Fig. 5:

1. For single wires, strip 3/16 in. (5 mm); for multiple

wires going into one terminal, strip 1/2 in. (13 mm)

insulation from the conductor.

2. Insert the wire in the required terminal location and

tighten the screw to complete the termination.

3. Review and verify the terminal connection wiring

illustrated in Fig. 5.

Fig. 5. Connecting wires to the terminal block.

4. See Fig. 6 for wiring multiple Sylk devices.

Fig. 6. Options for wiring multiple Sylk devices.

5. When wiring is complete, align the pins from the

front cover to the terminal block on the subbase.

6. Firmly push the front cover onto the subbase. If the

wall module is powered, a loading screen will be dis-

played.

Sylk Bus

The wall module communicates with the LCBS Connect

controller via Sylk, which is a two-wire, polarity-insensitive

bus that provides both 18 Vdc power and

communications. This enables a faster and cheaper

installation all while minimizing errors. The recommended

wire for Sylk is 18-24 AWG (0.82 to 0.20 sq mm) single

twisted pair, solid or stranded wire, unshielded for a

maximum distance from the controller of 200ft (60m).

Standard thermostat wire (non-twisted pair) can be used

for runs up to 100ft (30m). See Table 1.

The wall module is intended to always communicate using

Sylk address 1 and is shipped from the factory with this

address configured. Other Sylk sensors are compatible

with the LCBS Connect controller and wall module but

limitations must be observed. Up to FOUR additional Sylk

sensors can be used unless a TR40-H, TR40-CO2 or TR40-

H-CO2 is used. Then the allowed additional sensors drops

to THREE. See Table 2 for a listing of the compatible Sylk

sensors.

Compatibility

The LCBS wall module has been designed specifically for

the LCBS controller. They are a one-to-one pair and

adding an additional LCBS wall module will result in a loss

of operation. Connecting an LCBS wall module to another

Honeywell controller will also result in the loss of

operation for the wall module.

M36289

TO CONTROLLER

TWO WIRES INTO ONE TERMINAL

DAISY-CHAINING MULTIPLE

SYLK DEVICES

HOME RUNNING MULTIPLE

SYLK DEVICES

TO CONTROLLER

TO SYLK DEVICE

1/2

(13)

STRIP 1/2 IN.

(13MM) FROM

WIRES TO BE

ATTACHED AT

ONE TERMINAL.

2. TWIST WIRES

TOGETHER

WITH PLIERS

(A MINIMUM OF

THREE TURNS).

3. CUT TWISTED END OF WIRES TO

3/16 IN. (5 MM) BEFORE INSERTING

INTO TERMINAL AND TIGHTENING

SCREW. THEN PULL ON EACH WIRE

IN ALL TERMINALS TO CHECK FOR

GOOD MECHANICAL CONNECTION.

WALL MODULE

TERMINALS

M36315

Table 1. Maximun Distance.

Recommended maximum distance from

controller to any Sylk device

Single twisted pair, non-

shielded, stranded or solid

Standard thermostat wire,

(non-twisted), shielded or

non-shielded, stranded or

solid

18-22 AWG 24 AWG 18-24 AWG

500ft(150m) 400ft(120m) 100ft(30m)

LCBS CONNECT WALL MODULE

® U.S. Registered Trademark

31-00084—01 M.S. 01-17

Printed in United States

Home and Building Technologies

In the U.S.:

Honeywell

1985 Douglas Drive North

Golden Valley, MN 55422-3992

customer.honeywell.com

By using this Honeywell literature, you agree that Honeywell will have no liability for any damages arising out of your use or

modification to, the literature. You will defend and indemnify Honeywell, its affiliates and subsidiaries, from and against any

liability, cost, or damages, including attorneys’ fees, arising out of, or resulting from, any modification to the literature by you.

SPECIFICATIONS

Operating Temperature: 32°F to 122°F (0°C to 50°C)

Shipping Temperature: -4°F to 150°F (20°C to 65°C)

Relative Humidity: 5% to 95%, Non-condensing

Related Parts

Parts that are commonly used with the LCBS Connect

controller and wall module are shown in Table 2.

Approvals

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does

cause harmful interference to radio or television

reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and

receiver.

— Connect the equipment into an outlet on a circuit

different from that to which the receiver is connected.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1)

this device may not cause harmful interference, and (2)

this device must accept any interference received,

including interference that may cause undesired

operation.

This Class B digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe B est conforme à la

norme NMB-003 du Canada.

This device complies with Industry Canada license-

exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause

interference, and (2) this device must accept any

interference, including interference that may cause

undesired operation of the device.

Table 2. Compatible Sylk Sensors.

Sylk

Device Description

Sylk

Address(s)

YCRL6438SR1000 Controller and Wall

Module Pack

N/A

TR40 Sylk Wall Module with

Temperature Sensor

3, 4, 5, 6

TR40-H Sylk Wall Module with

Temperature & Humidity

Sensors

3 Only

TR40-CO2 Sylk Wall Module with

Temperature & CO2

Sensors

3 Only

TR40-H-CO2 Sylk Wall Module with

Temperature, Humidity

& CO2 Sensors

3 Only

C7400S1000 Sylk Enthalpy Sensor 8, 9

50028399-0001 Wall Plate N/A

Other manuals for LCBS Connect

Other Honeywell Control Unit manuals

Honeywell

Honeywell 026593.10 Instruction manual

Honeywell

Honeywell Fire-Lite Alarms CRF-300-6 User manual

Honeywell

Honeywell 2MLF-HO2A User manual

Honeywell

Honeywell VP525C User manual

Honeywell

Honeywell Silent knight 5895XL User manual

Honeywell

Honeywell AlarmNet 7845GSM User manual

Honeywell

Honeywell VR8215S User manual

Honeywell

Honeywell S8910U Original instructions

Honeywell

Honeywell RV281 User manual

Honeywell

Honeywell LC13-510 User manual

Honeywell

Honeywell SM152 Series User manual

Honeywell

Honeywell A4021 Series User manual

Honeywell

Honeywell NOTIFIER FTM-1 User manual

Honeywell

Honeywell M6410A Operation manual

Honeywell

Honeywell TS131 User manual

Honeywell

Honeywell BA295STN-11/2C User manual

Honeywell

Honeywell Velociti Series User manual

Honeywell

Honeywell VS8421 User manual

Honeywell

Honeywell VC7900 Series Operation manual

Honeywell

Honeywell THP9045 User manual

Honeywell

Honeywell krom schroder BCU 440 User manual

Honeywell

Honeywell RM7838A Manual

Honeywell

Honeywell SmartValve SV9520H User manual

Honeywell

Honeywell Silent Knight SK-Monitor User manual

Popular Control Unit manuals by other brands

Festo

Festo Compact Performance CP-FB6-E Brief description

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Quick installation guide

JS Automation

JS Automation MPC3034A user manual

JAUDT

JAUDT SW GII 6406 Series Translation of the original operating instructions

Spektrum

Spektrum Air Module System manual

BOC Edwards

BOC Edwards Q Series instruction manual

KHADAS

KHADAS BT Magic quick start

Etherma

Etherma eNEXHO-IL Assembly and operating instructions

PMFoundations

PMFoundations Attenuverter Assembly guide

GEA

GEA VARIVENT Operating instruction

Walther Systemtechnik

Walther Systemtechnik VMS-05 Assembly instructions

Altronix

Altronix LINQ8PD Installation and programming manual

Eaton

Eaton Powerware Series user guide

WAGO

WAGO 750-407/040-000 manual

Sony

Sony CCU-590 Operation manual

Graco

Graco 25D614 instructions

Task Force Tips

Task Force Tips YE-RF-900 Instructions for installation, safe operation and maintenance

Shini

Shini SPV-U Series manual
