Honeywell C7110C1001 User manual

® U.S. Registered Trademark MU1B-0504GE51 R1011A

D Montageanweisung

C7110C1001/D1009

Wall Modules

DK Installationsvejledning

ES Instrucciones de montaje

F Instructions d'installation

I Istruzioni di montaggio

N Installationsinstruktioner

NL Installatievoorschrift

P Instruções de montagem

S Installation instruktioner

FI Asennusohje

PL Instrukcja montażu

MOUNTING INSTRUCTIONS

A. CAUTION B. WIRING

WARNING

Risk of electric shock or equipment damage!

►Do not touch any live parts.

►Disconnect power supply before making connections.

►Do not reconnect power until installation is complete.

►Observe precautions for handling electrostatic sensitive

devices.

1.5 ... 0.34 mm2

(16 ... 22 AWG)

CONTROLLER

MAX. 305 m (1000 ft)

>30 m (100 ft)

C. REMOVING COVER D. INSTALLATION POSITION

LIFT

PRESS

~1.3 m

C7110C101/D1009 Wall Modules - MOUNTING INSTRUCTIONS

Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Rolle, Z.A. La Pièce 16, Switzerland by its Authorized Representative:

Automation and Control Solutions

Honeywell GmbH

Böblinger Strasse 17

71101 Schönaich / Germany

Phone: (49) 7031 637 - 01

Fax: (49) 7031 637 - 493

http://ecc.emea.honeywell.com

Subject to change without notice. Printed in Germany

MU1B-0504GE51 R1011A

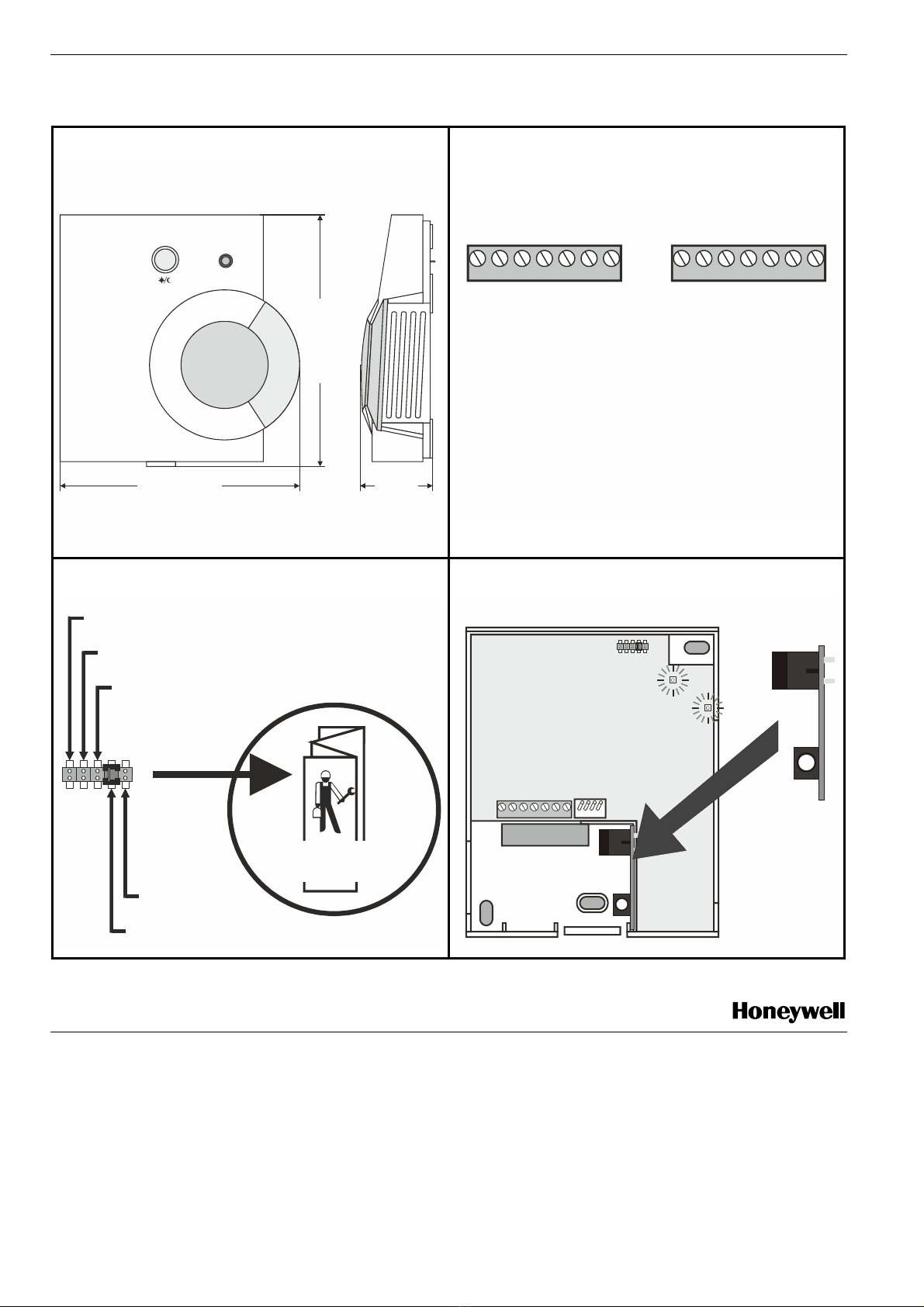

E. DIMENSIONS F. WIRING TERMINALS

4-1/8 (104)

3-15/16 (99) 1-3/16

(30)

1234

1234567

C7110C C7110D

COM

CO2 OUTPUT 0...10 V

24 VAC/DC

TEMP. OUTPUT 0...10 V

NTC 20kOhm

SETPT. 1...10kOhm

LED INPUT

OCCUPANCY

G. CONFIGURATION JUMPER H. T7460-LONJACK (OPTIONAL)

4: QUICK ABC CALIBRATION

3: BACKGROUND CALIBRATION

2: ZERO CALIBRATION

1: nc (FACTORY DEFAULT)

0: 0...3000 ppm

C7110C1001/D1009

WALL MODULES

SPECIFICATION DATA

(EN0B-0457GE51)

1234567

LonWorks

CONNECTION

TERMINALS

CONNECTION

HDI10

PLUG
