Home8Care IAP1301 User manual
Inactivity Alert Sensor User Guide
V1.0 2017
1
Table of Contents
Chapter 1. Introduction................................................................................. 2
1.1 System Requirement ...............................................................................................2
Chapter 2. Hardware Overview..................................................................... 3
Chapter 3. Sensor Installation & Add/Remove Sensor into System.......... 5
3.1 Sensor installation....................................................................................................5
3.2 Adding the Sensor to the System.............................................................................5
3.3 Positioning & Installing Sensor.................................................................................9
3.4 Remove Sensor from System ..................................................................................9
3.5 Rename Sensor from System ................................................................................ 11
Chapter 4. Sensor Operation...................................................................... 13
4.1 Sensor operation modes, and way to judge valid motion.......................................13
4.2 Inactive Period, and no activity alert ......................................................................14
4.3 Low battery alert ....................................................................................................15
4.4 Device detachment detection.................................................................................15
Appendix –Glossary of Terms................................................................... 17
Inactivity Alert Sensor User Guide
V1.0 2017
2
Chapter 1. Introduction
This Motion Sensor is designed to be used for indoor inactivity detection. When mounted properly, It can
monitor large and open areas of your home like the main entrance, living room, and family room. When the
system does not detect motion for a time period that surpasses the preset inactivity threshold time that you
designate in the Home8 app, the app will automatically send out inactivity alerts.
Key features and specifications:
RF Center Frequency: 433.92MHz
Operating Range: Up to 100 feet (line of sight)
Operating Temperature : 5°F to 104°F (-15°C to 40°C)
Battery: Panasonic CR123A non-rechargeable battery
Inactivate period: 1~24hrs, 1 hour per step
“Away”mode available to disable sensor
1.1 System Requirement
This section explains the system requirement.
Network: Proprietary 433MHz RF protocol, must co-work with Mivatek’s OPU2/OPU3 shuttle
Inactivity Alert Sensor User Guide
V1.0 2017
3

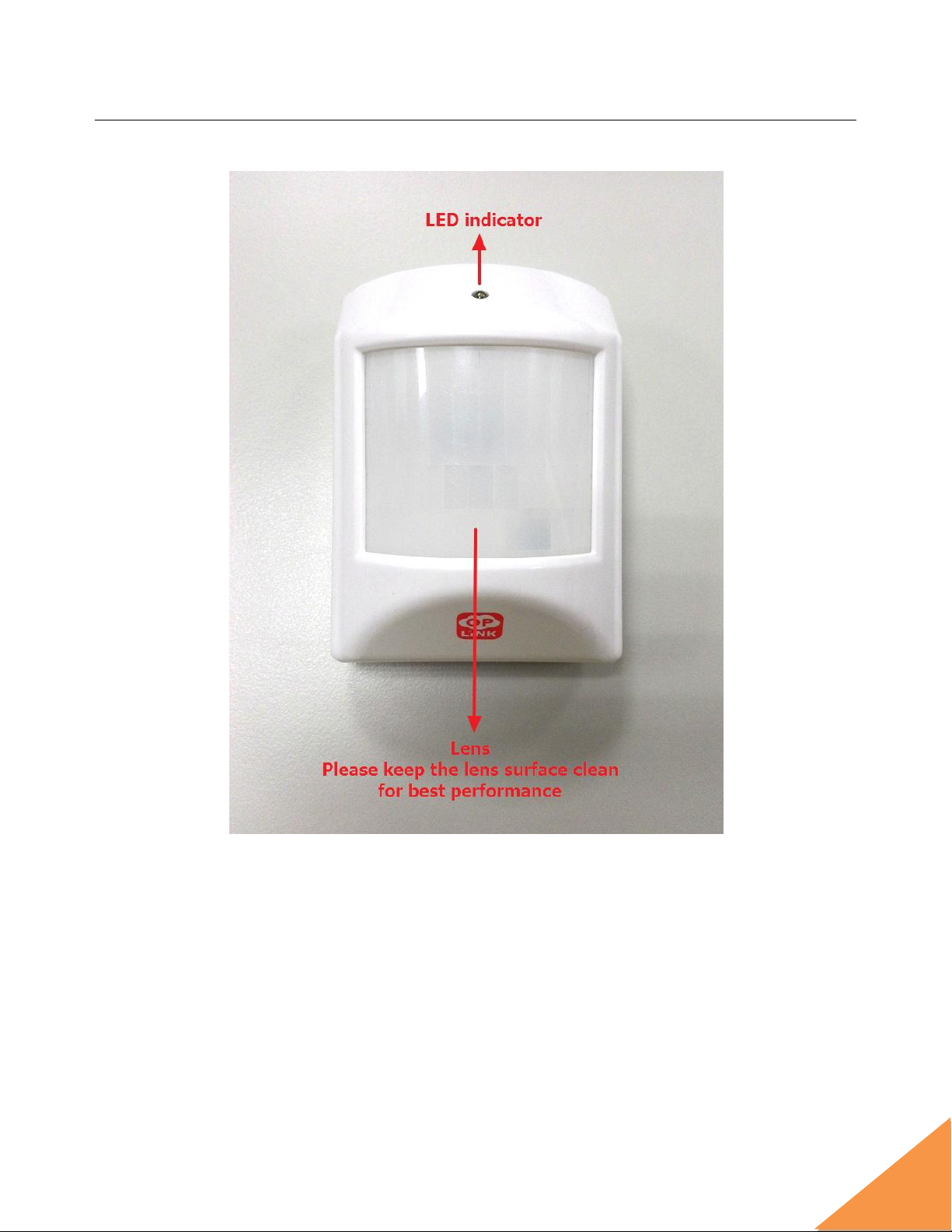

Chapter 2. Hardware Overview
This section provides an overview of the inactivity sensor.
Inactivity Alert Sensor User Guide
V1.0 2017
4
Inactivity Alert Sensor User Guide
V1.0 2017
5
Chapter 3. Sensor Installation & Add/Remove Sensor into System
3.1 Sensor installation
1. Release cover tab to open the cover.
2. Insert CR123A battery, and put the cover back.
(Please make sure the battery polarity before inserting.)
3. Sensor itself takes around 10 seconds to warm up, and LED will blink 7 times during sensor warm
up.
4. Sensor detects range, pattern, angle, and recommends installation height:
3.2 Adding the Sensor to the System
Before you begin using the sensor, it needs to be added to the Home8 system first. To activate the sensor
with the Security Shuttle, complete the following steps.
Note:
1. Make sure the Security Shuttle is powered on and connected to your router.
2. We recommend NOT installing the battery before sensor is successfully activated to avoid false alarm
during pairing.
Inactivity Alert Sensor User Guide
V1.0 2017
6
1. Tap the menu icon to show the sidebar menu.
2. Tap “Device Management”. If you have more than one Security Shuttle, you may need to swipe left more
than once to find the one you wish the sensor to connect to. After selecting the Security Shuttle, tap the
plus icon “+” located to the right of “Sensor List”.
Inactivity Alert Sensor User Guide
V1.0 2017
7
3. Select “Sensor”.
4. Follow the on-screen instructions. When finished, press “Next”.
Inactivity Alert Sensor User Guide
V1.0 2017
8
5. After scanning the QR code located on the bottom of the sensor, the “sensor adding” process will begin.
The process will take approximately 1 to 2 minutes.
6. When the activation is completed, the sensor will be added to the device management page. In the
illustration shown below, the name of the Security Shuttle is “Location 1” and the name of the sensor is
“Inactivity Sensor 35360xxxx”.
Inactivity Alert Sensor User Guide
V1.0 2017
9
3.3 Positioning & Installing Sensor
After the “sensor adding” process has been completed, you can place the device at the desired location. For
best performance, we recommend to face the sensor to open area, and place the sensor at least 2 meters
above the ground. For details on installing, please refer to the picture below:
Note:
Keep lens and sensor as clean as possible for best sensor performance.
3.4 Remove Sensor from System
If you wish to remove sensor from current system, complete the following steps.
1. Tap the menu icon to show the sidebar menu.
