Hinkley ELI User manual

CEILING FAN INSTRUCTION MANUAL

22" ELI

INDOOR LED FAN

LED

SO WE’REHEREIF YOU HAVE A QUESTION, NEED SOME

HELP OR WANT TO CHAT ABOUTOUR PRODUCTS. SEND

SUGGESTIONS OUR WAY TOO—WE’REALWAYS LOOKING TO

MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE.

This manual contains complete instructions for the

installation and operation ofthis fan. It has been

designed to make the installation process as easy as

possible. If you are unfamiliar or uncomfortable with

wiring, please contact a qualiﬁed electrician. If you

need additional assistance or have any questions,

please reach out to us.

For warranty information,visit hinkley.com.

>SERVICE@HINKLEY.COM

>800.HINKLEY

>LET’S SEE THAT HINKLEY STYLE @HINKLEY

#HINKLEYSTYLE

WE WANT YOU TO LOVE YOUR NEW FAN

WARNING:

Read and follow these instructions carefully and be mindful of all warnings shown throughout.

TABLE OF CONTENTS

INSTALLING THE WALL CONTROL

OPERATING

CARE AND CLEANING

TROUBLESHOOTING

ENERGY GUIDE

SPECIFICATIONS

SMART BY BOND

GENERAL INSTALLATION & OPERATING

INSTRUCTIONS

IMPORTANT SAFETY PRECAUTIONS

TOOLS & MATERIALS REQUIRED

UNPACKING YOUR FAN

PREPARATION

INSTALLING THE HANGING BRACKET

HANGING THE FAN

ELECTRICAL CONNECTIONS

INSTALLING THE BLADES

02 |hinkley.com

GENERAL INSTALLATION & OPERATION INSTRUCTIONS

To ensure the success of the installation, be sure to read the instructions and review the diagrams thoroughly before beginning.

To avoid possible electric shock, be sure electricity is turned oﬀ at the main power box before wiring. All electrical connections

must be made in accordance with local codes, ordinances and/or the National Electric Code. If you are unfamiliar with the

methods of installing electrical wiring and products, secure the services of a qualiﬁed and licensed electrician as well as

someone who can check the strength of the supportive ceiling members and make the proper installation(s) and connections.

WARNING: To reduce the risk of ﬁre, electric shock, or other personal injury, mount fan only on an outlet box or supporting system

marked acceptable for fan support of 35 lbs (15.9 kg) or less and use mounting screws provided with the outlet box. Most outlet

boxes commonly used for the support of lighting ﬁxtures are not acceptable for fan support and may need to be replaced.

Consult a qualiﬁed electrician if in doubt.

Make sure that your installation site will not allow rotating fan blades to come in contact with any object. Blades should be at least

7 feet from ﬂoor.

Blades should be attached after motor housing is hung and in place. Fan motor housing should be kept in the carton until ready

to be installed to protect its ﬁnish. If you are installing more than one ceiling fan, make sure that you do not mix fan blade sets, as

each blade is part of a weighted set.

After making electrical connections, spliced conductors should be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the common conductor and the grounding conductor on one side of the outlet box, and the

"HOT" wires on the other side.

Electrical diagrams are for reference only.

After fan is completely installed, check to make sure that all connections are secure to prevent fan from falling and/or causing

damage or injury.

The fan can be made to work immediately after installation - the bearings are adequately charged with grease so that, under

normal conditions, further lubrication is not necessary for the life of the fan.

Do not operate the reverse switch while the fan blades are in motion. The fan must be turned oﬀ and the blades stopped before

reversing the blades direction.

IMPORTANT SAFETY PRECAUTIONS

TOOLS &MATERIALSREQUIRED

WARNINGS:

•PHILLIPS SCREWDRIVER

• FLAT SCREWDRIVER

•WRENCH OR PLIERS

•WIRE CUTTER

• STEPLADDER

•WIRINGSUPPLIES AS REQUIRED BY

ELECTRICAL CODE

• Disconnect power by removing fuse or turning off circuit breaker before installing the fan and/or optional lighting.

• Support directly from building structure.

• To reduce the risk of fire, electric shock or personal injury, mount to outlet box marked "acceptable for fan support" and use mounting

screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan

support and may need to be replaced. Consult a qualified electrician if in doubt.

• Do not use an incandescent light dimmer. Do not use this fan with any transformer type fan speed control device.

• To reduce the risk of personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan.

Do not insert any object(s) between rotating fan blades.

NOTE:

The important precautions, safeguards and instructions appearing in this manual are not meant to cover all possible conditions

and situations that may occur. It must be understood that common sense, caution and carefulness are factors which cannot be

built into this product. These factors must be supplied by the person(s) installing, caring for and operating the unit.

UNPACK YOUR FAN AND CHECK THE CONTENTS.

• Do not discard the carton. If warranty replacement or repair is ever necessary, the fan should be returned in original packing. Remove

all parts and hardware. Do not lay motor housing on its side, or the decorative housing may shift, be bent or damaged.

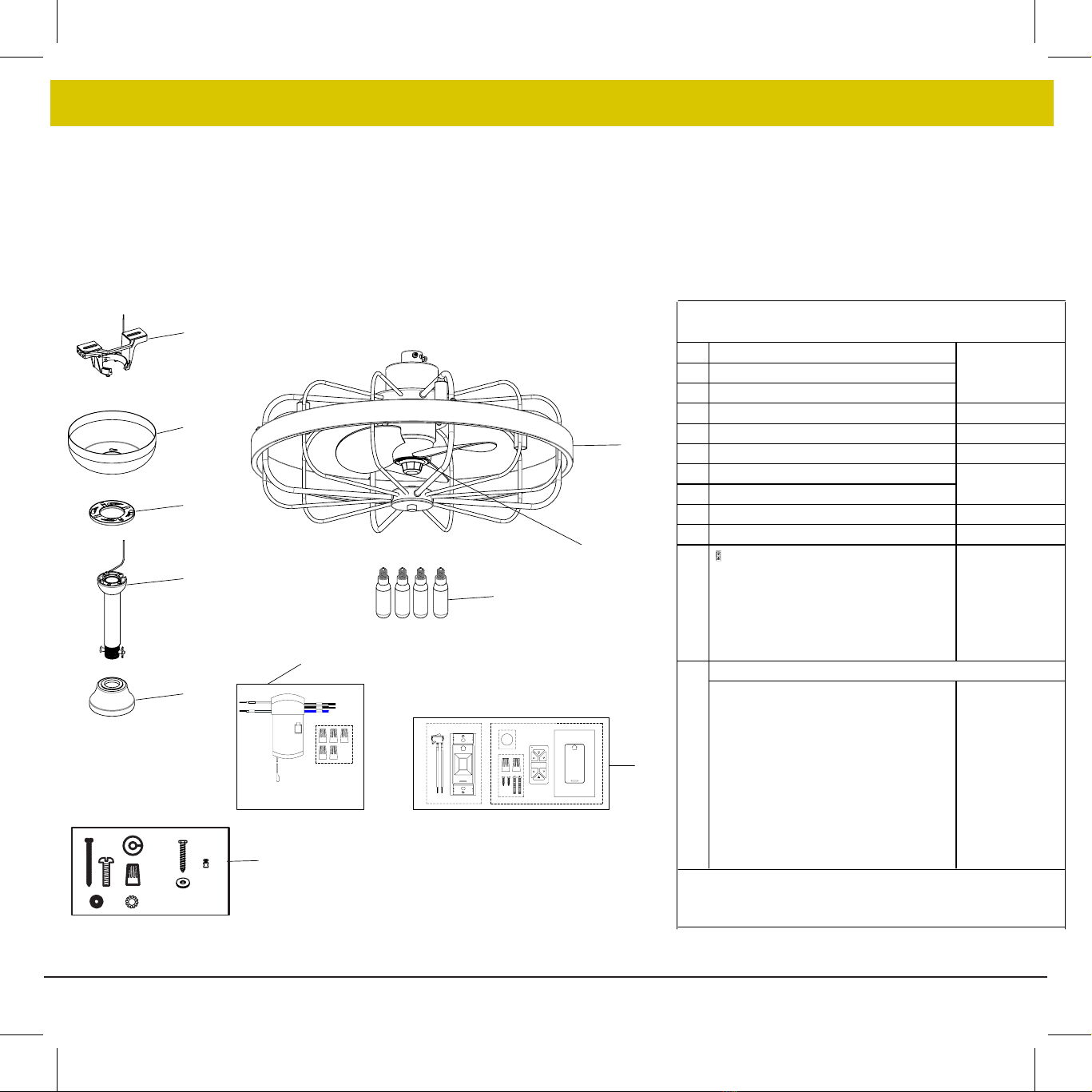

•Examine all parts. You should have the following:

UNPACKING YOUR FAN

XX=FAN FINISH

PACKAGE CONTENT

Hanging Bracket

Ceiling Canopy

Downrod Asm.

Yoke Cover

Fan blade (12")

Receiver Incl. 5 Wire Nuts )

HIRO Wall Control w/2032 Battery,

Cradle A, Wall Plate, Face Plate,

remote control,

2 countersunk head tapping screws

2 mechanical screws and 2 Wire Nuts

Cradle B Wall Plate

，，

switch

(for flat wall use only)

12 Hardware Bag

Fan Housing with Motor

Trim Ring

Fan nut cover With clip

9(4)LED Bulbs

T8, E12, 4.5W)

Safety cable hardware

(wood screw, flat washer, cable clamp)

980014FWH/

CN905022

MH905022FHB

CN905022

EST8-4.5W-27

BL905022Fxx

YC902352Fxx

DR94016Fxx

CA900752Fxx

HINKLEY

NOTE: Design of parts shown above may look slightly different for

your specific model of fan.

TO MOTOR N

TO MOTOR L

FOR LIGHT

AC IN L

AC IN N

HINKLEY

CR2032

KCD1 6A 250V AC

25T85 1E4 PTI 175V

CQC CE UL

Bracket Mounting Hardware

(wood screws, screws, lock washers,

star washers, flat washers, wire nuts),

PREPARATION

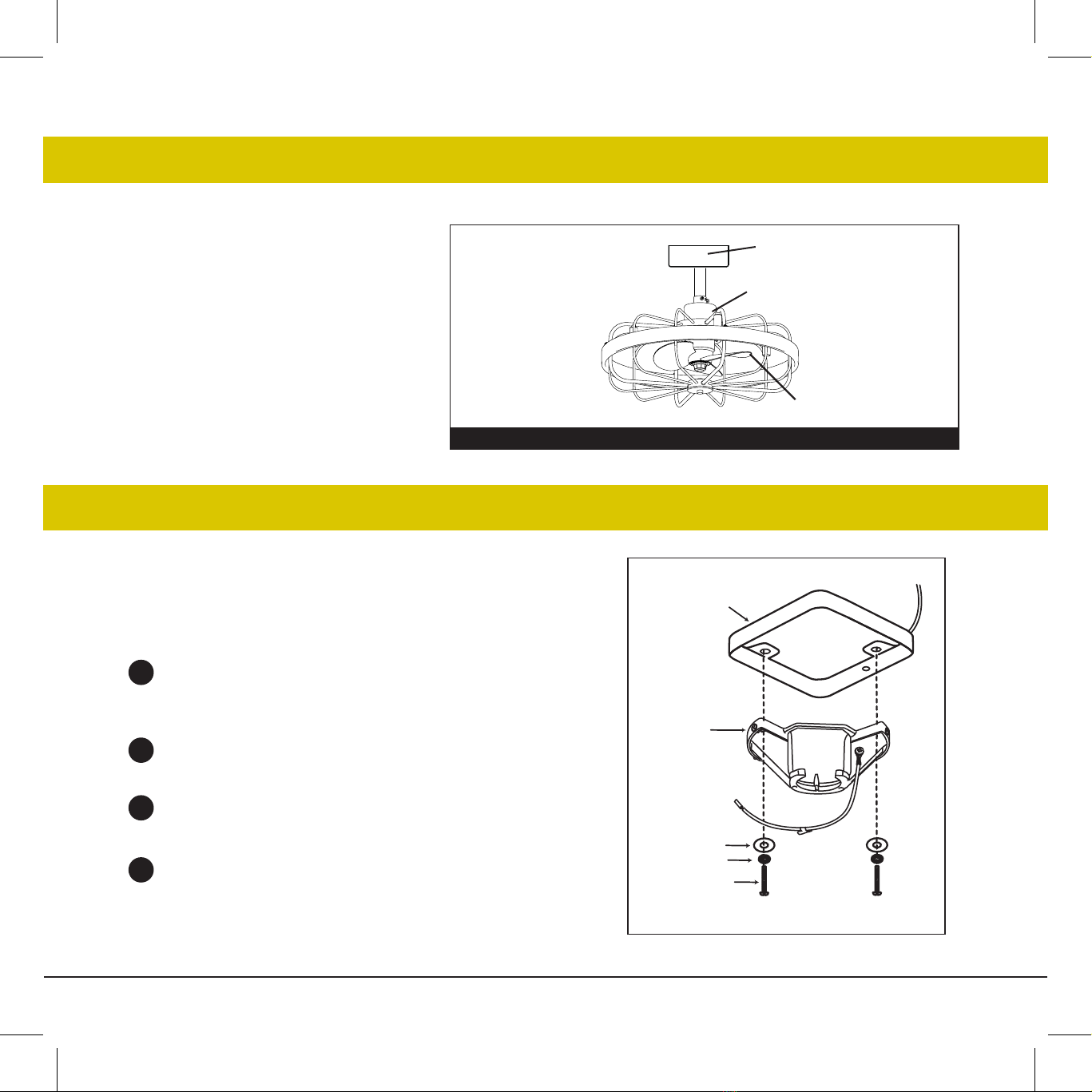

Parts identiﬁcation on assembled fan.

Blade

Canopy

Motor Housing

INSTALLING THE HANGING BRACKET

Ceiling Fan

Outlet Box

Hanger

Bracket

Outlet Box

Screw

Flat Washer

Lock Washer

CAUTION: To avoid possible electrical shock, be sure electricity is turned oﬀ at

the main power box before wiring. All wiring must be in accordance with

National and Local Electrical Codes and the ceiling fan must be grounded as

a precaution against possible electric shock.

Fig. 1

Locate ceiling joist where fan is to be mounted, being sure location

agrees with the requirements in the minimum clearance section of this

guide. Wood joists must be sound and of adequate size to support 35

pounds (See page 2, items 3 and 4).

If not already present, mount a UL listed outlet box marked "suitable for

fan support" following the instructions provided with the outlet box. The

outlet box must be able to support a minimum of 35 pounds.

Remove canopy from hanger bracket. Remove twist-lock trim ring by

rotaing counter-clockwise. Remove canopy screw that does not have

key slot in canopy. Loosen screw with key slot and remove canopy.

Attach hanging bracket to outlet box using screws provided with the

outlet box.

PREPARATION:

Verify you have all parts before beginning the

installation. Check foam insert closely for missing

parts. Remove motor from packing. To avoid

damage to finish, assemble motor on soft padded

surface or use the original foam inset in motor box.

DO NOT LAY MOTOR HOUSING ON ITS SIDE

AS THIS COULD RESULT IN DAMAGE OF THE

DECORATIVE ENCLOSURE.

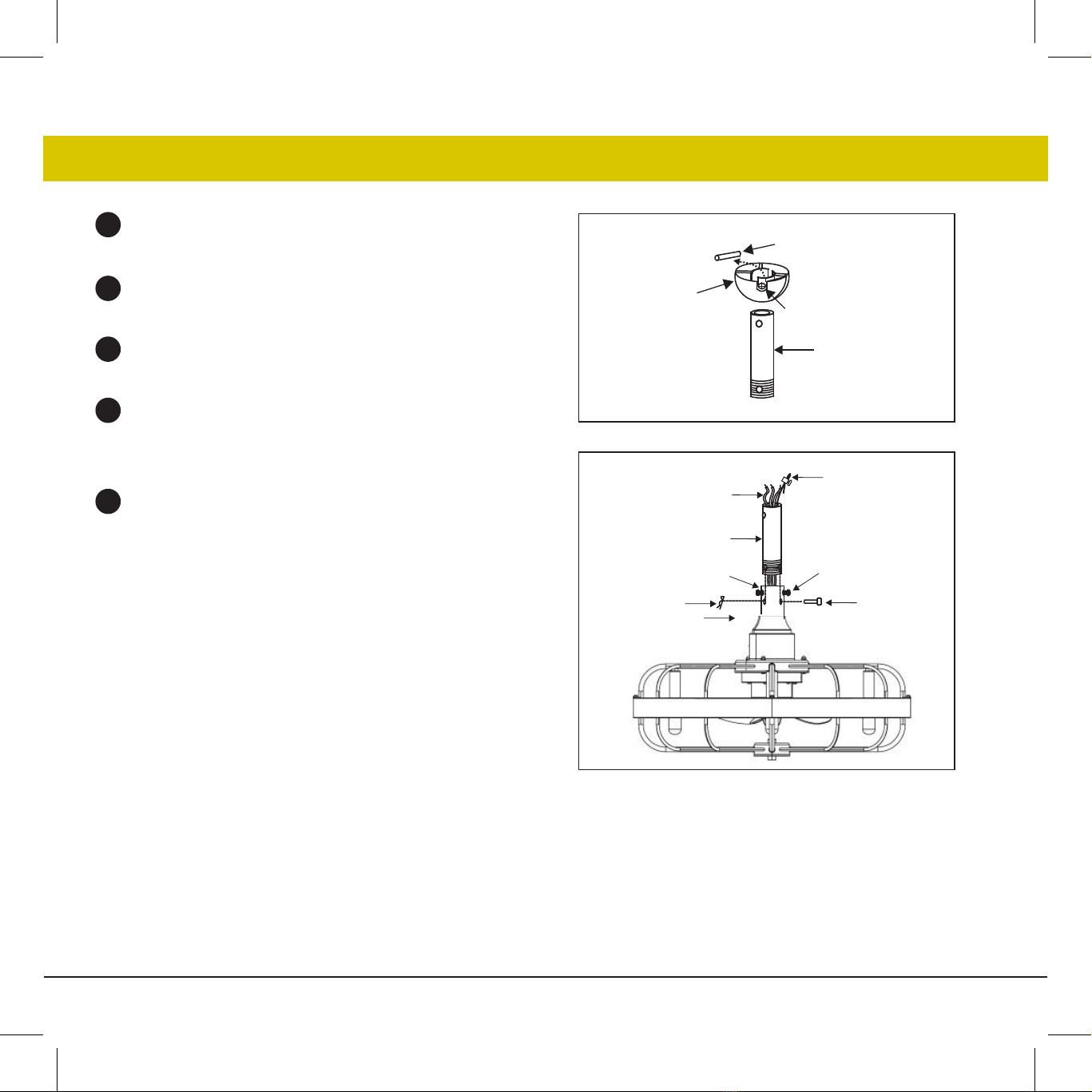

HANGING THE FAN

Fig. 1

Downrod

Cross Pin

Hanger

Ball Set Screw

Downrod

Hook-up

(3) Wires

Downrod Pin

Security Set Screws

Mounting Collar

Cotter Pin

Top of Fan Body

Remove ball from downrod by loosening set screw in the

side of the ball. Slide ball down and remove ball pin;

remove ball. (Fig. 1)

Carefully support fan body (motor) in its styrofoam packing

with the mounting collar (where the wires come out) facing

upward.

Loosen the two security set screws and remove the

downrod pin and cotter pin from the coupling on top of the

motor assembly. (Fig. 2)

Carefully feed the electrical lead wires and safety cable

from the fan through the downrod. Thread downrod into

coupler until holes align. Insert downrod pin through holes

in mounting collar and downrod; clip cotter pin through

small hole in end of downrod pin to hold downrod in place.

Tighten security set screws against downrod using a large

ﬂat blade screwdriver to ensure a tight ﬁt against downrod.

Tighten nuts against mounting collar.

Safety Cable

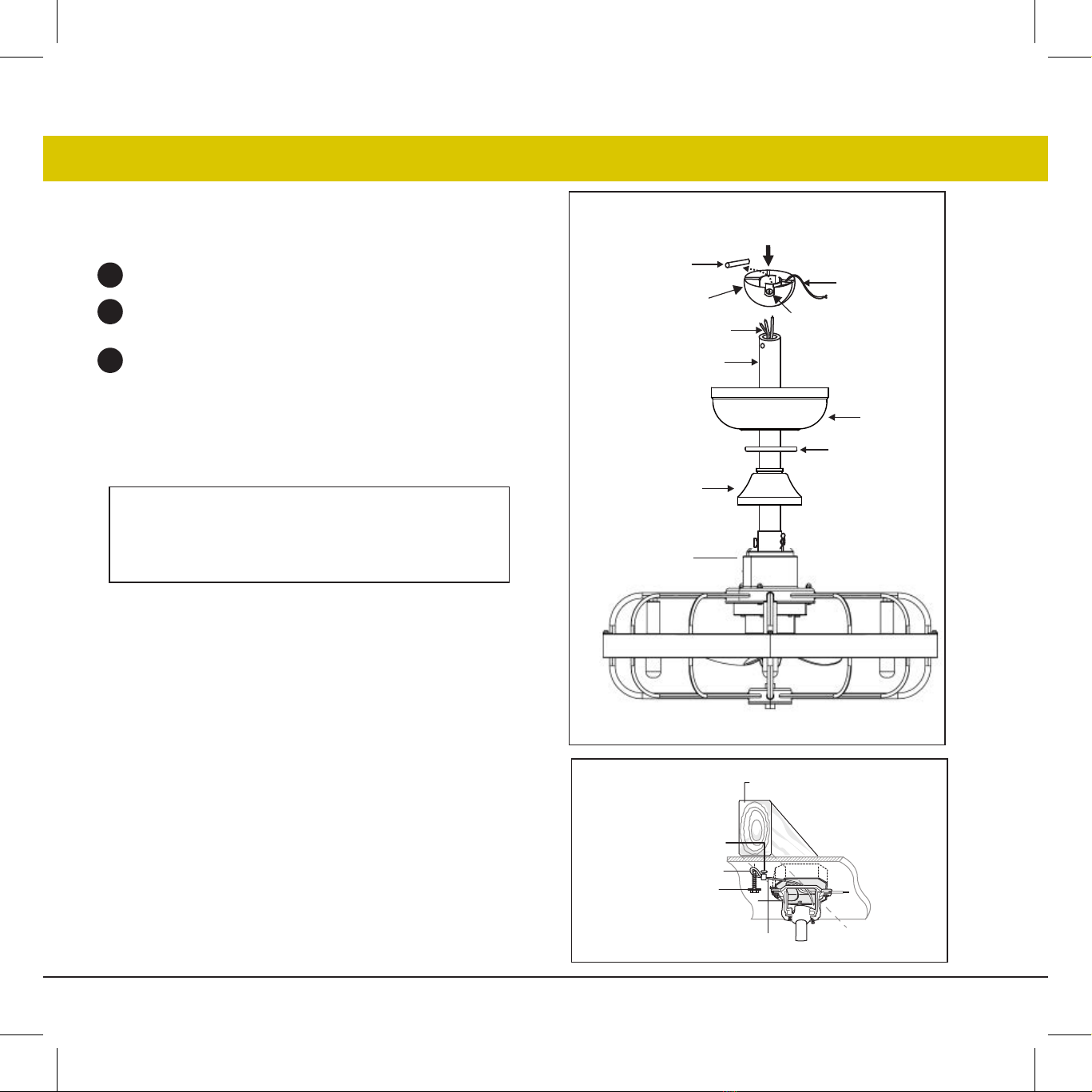

HANGING THE FAN

07 | hinkley.com

Fig. 4

INSTALLATION OF SAFETY CABLE SUPPORT

Attach the wood screw and the ﬂat washer to the ceiling joist as

shown (do not fully tighten). Slide the cable clamp onto the

safety cable from the fan. Loop the safety cable around the

wood screw that was just attached to ceiling joist. Feed the end

of the cable into the clamp and pull as much cable through as

possible. Firmly tighten screw in the clamp. Cut oﬀ excess cable.

Safety Cable

Wood Ceiling Joist

Safety Cable Clamp

Safety Cable Loop

Wood Screw

And Washer

HANGING THE FAN

Ground Wire

Top of Fan Body

Hanger ball

Hook-up (3) Wires

Yoke Cover

Downrod

Canopy

Set screw

Cross Pin

REMEMBER to turn oﬀ the power before you begin.

To properly install your ceiling fan, follow the steps below.

Slip the yoke cover, trim ring and canopy onto the downrod. (Fig. 3)

Slide the hanger ball onto the downrod, insert the cross pin through

Lift ball/downrod/fan into hanger bracket opening.

NOTE: The tab opposite hanger bracket opening should ﬁt in slot

on ball. (Fig. 4)

NOTE:

6 feet of lead wire is supplied on the fan for use with

longer downrods.

Trim Ring

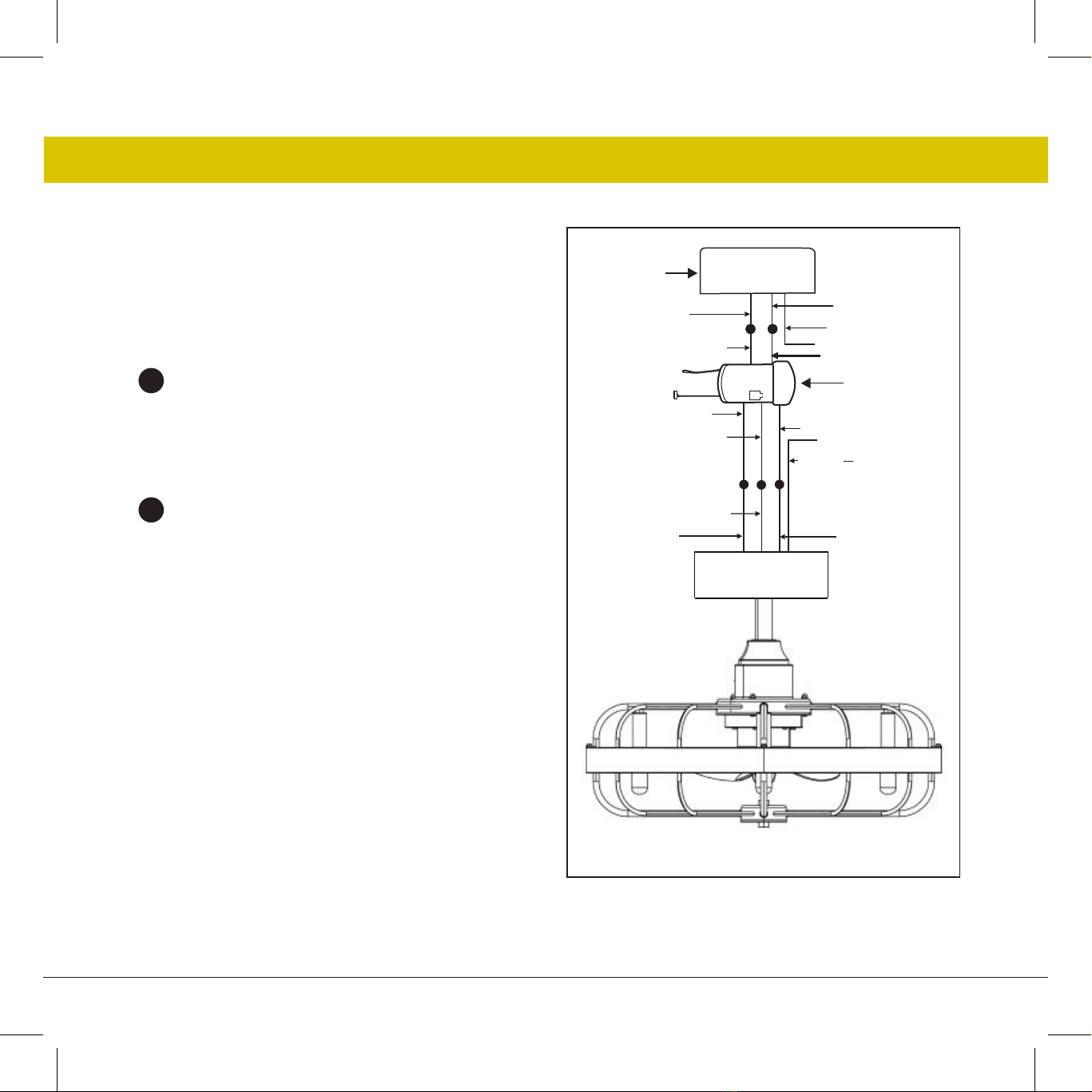

ELECTRICAL CONNECTIONS

Motor to Receiver Electrical Connections:

Connect the black wire from the fan to the black wire

marked "TO MOTOR L" on the receiver. Connect the

white wire from the fan to the white wire marked "TO

MOTOR N" on the receiver. Connect the blue wire from

the fan to the blue wire marked "FOR LIGHT" on the

receiver. Secure all the wire connections with the plastic

wire nuts provided.

Receiver to House Supply Wires Electrical Connections:

Connect the black (hot) wire from the ceiling to the black

wire marked "AC in L" from the receiver. Connect the

white(neutral) wire from the ceiling to the white wire

marked "AC in N" from the Receiver. Secure the wire

connections with the plastic wire nuts provided.

REMEMBER -Turn off the power! NOTE - Control must be installed

within 30 feet of fan.

CAUTION: To reduce the risk of electric shock, this fan must be

installed with an isolating wall control/switch.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Outlet box

Black (hot)

Black ("AC IN L")

Receiver

White (neutral)

White ("to motor N")

Ground

(green)

(Connect to

ground wire on

hanger bracket

if no house

ground wire

exists.)

Black ("to motor L")

Blue (for light)

Black (motor)

WARNINGS: Check to see that all connections are tight,

including ground, and that no bare wire is visible at the wire

nuts, except for the ground wire.

Table of contents

Languages:

Other Hinkley Fan manuals

Hinkley

Hinkley HOVER FLUSH 900872FGT-LWD User manual

Hinkley

Hinkley HOVER FLUSH 52 User manual

Hinkley

Hinkley 60" Hover User manual

Hinkley

Hinkley HOVER 52 User manual

Hinkley

Hinkley 52" VENTUS User manual

Hinkley

Hinkley INDY MAXX 99 User manual

Hinkley

Hinkley BIMINI 60 User manual

Hinkley

Hinkley INDY MAXX 99 User manual

Hinkley

Hinkley MARIN User manual

Hinkley

Hinkley 72" ARTISTE User manual

Hinkley

Hinkley Grander 900672F User manual

Hinkley

Hinkley SWELL 903860FGT-NDD User manual

Hinkley

Hinkley MARIN 903160FMM-NDD User manual

Hinkley

Hinkley SAWYER 36 User manual

Hinkley

Hinkley 72" ARTISTE User manual

Hinkley

Hinkley HOVER FLUSH User manual

Hinkley

Hinkley VANTAGE 66 User manual

Hinkley

Hinkley VAIL 52" User manual

Hinkley

Hinkley SCULPT 903680FMB-LDD User manual

Hinkley

Hinkley HOVER 60 User manual

Hinkley

Hinkley CHET 36 User manual

Hinkley

Hinkley HOVER 900760FMB-LWD User manual

Hinkley

Hinkley SWELL 903880FGT-NDD User manual

Hinkley

Hinkley IVER 56 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual

Litex Industries

Litex Industries E-CGL52CB5C1 installation guide
