HIK VISION DS-9600 Series User guide

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST

and DS-7700/7600NI-SP Series NVR

UD.6L0202B0007A01

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to DS-7608NI-ST, DS-7616NI-ST, DS-7608NI-SP, DS-7616NI-SP, DS-7708NI-ST,

DS-7716NI-ST, DS-7732NI-ST, DS-7708NI-SP, DS-7716NI-SP, DS-7732NI-SP, DS-8608NI-ST, DS-8616NI-ST,

DS-8632NI-ST; DS-9608NI-ST, DS-9616NI-ST, DS-9632NI-ST series NVR.

Verify Contents

Verify that the package contents are correct by checking the items against the packing list.

Note: Please contact your dealer for damaged or missing items.

NVR Pre-Installation

The DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP series NVR are highly advanced surveillance

equipment that should be installed with care. Please take into consideration the following precautionary steps

before installation of the NVR.

1. Keep all liquids away from the NVR.

2. Install the NVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

NVR Installation

During the installation of the NVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the NVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the NVR. A factory

recommended HDD should be used for this installation.

Up to 8 SATA hard disks can be installed on your NVR.

Tools Required: Screwdriver.

Steps (for DS-9600NI-ST):

1. Fasten the hard disk mounting handle to the hard disk with screws.

2. Insert the key and turn in clockwise direction to open the panel lock.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

3. Press the buttons on the panel of two sides and open the front panel.

4. Insert the hard disk along the slot until it is placed into position.

5. Repeat the above steps to install other hard disks onto the NVR. After having finished

the installation of all hard disks, replace the front panel and lock it with the key again.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

Steps (for DS-8600NI-ST):

1. Remove the cover from the NVR by unfastening the screws on the back and side.

2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the

button to fix the HDD.

3. Connect one end of the data cable to the motherboard of NVR and the other end to the

HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the NVR and fasten screws.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

Steps (for DS-7600NI-ST/SP and DS-7700NI-ST/SP):

1. Remove the cover from the NVR by unfastening the screws on the rear and side

panel.

2. Connect one end of the data cable to the motherboard of NVR and the other end to the HDD.

3. Connect the power cable to the HDD.

4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

Front Panel

DS-9600NI-ST

DS-8600NI-ST

①Status Indicator(Alarm, Ready, Status, HDD, MODEM, Tx/Rx, Guard)

②IR Receiver

③Front Panel Lock

④DVD-R/W

⑤Alphanumeric Buttons

⑥USB Interface

⑦Compound Buttons

⑧DIRECTION/ENTER Buttons

⑨JOG SHUTTLE Control

⑩Power Button

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

DS-7700NI-ST/SP

①Status Indicators (Alarm, Ready, Status, HDD, Power, Tx/Rx)

②DVD-R/W

③Control Buttons

④Compound Buttons

⑤Shuttle Button

⑥Power Button

⑦USB interface

DS-7600NI-ST/SP:

①USB Interface

②Status Indicators (Alarm, Ready, Status, HDD, power, Tx/Rx)

③SHIFT

④Compound Buttons

⑤Control Buttons

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

Rear Panel

DS-9600NI-ST

DS-8600NI-ST

DS-7700NI-ST

No.

Item

Description

VIDEO OUT

BNC connector for video output.

CVBS AUDIO OUT

BNC connector for audio output. This connector is synchronized with

CVBS video output.

VGA AUDIO OUT

BNC connector for audio output. This connector is synchronized with

VGA video output.

LINE IN

BNC connector for audio input.

RS-232 Interface

Connector for RS-232 devices.

VGA

DB9 connector for VGA output. Display local video output and menu.

HDMI

HDMI video output connector.

eSATA (Optional)

Connects external SATA HDD, CD/DVD-RM.

LAN Interface

Connector for LAN (Local Area Network).

1 LAN interface provided for DS-8600/7700NI-ST and 2 LAN

interfaces for DS-9600NI-ST.

Termination Switch

RS-485 termination switch.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

No.

Item

Description

Up position is not terminated.

Down position is terminated with 120Ωresistance.

RS-485 Interface

Connector for RS-485 devices. T+ and T- pins connects to R+ and R-

pins of PTZ receiver respectively.

Controller Port

D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,

the first NVR’s D+, D- pin should be connected with the D+, D- pin of

the next NVR.

ALARM IN

Connector for alarm input.

ALARM OUT

Connector for alarm output.

GROUND

Ground(needs to be connected when NVR starts up).

AC 100V ~ 240V

AC 100V ~ 240V power supply.

POWER

Switch for turning on/off the device.

USB interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

DS-7700NI-SP

No.

Item

Description

VIDEO OUT

BNC connector for video output.

CVBS AUDIO OUT

BNC connector for audio output. This connector is synchronized with

CVBS video output.

VGA AUDIO OUT

BNC connector for audio output. This connector is synchronized with

VGA video output.

LINE IN

BNC connector for audio input.

RS-232 Interface

Connector for RS-232 devices.

VGA

DB9 connector for VGA output. Display local video output and menu.

HDMI

HDMI video output connector.

eSATA (Optional)

Connects external SATA HDD, CD/DVD-RM.

LAN Interface

Connector for LAN (Local Area Network).

1 LAN interface provided for DS-8600NI-ST and 2 LAN interfaces for

DS-9600NI-ST.

Termination Switch

RS-485 termination switch.

Up position shows the RS-485 is not terminated.

Down position shows the RS-485 is terminated with 120Ωresistance.

RS-485 Interface

Connector for RS-485 devices. T+ and T- pins connects to R+ and R-

pins of PTZ receiver respectively.

Controller Port

D+, D- pin connects to Ta, Tb pin of controller. For cascading devices,

the first NVR’s D+, D- pin should be connected with the D+, D- pin of

the next NVR.

ALARM IN

Connector for alarm input.

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR

ALARM OUT

Connector for alarm output.

GROUND

Ground (needs to be connected when NVR starts up).

AC 100V ~ 240V

AC 100V ~ 240V power supply.

POWER

Switch for turning on/off the device.

USB interface

Universal Serial Bus (USB) ports for additional devices such as USB

mouse and USB Hard Disk Drive (HDD).

Network Interfaces with

PoE function

Network interface for the cameras and to provide power over Ethernet.

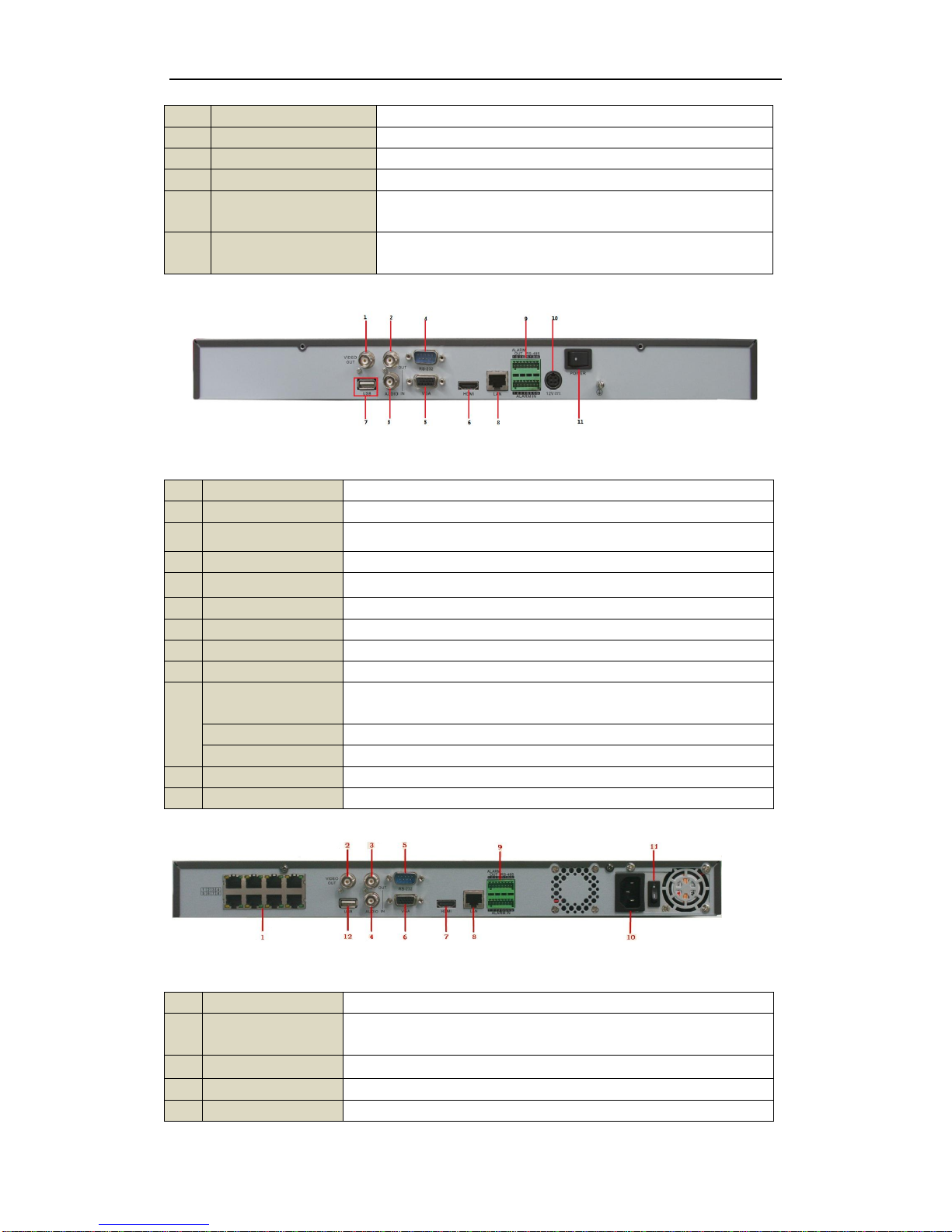

DS-7600NI-ST

No.

Item

Description

VIDEO OUT

BNC connector for video output.

AUDIO OUT

BNC connector for audio output.

AUDIO IN

BNC connector for audio input. (Also for voice talk)

RS-232 Interface

Connector for RS-232 devices.

VGA

DB9 connector for VGA output. Display local video output and menu.

HDMI

HDMI video output connector.

USB

Connects USB disks and devices.

LAN Interface

Connector for LAN (Local Area Network).

RS-485 Interface

Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins of

PTZ receiver respectively.

ALARM IN

Connector for alarm input.

ALARM OUT

Connector for alarm output.

Power Supply

12VDC power supply.

Power Switch

Switch for turning on/off the device.

DS-7600NI-SP

No.

Item

Description

Network Interfaces

with PoE function

Network interface for the cameras and to provide power over Ethernet.

VIDEO OUT

BNC connector for video output.

AUDIO OUT

BNC connector for audio output.

AUDIO IN

BNC connector for audio input. (Also for voice talk)
