HIK VISION DS-7604NI-SE/P User manual

www.hikvision.com/en/us

Quick Start Guide

Plug ’n Play NVR

DS-7604NI-SE/P

DS-7608NI-SE/8P

Note: For more information refer to the complete User Manual located on the CD-ROM

www.hikvision.com/en/us

PleaseconnectamonitorandaUSBmouse(supplied)totheNVR

forconfigurationpurposes

OVERVIEW

1. Overview

2. Main Menu Layout

3. Formatting the HDD

4. Setting up Time/Date

5. Setting up The Network

6. Adding IP Cameras (Non-POE Models)

7. Setting up Recording

8. Configuring the Mobile APP

9. Playing Back Recorded Video

10.Making a Backup

www.hikvision.com/en/us

Please note, that the Quick Start Guide is compiled for the latest firmware

versions. Please upgrade the firmware of the NVR to the latest version before

proceeding. Also note, that the CD may contain outdated manuals and software.

For the latest firmware, manual and software downloads please visit:

www.hikvision.com/en/us/download.asp

WHAT’S IN THE BOX

THE BOX CONTAINS:

1. OVERVIEW

NVR

USB Mouse

IR Remote

(Batteries not included)

Power Cord

Hard Drive Mounting

screws and brackets

Hard Drive

(Preinstalled)

Hard Drive Cables

Rack Mount Ears

Quick Start Guide

Manual/Software CD

www.hikvision.com/en/us

FRONT AND REAR VIEW

DS-7604NI-SE/P

FRONT VIEW

1. USB Port

REAR VIEW

1. Built in POE Switch

2. USB Port

3. HDMI Monitor Output

4. VGA Monitor Output

5. Line input/output (for 2 way audio)

6. RJ-45 Network Port

7. RS-485

8. Grounding Screw

9. Power Plug

10. Power Switch

www.hikvision.com/en/us

2. MAIN MENU LAYOUT

MAIN MENU LAYOUT

View recorded video

and make Backup

Setup recording type,

motion detection,

resolution and frame

rate and more

Setup Date/Time,

network, screen

settings, user

accounts and more

Model number,

firmware version,

camera status, HDD

status and more

Search for snapshots,

POS activity, make

large backups

Add cameras,

Change brightness,

contrast… Camera

name, PTZ, Privacy

mask

Upgrade firmware,

factory default,

system logs,

import/export

settings

Display the current

logged in user

Exit MENU to

Live View

DEFAULT USERNAME: admin DEFAULT PASSWORD: 12345

(Please note, that the username and password are case sensitive)

Log Out and Lock

the NVR

www.hikvision.com/en/us

If the Hard Drive (HDD) is not formatted (initialized), the NVR will begin to beep. The beeping will

continue until the HDD is formatted. To format the HDD, go to:

“MENU” > “SYSTEM CONFIGURATION” > “HDD”

Select the HDDs that need to be formatted, and press “INIT”

FORMATTING THE HARD DRIVE

3. FORMATTING THE HARD DRIVE

Please Note:

Units purchased with HDDs,

already come with formatted

HDDs

Formatting the HDDs also erases

the recorded video from the HDDs

(this does not affect the settings).

Free Space

Total HDD Space

List of HDDs

www.hikvision.com/en/us

To setup the Time and Date on a NVR, please go to:

“MENU” > “SYSTEM CONFIGURATION” > “GENERAL”

DATE AND TIME SETUP

4. SETING UP DATE/TIME

NTP Settings

Time Zone and

Daylight

Savings Time

settings

Date and Time

settings

www.hikvision.com/en/us

Networking a NVR requires 3 steps:

1. Assign an IP address, Default Gateway, Subnet Mask, and a DNS server (Please note: DNS,

not DDNS) to the NVR

2. Forward the appropriate ports on the router (Port Forwarding).

3. Register DDNS (DDNS registration is required only if the public IP address is Dynamic).

To assigning an IP ADDRESS, go to “MENU”>”SYSTEM CONFIGURATION”>”NETWORK”

5. SETTING UP THE NETWORK

SETTING UP NETWORK ACCESS

General

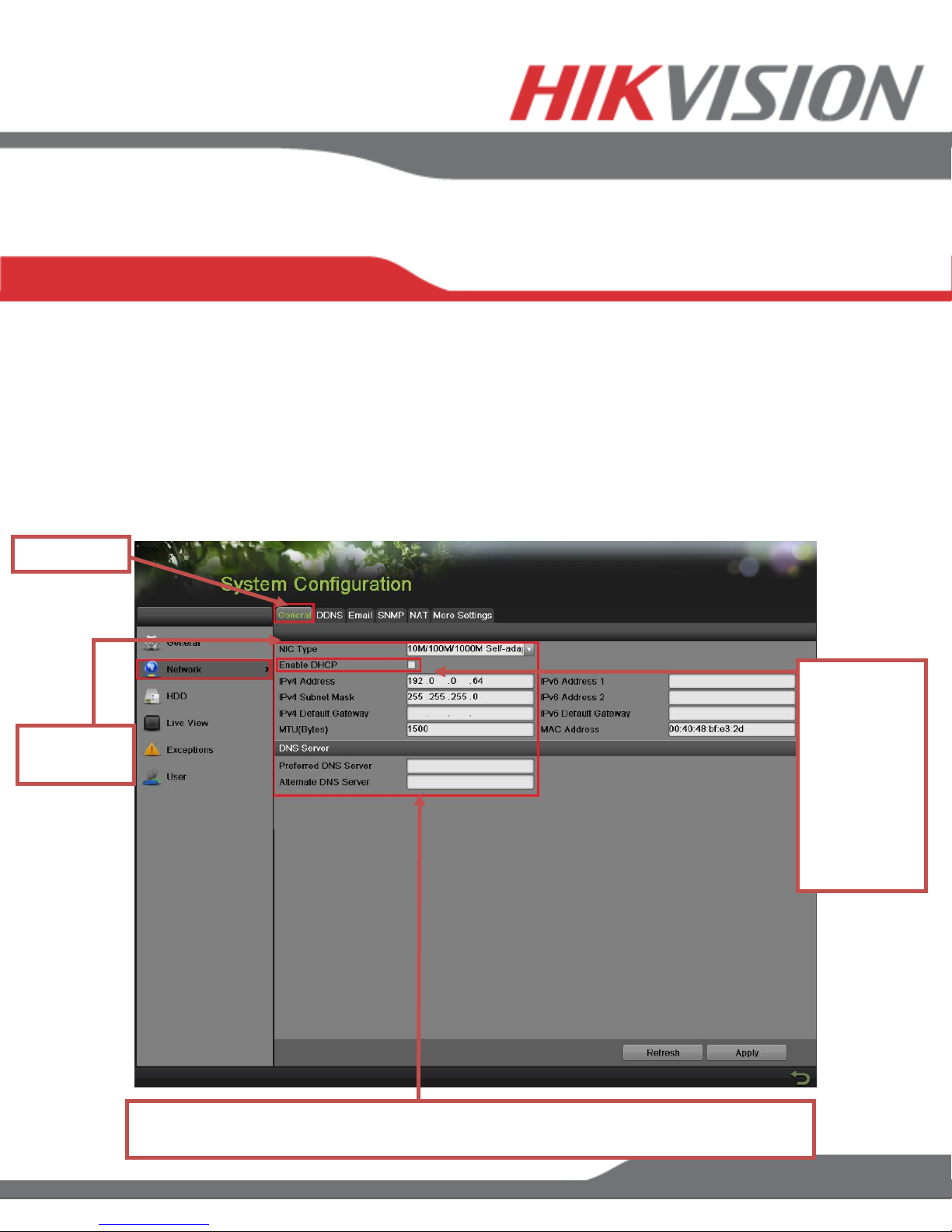

IP CONFIGURATION

Please note that the NVR have a default IP Address set to 192.0.0.64

Enable

DHCP

With DHCP

enabled, the

router will

assign an IP

address to

the NVR

Select NIC

Type

www.hikvision.com/en/us

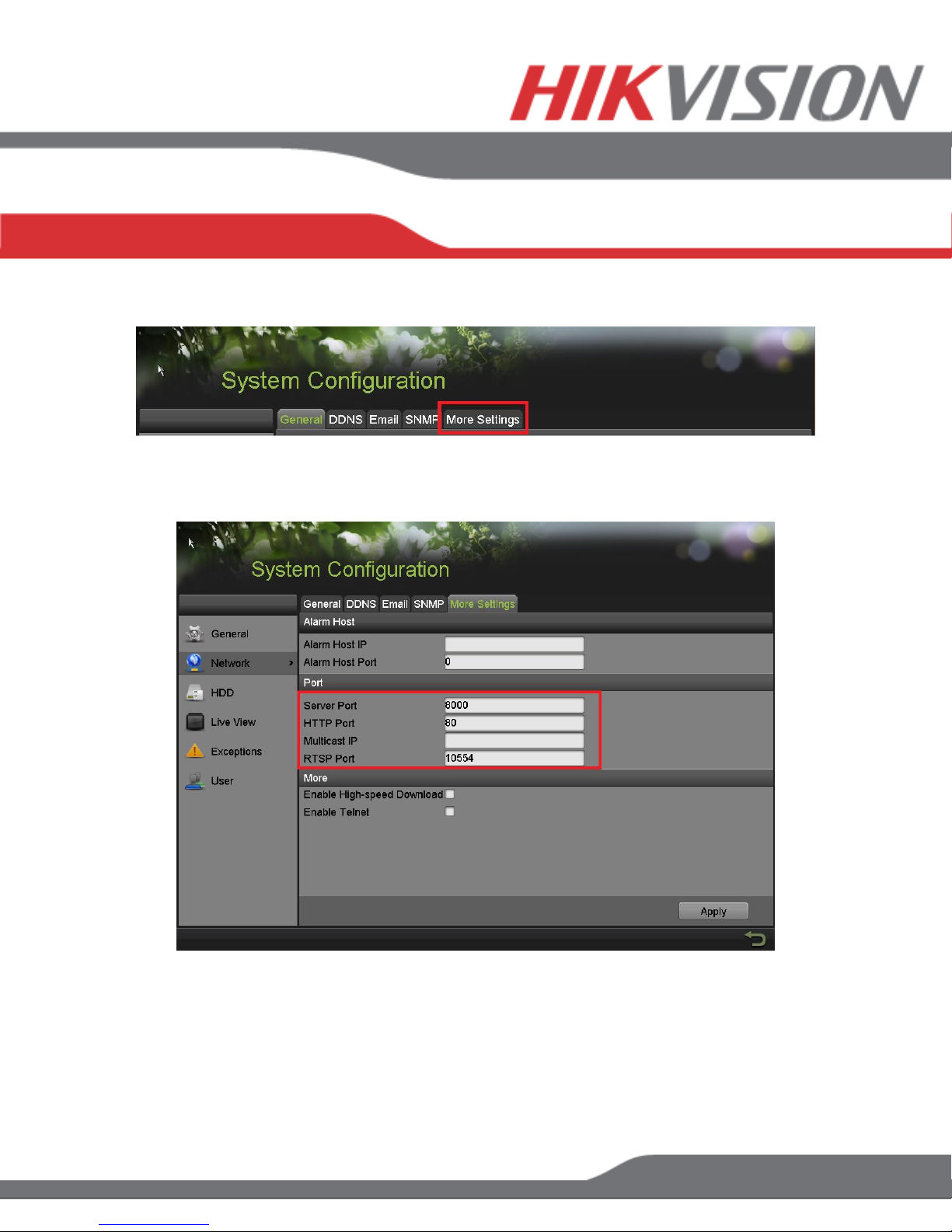

The “MORE SETTINGS” tab contains the ports that need to be forwarded for remote access

The SERVER PORT is responsible for the MOBILE APP and CLIENT SOFTWARE log-in.

The HTTP PORT is responsible for WEB BROWSER log-in.

The RTSP PORT is responsible for VIDEO/AUDIO STREAMING.

Units with older firmware have the RTSP PORT set to 554. A lot of cell phone carriers block incoming

data through port 554, which is why Hikvision recommends changing that port to 10554

SETTING UP NETWORK ACCESS

www.hikvision.com/en/us

The HTTP PORT and the SERVER PORT can be changed if desired, in order to avoid conflicts

with the ISP or the existing network configuration.

PORT FORWARDING

After assigning the IP information to the NVR, connect a computer to the same router that the NVR is

connected to (wired connection is recommended, to avoid complications). Log into the ROUTER, and

proceed with PORT FORWARDING.

For PORT FORWARDING assistance contact the Internet Service Provider (ISP), or the router

manufacturer. Also refer to www.portforward.com for port forwarding step by step instructions.

Please be aware, that Hikvision USA is not associated with www.portforward.com, and not responsible

for any activity between the user and www.portforward.com. Please refrain from downloading any

software from the abovementioned website.

Proceed to the “ROUTERS” section for step by step instructions.

DDNS SETUP

DDNS registration has been made more user friendly, and takes only a few seconds to complete. The

legacy units require user registration on www.hik-online.com. This step is no longer needed.

Click on the DDNS tab

In the DDNS tab:

a. Enable DDNS

b. Change the DDNS TYPE to HiDDNS (in some cases HkDDNS)

c. Make sure that the SERVER ADDRESS is set to www.hik-online.com

d. Create a DEVICE DOMAIN NAME (the domain name CANNOT contain spaces, special

characters and/or upper case letters

SETTING UP NETWORK ACCESS

This manual suits for next models
