HIK VISION DS-7204HVI-SH User guide

DS-7200-SH/SV&DS-7300-SH Series DVR

Quick Operation Guide

UD.6L0202B0057A02

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to DS-7204HVI-SH, DS-7208HVI-SH, DS-7216HVI-SH; DS-7204HFI-SH,

DS-7208HFI-SH, DS-7216HFI-SH; DS-7204HWI-SH, DS-7208HWI-SH, DS-7216HWI-SH; DS-7204HVI-SV,

DS-7208HVI-SV, DS-7216HVI-SV; DS-7304HFI-SH, DS-7308HFI-SH, DS-7316HFI-SH; DS-7304HWI-SH,

DS-7308HWI-SH, DS-7316HWI-SH series DVR.

DVR Pre-Installation

The DS-7200-SH/SV&DS-7300-SH Series DVR is highly advanced surveillance equipment that should be

installed with care. Please take into consideration the following precautionary steps before installation of the

DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC , 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. A factory

recommended HDD should be used for this installation.

Tools Required: Screwdriver.

To install a HDD on your DVR:

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Install the HDD in the HDD rack using the provided screws. Fasten the screws on the

bottom to fix the HDD.

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

3. Connect the HDD to the motherboard of the DVR with the included data cable.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Front Panel

The front panel of DS-7200-SH/SV is shown below:

Table 1 Description of Control Panel Buttons

No.

Name

Function Description

POWER

POWER indicator turns green when DVR is powered up.

STATUS

STATUS indicator lights in red when data is being read from or written to HDD.

Tx/Rx

Tx/Rx indictor blinks green when network connection is functioning properly.

USB Interface

Connects USB mouse or USB flash memory devices.

IR Receiver

Receiver for IR remote.

The front panel of DS-7300-SH is shown below:

Table 2 Description of Control Panel Buttons

No.

Name

Function Description

POWER ON/OFF

Power on/off switch.

IR Receiver

Receiver for IR remote control.

USB

Connect to USB mouse or USB flash memory devices.

DVD-ROM

Slot for DVD-ROM.

POWER

Power indicator lights in green when DVR is powered up.

READY

Ready indicator is normally green, indicating that the DVR is functioning properly.

STATUS

Indicator turns green when DVR is controlled by an IR remote control with the

address from 1~254;

Indicator turns red when the SHIFT button is used;

Indicator does not light when the DVR is controlled by a keyboard or by the IR

remote control with the address of 255;

Indicator turns green when the DVR is controlled by IR remote control (with the

address from 1~254) and keyboard at the same time , and the SHIFT button is not

used;

Indicator turns orange : (a) when the DVR is controlled by IR remote control (with

the address from 1~254) and keyboard at the same time and the SHIFT button is used

as well; (b) when the DVR is controlled by IR remote control (with the address from

1~254) and the SHIFT button is used.

ALARM

Alarm indicator turns red when a sensor alarm is detected.

HDD

HDD indicator blinks in red when data is being read from or written to HDD.

Tx/Rx

TX/RX indictor blinks in green when network connection is functioning properly.

1/MENU

Enter numeral “1”;

Access the main menu interface.

2ABC/F1

Enter numeral “2”;

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Enter letters “ABC”;

The F1 button can be used to select all items on the list;

In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ

camera;

In live view or playback mode, the F1 button can be used to switch between main

and spot video output.

3DEF/F2

Enter numeral “3”;

Enter letters “DEF”;

In PTZ Control mode, the F1 button can be used to zoom in (zoom+) the PTZ

camera;

The F2 button can be used to cycle through tab pages.

4GHI/ESC

Enter numeral “4”;

Enter letters “GHI”;

Exit and back to the previous menu.

5JKL/EDIT

Enter numeral “5”;

Enter letters “JKL”;

Delete characters before cursor;

Select the checkbox and ON/OFF switch;

Start/stop record clipping in playback.

SHIFT

Switch of compound keys between the numeric/letter input and functional control.

6MNO/PLAY

Enter numeral “6”;

Enter letters “MNO”;

In Playback mode, it is used for direct access to playback interface.

7PQRS/REC

Enter numeral “7”;

Enter letters “PQRS”;

Manual record, for direct access to manual record interface; manually enable/disable

record.

8TUV/PTZ

Enter numeral “8”;

Enter letters “TUV”;

Access PTZ control interface.

9WXYZ/PREV

Enter numeral “9”;

Enter letters “WXYZ”;

Multi-camera display in live view;

In Playback mode or MenuPlaybackTag playback interface, this button can be

used to delete the selected tag.

0/A

Enter numeral “0”;

Switch between input methods (upper and lowercase alphabet, symbols and numeric

input).

In Playback mode, this button can be used to add the default tag.

DIRECTION

The DIRECTION buttons are used to navigate between different fields and items in

menus.

In Playback mode, the Up and Down button is used to speed up and slow down

recorded video.

In All-day Playback mode, the Left/Right button can be used to select the recorded

video of next/previous day; in Playback by Normal Video Search, the Left/Right

button can be used to select the next/previous recorded file.

In Live View mode, the directional buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

Confirm selection in any of the menu modes. It can also be used to tick checkbox

fields.

In Playback mode, it can be used to play or pause the video.

In Single-frame Playback mode, pressing the ENTER button will advance the video

by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

JOG SHUTTLE

Control

Move the active selection in a menu. The inner ring will move the selection up and

down; the outer ring will move it left and right.

In Playback mode, the inner ring is used to jump 30s forward/backward in video

files. The outer ring can be used to speed up/slow down the video.

In Live View mode, it can be used to cycle through different channels.

In PTZ control mode, in can control the movement of the PTZ camera.

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Rear Panel

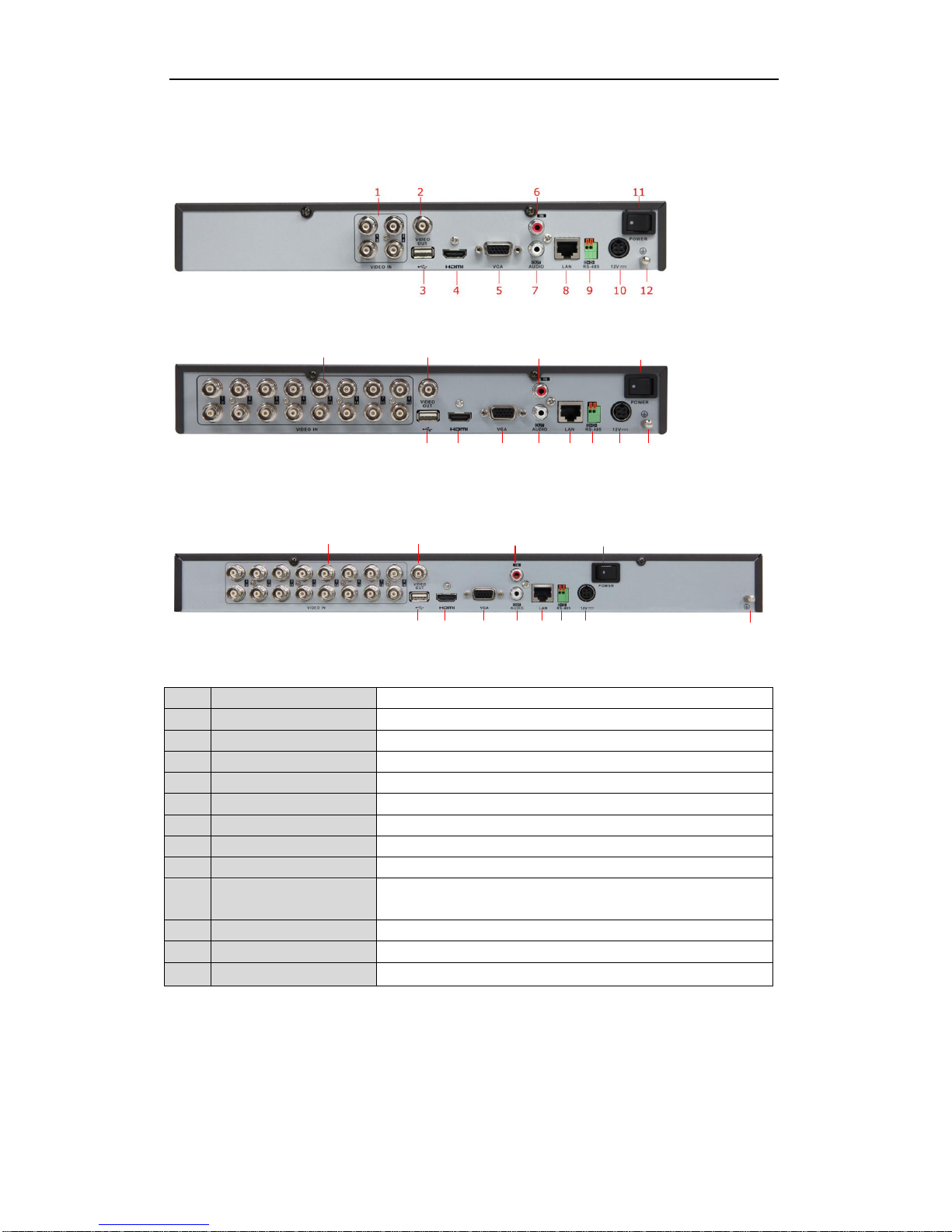

DS-7204HVI/HFI/HWI-SH and DS-7204HVI-SV:

DS-7216HVI-SH and DS-7216HVI-SV:

1 2

3 4 5

7 8 9 10

Note: The rear panels of DS-7208HVI-SH and DS-7208HVI-SV provide 8 video input interfaces.

DS-7216HFI-SH and DS-7216HWI-SH:

3 4 5 7 8 9 10

1 2 6

Note: The rear panels of DS-7208HFI-SH and DS-7208HWI-SH provide 8 video input interfaces.

Table 3 Description of Rear Panel

No.

Item

Description

VIDEO IN

BNC connector for analog video input.

VIDEO OUT

BNC connector for video output.

USB Interface

Connects USB mouse or USB flash memory devices.

HDMI

HDMI video output.

VGA

DB15 connector for VGA output. Display local video output and menu.

AUDIO IN

RCA connector for audio input.

AUDIO OUT

RCA connector for audio output.

LAN Interface

RJ45 10M / 100M Ethernet interface.

RS-485 Interface

Connector for RS-485 devices. Connect the D+ and D- terminals to R+

and R- terminals of PTZ receiver respectively.

12V

12VDC power supply.

POWER

Switch for turning on/off the device.

GND

Ground(needs to be connected when DVR starts up)

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

DS-7304HFI-SH and DS-7304HWI-SH:

123 4 6 8 9 10 15

57 11 12 13 14

DS-7308HFI-SH and DS-7308HWI-SH:

1 2 3 4 6 8 9 10 1511

12 13 14

5 7

DS-7316HFI-SH and DS-7316HWI-SH:

1 2

3 45 6

7 8

10 11

13 14

Table 4 Description of Rear Panel

No.

Item

Description

VIDEO IN

BNC connector for analog video input.

MAIN VIDEO OUT

BNC connector for video output.

SPOT VIDEO OUT

BNC connector for spot video output.

HDMI

HDMI video output.

USB Interface

Connects USB mouse or USB flash memory devices.

RS-232

Connector for RS-232 devices.

VGA

DB15 connector for VGA output. Display local video output and menu.

AUDIO IN

RCA connector for audio input.

AUDIO OUT

RCA connector for audio output.

LAN Interface

RJ45 10M / 100M / 1000M Ethernet interface.

RS-485 Interface

Connector for RS-485 devices. Connect the D+ and D- terminals to R+ and

R- terminals of PTZ receiver respectively.

Alarm In/Out

Connector for alarm input/output.

eSATA

Connects external SATA HDD, DVD-R/W.

110~240VAC

12VDC power supply.

POWER

Switch for turning on/off the device.

GND

Ground(needs to be connected when DVR starts up)

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Peripheral Connections

Note: Alarm input/output connections are valid for the DS-7300HWI-SH and DS-7300HFI-SH models only.

Connecting to Alarm Input / Output Device

The alarm input is an open/closed relay. If the input is not an open/closed relay, follow the connection diagram

below:

To connect to an AC/DC load, use the following diagram:

For DC load, JP4 can be used within the limit of 12V/1A safely. If the interface is connected to an AC load, JP4

should be left open. Use an external relay for safety (as shown in the figure above).

There are 4 jumpers (JP4, JP5, JP6, and JP7) on the motherboard, each corresponding with one alarm output. By

default, jumpers are connected. To connect an AC load, jumpers should be removed.

Note: An external relay is needed to prevent electric shock when connecting to an AC load.

Alarm Connection

To connect alarm devices to the DVR:

1. Disconnect pluggable block from the ALARM IN /ALARM OUT terminal block.

2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part.

Ensure signal cables are in tight.

3. Connect pluggable block back into terminal block.

RS-485 Connections

To connect RS-485 devices (e.g., pan/tilt unit) to the DVR:

Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part.

Ensure signal cables are in tight.

Note: Make sure the pan/tilt receiver unit is connected to the D+ and D- of the RS-485 terminal of DVR.

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Specifications

Table 5 Specifications for DS-7200HFI-SH

Model

DS-7204HFI-SH

DS-7208HFI-SH

DS-7216HFI-SH

Video/Audio

input

Video compression

H.264

Video input

4-ch

8-ch

16-ch

Video input interface

BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive

Audio compression

G.711

Audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Video/Audio

output

HDMI/VGA output

1-ch, resolution:

1080P:

1920×1080/60Hz

UXGA:

1600×1200/60Hz

SXGA:

1280×1024/60Hz

720P: 1280×720/60Hz

XGA: 1024×768/60Hz

1-ch, resolution:

1080P: 1920×1080/60Hz,

SXGA: 1280×1024/60Hz,

720P: 1280×720/60Hz,

XGA: 1024×768/60Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 ×576, NTSC: 704 ×480

Encoding resolution

4CIF / 2CIF / CIF / QCIF

Frame rate

25 fps (P) / 30 fps (N)

Video bit rate

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Audio output

1-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual-stream

Support; Sub-stream: CIF / QCIF @ 25 fps (P) / 30 fps (N))

Stream type

Video, Video & Audio

Synchronous

playback

4-ch

8-ch

16-ch

Hard disk

SATA

1 SATA interface

2 SATA interfaces

Capacity

Up to 4TB capacity

External

interface

Network interface

1, RJ45 10M / 100M Ethernet interface

Serial interface

1 RS-485 interface, half-duplex

USB interface

2, USB 2.0

General

Power supply

12 VDC

Consumption

(without HDD or

DVD-R/W)

≤ 10 W

≤ 15 W

≤ 20 W

Working

temperature

-10 ºC ~+55 ºC

Working humidity

10% ~ 90%

Chassis

Standalone 1U chassis

19-inch

rack-mounted 1U

chassis

19-inch

rack-mounted 1U

chassis

Dimensions

(W ×D ×H)

315 ×230 ×45 mm

445 ×290 ×45 mm

Weight

(without HDD or

DVD-R/W)

≤ 2 kg

≤ 4 kg

Quick Operation Guide of DS-7200-SH/SV&DS-7300-SH Series DVR

Table 6 Specifications for DS-7200HVI-SH

Model

DS-7204HVI-SH

DS-7208HVI-SH

DS-7216HVI-SH

Video/Audio

input

Video

compression

H.264

Video input

4-ch

8-ch

16-ch

Video input

interface

BNC (1.0 Vp-p, 75 Ω), PAL /NTSC self-adaptive

Audio

compression

G.711

Audio input

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Two-way audio

input

1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input)

Video/Audio

output

HDMI/VGA

output

1-ch, resolution:

1920 ×1080P / 60 Hz ,1600 ×1200 / 60 Hz,1280 ×1024 / 60 Hz, 1280 ×

720 / 60 Hz, 1024 ×768 / 60 Hz

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 ×576, NTSC: 704 ×480

Encoding

resolution

4CIF / 2CIF / CIF / QCIF

Frame rate

Mode1:

4CIF / 2CIF @ 12 fps or

CIF / QCIF @ 25 fps (P) /

30 fps (N)

Mode2:

Channel 1: 4CIF / 2CIF /

CIF / QCIF @ 25 fps (P) /

30 fps (N),

Channel 2~4: CIF / QCIF

@ 25 fps (P) / 30 fps (N)

Mode1:

4CIF / 2CIF @ 8 fps

or CIF / QCIF @ 25

fps (P) / 30 fps (N)

Mode2:

Channel 1& Channel

5: 4CIF / 2CIF / CIF /

QCIF @ 25 fps (P) /

30 fps (N),

Other Channels: CIF /

QCIF @ 25 fps (P) /

30 fps (N)

Mode1:

4CIF / 2CIF @6fps

or CIF / QCIF @ 25

fps (P) / 30 fps (N)

Mode2:

Channel 1: 4CIF /

2CIF / CIF / QCIF

@ 25 fps (P) / 30

fps (N),

Channel 2~16: CIF

/ QCIF @ 25 fps

(P) / 30 fps (N)

Video bit rate

32 Kbps ~ 3072 Kbps, or user defined (Max. 3072 Kbps)

Audio output

1-ch, RCA (Linear, 1 kΩ)

Audio bit rate

64 Kbps

Dual-stream

Support;

Sub-stream: CIF @ 6 fps, QCIF @ 25 fps (P) /30 fps (N))

Stream type

Video, Video & Audio

Synchronous

playback

4-ch

8-ch

16-ch

Hard disk

SATA

1 SATA interface

Capacity

Up to 4TB capacity

External

interface

Network

interface

1, RJ45 10M / 100M Ethernet interface

Serial interface

1 RS-485 interface, half-duplex

USB interface

2, USB 2.0

General

Power supply

12 VDC

Consumption

(without HDD or

DVD-R/W)

≤ 10 W

≤ 15 W

Working

temperature

-10 ºC ~+55 ºC

Working

humidity

10% ~ 90%

Chassis

Standalone 1U chassis

Dimensions

(W ×D ×H)

315 ×230 ×45 mm

Weight (without

HDD or

DVD-R/W)

≤ 2 kg

≤ 4 kg

This manual suits for next models

Table of contents

Other HIK VISION DVR manuals

HIK VISION

HIK VISION DS-7332HGHI-SH User manual

HIK VISION

HIK VISION DS-96000NI-I16/H Series User manual

HIK VISION

HIK VISION DS-73 HQHI-SH Series User manual

HIK VISION

HIK VISION DS-7304HUI-K4 User manual

HIK VISION

HIK VISION DS-8000HCI-S series User manual

HIK VISION

HIK VISION DS-8104HMI-A User manual

HIK VISION

HIK VISION DS-7608NI-ST Series User guide

HIK VISION

HIK VISION DS-8100-S Series User manual

HIK VISION

HIK VISION DS-MP3516-RH User manual

HIK VISION

HIK VISION DS-7200HVI-ST Series User manual

HIK VISION

HIK VISION DS-720xHTI-K Series User manual

HIK VISION

HIK VISION HWD-6116MH-G2S User manual

HIK VISION

HIK VISION DS-E00HGHI-B Series User manual

HIK VISION

HIK VISION Digital Video Recorder User guide

HIK VISION

HIK VISION DS-9204/08/16HWI-ST User manual

HIK VISION

HIK VISION DS-9100HFI-ST User manual

HIK VISION

HIK VISION DS7208HVI-ST User manual

HIK VISION

HIK VISION DS-90 HWI-ST Series User manual

HIK VISION

HIK VISION 9100HFI-ST Series User manual

HIK VISION

HIK VISION DS-7300HWI-SH Series User manual

HIK VISION

HIK VISION DS-5504HMI series User manual

HIK VISION

HIK VISION DS-9104HFI-S User manual

HIK VISION

HIK VISION DS-7200-SH User manual

HIK VISION

HIK VISION DS-MP7516 Series User manual

Popular DVR manuals by other brands

FLIR

FLIR M3100E Series instruction manual

VTRACKPRO

VTRACKPRO FPRO300 user manual

Swann

Swann NVR-7085 models instruction manual

XtendLan

XtendLan DVR-1670C user manual

urmet domus

urmet domus 1093/004AHD instructions

Holux

Holux M1 user manual

CMOS DOTCOM

CMOS DOTCOM ANX-1670 manual

Whistler

Whistler D16VRS user guide

Defender Security

Defender Security 82-20235 user manual

MISUMI

MISUMI MP-WF100M user guide

Speco

Speco D8HU user guide

UST

UST DDR-E04AA Hardware user manual

Consolidated

Consolidated Digital Video Recorder user manual

Mace

Mace DVR0404RW Operational manual

RCA

RCA RTD315W user manual

FSM

FSM Colibri Grande PRO user manual

Hauppauge

Hauppauge HD PVR 2 Quick install guide

Identivision

Identivision ICR-PH161i PIONEER user manual
