HIK VISION DS-7108HI-S User manual

Hikvision Technical Manual

DS-7108HI-S Series Net DVR

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does

not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any

liability whatsoever for incorrect data that may appear in this documentation. The

product(s) described in this documentation are furnished subject to a license and

may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for

the purposes for which it is supplied. It may not be reproduced in whole or in

part, in any form, or by any means or be used for any other purpose without prior

written consent of HIKVISION and then only on the condition that this notice is

included in any such reproduction. No information as to the contents or subject

matter of this documentation, or any part thereof, or arising directly or indirectly

therefrom, shall be given orally or in writing or shall be communicated in any

manner whatsoever to any third party being an individual, firm, or company or any

employee thereof without the prior written consent of HIKVISION. Use of this

product is subject to acceptance of the HIKVISION agreement required to use this

product. HIKVISION reserves the right to make changes to its products as

circumstances may warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

overseabusiness@hikvision.com

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Overview

2. Model Description

3. Features

4. Specifications

Hikvision Technical Manual

1.Overview

DS-7108HI-S series network digital video recorder is a new generation digital

surveillance product applies Linux OS and the latest TI DaVinci DSP, along with the

most advanced technology in the information industry, such as video and audio

encoding/decoding, hard disk recording and TCP/IP. The firmware is burned into the

flash, making the product more stable and reliable.

DS-7108HI-S series devices combine the advantages of both a digital video

recorder (DVR) and a digital video server (DVS). It can be used as a standalone

video surveillance product, as well as to build up a powerful surveillance network.

DS-7108HI-S Net DVR can be widely used in the verticals of banking,

telecommunications, transportation sectors, and manufacturing.

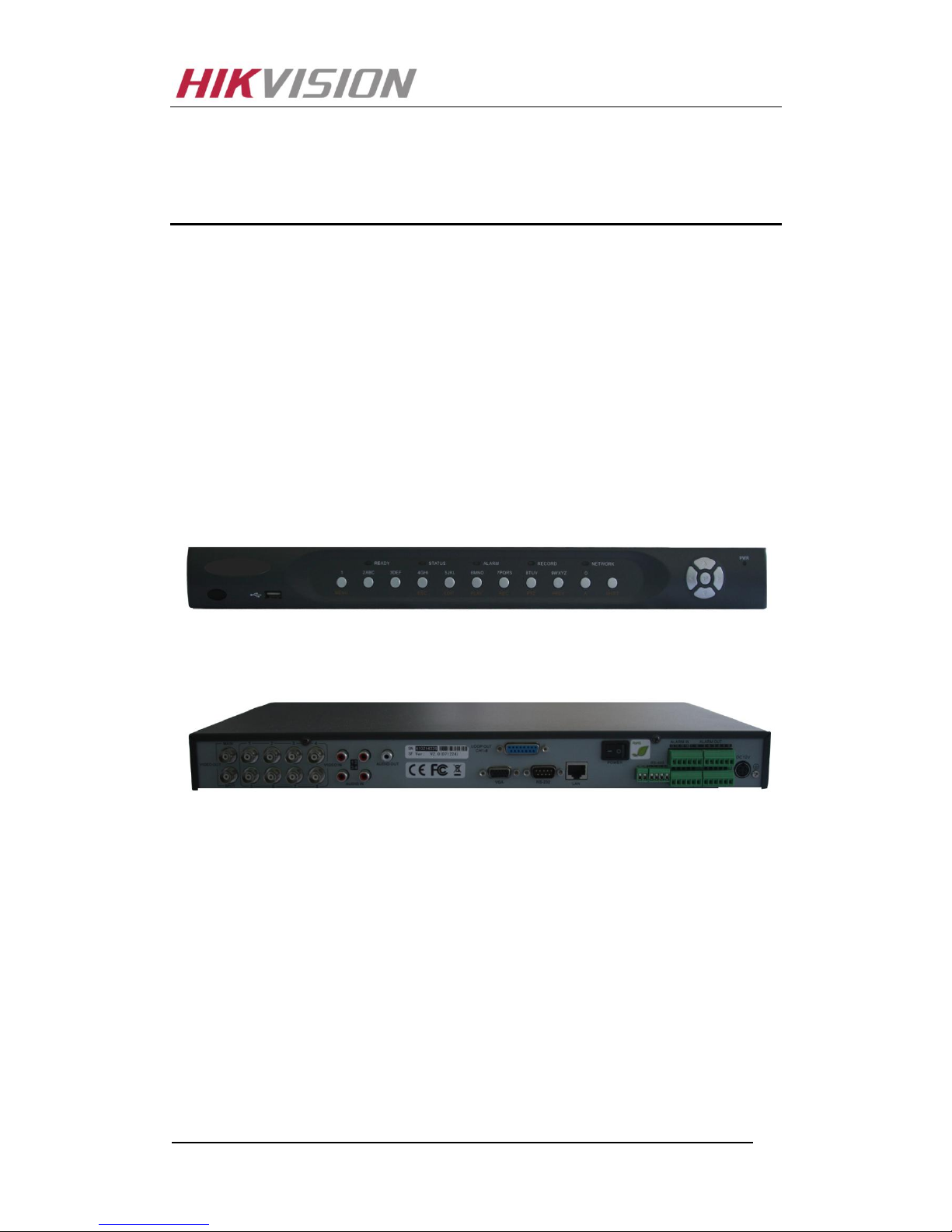

DS-7108HI-S Front Panel

DS-7108HI-S Rear Panel

Hikvision Technical Manual

2.Model Description

DS-7108HI-S: 8-ch video input and 4-ch audio input. 1 VGA interface. 2 SATA

HDDs supported. 1-ch composited video output and 1-ch spot video output. Ch1-8

Loop Out interface.1 RS-232 Port.

Note: 1. The default DVRs are without HDD.

2. A factory recommended HDD should be used for this device.

Hikvision Technical Manual

3.Features

3.1 Compression

H.264 video compression in real-time (PAL: 25FPS, NTSC: 30FPS).

4-ch audio input and one channel output. Each channel is independent

with OggVorbis compression at a bit rate of 16Kbps.

Multi-area motion detection.

On-screen display (OSD) and changeable OSD position.

Support both variable bit rate and frame rate.

Support dual-stream, and the sub stream can support CIF/QCIF

resolution.

2 stream types, including video & audio, and video-only. Either

composited stream or video-only stream can be selected

3.2 Local Functions

3.2.1 Recording

Support 2 SATA HDDs, each can support up to 2000GB

memory.

HDD S.M.A.R.T. technology

Support FAT32 file system

Multiple record types, including schedule recording, all time,

motion detection, alarm, motion & alarm, motion or alarm,

command and manual recording.

Cycle and none cycle recording mode.

Backup recorded files and clips with USB flash disk, USB hard

disk or USB CD/DVD-RW.

3.2.2 Preview & Playback

Support one composited video output and one spot video

output

DS-7108HI-S can support one VGA output and ch1-8 Loop Out

interface.

Support Privacy Mask

Support view tampering alert.

Support video signal loss alert.

Support play forward, backward, pause, frame-by-frame, etc

User-defined preview layout.

Support one playback channel.

Playback by files or by time.

Display local recording status.

Hikvision Technical Manual

3.2.3 PTZ

Several PTZ protocols supported

Preset, sequence and cruise

3.2.4 Alarms

Exception alarm, motion detection alarm, external alarm, etc.

3.3 Network

Support TCP, UTP, Multicast, DHCP, etc

PPPoE for ADSL dialup.

Remote parameters setup

Remote download and playback the recorded files in DVR.

Remote upgrade the DVR firmware

Network PTZ control

IE to preview and configure DVR.

View and search log

3.4 Others

Support network voice talk.

IR remote control

Multi-level user management.

Automatically recovery from abnormal conditions.

Network SDK and client demo source code available

Hikvision Technical Manual

4.Specifications

Model

DS-7108HI-S

Compression

standard

H.264

Preview resolution

PAL: 704*576 (4CIF) NTSC: 704*480 (4CIF)

Recording

resolution

CIF/QCIF

Video input

8 channels BNC ( 1.0Vp-p ,75 Ohm)

Video out

1 channel BNC (1.0Vp-p ,75 Ohm)

Video spot out

1 channel BNC (1.0Vp-p ,75 Ohm)

Video loop out

8 channels

Frame rate(per

channel)

CIF: 25(P)/30(N)

Audio compression

standard

OggVorbis, 16Kbps

Audio in

4 channels RCA (2Vp-p ,1KOhm)

Audio out

1 channel RCA (Linear electrical level, 600 Ohm)

Voice talk

1 channel (Using 1st channel of Audio IN)

Stream type

Video/Video & Audio

Support dual

stream

Yes

Bit rate

32Kbps~2Mbps, or user-defined (Max. 8Mbps)

SATA interface

2 SATA interface , support 2 SATA HDDs. Each supports up

to 2TB.

Network port

10M/100M adaptive Ethernet interface

RS-232 port

1 DB9 port

RS485 port

1, T+T- R+R-

USB

1 USB 2.0 interface, support USB mouse, support USB disk,

USB HDD, USB CD/DVD-R/W

VGA Interface

1VGA resolution:

800*600/60Hz

800*600/75Hz

1024*768/60Hz

Alarm in

16 channels

Alarm out

4 channels

Power supply

DC 12V

Power

consumption

≤30W(without HDDs)

Working

-10°C~+55°C

Hikvision Technical Manual

temperature

Working humidity

10%~90%

Size

445mm(W)*290mm(D)*44mm(H)

Weight

≤3.28Kg(without HDDs)

PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF);

NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF).
