Hifonics ZX10D2 User manual
SUBWOOFERS
ZX12S4 / ZX12D2 / ZX12D4
ZX10D2 / ZX10D4
All manuals and user guides at all-guides.com
all-guides.com
1
ZEUS SERIES
CAR AUDIO SUBWOOFERS
Congratulations on your purchase of the new Hifonics ZEUS
Series subwoofer system. As Hifonics celebrates 25 years of shaking
the mobile audio industry, the ZEUS subwoofer series has been
revived. The ZEUS subwoofer series has a reputation in the industry
as one of the most efficient and loudest subwoofers in its’ price
range. The ZEUS subwoofers feature new cosmetics, accurate bass
reproduction through a wide range of frequencies, and impressive
power handling capabilities.
As with all high quality car audio products, we recommend
professional installation by an authorised Hifonics dealer. Your
dealers knowledge and experience can ensure a problem free and
cosmetically integrated installation. If you choose to install the
subwoofers yourself, please read the entire manual very carefully.
Available In DVC 2-Ohm & 4-Ohm As Well As SVC 4-Ohm
10” & 12” Round Subwoofers
Rubber Surround
Dual Flat Nomex Spider With Woven Tinsel Leads
Polypropylene Cone
Nickel Plated Push & Insert Speaker Terminals
Heat Dispersing Ported Nickel Plated Back Plate
Ultra Ridged Stamped Steel Basket
Protective Rubber Magnet Wrap
Operates In Sealed & Ported Enclosures
All manuals and user guides at all-guides.com
2

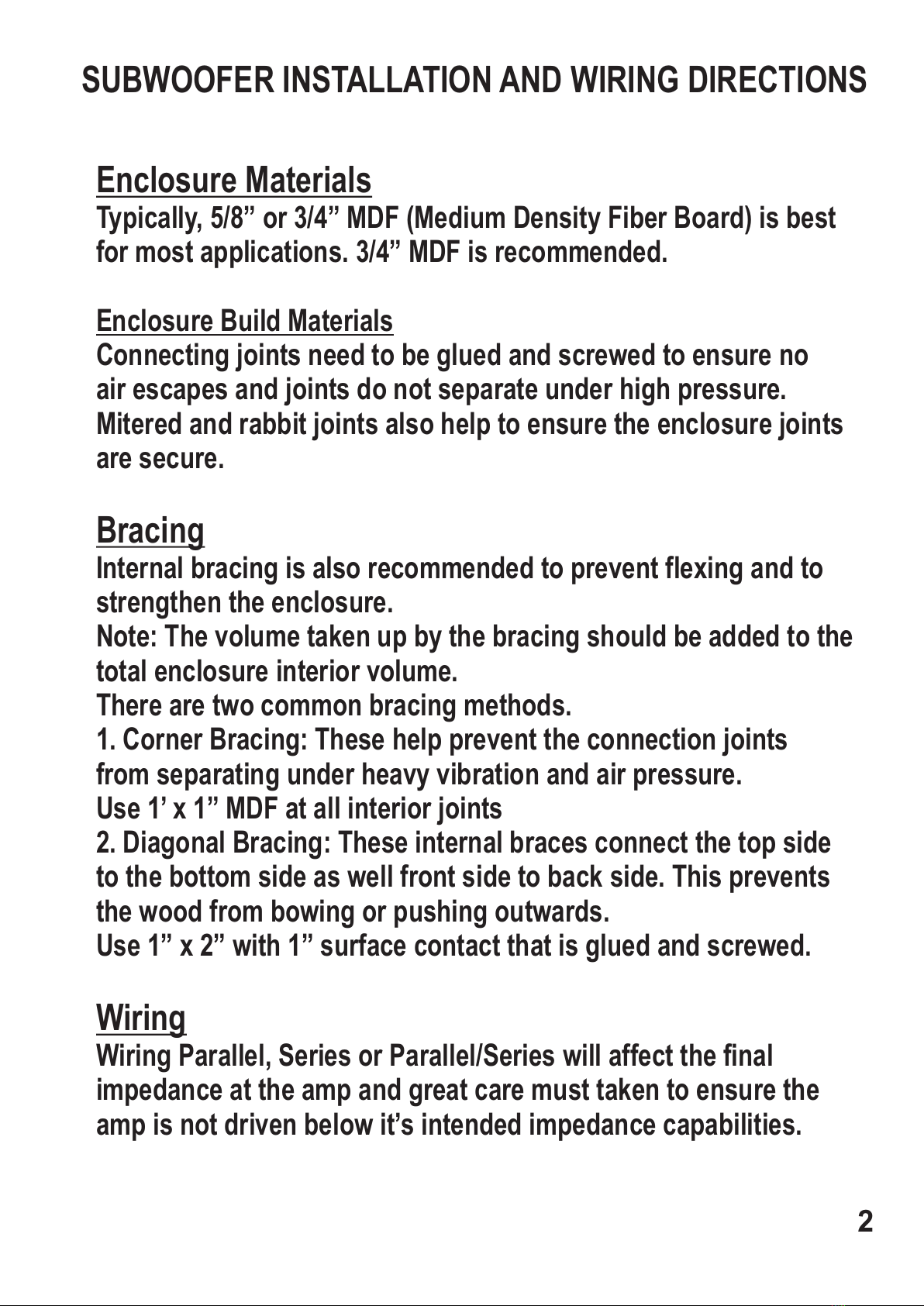

SUBWOOFER INSTALLATION AND WIRING DIRECTIONS
Enclosure Materials
Typically, 5/8” or 3/4” MDF (Medium Density Fiber Board) is best
for most applications. 3/4” MDF is recommended.
Enclosure Build Materials
Connecting joints need to be glued and screwed to ensure no
air escapes and joints do not separate under high pressure.
Mitered and rabbit joints also help to ensure the enclosure joints
are secure.
Bracing
Internal bracing is also recommended to prevent flexing and to
strengthen the enclosure.
Note: The volume taken up by the bracing should be added to the
total enclosure interior volume.
There are two common bracing methods.
1. Corner Bracing: These help prevent the connection joints
from separating under heavy vibration and air pressure.
Use 1’ x 1” MDF at all interior joints
2. Diagonal Bracing: These internal braces connect the top side
to the bottom side as well front side to back side. This prevents
the wood from bowing or pushing outwards.
Use 1” x 2” with 1” surface contact that is glued and screwed.
Wiring
Wiring Parallel, Series or Parallel/Series will affect the final
impedance at the amp and great care must taken to ensure the
amp is not driven below it’s intended impedance capabilities.
All manuals and user guides at all-guides.com
3
All manuals and user guides at all-guides.com
4
All manuals and user guides at all-guides.com
5

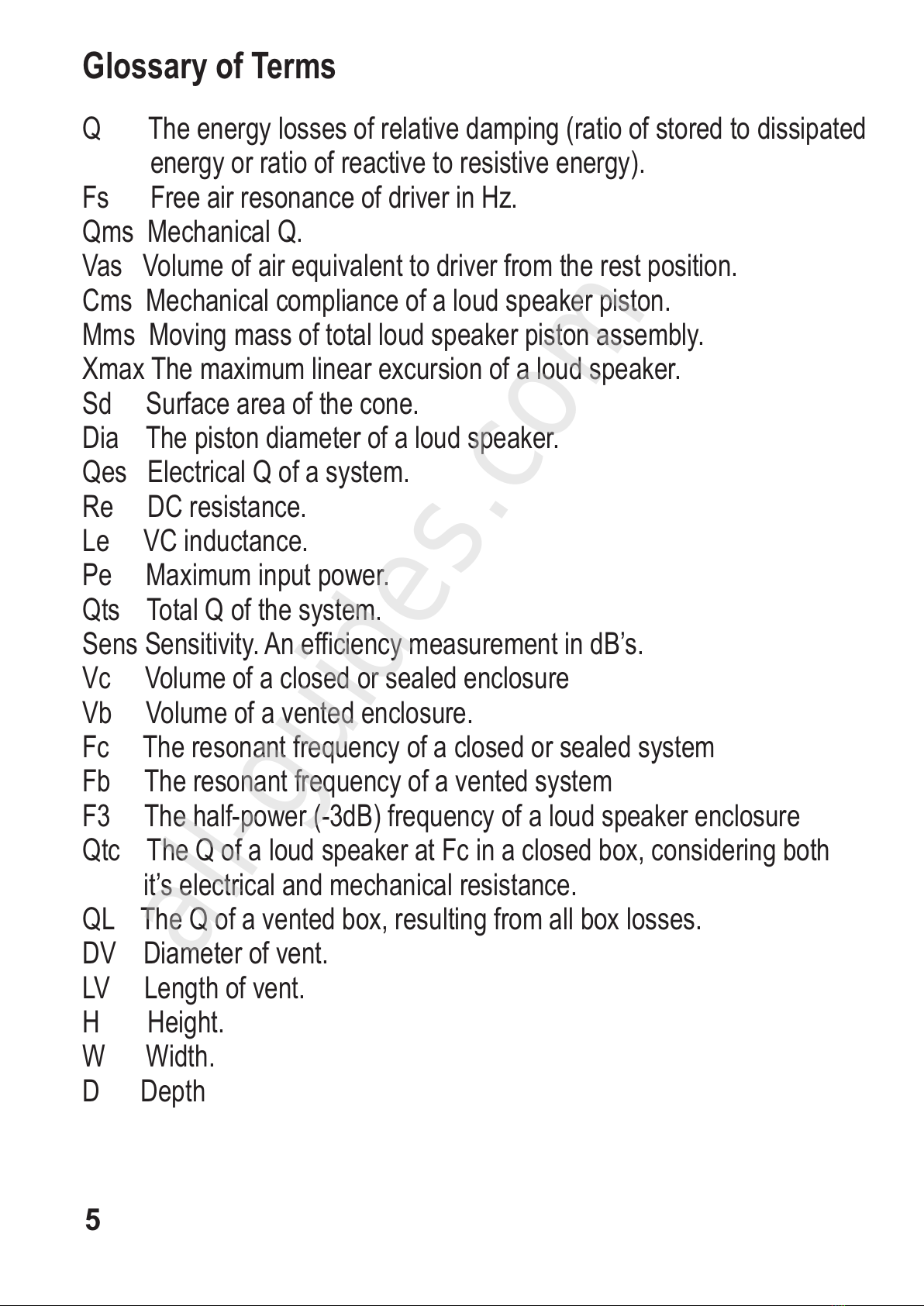

Q The energy losses of relative damping (ratio of stored to dissipated
energy or ratio of reactive to resistive energy).
Fs Free air resonance of driver in Hz.
Qms Mechanical Q.
Vas Volume of air equivalent to driver from the rest position.
Cms Mechanical compliance of a loud speaker piston.
Mms Moving mass of total loud speaker piston assembly.
Xmax The maximum linear excursion of a loud speaker.
Sd Surface area of the cone.
Dia The piston diameter of a loud speaker.
Qes Electrical Q of a system.
Re DC resistance.
Le VC inductance.
Pe Maximum input power.
Qts Total Q of the system.
Sens Sensitivity. An efficiency measurement in dB’s.
Vc Volume of a closed or sealed enclosure
Vb Volume of a vented enclosure.
Fc The resonant frequency of a closed or sealed system
Fb The resonant frequency of a vented system
F3 The half-power (-3dB) frequency of a loud speaker enclosure
Qtc The Q of a loud speaker at Fc in a closed box, considering both
it’s electrical and mechanical resistance.
QL The Q of a vented box, resulting from all box losses.
DV Diameter of vent.
LV Length of vent.
H Height.
W Width.
D Depth
Glossary of Terms
All manuals and user guides at all-guides.com
all-guides.com
6
DVC 4-Ohms
+
-
+
-
+
-
+
-
Parallel Coils / Parallel Subs
+
-1-Ohm
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
-
+8-Ohms
Series Coils / Parallel Subs
+
-
+
-
+
-
+
-
Parallel
+
-
+
-
-
+2-Ohms
+
-
+
-
Series
+
-
+
-
+
-8-Ohms
+
-
+
-
All manuals and user guides at all-guides.com
7
DVC 2-Ohms
+
-
+
-
+
-
+
-
Parallel Coils / Parallel Subs
+
-0.5-Ohms
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
-
+2-Ohms
Series Coils / Parallel Subs
+
-
+
-
+
-
+
-
Parallel
+
-
+
-
-
+1-Ohm
+
-
+
-
Series
+
-
+
-
+
-4-Ohms
+
-
+
-
All manuals and user guides at all-guides.com
SVC 4-Ohms
Parallel Subs
+
-
+
-
+
-2-Ohms
+
-
+
-
+
-
+
-
-
+8-Ohms
Series Subs
+
-
+
-
Standard
+
-
+
-4-Ohms
+
-
All manuals and user guides at all-guides.com
9
A
B
Subwoofer Dimensions
Model A - Cut Out Diameter B - Mounting Depth
ZX10
ZX12 11.18” / 284mm
9.06” / 230mm
6.22” / 157.9mm
6.06” / 154mm
All manuals and user guides at all-guides.com
