Hifonics BRUTUS BRX12D4 User manual

BRX12D4

SUBWOOFERS

BRUTUS

BRUTUS SERIES

CAR AUDIO SUBWOOFERS

Congratulations on your purchase of the new Hifonics BRUTUS

Series subwoofer. The BRX subwoofers have been built for

stunning sound quality as well as powerful bass.

As with all high quality car audio products, we recommend

professional installation by an authorized Hifonics dealer.

Your dealers knowledge and experience can ensure a problem

free and cosmetically integrated installation.

If you choose to install the subwoofers yourself, please read the

entire manual very carefully.

12” Round Subwoofers

Heavy Duty Woven Texture Polypropylene Cone &

Injection Molded Dust Cap

ABS Trim Ring With Illumination

UV Resistant Butyl Rubber Surround

Dual Resin Infused Textile Spiders

Powder Coated Deep Draw Stamped Steel Basket

2.5” High Temp Voice Coil

DVC 4-Ohm

Push & Insert Style Speaker Terminals

56 oz Vented Motor

Heavy Duty ABS Protective Motor CAP

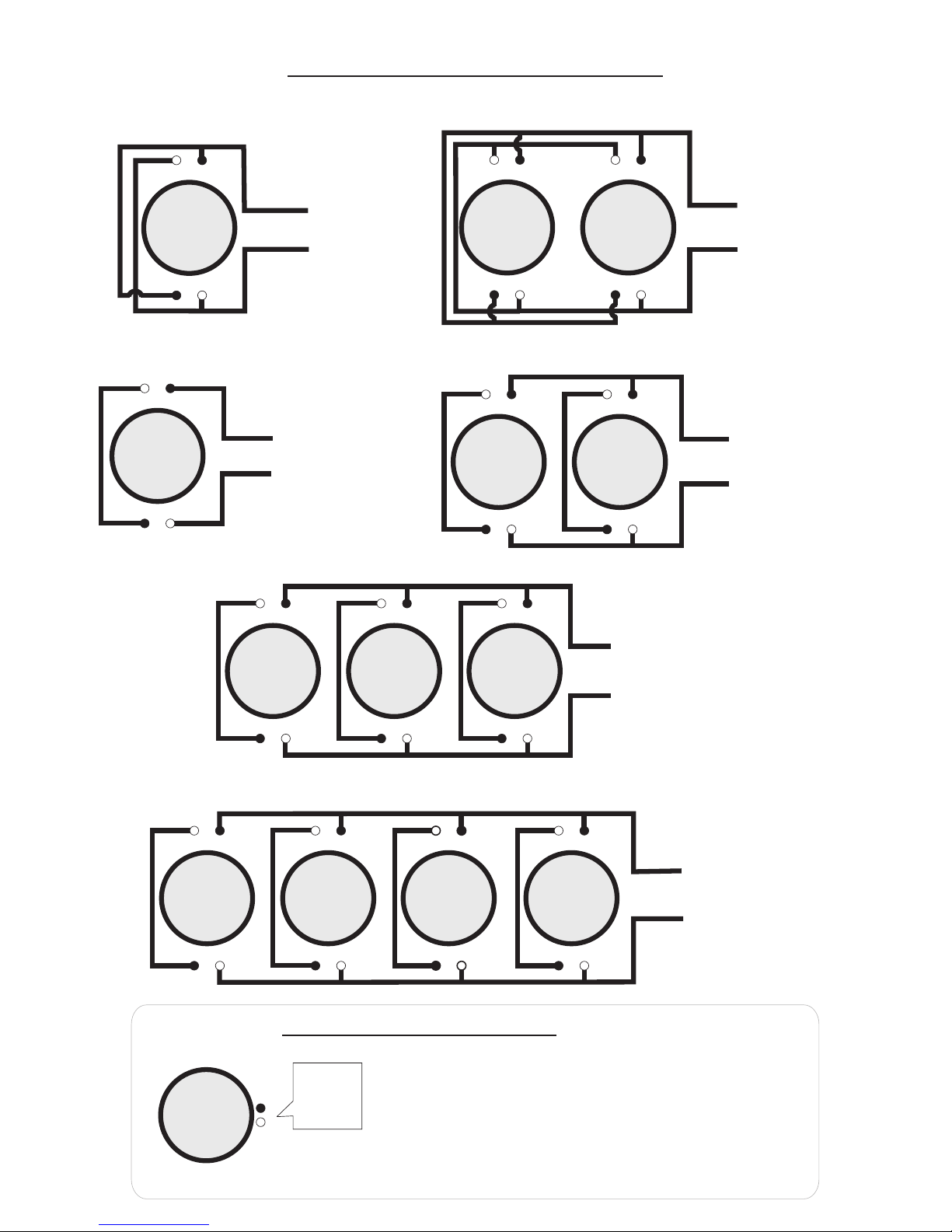

DVC 4-Ohm Coil Wiring

SERIES COILS

1+ 1-

2- 2+

8-Ohms

SERIES COILS / PARALLEL SUBS

1+ 1-

2- 2+

1+ 1-

2- 2+

2.66-Ohms

1+ 1-

2- 2+

1 2 3

SERIES COILS / PARALLEL SUBS

1+ 1-

2- 2+

1+ 1-

2- 2+

2-Ohm

1 2

1+ 1-

2- 2+

1+ 1-

2- 2+

PARALLEL COILS

1+ 1-

2- 2+

2-Ohms

1+ 1-

2- 2+

SERIES COILS / PARALLEL SUBS

1+ 1-

2- 2+

4-Ohms

1 2

PARALLEL COILS / PARALLEL SUBS

1+ 1-

2- 2+

1+ 1-

2- 2+

1-Ohm

1 2

ILLUMINATION WIRING

SMALLER

PUSH

INSERT

TERMINALS

1. Connect the LED + RED terminal to an accessory

switched 12 volt wire. This wire should have +12V

when the ignition key is “on” and 0 volts when the

ignition key is “off”. You can use a toggle switch

in line on this wire to manual turn the illumination

off if desired and this 12V+ wire must have a 5 amp

fuse in line.

2. Connect the LED - BLACK terminal to chassis ground.

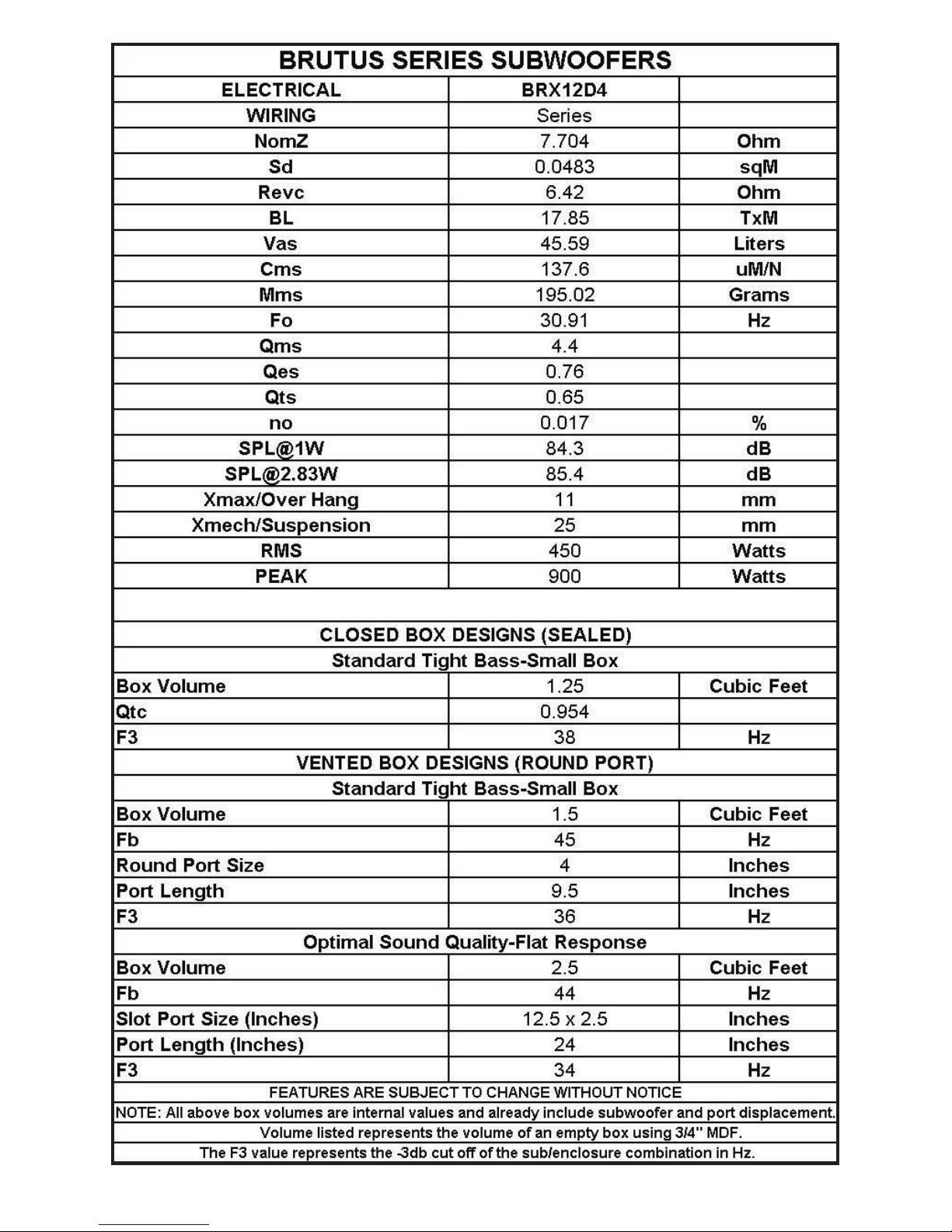

Q The energy losses of relative damping (ratio of stored to dissipated

energy or ratio of reactive to resistive energy).

Fs Free air resonance of driver in Hz.

Qms Mechanical Q.

Vas Volume of air equivalent to driver from the rest position.

Cms Mechanical compliance of a loud speaker piston.

Mms Moving mass of total loud speaker piston assembly.

Xmax The maximum linear excursion of a loud speaker.

Sd Surface area of the cone.

Dia The piston diameter of a loud speaker.

Qes Electrical Q of a system.

Re DC resistance.

Le VC inductance.

Pe Maximum input power.

Qts Total Q of the system.

Sens Sensitivity. An efficiency measurement in dB’s.

Vc Volume of a closed or sealed enclosure

Vb Volume of a vented enclosure.

Fc The resonant frequency of a closed or sealed system

Fb The resonant frequency of a vented system

F3 The half-power (-3dB) frequency of a loud speaker enclosure

Qtc The Q of a loud speaker at Fc in a closed box, considering both

it’s electrical and mechanical resistance.

QL The Q of a vented box, resulting from all box losses.

DV Diameter of vent.

LV Length of vent.

H Height.

W Width.

D Depth

Glossary of Terms

Subwoofer Dimensions

278mm / 10.94”

144.5mm / 5.69”

185.6mm / 7.31”

HIFONICS UNIVERSAL SUBWOOFERS
