Herma LP Morgan POP User manual
LP morgan
user manual
www.lpmorgan.com.au
POP Screen
Important information
Unpacking 3
Installation
Installation - Top Grip Kit 4
Installation - Side Grip Kit 5
Installation - Stabilising Bars 6
Installation - Framed Screens 7
Appendix
Maintenance & Troubleshooting 10
Warranty Information 11
Notes and Cautions
WARNING: A notice indicates potential damage to ceiling and tells you how to avoid the problem.
DANGER: A caution indicates a potential for property damage, personal injury or death.
Information in this document is subject to change without notice.
© 2002-2006 Herma Technologies. All rights reserved.
Reproduction in any manner whatsoever without permission of Herma Technologies is strictly forbidden.
Trademarks used in this text: Herma, the Herma Logo, LP Morgan and LP Morgan logo are registered
trademarks of Herma Technologies.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the
marks and names or their product. Herma Technologies disclaims interest in trademarks and trade names
other than its own.
Apr 2006 Version 4.1
Table of contents
To the owner
Congratulations on purchasing an LP Morgan Pop Screen. A high quality,
rigid and low cost rear projection screen, designed for visual merchandising
applications. Please take a moment to review this manual, it will ensure
you many years of trouble-free service from your new POP Screen vertical
mounting kit.
TIP: A tip indicates important information that helps you make better use of your screen.
Important
information
Unpacking the Pop Screen
Supplied
7
2 x 2m Cable with top
grip suspension kit
2 x 2m Cable with side
grip suspension kit
Stabilising bar kit (for 45’’, 49”, 60” & 69” size screens only):
2 x Stabilising Bars 10 x Screen Grips
4 x End Caps
2 x Sliding mounts
Depending on the size of the screen chosen and the configuration
you have chosen to mount your screen, you should have a selection
of the components shown below:
Frame Kits (NB: frame is pre-assembled if size is either 77” or 84”)
4 x Pieces of frame
extrusion
4 x corner
bracket plate
4 x corner
bracket
8 x M6 grub
screws
misc:
1 x POP screen
cut to size
2 x slide nuts
2 x frame tabsM6 x 12 bolts
2 x M4x12
Grub Screws
installation instructions | 3
4 | installation instructions
Mechanical
Installation
A
B
Installation: Top Grip Kit
1. Position universal grips to POP Screen
(See fig 1. and Detail-A)
2. A-1 to secure wire; then A-2 to secure screen.
3. Screw top boss to ceiling
(See Fig 2, Detail-B) Determine desired screen
height, trim wire to length.
(Default wire length = 2000mm).
4. Secure wire at the top with grub screw B-1
Detail B
Detail A
A-2
A-1
B-1
Fig 1: Top Grip Assembly
universal
grip
Fig 2:
Top Grip Hanging
Kit detail Assembly
Top
Boss
to ceiling
installation instructions | 5
Mechanical
Installation
Installation: Side Grip Kit
1. Attach universal grip to POP Screen (See Fig 4a,
step 1) using 2mm allen key (supplied) to tighten M4
grub screw.
2. Screw bosses to ceiling (or wall) - See Fig 5 at the
appropriate spacing (depending on the size of the
screen.
3. Determine desired cable length and trim
appropriately.
4. Screw bottom boss to floor (or wall) (See Detail B)
5. Attach side grips to cable (see Fig. 4a step 2) and
secure screen at the desired height.
Detail A
Detail B
Fig 4: Side Grip Assembly
Fig 5: Side Grip Hanging
Kit Assembly detail
(Detail B)
Fig. 4a:
(Detail A)
1. Secure
to screen
2. Secure
wire
boss
6 | installation instructions
Mechanical
Installation
Installation: Stabilising Bars
1. Remove plastic caps on both ends of top and bottom stabilising bars and
remove clear plastic slide out screen grips (see fig. 6a)
2. Attach plastic grips to top and bottom edges of POP Screen. Make sure
they are securely fastened. Slide in plastic slider into top stabilising bar.
3. Slide in screen with screen grip attached into channel of top and bottom
stabilising bars. Replace
4. Secure Top Bosses (See fig 2 - Detail B) to ceiling at the appropriate
spacing (this depends on the size of the screen).
5. Determine desired cable length and trim appropriately.
6. Secure universal grip to top stablising bar (see fig. 6b).
Mounting Surface
Fig 6a: Stabilising Bar Assembly Detail
Fig 7: Assembled POP Screen with Stabilising Bars
Remove plastic caps
Slide out screen grips
plastic slider
Fig 6b: Universal grip
attachment detail
Tighten
installation instructions | 7
Mechanical
Installation
Position &
align frame
sections

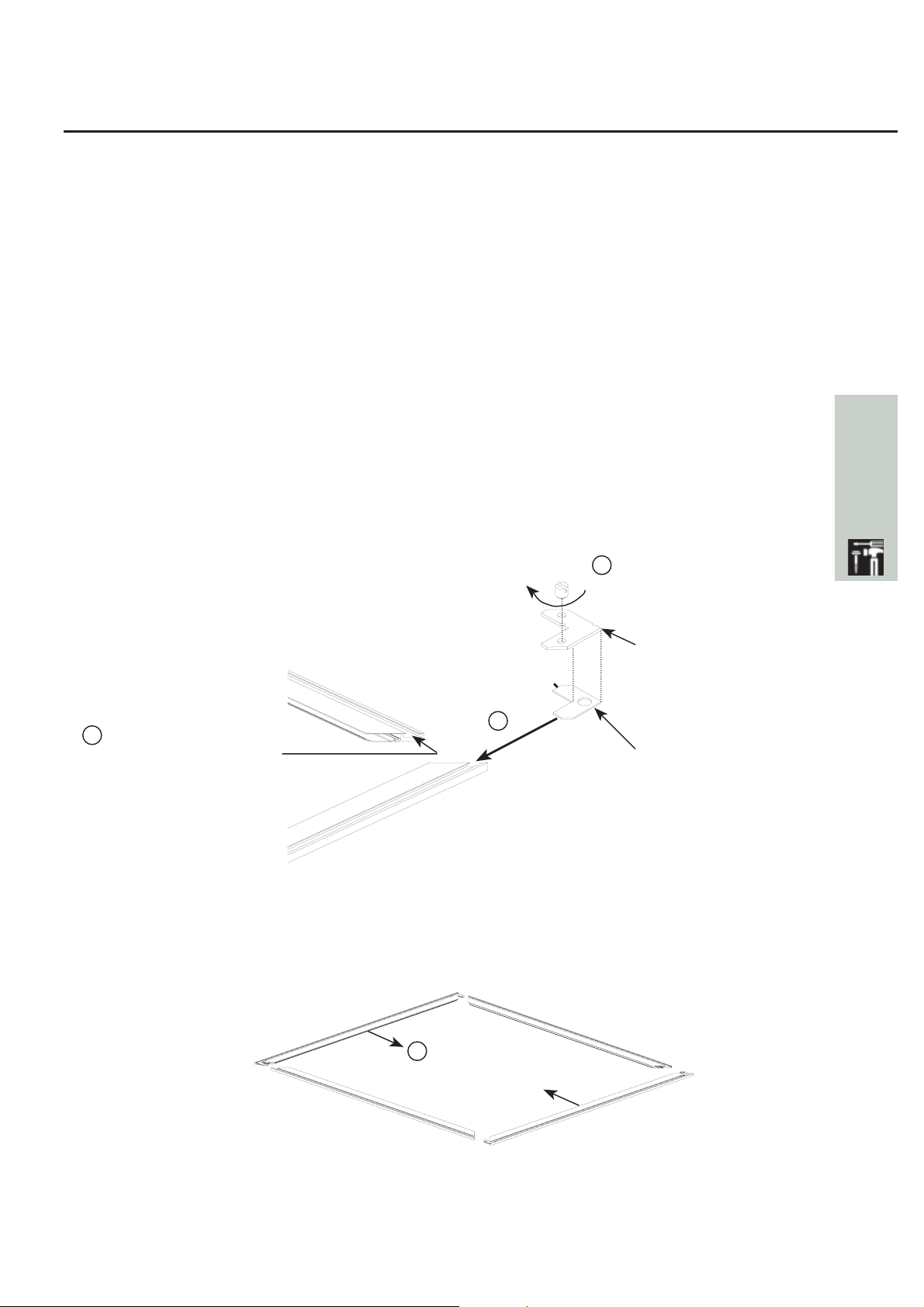

Installation: Framed Screens
Frame Assembly:
• Note: If your screen has been pre-assembled, proceed to page 9.
Fig. 8:
Frame Assembly detail
1. Place two slide nuts into channel of frame section which is intended to
be directly above top edge of image.
2. With frame pieces overturned, place corner bracket on corner bracket
plate and slide both into channel as far as possible as shown in fig. 8.
3. Tighten M6 grub screw using a flathead screwdriver.
4. Repeat for three other corners placing brackets and frame pieces in
position as shown in fig. 9
5. Position and align frame sections, tighten remaining grub screws to
secure the frame.
Corner bracket
Corner bracket
plate
Fig. 9: Bracket fixturing for frame assembly.
Place slide nuts
into this channel.
12
Tighten
3
5
8 | installation instructions
Mechanical
Installation
Installation: Framed Screens
1. Place the frame face up on a flat and stable
surface.
2. Open the frame covers (located along the inner
edge of the frame). To do this, reach inside of inner
edge of frame and pull frame covers toward outer
edge of frame.
3. Repeat for three other edges.
4. Place screen into the frame so that it is securely
housed into the base of the frame.
5. Close all four opened frame covers over the frame.
Open Frame
cover
Place screen
into the frame
Fig 10: Securing the screen into the frame
Screen Assembly:
installation instructions | 9
Mechanical
Installation
Installation: Framed Screens
Hanging Attachments and Configuration:
Mounting Surface
Fig 12 : Suspended Frame with Top Grip Suspension Kit
See Fig 2 for Hanging
kit installation
1. Determining appropriate spacing between hanging cables, secure
top grip kits to ceiling. See page 4 of this instruction manual on details
of how to do this.
2. Secure frame tabs to frame with M6 bolt passing through larger hole
of frame tab to slide nut inside of frame channel.
3. Your framed POP screen should appear as that depicted in fig 12.
To slide nut
secure frame tab
with grub screw.
Universal
Grip
M6x12
Bolt
Frame tab
Fig 11: Hanging detail for framed screens.
10 | installation instructions
Maintenance &
Troubleshotting
Maintenance and troubleshooting
Cleaning instructions:
The screen surface on your Pop Screen is extremely delicate. Special attention
to these instructions should be followed when cleaning.
1. A draftsman’s style brush may be used to lightly whisk away any loose dirt or
dust particles. Do not use a sharp instrument to remove any particles. Softly
brush from the centre to the edges.
2. The screen may be cleaned with a mild solution of detergent and water and
a sponge or soft lint free cloth. Rub lightly to remove any stubborn marks, then
blot with a damp sponge to absorb excess water. Use a clean sponge with
clear water to wash off the detergent residue. Dry the screen with a soft cloth/
towel so that the detergent does not have time to dry on the screen.
3. NEVER attempt to use solvents, chemicals or abrasive cleaners on the
screen.
4. We encourage you to keep your screen clean. Avoid getting any foreign
materials on it, as cleaning may prove to be very difficult or even impossible
(scratches, paint, ink, etc.). Never paint in the vicinity of the screen unless the
screen surface is completely protected.
With reasonable care you may expect years of trouble free use of your LP
Morgan POP screen.
