Limit settings
The screen is tted with 2 limits. The limits
automatically stop the screen in the fully UP (top limit)
and fully Down (bottom limit) positions. You can adjust
the bottom limit to set your viewing height.
Setting The top limit
Adjusting the top limit may damage your screen and
void your warranty. For this reason the top limit screw
is covered by a warning sticker.
Do not adjust the top limits under any circumstance.
Setting the bottom limit
Caution: Setting the bottom limit beyond the black
leader may render your screen inoperable and void
your warranty
The bottom limit switch is accessible through a
grommeted hole on the left side of the casing.
Lower the screen to the operating position then
insert the supplied Hex key into the white coloured
screw. Turn it clockwise to raise the screen or turn
it anti-clockwise to lower the screen.
When lowering the bottom limit the screen will move
as you adjust it.
When raising the bottom limit please lift and lower
the screen with the remote or side buttons to see
the new limit setting.
Excessive motor use
The motor will switch off if the screen is used
continuously for more than three minutes. Allow the
motor to cool for 30 minutes before using again.
If you do not expect to use your screen for some
time, please disconnect the power.
To the owner
Congratulations on purchasing a 2C Screen IT,
This screen is designed to produce the sharpest,
most pleasing pictures with maximum convenience.
Before you start
• Use the correct tools: a level, a measuring tape
and a pencil to mark with.
• Measure the bracket position accurately before
attaching to the wall or ceiling.
Wall mount

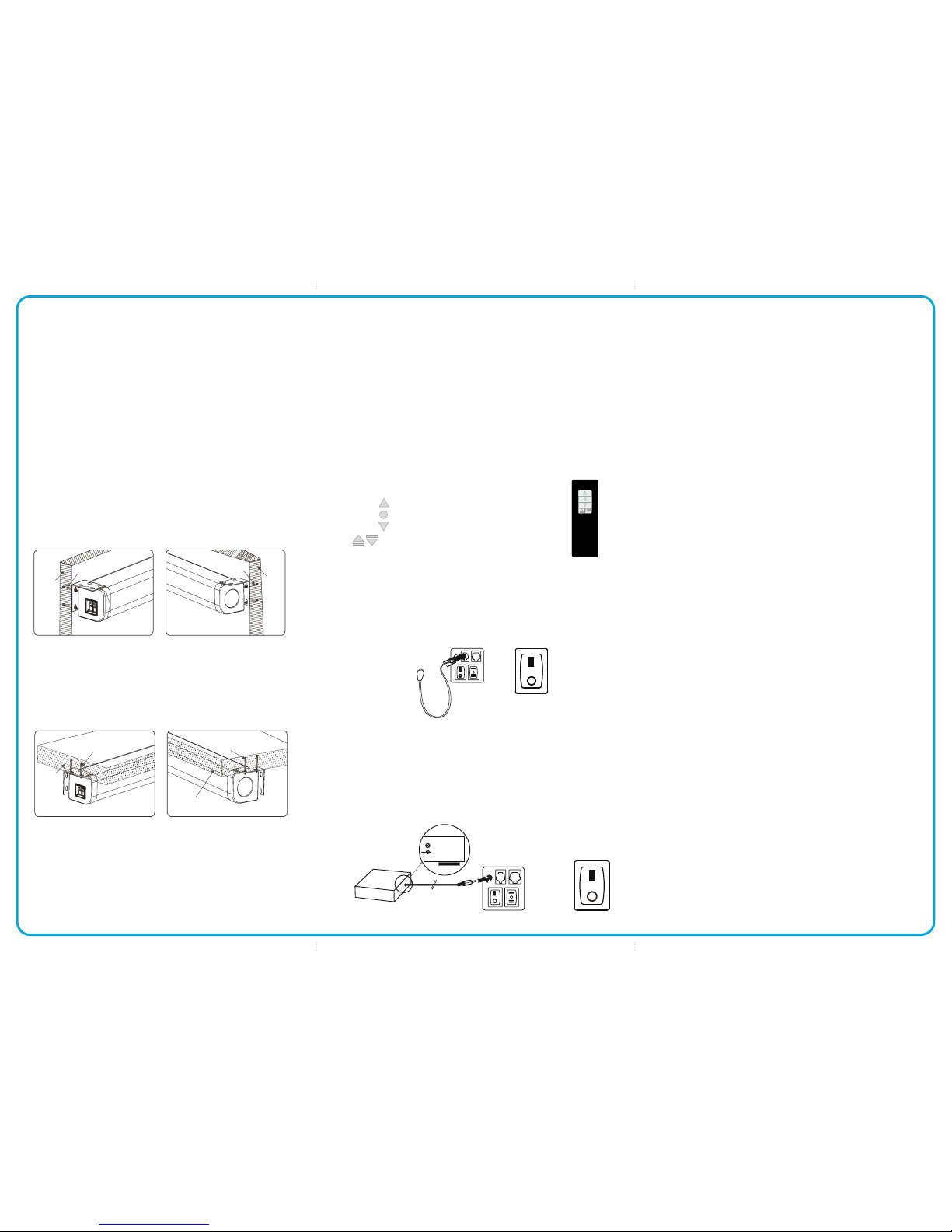

Mount the screens as shown below.
Wall Wall
Expansion bolts
Expansion bolts
Ceiling mount
Screen can be ceiling mounted as shown below.
Ceiling
Ceiling
Expansion bolts
Expansion bolts
Using 12V Trigger:
Requires a 2 core cable with 2.5mm jack plug.
Move the selector switch (Manual/Remote) to “1” position.
Connect the projector and the screen with the cable.
Turn ‘On’ the projector. Select the 12V from the projector
menu; now the screen will lower and when the projector
is turned ‘OFF’ the screen will retract into the casing.
Electrical installation
2C Screen IT come with an Australian standard plug.
Simply plug in and your screen is ready to use.
Operating Instructions
Caution: Before operating the screen you must remove
the white adhesive tape which holds the dropper bar to
the screen case.
Using IR Remote
Your remote control comes with a battery. The remote
must be in line of sight with the sensor.
To operate your remote:
Press to lift the screen
Press to stop the screen
Press to lower the screen
The Micro switch is used for retracting
or lowering screen in small increments.
Alternatively you may also use the external IR receiver
cable and sensor. Move the selector switch (Manual/
Remote) to “0” position. Plug the IR receiver cable into
the IR Port on the casing and mount the sensor in line of
sight with the remote. Now use the remote to lower and
retract the screen.
+ 5V-12V DC
TRIGGER
