Hercules P32DJ User manual

Hercules

®

Technical support - 1 -

How can I verify the Hercules P32DJ is working correctly as a MIDI controller

(MAC)?

There is many ways to test the Hercules P32DJ as a MIDI controller. The first one is

included with MAC OS:

- Open Audio/MIDI Setup (Application > Utilities).

Under Window >MIDI Studio, you should find Hercules P32DJ.

- Click on

Press a button on the controller. You should normally obtain de following result,

indicating the controller correctly transmits a signal:

Even though it might not be very precise, this is an easy way to verify the transmission

of MIDI Messages. For a more detailed analysis, we’ll use a MIDI test program available

from the following website:

MIDI Monitor

http://www.snoize.com/MIDIMonitor/

Hercules

®

Technical support - 2 -

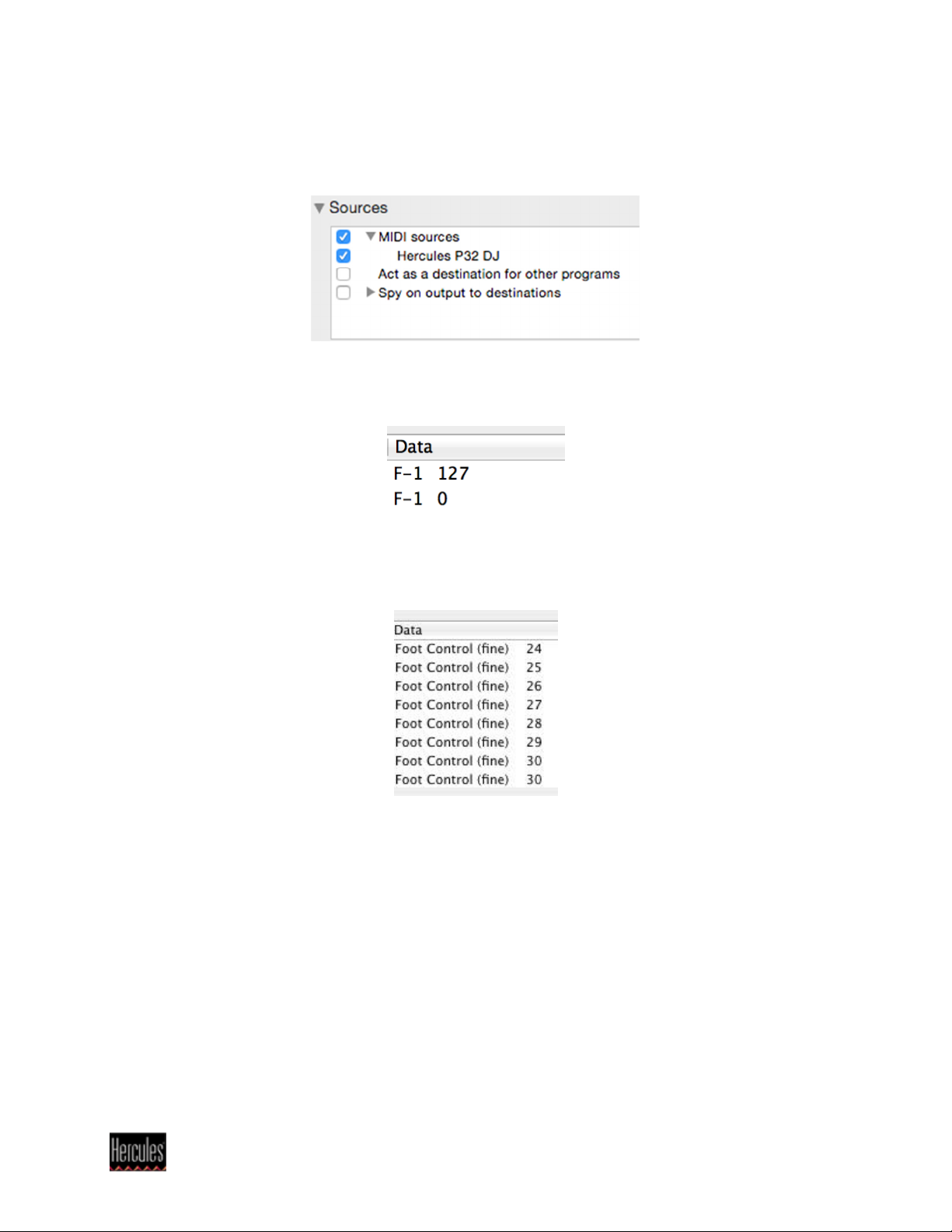

Once installed, the first thing to do when launching MIDI Monitor, is to check under

Sources, that Hercules P32DJ is enumerated:

Start by pressing a button on the DJ Control. Under column Data, you will notice a value

of 127 (when pressing the button) and 0(when releasing the button).

For knobs and sliders, who are incremental controls, you should normally get values

between 0 and 127, depending on the position of the controller.

This test can also help determine if some of the controls of the DJ Control are not

working correctly. For example, if the Crossfader is only halfway to his course but

already displays its maximum value of 127.
