Heraeus Soluva Air M10 User manual
Instructions

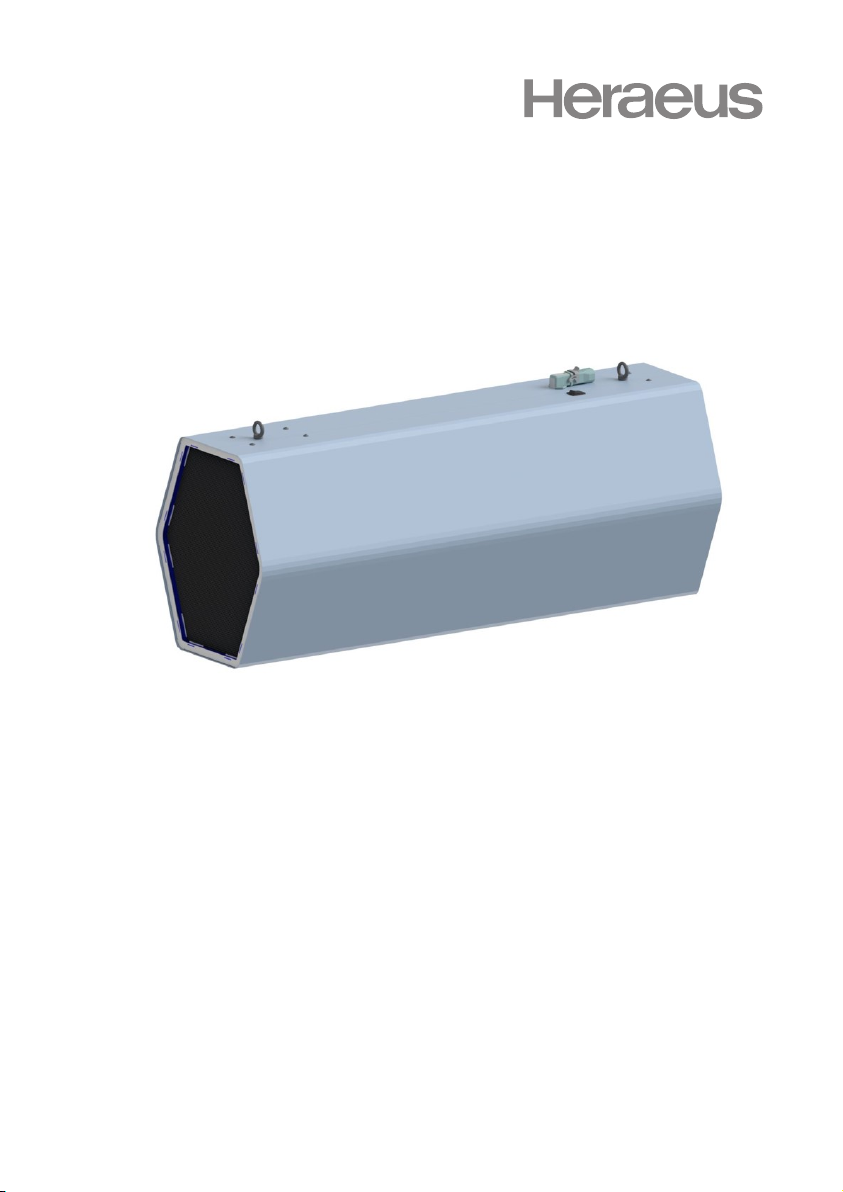

Soluva® Air M10
UV-C Air Disinfection System
IPS_Man 20003302000 en 12.20
Keep for future reference
Heraeus Noblelight
Soluva® Air M10
UV-C Air Disinfection System
Page 2 of 38 IPS_Man 20003302000 en 12.20
IPS_Man 20003302000 en 12.20 Page 3 of 38
Table of contents
1 Introduction.............................................................................................. 4
1.1 Risk assessment................................................................................ 6
2 Product description................................................................................. 7
2.1 Intended use ...................................................................................... 9
3 Safety instructions .................................................................................. 10
3.1 List of the symbols used .................................................................... 10
3.2 Target group, personnel qualifications............................................... 11
3.3 Basic safety instructions .................................................................... 12
4 Transport.................................................................................................. 15
5 Installation................................................................................................ 16
6 Control...................................................................................................... 21
7 Maintenance............................................................................................. 24
7.1 Replacement parts............................................................................. 30
8 Disposal.................................................................................................... 31
8.1 UV lamps ........................................................................................... 31
8.2 Device................................................................................................ 31
9 EC Declaration of Conformity ................................................................ 32
10 Liability and quality agreement.............................................................. 32
11 Annex........................................................................................................ 32
11.1 Technical description ......................................................................... 33
11.2 Installation instruction fischer concrete screw ULTRACUT FBS II .... 36
Page 4 of 38 IPS_Man 20003302000 en 12.20
1 Introduction
Heraeus Noblelight GmbH
Heraeusstraße 12-14
63450 Hanau, Germany
Phone: +49 6181 35-5522
Mail: [email protected]
www.heraeus-noblelight.com
Available language versions of the operation manual
www.heraeus-noblelight.com/soluva-manuals
Heraeus Noblelight GmbH retains all rights to this operation manual.
IPS_Man 20003302000 en 12.20 Page 5 of 38
The text, information and illustrations in this manual must not be reproduced,
distributed or disclosed to third parties or used without authorisation for pur-
poses of competition.
This operation manual was prepared with great care. However, should you de-
tect an error in it, we would appreciate if you let us know.
Service
If you have any questions regarding repairs, spare parts, installation or initial
operation, please contact our service team:
Europa/EMEA/
Rest of world
( +49 6181 35-5522
Americas ( +1 301 990-8700
Japan ( +81 (0) 3/6902-6633
China/Taiwan ( +86 (21) 3357-5335
Korea ( +82 (31) 270 9449
èGlue the type plate sticker here.
Page 6 of 38 IPS_Man 20003302000 en 12.20
Vorwort
This operation manual provides instructions for the use and care of the product.
This operation manual is for use by personnel operating and servicing the
product.
èRead this operation manual prior to initial operation.
èObserve the instructions given in the operation manual.
èEnsure that this operation manual is available to all persons
handling the product.
èMake sure the operation manual can be consulted without a
problem at any time during the service life of the product.
NOTICE!Heraeus Noblelight cannot be held liable for any damage or dis-
turbance of operations caused by non-compliance with the instructions
given in this operation manual.
The proper function of the product is guaranteed only if
uthe product is operated in accordance with the instructions; and
uthe operation manual and maintenance recommendations are observed.
Text markup
The markups used in the text indicate the following:
uBold = important information
uItalics = reference to a chapter, or a menu item
uè = instruction; something needs to be done
1.1 Risk assessment
Heraeus Noblelight offers powerful light sources that are optimised for the spe-
cific application and hence have a high ultraviolet (UV), visible (VIS) and in-
frared (IR) radiation capacity, depending on lamp type, which may be a risk to
the user (artificial optical radiation (AOR)).
Various sources of information, in the form of harmonised standards and tech-
nical rules, together with European Directives and national laws, are available
to facilitate the safe use of these lamps and systems, or the devices and ma-
chines in which they are incorporated. These documents contain requirements
and guidelines for risk group classification, AOR risk assessment, technical
design, technical control, marking and possible safety precautions for users.
IPS_Man 20003302000 en 12.20 Page 7 of 38
èSee, e.g., the standards EN 62471, IEC/TR 62471-2, EN 12198-1 and EN
14255-1/-2.
EU Directive 2006/25/EC on the minimum health and safety requirements re-
garding the exposure of workers to risks arising from artificial optical radiation
provides that employers must assess whether and to what extent harmful op-
tical radiation, including UV and IR radiation, is emitted by the product and what
the exposure risks are for workers in the vicinity, e.g. foreseeable duration of
exposure and foreseeable accessible distances. This is a legal obligation of the
employer with respect to health and safety at the workplace and not a product-
related legal obligation of the manufacturer.
The employer can use the end-product manufacturer's operation manuals to
help it assess the exposure risk at the workplace but they do not release the
employer from its legal obligation to perform a risk assessment itself because,
in particular, the hazards from artificial optical radiation caused by the use of
the product at the workplace can be assessed only under the final user condi-
tions. Based on the results of the workplace risk assessment, the employer
must take appropriate measures to protect the user against hazards, including
risks from artificial optical radiation. The risk assessment shall include, without
limitation, the following areas:
uThe effect of the artificial optical radiation generated by the product on the
materials and users in the vicinity if the product is used as intended.
uThe fire hazard that may arise due to the product being a source of heat if
used as intended
uThe requirements regarding adequate ventilation and/or extraction if used
as intended.
uAmbient conditions under which the product is to be operated or stored,
such as temperature and relative air humidity.
uSafe working practices for working with the product.
uIn addition to the operation manual, all applicable legal and other regula-
tions regarding accident prevention and protection of the environment must
be observed.
2 Product description
Soluva® Air M10 is a product of Heraeus Noblelight for the disinfection of air in
closed rooms.
This product allows dry disinfection without chemicals.
The UV lamps contained in the device destroy the structure of the microorgan-
isms' DNA by using highly disinfectant UV light of the wavelength 254 nm
(ozone-free).
Page 8 of 38 IPS_Man 20003302000 en 12.20
Optimising the disinfection effect
The disinfection effect of the Soluva® Air M10 depends on good air circulation
in the room.
èExamples of arrangement in the room see chapter Mounting.
Reduction of the risk of infection in dependence on air circulation and
room size
The higher the air circulation rate with disinfected air in the room, the lower the
risk of infection.
Air circulation rate (1/h) 1 2 3 4
Risk of infection -25 % -42 % -52 % -59 %
[J.L. Jimenez, COVID-19 Aerosol Transmission Estimator, https://tinyurl.com/
covid-estimator, 23/11/2020]
This mean, an air circulation rate of 3 per hour can more than halve the risk of
infection:
uExample (general): A room with 4m x 7m = 28m² floor area and a height
of 2.4 m has a room volume of 28m² x 2.4m = 67m³.
To obtain an air circulation rate of 3 per hour, a device should have an air-
flow rate of 3 x 67m³/h = 200m³/h.
uOne Soluva® Air M10 with 1,100m³/h airflow rate is suitable for a room of
367m³. For a ceiling height of 3.5m, the corresponding floor area would be
105m².
uWith two devices, you can either double the air circulation rate in a room
(and hence further reduce the risk of infection) or disinfect a room of double
the size at the same air circulation rate.
Scope of supply
The Soluva® Air M10 consists of:
uHousing with side covers for air inlet and outlet.
u2 UV lamps (NNI 370/77 XL HR) for air disinfection.
uIntegrated control unit.
uLED strip light for visualising the operating states.
uConnecting cable 15 m with plug with earthing contact (detachable).
IPS_Man 20003302000 en 12.20 Page 9 of 38
Fig.1: Main dimensions
èAdditional technical data see Annex.
2.1 Intended use
Soluva® Air M10 is intended exclusively for the disinfection of ambient air in lar-
ger rooms or halls with a minimum ceiling height of 3.00 m.
Reasonably foreseeable misuse
The following exclusions apply, among others:
uDo not use to expose humans or animals to radiation.
uDo not use outside of the permitted ambient conditions.
uManipulation or bypassing of a safety device
uDo not use for general lighting purposes.
uDo not use outdoors.
uDo not use in explosive or combustible atmospheres.
DANGER
Explosion hazard
èUse in explosion hazard areas is prohibited.
Page 10 of 38 IPS_Man 20003302000 en 12.20
3 Safety instructions
èObserve the safety instructions.
ðNon-observance of the safety instructions causes hazards to per-
sons, the environment and the product.
More information about the handling of UV radiation is provided at www.her-
aeus-noblight.com/UVSafety
3.1 List of the symbols used
Various symbols are used in this operation manual to identify the remaining
risks of the different hazard levels. The symbols help the user detect and mem-
orise risks.
Signal words
The signal word "DANGER" indicates a high-risk hazard which, if not avoided,
will cause death or severe injury.
The signal word "WARNING" indicates a medium-risk hazard which, if not
avoided, may cause death or severe injury.
The signal word "CAUTION" indicates a low-risk hazard which, if not avoided,
may cause minor or moderately severe injury.
Warning signs
Risk of electrical shock Explosion hazard
Generic warning Warning of optical radiation
hazard
UV radiation
Fire hazard Warning of hot surface
Warning of injury to hands
(crushing)
Warning of injury to hands
(cutting)
