Health O Meter 2842KL User manual

Large Platform Digital Scale

Model 2842KL

USER INSTRUCTIONS

PELSTAR, LLC

9500 West 55

St. McCook, IL 60525-7110 USA www.homscales.com

P/N UM2842KL Rev20160105

Model 2842KL

Thank you for your purchase of this Health o meter

Professional scale. Please read this

manual carefully and keep it for easy reference or training.

TABLE OF CONTENTS

CAUTIONS AND WARNINGS................................................................................................. 3

SPECIFICATIONS .................................................................................................................... 4

CERTIFICATIONS/DISPOSAL................................................................................................ 5

ASSEMBLY INSTRUCTIONS ................................................................................................. 6

SET UP ..................................................................................................................................... 9

OPERATING INSTRUCTIONS................................................................................................ 10

MAINTENANCE ........................................................................................................................ 12

TROUBLESHOOTING ............................................................................................................. 13

CALIBRATION .......................................................................................................................... 14

WARRANTY .............................................................................................................................. 15

Note: This scale has been factory calibrated, and does not

require calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com

For User Instructions updates and revisions please go to:

www.homscales.com

CAUTIONS AND WARNINGS

• To prevent injury, never leave patient unattended while on the scale.

• For accurate weighing the scale must be placed on a flat, stable surface.

• For accurate weighing, verify proper operation according to the procedure described in this

manual before each use.

• Do not use in the presence of flammable materials.

• Do not transport the scale with any weight on the platform.

• Do not exceed recommended weight limit of 600 lb / 272 kg for this scale.

• Operating at other voltages and frequencies than specified could damage the equipment.

• If the “LO BAT” indicator activates, for accurate weighing, replace the batteries or connect

the scale to an AC power source.

• If the scale becomes damaged, it should not be operated until properly serviced. All repairs

should only be performed by authorized Health o meter® Professional service personnel.

• When replacing / inserting batteries, be sure to use all new batteries.

• To prevent patient injury, the patient must be attended throughout the entire weighing

event.

• Operate this scale exclusively with the AC adapter provided by Health o meter®

Professional. Use of an unspecified adapter will void the warranty, and can pose a serious

safety hazard.

• For use with AC adapter model ADPT31.

• Prior to using this scale, inspect the AC adapter cord for cracking / fraying, or for broken /

bent plug prongs.

• Prior to using this scale, ensure that the AC adapter is plugged into an outlet with the rated

voltage appropriate for operation.

• Ensure that the AC adapter and scale do not come in contact with liquids, excessive

temperature, or excessive humidity.

• Unplug the AC adapter, and carefully store both the adapter and adapter cord before

moving the scale.

SPECIFICATIONS

Health o meter Professional’s Large Platform Digital Scale model 2842KL uses highly

sophisticated microprocessor technology. Each scale is designed to provide accurate,

reliable and repeatable weight measurements and features that make the weighing process

simple, fast and convenient.

•Weighing is performed by motion-sensing technology.

•The patient's weight can be displayed in pounds or in kilograms.

•The scale includes a specially designed removable rubber mat for easy cleaning.

•The unit can be operated using its AC power adapter or by 6 C-cell batteries.

SCALE SPECIFICATIONS

Capacity and

Resolution:

600 lb x 0.2 lb (270 kg x 0.1 kg)

Power

Requirements:

Adapter 120 VAC-9VDC 60Hz 200MA (ADPT31 INCLUDED),

or 6 C-cell 1.5V batteries (not included)

Environmental: Operating Temperature: 50°F to 95°F / 10°C to 35°C

Storage Temperature: 30°F to 125°F (0°C to 50°C)

Maximum Humidity: 85% RH in use or in storage

Platform

Dimensions:

22 1/4” (w) x 42” (d) x 2 1/2” (h) / 565mm (w) x 1067mm (d) x 64mm (h)

CERTIFICATIONS / DISPOSAL

Certification Descriptions:

Pelstar, LLC has been officially certified as a manufacturer of

Health o meter

Professional medical devices to be in

compliance with stringent ISO requirements. The Pelstar, LLC

quality assurance system covers the development, production,

sales and service of medical scales and measuring systems.

Scale Disposal:

Do not dispose of this device in domestic waste. This Health o meter

Professional scale must

be disposed of properly as electronic waste. Follow the national, regional or local regulations

which apply to you for disposal. For scale assistance or telephone support, please call Health o

meter

Professional Customer Service (available on normal business days) at (+1) 800-815-

6615 or (+1) 708-377-0600.

ASSEMBLY INSTRUCTIONS

Before Assembly

Each 2842KL Large Platform Digital Scale is shipped disassembled in one carton. Carefully

inspect the carton for shipping damage before unpacking. If damage is found, contact your

shipper or a Health o meter

Professional representative immediately at 1-800-815-6615.

Claims must be filed with the shipper as soon as possible after receipt of the package. The

following information details what you will find inside the main carton as you unpack the parts for

assembly.

To prevent scratching any components, carefully remove each assembly from the carton and

unwrap the packing materials. Set the carton aside for storage. To avoid damaging the scale

parts when unpacking, do not use a box cutter, knife, scissors, or any sharp object to open the

protective inner packaging.

Parts List

Carton

(1) Base assembly

(1) Display head

(1) Display assembly bracket

(4) Base assembly feet

(1) Small white box containing AC adapter

(2) Display assembly screws and washers

(1) Rubber mat

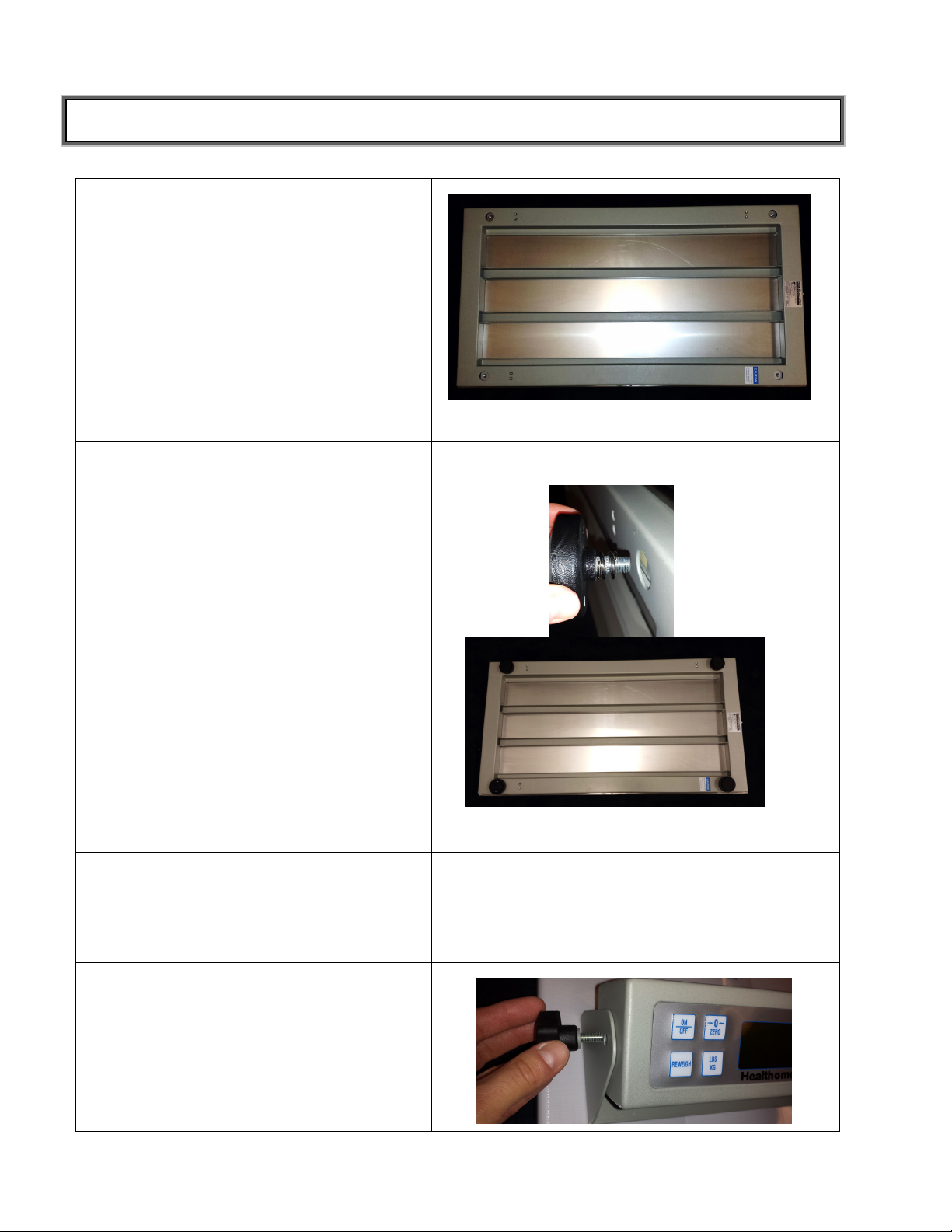

ASSEMBLY INSTRUCTIONS (CONT.)

1. Place the base assembly upside

down on a flat, steady surface.

2. Screw the four feet into the base

assembly. Turn each foot

completely into the base

assembly and then back out 1 1/2

turns.

3. Carefully turn the base assembly

right side up. Adjust the feet as

necessary for a level, stable

platform. Do not drop the scale as

this may damage the load cells.

4. Place the display head into the

display bracket and screw in the

two display assembly screws. If

wall mounting the display,

complete this step after the

display assembly bracket has

been mounted to the wall.

ASSEMBLY INSTRUCTIONS (CONT.)

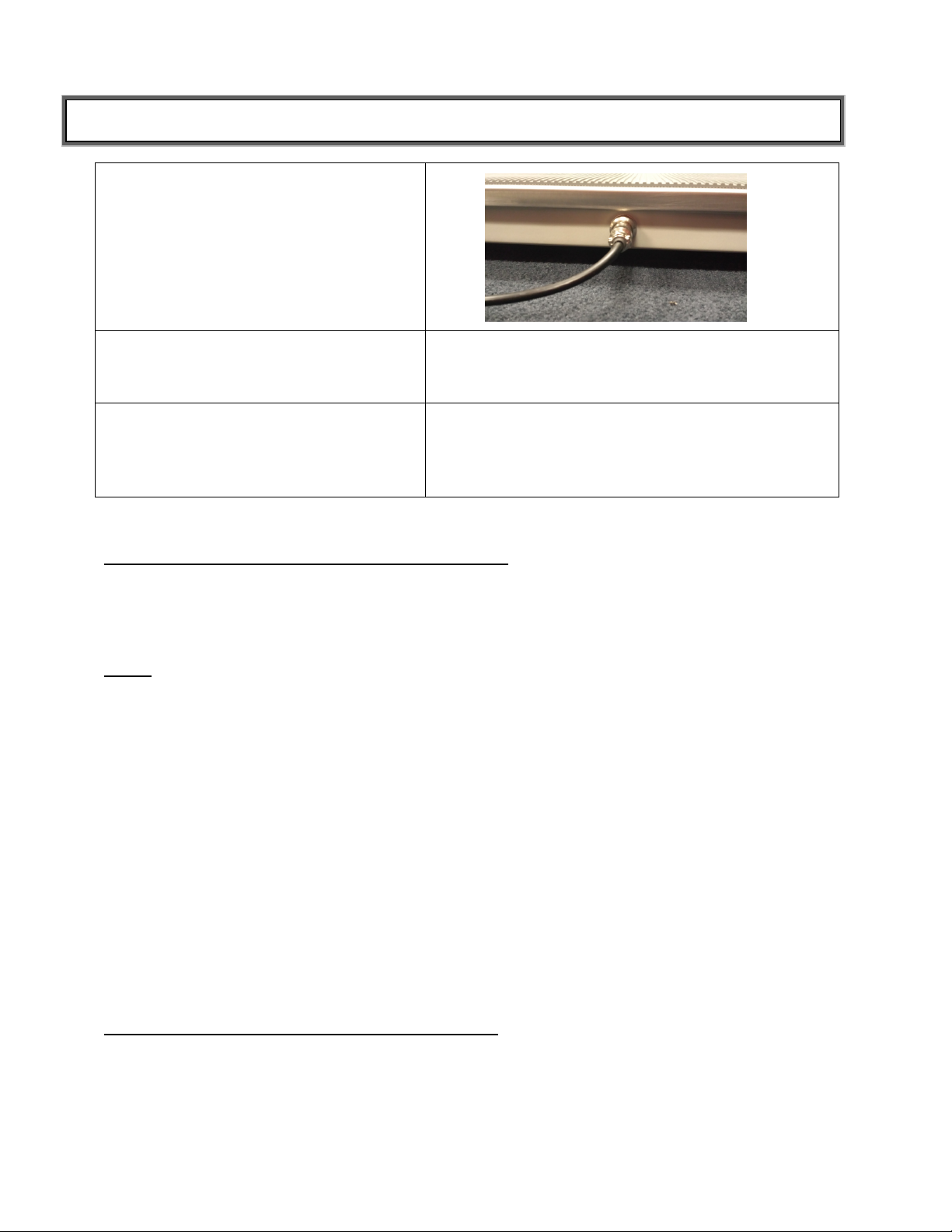

5. Plug the display cable

connector into the base cable

connector.

6. Place the rubber mat in the

center area of the base

assembly platform.

7. Place the display assembly on

a table or mount it to a wall.

See the next section for

mounting instructions.

Display Assembly Wall Mounting Instructions

Caution: When wall mounting the display assembly, ensure that the mounting

location is free of electrical lines, gas pipes, and other safety hazards. Ensure that

wall is of construction that can support the display assembly.

Note: Display assembly can be mounted to a wall up to 6 feet (1.83 m) from the base.

1. If display head is already attached to the display assembly bracket, remove the

display assembly screws at the side of the display head and set them aside.

2. Position the display assembly bracket on the wall at the desired location and mark the

mounting bracket hole locations.

3. Use suitable plastic or metal anchors for the type of wall construction and carefully

drill the appropriate sized holes.

4. Insert the anchors into the wall, and screw the two mounting screws into the anchors.

Adjust the screw head depth such that the screw heads protrude 1/8” (3.2 mm) from

the wall.

5. Position the display assembly mounting holes onto the mounting screws and pull

down on the display assembly to secure the bracket over the screws.

6. Re-attach the display head to the display assembly bracket using the two display

assembly screws.

Required Parts Not Included With This Scale

(2) # 10-12 x 1 in. Screws

(2) Mounting anchors, compatible with wall construction

SET UP

1. Place batteries in the battery holder (see “Replacing Batteries” below).

2. Plug the scale’s AC adapter into the display assembly and into the power source.

3. Press the ON/OFF button to turn the scale on. The display will show “start” and

then “0.0”.

4. When the self-test function is complete, the digital display should read “0.0”.

5. Place a weight [not to exceed 600 lb (270 kg)] on the scale. The digital display will

blink

“

------

”

until the weight calculation is complete.

6. Press the LBS/KG button to select the weight mode, either in kilograms or pounds.

7. Press the REWEIGH button; the digital display should again read the weight of

the item on the scale.

8. Remove the weight from the scale. The digital display should continue to read the

weight of the item that was on the scale.

9. Press the ZERO button; the digital display should return to zero.

10. Disconnect the power source from the scale, then turn the scale on using

ON/OFF button. The scale should automatically switch to battery power.

NOTE: If the set up procedure failed, contact Health o meter Professional Scales Customer

Service at 1-800-815-6615.

Replacing Batteries

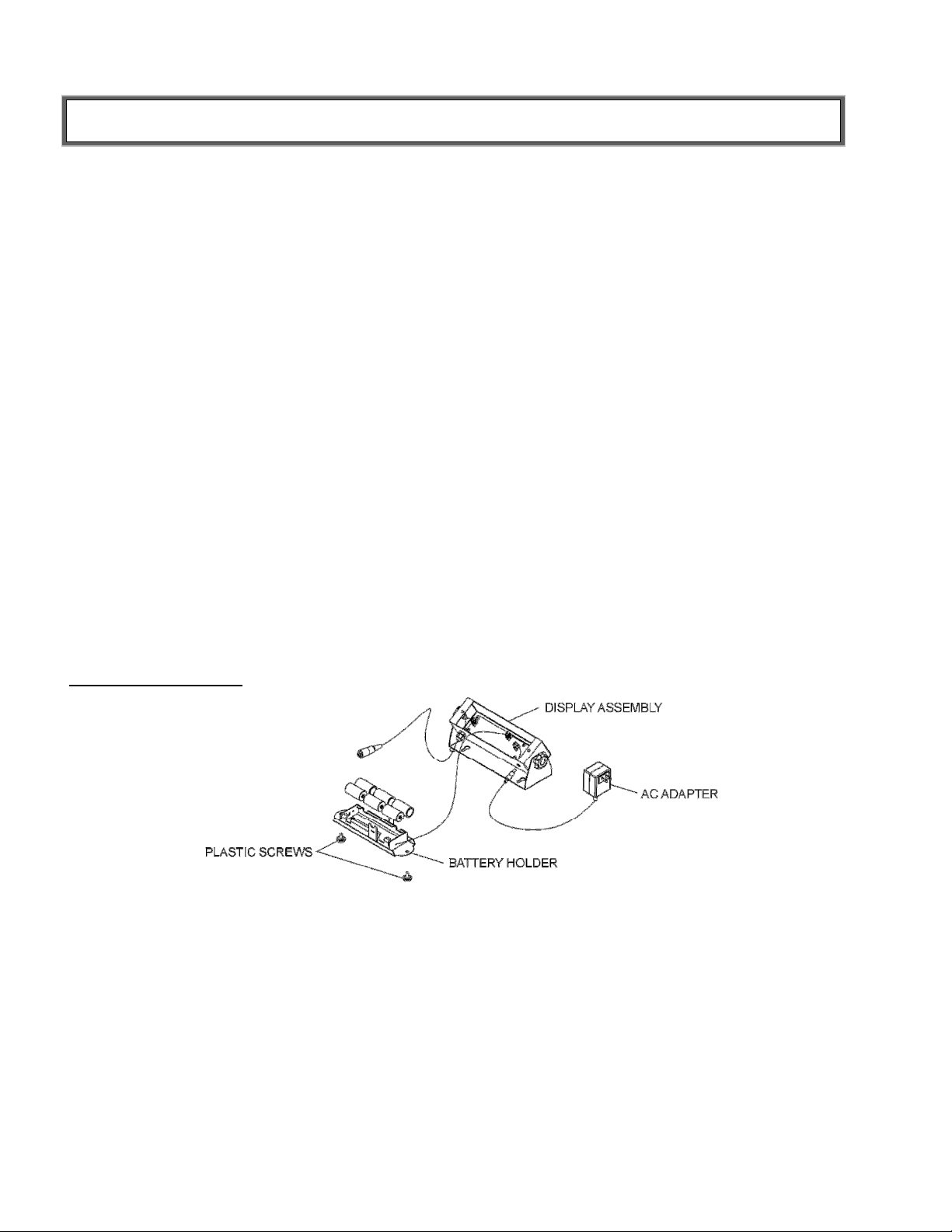

Figure 1. Replacing the Batteries

1. Disconnect the scale from the AC power source.

2. Unscrew two plastic screws and carefully remove the battery holder from the display

assembly.

3. Take the batteries from the battery holder, replace the batteries with new ones.

4. Position the battery holder into the display assembly and reinstall two plastic screws.

OPERATING INSTRUCTIONS

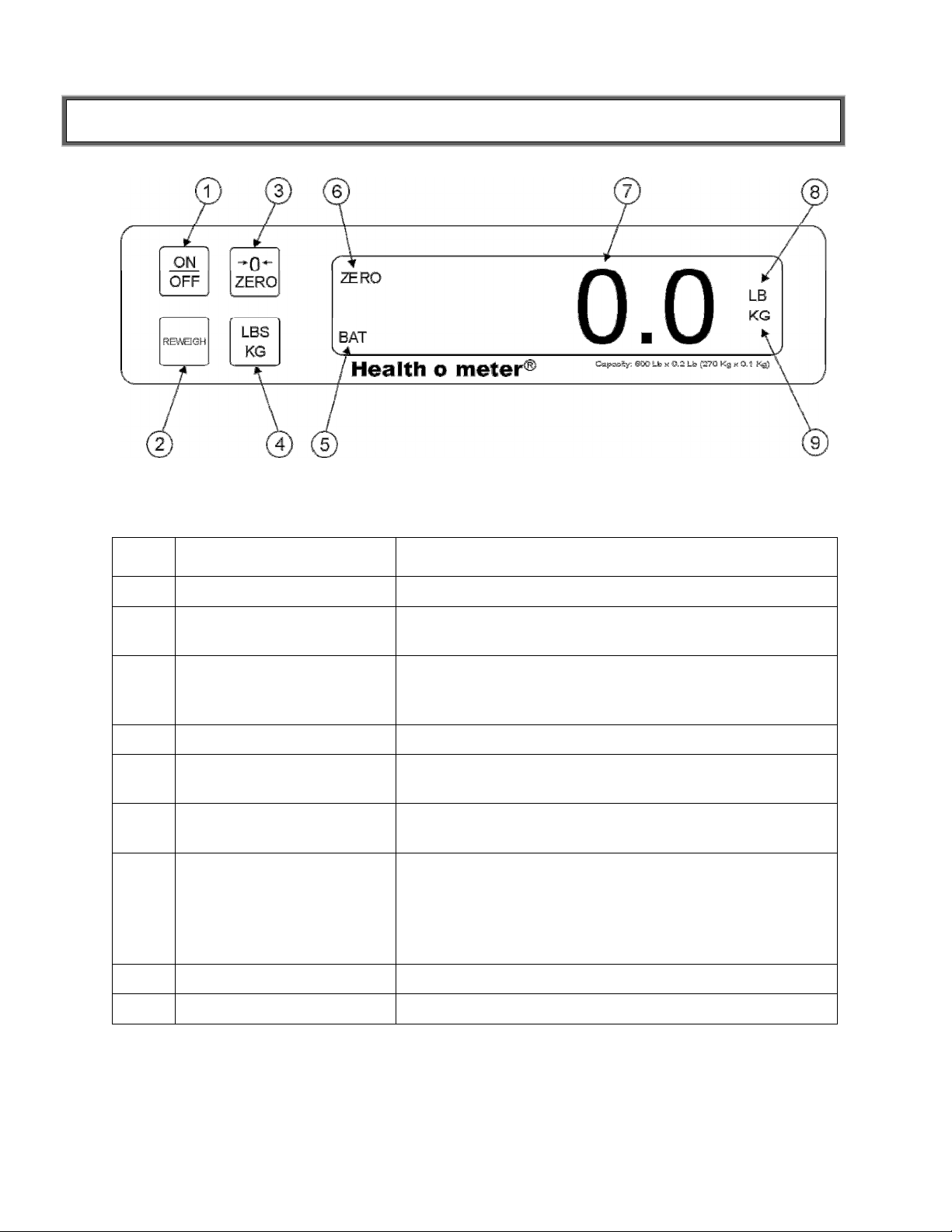

Figure 2. Control P

anel

ITEM

DESCRIPTION

FUNCTION

ON/OFF button Turns scale ON and OFF.

REWEIGH button Allows repeated weighing of the patient without stepping

off the scale.

ZERO button Zeros digital display prior to weighing. Enables the

cancellation (tare) of weight of mat or other accessories

on the scale.

LBS/KG button Selects kilograms or pounds.

BAT indicator When ON, indicates scale batteries are low. The

batteries should be replaced.

ZERO indicator When ON, indicates the scale is stable and ready for

use.

Digital Display 6 Digit LCD Displays patient weight in kilograms or pounds as

shown by the “LB” or “KG” indicator on the right side of

the display. When REWEIGH button is depressed,

display will blink

“

------

” until patient’s weight is

determined.

LB indicator When ON, indicates displaying weight in pounds.

KG indicator When ON, indicates displaying weight in kilograms.

Other manuals for 2842KL

Table of contents

Other Health O Meter Scale manuals

Health O Meter

Health O Meter Digital Scale User manual

Health O Meter

Health O Meter 500KL User manual

Health O Meter

Health O Meter Digital Scale User manual

Health O Meter

Health O Meter Professional 498KL User manual

Health O Meter

Health O Meter BFM081-63 User manual

Health O Meter

Health O Meter BFM884DQ1-60 User manual

Health O Meter

Health O Meter PRO PLUS 2650KL User manual

Health O Meter

Health O Meter 386 User manual

Health O Meter

Health O Meter 1101KL User manual

Health O Meter

Health O Meter DIGITAL PEDIATRIC SCALE 549KL User manual

Health O Meter

Health O Meter 402KL Quick reference guide

Health O Meter

Health O Meter HDL489-60 User manual

Health O Meter

Health O Meter 2650KL User manual

Health O Meter

Health O Meter 450KL User manual

Health O Meter

Health O Meter BFM142 User manual

Health O Meter

Health O Meter HAP400 User manual

Health O Meter

Health O Meter BFM920 User manual

Health O Meter

Health O Meter 845KL User manual

Health O Meter

Health O Meter Weigheasier 2650KG User manual

Health O Meter

Health O Meter HDC100 User manual

Health O Meter

Health O Meter Professional 498KL User manual

Health O Meter

Health O Meter 499KL User manual

Health O Meter

Health O Meter HDM165-53 User manual

Health O Meter

Health O Meter 2210KL Installation instructions

Popular Scale manuals by other brands

AWS

AWS ZEO-50 user manual

Gima

Gima Glass Body Fat Analyzer Use and maintenance book

Seca

Seca 374 user manual

TEC

TEC TEC SL59 SERIES owner's manual

Axis

Axis B/E Series user manual

Alecto

Alecto ACW-40 user manual

Rice Lake

Rice Lake MSI-4260 IS Technical manual

IKA

IKA RCT basic safety control operating instructions

ADE

ADE M20011 operating manual

Duronic

Duronic KS3000 manual

Digi

Digi SM-720 Service manual

Cardinal

Cardinal CS Series Operation manual

Korona

Korona Kastella Instructions for use

A&D

A&D FC-50Ki instruction manual

BDA

BDA CAMARGUE installation guide

Tanita

Tanita HD-357 Instructions for use

Leifheit

Leifheit 03173 quick start guide

Lumme

Lumme LU-1340 user manual
