Havis C-DMM-3015 User manual

C-DMM-3015_INST_8-19

HARDWARE and PARTS:

QTY DESCRIPTION PART#

1 Main upper mounting tray CM009883

1 Lower mounting support arm with stop CM009809

1 Lower mounting foot CM010066

1 VESA rotator plate CM009068

1 PVC washer CM008582

2 1/4" Nylock nut GSM30016

2 1/4" Plastic flat washer CM86600

2 1/4" Steel flat washer GSM31005

2 10-32 x 3/4" Flat head screw GSM33383

4 1/4" Serrated nut GSM30023

5 10-32 Keps nut GSM30028

2 #10 Flat washer GSM31003

2 1/4” x 1/2" Carriage bolt GSM31999

3 10-32 x 1/2" Phillips machine screws GSM33118

2 M5 x 30mm Machine screw GSM33792

2 1/4" plastic spacer GSM34616

Notes:

1. The C-DMM-3000 swivel plate accepts C-MM-301 offset bracket used with C-MM-2XX adaptors.

2. C-MM-2XX series adaptor brackets are not needed for most VESA 75 and other Havis Docking

Station mounting applications.

3. CM009068 VESA rotator plate gives additional positioning options, but is not required

depending on mounting preference.

ALWAYS!

Read all instructions before installing any Havis, Inc products.

Use hardware provided with install kit

TOOLS REQUIRED:

•Ratchet Wrench • Socket Set •7/16” Open End Wrench

• Phillips Screwdriver (short) •Dash panel removal tool •Wire stripers/cutters

INSTALLATION INSTRUCTIONS

C-DMM-3015 Flip up Dash Monitor Mount

2020 Ford Interceptor Utility

This mount is designed to attach to Havis vehicle specific consoles. Other

consoles may require modification.

C-DMM-3015_INST_8-19

C-DMM-3015

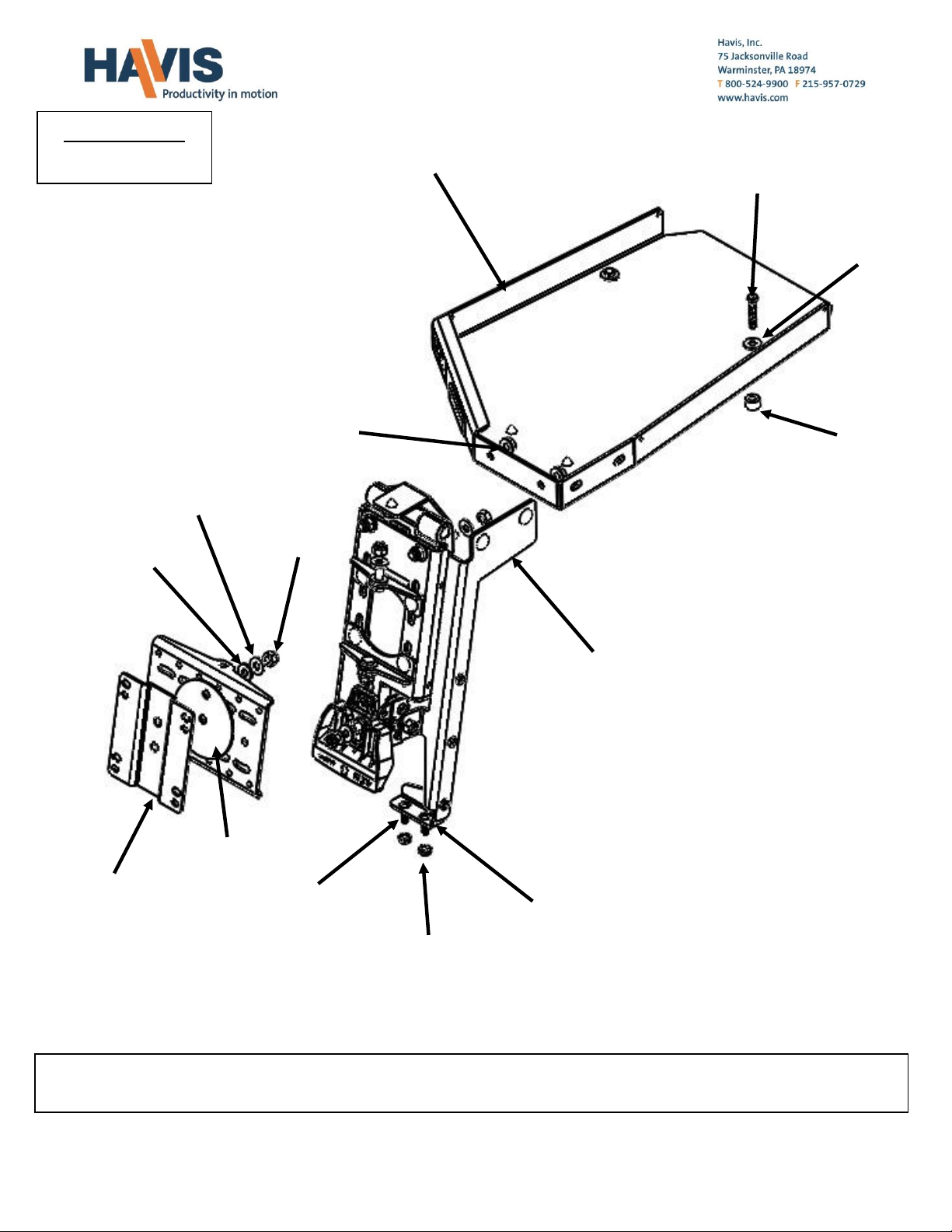

Assembly

CM009883

GSM33792

GSM31005

GSM34616

GSM30023

CM009809

CM010066

GSM33383

CM009068

CM008582

CM86600

GSM31005

GSM30016

If no console is being installed, C-DMM-KIT-3015 will be required.

GSM30028

C-DMM-3015_INST_8-19

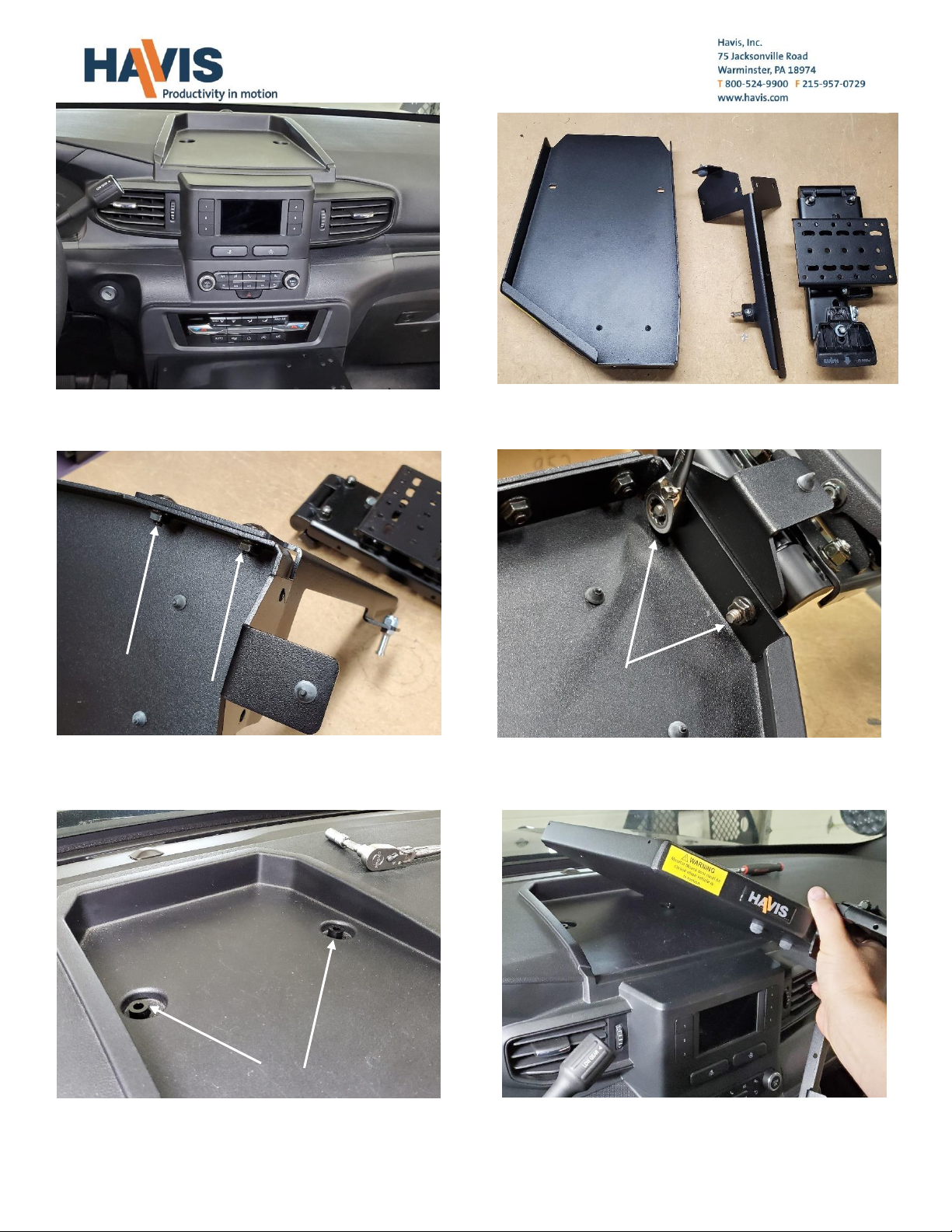

View of Interceptor Utility dash before

installation

Place DMM tray assembly into OEM plastic tray and

attach using M5 x 30mm bolts and 1/4” washers.

(8mm socket)

Remove OEM fasteners from upper dash pocket.

Place plastic spacers over openings.

(7mm socket)

The C-DMM-3015 will need to be assembled

when removed from shipping box.

Attach hinge assembly to main tray using

1/4” serrated nuts.

Attach lower mounting support arm to main tray

using 1/4” x 1/2" carriage bolts and serrated nuts.

C-DMM-3015_INST_8-19

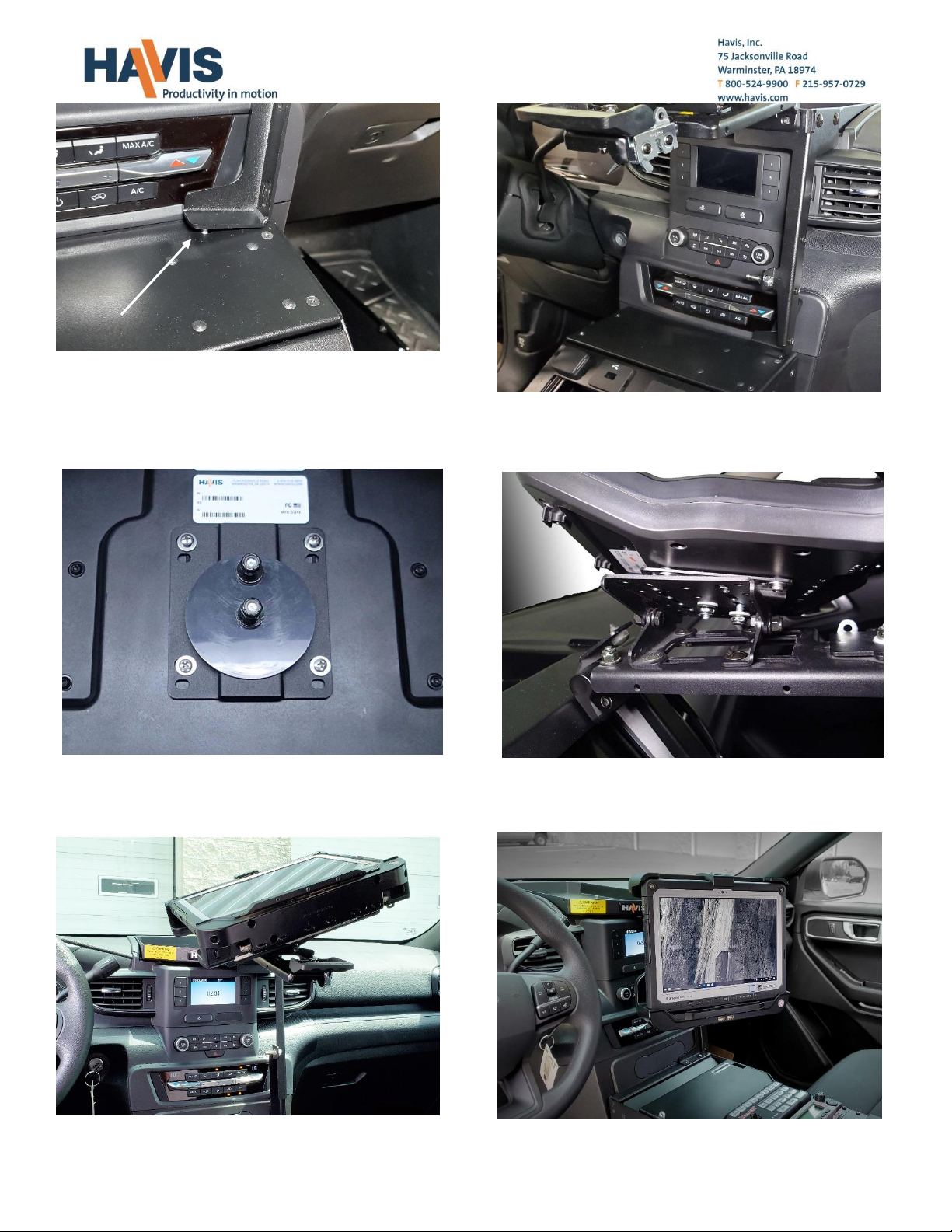

Place lower mounting foot studs through holes on top of Havis

console. Attach using 10-32 nylock nuts and flat washers.

For non-Havis consoles, holes will have to be drilled. Use Havis

optional # C-DMM-3015-KIT-1 if mounting to OEM tunnel plate.

Dock the computer and test.

Installation is now complete.

Route wiring along the side of the DMM flip up frame using

existing holes and wire ties.

Test up / down and side to side motion to confirm wires have

adequate slack and strain relief.

Attach lower mounting foot to lower mounting support

arm using 10-32 x 1/2" screws and keps nuts.

Determine desired position for your specific computer and attach to

DMM swivel plate using 1/4"nylon washers, steel washers, and nylock

nuts. Tighten so that the dock rotates smoothly. (Firm, but not too tight)

Attach VESA plate to the back of the dock.

The gray nylon washer will go between this bracket and

the DMM swivel plate.
