Havis-Shields Telescoping Computer Base C-TCB-4 Configuration guide

C-TCB-4-INST-WIP-12-04

INSTALL INSTRUCTIONS C-TCB-4

TELESCOPING COMPUTER BASE

1995-2003 CHEVROLET/GMC

S-15 JIMMY, S-15 SONOMA, S-10 BLAZER, S-10 PICK-UP

TOOLS REQUIRED:

3/16” Allen wrench

3/8” Metric socket set

3/8” Standard socket set

3/8” Ratcheting wrench

Open-end wrench set

Powered drill w/ 3/16” drill bit

HARDWARE &COMPONENTS:

QTY DESCRIPTION PART #

1 Pole support assembly CM93071-4

1 Telescoping pole assembly CM93072-1

1 Side support brace CM93115

1 Lateral support brace CM93126

1 5/16-18 Nylock nut GSM30017

2 5/16”Flat washer GSM31006

1 5/16-18 x 1”Hex head bolt GSM33012

2 ¼” x ¾”Hex head lag bolt GSM33060-1

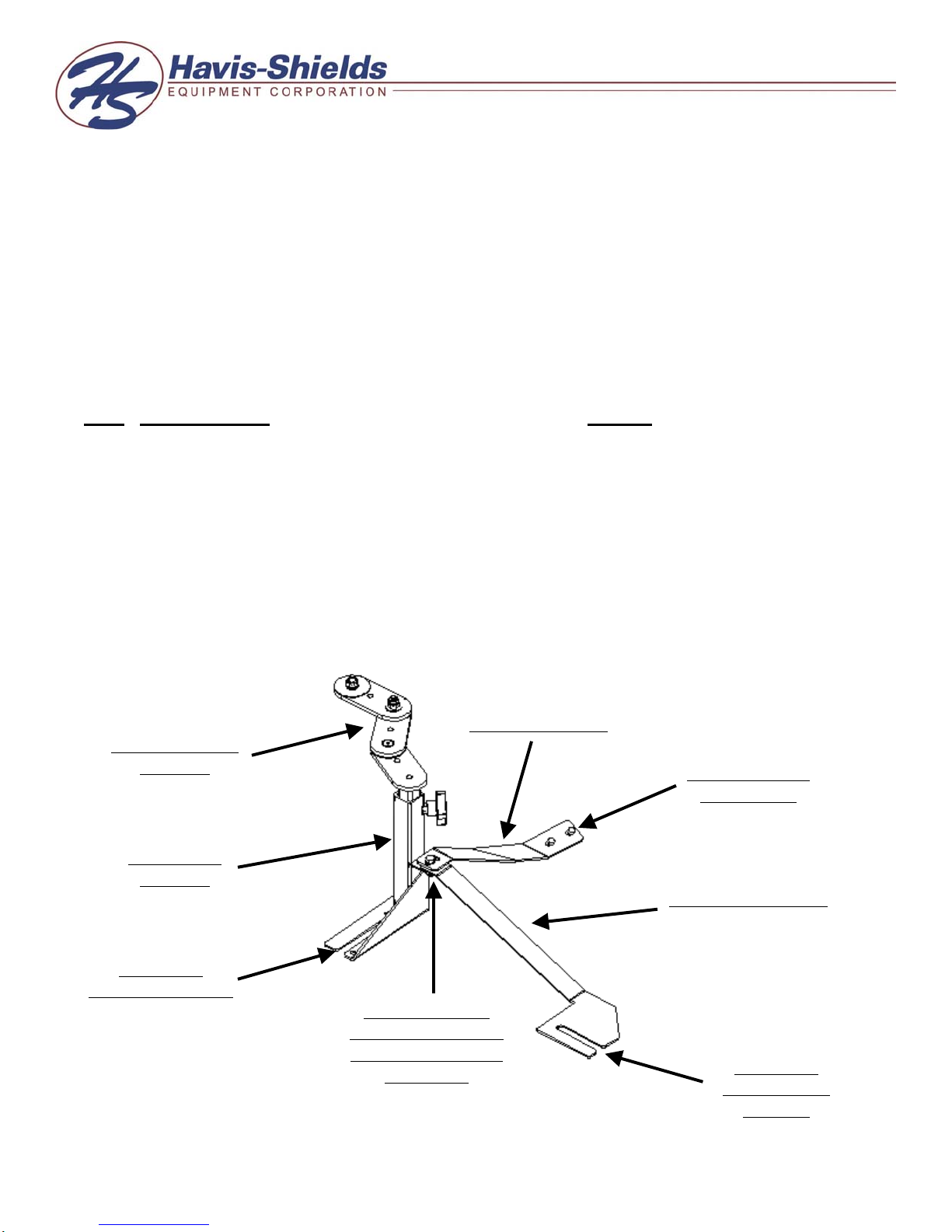

Pole support

assembly

Side support brace

5/16-18 x 1”Hex

head bolt, 5/16” Flat

washer, and 5/16-18

Nylock nut

Lateral support brace

Telescoping pole

assembly (2)-¼” x ¾”Hex

head lag bolt

Front outer

passenger seat

base bolt

Front inner

passenger seat base

bolt

C-TCB-4-INST-12-04

SUB ASSEMBLY:

1. Confirm receipt of all hardware and components.

2. Loosen or remove front inner and outer passenger seat bolts on vehicle.

INSTALLATION:

1. Mount C-TCB-4 into vehicle

• Slide pole support assembly between front inner seat base mount and floor of vehicle.

• Loosely attached factory seat bolt.

• Slide lateral support brace between front outer, seat base mount, and floor of vehicle.

• Attach lateral support brace and side support brace to welded tab on side of pole

support assembly and loosely attach using 5/16-18 Hex head bolt, washers and nylock

nut.

• Position assembly on passenger seat base and completely tighten factory seat bolts.

• Mount side support brace to vehicle using ¼” x ¾” Hex head lag bolts. A 3/16” pilot

is required.

Note: When mounting side support brace to floor of vehicle, be sure to check for obstructions prior to

drilling or lag bolting to floor.

• Mount optional C-3090, computer-mounting platform, to telescoping pole assembly

using hardware and instructions provided with C-3090.
