HAMPTON BAY JBO1691A-5/ORB User manual

THANK YOU

We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of

these exterior wall lanterns. We strive to continually create quality products designed to enhance your

home. Visit us online to see our full line of products available for your home improvement needs.

Thank you for choosing Hampton Bay!

Item #1002 931 789

Model #JBO1691A-5/ORB

Item #1002 956 545

Model #JBO1691A-5/BLK

Item # 000-000

Model # XXXXXXX

USE AND CARE GUIDE

1-LIGHT EXTERIOR WALL LANTERN TWIN PACK

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Table of Contents

Table of Contents.................................2

Safety Information................................2

Warranty ...............................................2

What is Covered...............................2

What is Not Covered ........................2

Pre-Installation.....................................3

Planning Installation.........................3

Tools Required................................ 3

Hardware Included .......................... 3

Package Contents........................... 4

Installation ........................................... 5

Care and Cleaning............................... 7

Troubleshooting.................................. 7

Safety Information

WARNING: Carefully read and understand the

information given in this manual before beginning

the assembly and installation. Failure to do so could

lead to electric shock, fire or other injuries which

could be hazardous or even fatal.

WARNING: Be sure the electricity to the wires you

are working on is shut off. Either remove the fuse or

turn the circuit off.

NOTICE: Changes or modifications not expressly approved

by the party responsible for compliance could void the user’s

authority to operate the equipment.

Warranty

WHAT IS COVERED

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship

for a period of three (3) years from date of purchase. This warranty applies only to the original

consumer and only to products used in normal use and service. If this product is found to be

defective, the manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement

of the product at the manufacturer’s discretion, provided that the product has not been damaged

through misuse, abuse, accident, modifications, alterations, neglect or mishandling.

WHAT IS NOT COVERED

This warranty shall not apply to any product that is found to have been improperly installed, set-up, or

used in any way not in accordance with the instructions supplied with the product. This warranty shall

not apply to a failure of the product as a result of an accident, misuse, abuse, negligence, alteration,

or faulty installation, or any other failure not relating to faulty material or workmanship. This warranty

shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this

is considered normal wear and tear.

The manufacturer does not warrant and specifically disclaims any warranty, whether express or

implied, of fitness for a particular purpose, other than the warranty contained herein. The

manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor / expense costs involved in the

replacement or repair of said product.

Contact the Customer Service Team at 1-855-HD-HAMPTON or visit HAMPTONBAY.COM.

3 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Pre-Installation

PLANNING INSTALLATION

Read all instructions before assembly. Before starting installation of this fixture or removal of a

previous fixture, disconnect the power by turning off the circuit breaker or by removing the fuse from

the fuse box. To avoid damaging this product, assemble it on a soft, non-abrasive surface such as

carpet or cardboard.

NOTE: Keep your receipt and these instructions for

proof of purchase.

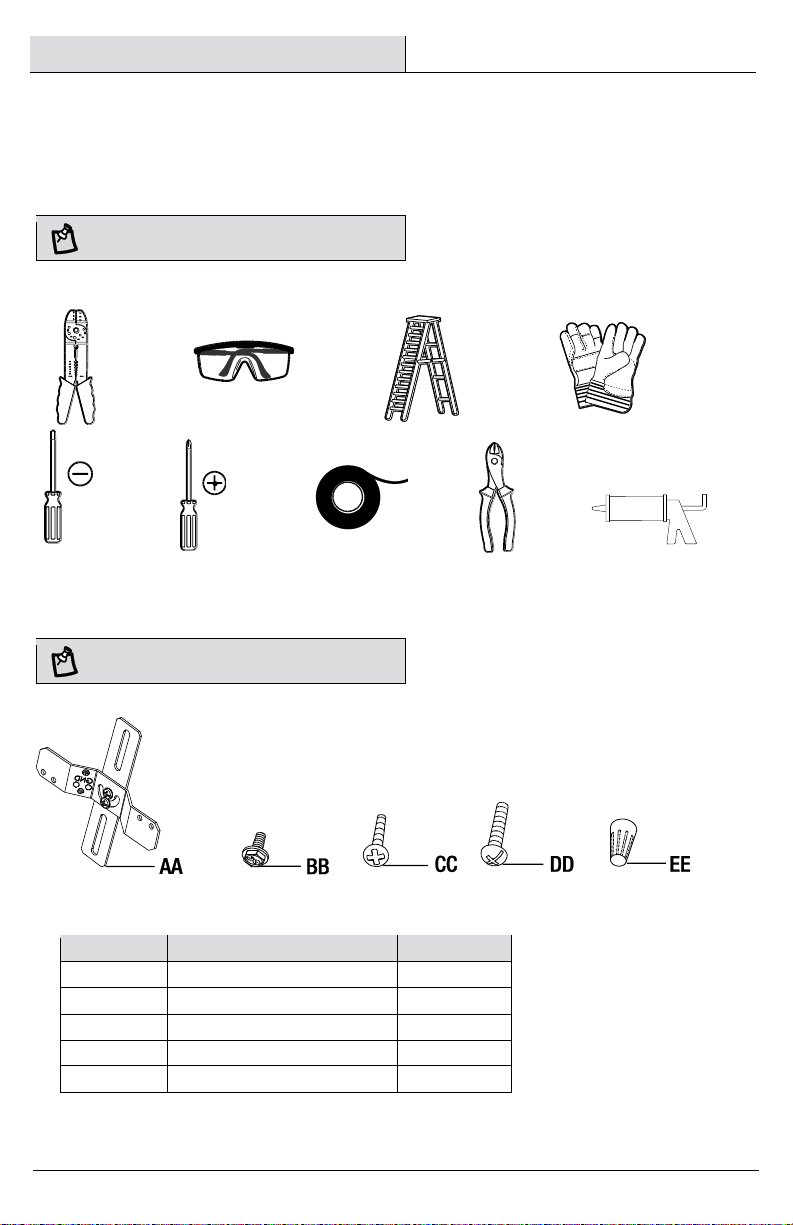

TOOLS REQUIRED

Wire

Strippers

Safety

Goggles

Ladder

Gloves

Flathead

Screwdriver

Phillips

Screwdriver

Electrical

Tape

Wire

Cutters

Caulk

HARDWARE INCLUDED

NOTE: Hardware not shown to actual size.

Part

Description

Quantity

Cross Bar

Ground Screw

Outlet Box Screw (15 mm)

Mounting Screw (15 mm)

Wire Connector

Pre-Installation (continued)

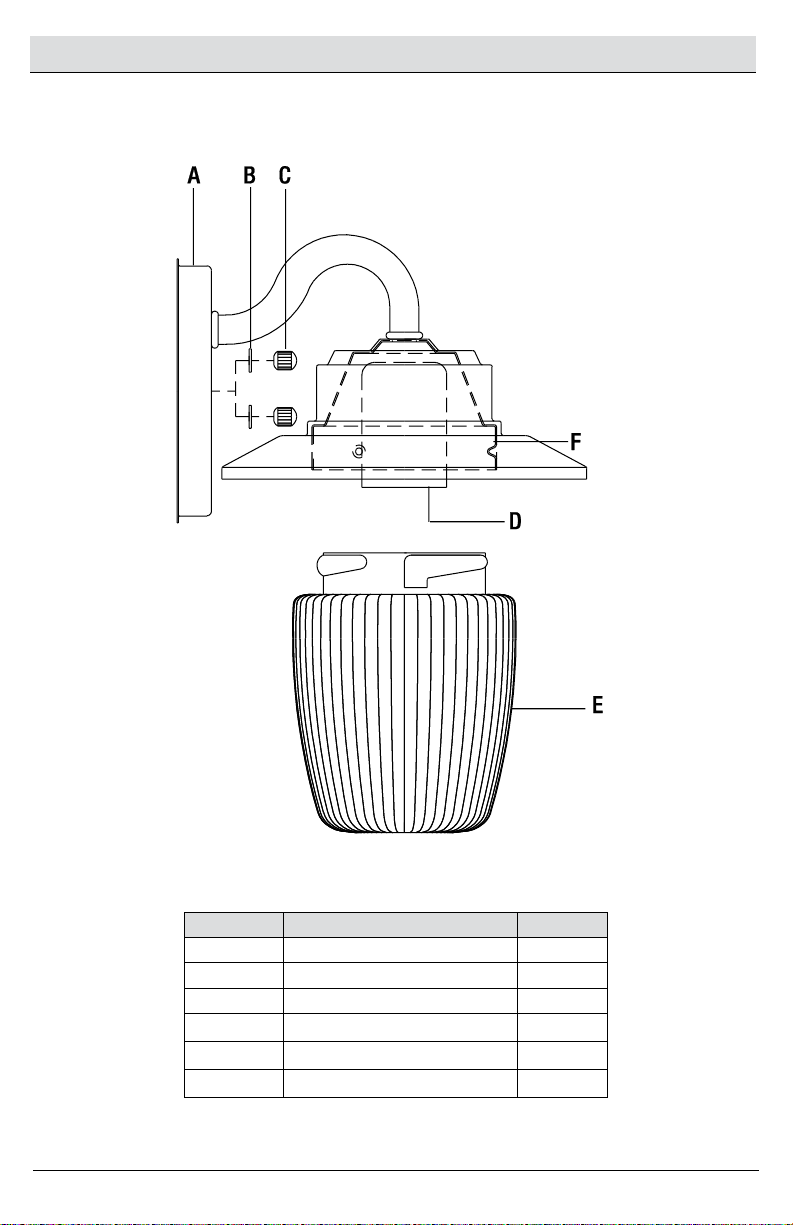

PACKAGE CONTENTS

Part

Description

Quantity

Wall Plate

Washer

Lock Nut

Socket

Globe

Canopy

5 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Installation

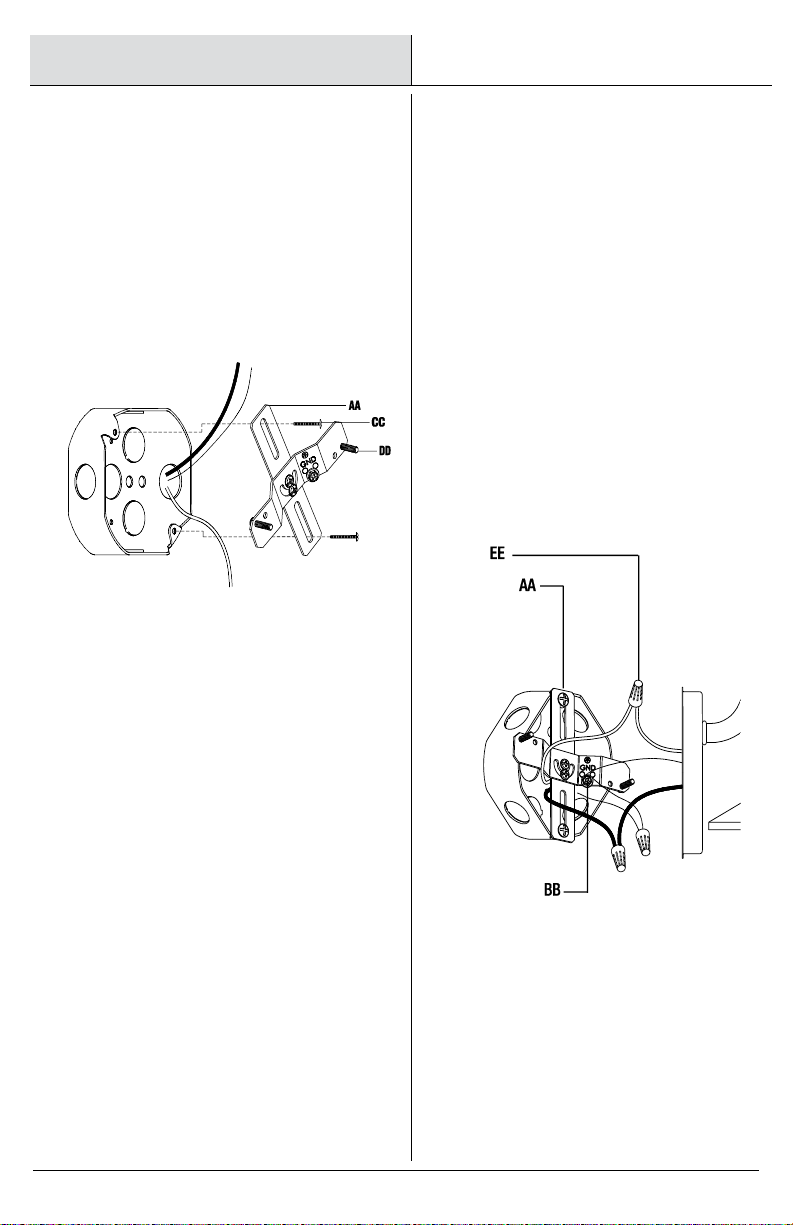

Attaching the cross bar to

the outlet box

Making the electrical

connections

□Screw the mounting screws (DD) into the cross

bar (AA).

□Mount the cross bar (AA) to the outlet box (not

included) using the outlet box screws (CC).

□Make sure the threads of the mounting screws

(DD) are facing out when the cross bar (AA) is

attached to the outlet box.

□Wrap the ground wire from the fixture

around the ground screw (BB) on the

cross bar (AA).

□Use a wire connector (EE) to connect the

ground wire from the fixture to the ground

wire from the outlet box.

□Use a wire connector (EE) to connect the

white wire from the fixture to the white

wire (neutral wire) from the outlet box.

□Use a wire connector (EE) to connect the

black wire from the fixture to the black

wire (live wire) from the outlet box.

□Wrap the three wire connections with

electrical tape for a more secure

connection.

□Position the wires back inside the outlet

box.

Installation (continued)

Securing the fixture to

the wall

□Align the mounting screws (DD) to protrude

through the holes on the wall plate (A).

□Place the washers (B) onto the mounting

screws (DD).

□Screw the lock nuts (C) onto the mounting

screws (DD) to secure the fixture to the

wall.

Installing a light bulb

□Install a 60-watt maximum, medium-

base incandescent bulb (sold

separately) into the socket (D).

NOTA: You can also use a CFL-equivalent energy-

saving bulb that does not exceed 13 Watts (sold

separately).

7 HAMPTONBAY.COM

Please contact 1-855-HD-HAMPTON for further assistance.

Installation (continued)

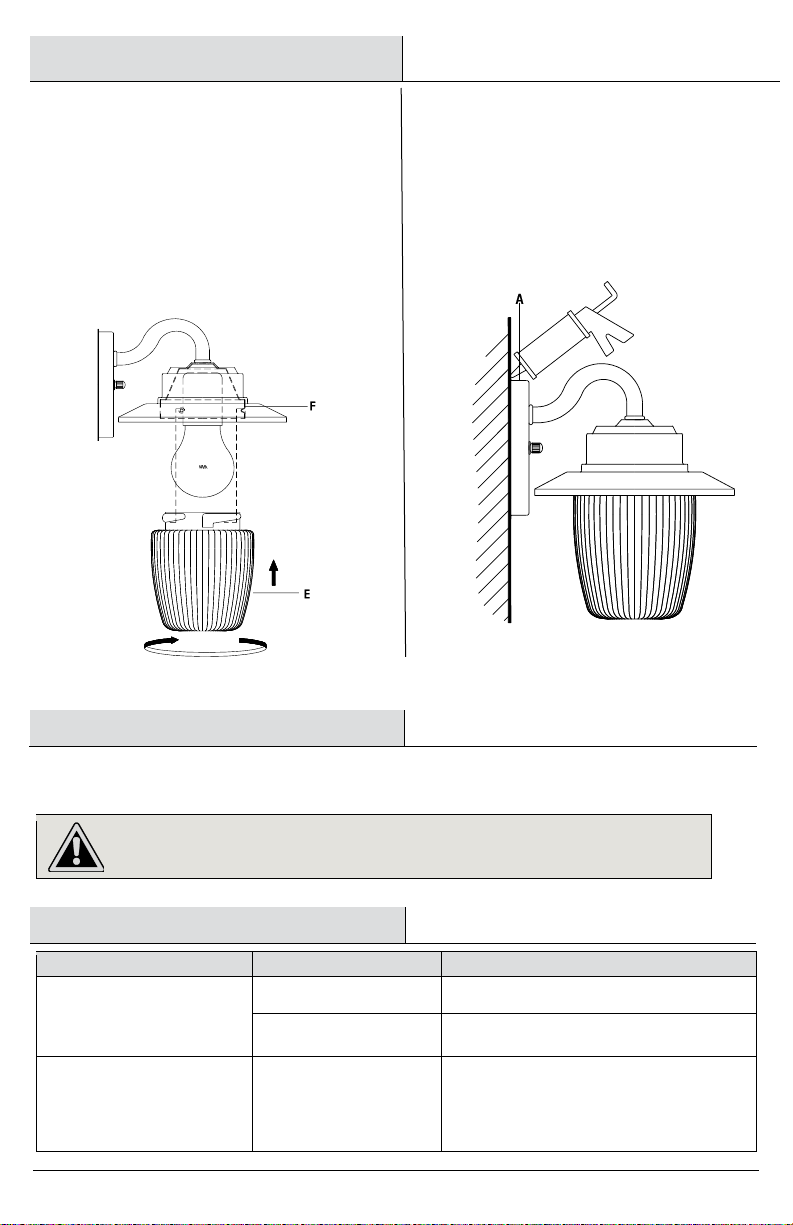

Attaching the globe

□Align the three slots on the globe (E) with

the three divots located inside the

canopy (F).

□Screw the globe (E) clockwise into the

canopy (F).

□The globe (E) only turns about 1/6 of a turn.

Do not over tighten.

Care and Cleaning

□Clean the fixture with a soft, dry cloth.

□Do not use any cleaners with chemicals, solvents or harsh abrasives.

WARNING: Before attempting to clean the fixture, disconnect the power to the fixture by turning the breaker

off or removing the fuse from the fuse box.

Troubleshooting

Problem

Possible Cause

Solution

The bulb will not light.

The power is off.

Ensure the power supply is On.

The circuit breaker is

off.

Ensure the circuit breaker is in the On

position.

The fuse blows or circuit

breaker trips when the light

is turned on.

The wires are crossed

or the power wire is

grounding out.

□Check the wire connections.

□Contact a qualified electrician or

call the Customer Service Team at

1-855-HD-HAMPTON.

Applying caulk

□Caulk the space between the wall

and the full area of the wall plate

(A) to prevent water seeping into

the outlet box.

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

Retain this manual for future use.

GRACIAS POR TU COMPRA.

Agradecemos la confianza que ha tenido en Hampton Bay a traves de de la compra de estas

linternas exterior. Nos esforzamos para continuamente crear productos de calidad diseñados para

mejorar tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles

para las necesidades de mejoras de tu hogar. ¡Gracias por elegir Hampton Bay!

Artículo # 1002 931 789

Modelo #JBO1691A-5/ORB

Artículo # 1002 956 545

Modelo #JBO1691A-5/BLK

Item # 000-000

Model # XXXXXXX

GUÍA DE USO Y MANTENIMIENTO

PAQUETE DE DOBLE LA PARED EXTERIOR 1-LUZ

LINTERNA

Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,

llama al Servicio al Cliente de Hampton Bay

de Lunes a Viernes entre 8 a.m. y 7 p.m., El Sábado entre 9 a.m. y 6 p.m.(hora del Este

de EE. UU.)

1-855-HD-HAMPTON

HAMPTONBAY.COM

Índice

Índice ..................................................10

Información de Seguridad .................10

Garantía ..............................................10

Lo que esta Cubierto......................10

Lo que (no) esta Cubierto...............10

Pre-Instalación ...................................11

Planificación de la Instalatión .........11

Herraminentas Necesarias .............11

Requiere de Hardware ...................11

Contenido del Paquete...................12

Instalación ..........................................13

Mantenimiento y Limpieza.................15

Solución de Problemas......................15

Información de Seguridad

ADVERTENCIA: Lea cuidadosamente y entienda la

información dada en este manual antes de empezar

el proceso de ensamble e instalación. Si falla en

hacerlo, puede ocasionar un choque eléctrico,

incendio u otros daños que pueden ser

perjudiciales o fatales.

ADVERTENCIA: Asegúrese de que la electricidad

que llega a los cables con los que se encuentra

trabajando estén apagados. Remueva el fusible o

apague el interruptor.

ANUNCIO: Cualquier cambio o modificación que no se

encuentre expresamente aprobada por el proveedor

responsable del cumplimiento puede revocar la autorización

del usuario a utilizar el equipo.

Garantía

LO QUE ESTA CUBIERTO

El fabricante garantiza que esta lámpara no presentará defectos materiales o de fabricación por un

período de tres (3) años a partir de la fecha de compra. Esta garantía es válida sólo para el

comprador original y sólo cubre los productos en uso y funciones normales. Si se descubre algún

defecto en este producto, la única obligación y solución exclusiva del fabricante, a criterio del mismo,

será reparar o reemplazar el producto siempre y cuando el defecto no sea resultado de un mal uso,

abuso, accidente, modificaciones, alteraciones, negligencia o manejo indebido.

LO QUE (NO) ESTA CUBIERTO

Esta garantía no cubre ningún producto instalado, configurado o usado incorrectamente sin seguir

las instrucciones adjuntas al producto. Esta garantía no cubre fallas del producto a consecuencia de

un accidente, mal uso, abuso, negligencia, modificaciones o instalaciones defectuosas, o cualquier

otra falla no relacionada con defectos materiales o de fabricación. Esta garantía no se aplica al

acabado de ninguna parte del producto, como por ejemplo el de la superficie, ni al deterioro por

condiciones ambientales, ya que eso se considera un desgaste normal.

El fabricante no garantiza y rechaza especialmente cualquier garantía, expresa o implícita, de

idoneidad para un propósito en particular, distinta de la garantía indicada aquí. El fabricante se exime

específicamente de cualquier obligación y no es responsable por daños o pérdidas directas o

indirectas, lo que incluye cualquier costo de mano de obra o gastos relacionados con el reemplazo o

reparación de dicho producto.

Comunícate con el Equipo de Servicio al Cliente al 1-855-HD-HAMPTON o visita

HAMPTONBAY.COM.

This manual suits for next models

Table of contents

Languages:

Other HAMPTON BAY Outdoor Light manuals

HAMPTON BAY

HAMPTON BAY KIF2301LS-01 User manual

HAMPTON BAY

HAMPTON BAY NXT-1007 User manual

HAMPTON BAY

HAMPTON BAY 517-636 User manual

HAMPTON BAY

HAMPTON BAY PANOLA HDP06659BL User manual

HAMPTON BAY

HAMPTON BAY 857-394 User manual

HAMPTON BAY

HAMPTON BAY 281-585 User manual

HAMPTON BAY

HAMPTON BAY CA JD-AU10017 User manual

HAMPTON BAY

HAMPTON BAY NXT-3149B User manual

HAMPTON BAY

HAMPTON BAY NXT-3149 User manual

HAMPTON BAY

HAMPTON BAY 634-556 User manual

HAMPTON BAY

HAMPTON BAY HB7097-43 User manual

HAMPTON BAY

HAMPTON BAY KECP10-LED User manual

HAMPTON BAY

HAMPTON BAY RYLAND HDP06602BL User manual

HAMPTON BAY

HAMPTON BAY 26201 User manual

HAMPTON BAY

HAMPTON BAY 1LT User manual

HAMPTON BAY

HAMPTON BAY NXT-1915 User manual

HAMPTON BAY

HAMPTON BAY LBM1501LX-02 User manual

HAMPTON BAY

HAMPTON BAY 62906 User manual

HAMPTON BAY

HAMPTON BAY HBP609-35 User manual

HAMPTON BAY

HAMPTON BAY KXX1501LX-01 User manual

HAMPTON BAY

HAMPTON BAY TORRANCE TREE LAMP HDP15141 User manual

HAMPTON BAY

HAMPTON BAY IWH1501LL-5 User manual

HAMPTON BAY

HAMPTON BAY KJC2601LX-04 User manual

HAMPTON BAY

HAMPTON BAY 62113 User manual

Popular Outdoor Light manuals by other brands

Sealey

Sealey LED37 instructions

nordlux

nordlux VEJERS Mounting instruction

SImx

SImx ELITE LED LHTC637 installation instructions

GEV

GEV CAROLINE 10833 manual

NEBO

NEBO NEB-LSP-0020 Use and care guide

WE-EF

WE-EF PFL540 LED Installation and maintenance instructions

Lindby

Lindby 9949029 Intended use

HEPER

HEPER DOGO Side LW6048.585-US Installation & maintenance instructions

HEPER

HEPER LW8034.003-US Installation & maintenance instructions

Maretti

Maretti VIBE S 14.6080.04.A quick start guide

BEGA

BEGA 84 253 Installation and technical information

HEPER

HEPER MINIMO Installation & maintenance instructions

LIGMAN

LIGMAN BAMBOO 3 installation manual

Maretti

Maretti TUBE CUBE WALL 14.4998.04 quick start guide

Maxim Lighting

Maxim Lighting Carriage House VX 40428WGOB installation instructions

urban ambiance

urban ambiance UQL1273 installation instructions

TotalPond

TotalPond 52238 instruction manual

Donner & Blitzen

Donner & Blitzen 0-02661479-2 owner's manual
