HAMPTON BAY 281-585 User manual

Page 1

INSTRUCTION MANUAL

3LT Exterior Wall Lantern

The Home Depot Special Order (S/O) SKU 281-585 (UPC 6940500313269)

Stock SKU 276-510 (aged brass)

The Home Depot Special Order (S/O) SKU 282-936 (UPC 6940500313276)

Stock SKU 277-030 (oil rubbed bronze)

Page 2

Thank you for purchasing this Hampton Bay exterior wall lantern. This

product has been manufactured with the highest standards of safety and

quality. The finish of this lantern is weather resistant but over time will

naturally weather and fade.

FEATURES:

1. Three-light exterior wall lantern in aged brass finish (S/O SKU 281-585)

or oil rubbed bronze finish (S/O SKU 282-936) with clear seeded glass.

2. This fixture has been engineered to safely use three 60 watt candelabra

incandescent light bulbs (do not exceed 60 watts each) (not included).

3. For energy savings, this fixture has been engineered to safely use three

candelabra compact fluorescent light bulbs (for equivalent light output, do

not exceed 15 watts each) (not included).

QUESTIONS, PROBLEMS, MISSING PARTS:

Before returning to your local The Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your S/O SKU (281-585 aged brass fixture, 282-936 oil rubbed

bronze fixture) or UPC (6940500313269 aged brass fixture, 6940500313276

oil rubbed bronze fixture).

Page 3

CAUTION:

1. Before starting installation of this fixture or removal of a previous fixture,

disconnect the power by turning off the circuit breaker or by removing the

fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS.

3. If you have any non-electrical questions about this fixture, please contact

our Customer Service Team at 1-877-527-0313 or visit

www.homedepot.com. Please reference your S/O SKU (281-585 aged brass

fixture, 282-936 oil rubbed bronze fixture) or UPC (6940500313269 aged

brass fixture, 6940500313276 oil rubbed bronze fixture).

4. Keep your receipt and these Instructions for Proof of Purchase.

TOOLS REQUIRED FOR ASSEMBLY & INSTALLATION

(not included):

3 Candelabra Light Bulbs Safety Goggles Ladder Gloves Wire Strippers

(60 watt maximum)

(or CFL equivalent)

Flathead Screwdriver Phillips Screwdriver Electrical Tape Wire Cutters Silicon Rubber Sealant

for exterior use

Page 4

PARTS INCLUDED FORASSEMBLY (parts are not to scale):

3ea Socket Sleeves (#6)

ASSEMBLY INSTRUCTIONS:

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Before continuing Assembly, please proceed to the Installation Instructions.

3. Lift the Top Cover (#3). Place the three Socket Sleeves (#6) over the three

Sockets (#4).

4. Install three 60 watt candelabra incandescent light Bulbs (#5) (not included)

or three equivalent candelabra compact fluorescent light bulbs (not included)

in the three Sockets (#4) in the fixture.

5. Close the Top Cover (#3) onto the fixture frame.

Page 5

ASSEMBLY:

Page 6

PARTS INCLUDED FOR INSTALLATION (parts are not to scale):

1ea Lock Nut (#2) 3ea Wire Connectors (#8) 1ea Mounting Strap (#9)

1ea Ground Screw (#10) 2ea Outlet Box Screws (#11) 1ea Hex Nut (#12) 1ea Nipple (#13)

INSTALLATION INSTRUCTIONS:

1. Screw the Nipple (#13) into the Mounting Strap (#9). Tighten the Hex Nut (#12) against

the Mounting Strap (#9) to secure the Nipple (#13). Attach the Mounting Strap (#9) to

the Outlet Box (#7) using the two Outlet Box Screws (#11). [Make sure the longer end of

the Nipple (#13) is facing outside when the Mounting Strap (#9) is attached to the Outlet

Box (#7).]

2. Wrap the ground wire from the fixture around the Ground Screw (#10) on the Mounting

Strap (#9), and then connect the ground wire from the fixture to the ground wire from the

Outlet Box (#7). Connect the white wire from the fixture to the white wire (neutral wire)

from the Outlet Box (#7). Connect the black wire from the fixture to the black wire (live

wire) from the Outlet Box (#7). Cover the three connections using the three Wire

Connectors (#8). Wrap the three wire connections with electrical tape for a more secure

connection. Position the wires back inside the Outlet Box (#7). Note: If you have

electrical questions, consult your local electrical code for approved grounding methods.

3. Place the Wall Plate (#1) over the Nipple (#13) all the way to the wall. Screw the Lock

Nut (#2) onto the Nipple (#13) until the fixture body is held firmly against the wall.

4. Once the fixture is mounted on the wall, caulk the space between the wall and the upper

3/4 area of the Wall Plate (#1) to prevent water seeping into the Outlet Box (#7). Leave

the bottom 1/4 area uncaulked for drainage of any water which might leak into the

enclosure.

5. Before completing Installation, please return toAssembly Instruction #3.

6. Installation is complete. Turn on the power at the circuit breaker or fuse box. Turn the

light on to activate the fixture.

Page 7

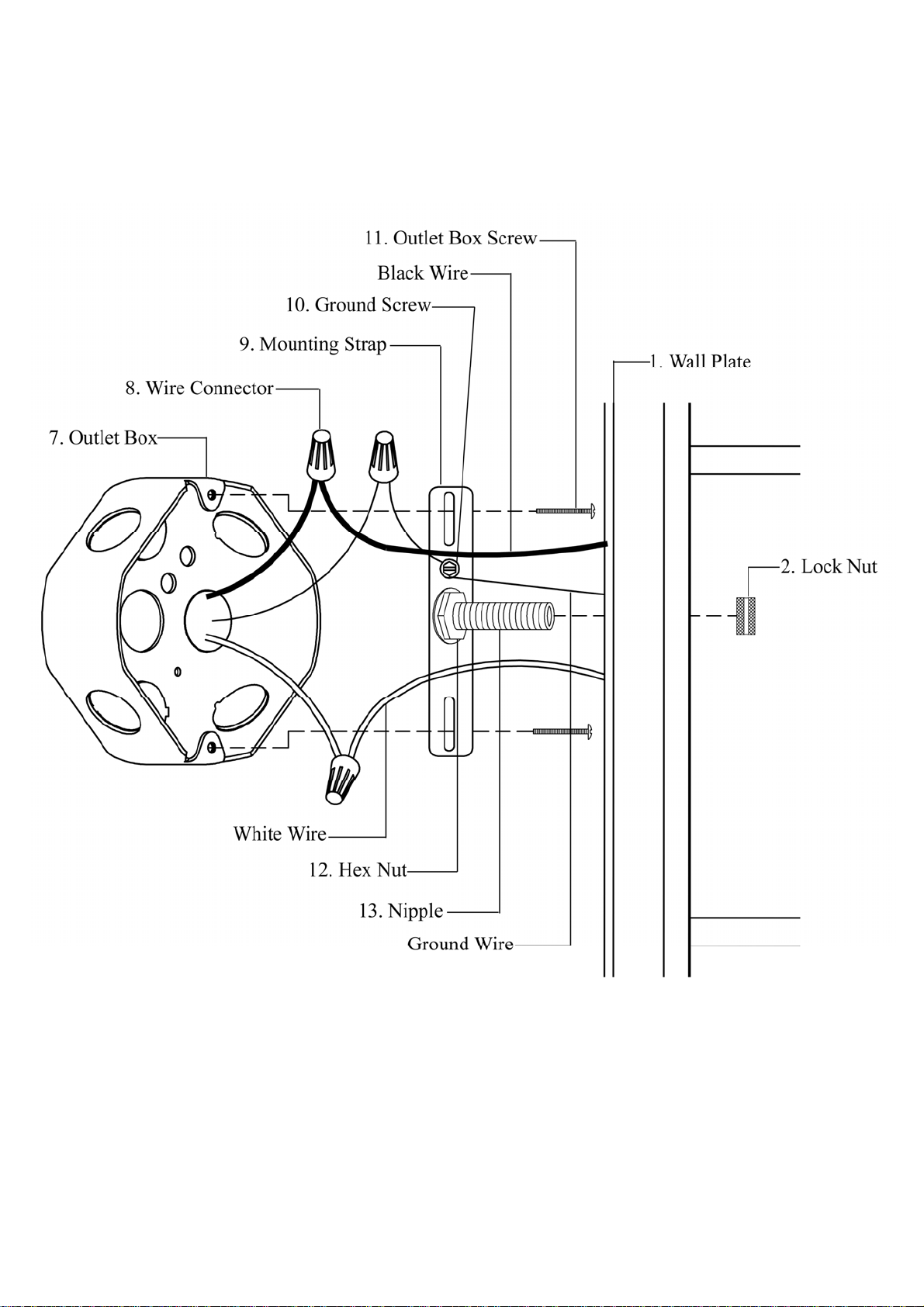

INSTALLATION:

Page 8

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the glass and surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the inside glass and

interior surface of the fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a period

of three (3) years from date of purchase. This warranty applies only to the original consumer purchaser and only

to products used in normal use and service. If this product is found to be defective, the manufacturer’s only

obligation, and your exclusive remedy, is the repair or replacement of the product at the manufacturer’s

discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications,

alterations, neglect or mishandling. This warranty shall not apply to any product that is found to have been

improperly installed, set-up, or used in any way not in accordance with the instructions supplied with the product.

This warranty shall not apply to a failure of the product as a result of an accident, misuse, abuse, negligence,

alteration, or faulty installation, or any other failure not relating to faulty material or workmanship. This

warranty shall not apply to the finish on any portion of the product, such as surface and/or weathering, as this is

considered normal wear and tear. The manufacturer does not warrant and specially disclaims any warranty,

whether express or implied, of fitness for a particular purpose, other than the warranty contained herein.

The manufacturer specifically disclaims any liability and shall not be liable for any consequential or

incidental loss or damage, including but not limited to any labor / expense costs involved in the

replacement or repair of said product.

Problem Possible Cause Corrective Action

1. Light bulb is burned out. 1. Replace light bulb.

2. Power is off. 2. Make sure power supply is on.

3. Faulty wire connection. 3. Check wiring.

Light bulb will not

illuminate.

4. Faulty switch. 4. Test or replace switch.

Fuse blows or circuit

breaker trips when light

bulb is illuminated.

Crossed wires or power

wire is grounding out. Check wire connections.

Page 9

MANUAL DE INSTRUCCIONES

Farola de pared para exteriores de 3 luces

El pedido especial de The Home Depot (S/O) SKU 281-585 (UPC 6940500313269)

Stock SKU 276-510 (Latón envejecido)

El pedido especial de The Home Depot (S/O) SKU 282-936 (UPC 6940500313276)

Stock SKU 277-030 (bronce frotado con aceite)

Page 10

Gracias por comprar esta farola Hampton Bay para exteriores. Este producto

ha sido manufacturado con los estándares de seguridad y calidad más altos.

El acabado de esta farola es resistente a la climatología pero con el tiempo se

desgastará y descoloreará naturalmente.

CARACTERÍSTICAS:

1. Farola de pared para exteriores de tres luces en acabado en latón envejecido

(S/O SKU 281-585) o en acabado en bronce frotado con aceite (S/O SKU

282-936) con cristal granulado transparente.

2. Esta instalación ha sido diseñada para usar con seguridad tres bombillas de

candelabro de luz incandescente de 60 vatios (no exceda de 60 vatios cada

una) (no incluidas).

3. Por ahorro de energía, esta instalación ha sido diseñada para usar con

seguridad tres bombillas de luz fluorescentes compactas estándar de base

medio (para una salida de luz equivalente, no exceder de 15 vatios cada una)

(no incluidas).

PREGUNTAS, PROBLEMAS, PARTES FALTANTES:

Antes de devolver a su The Home Depot local, por favor llame a nuestro

Equipo de Atención al Cliente al 1-877-527-0313 o visite

www.homedepot.com. Por favor haga referencia de su S/O SKU (281-585

instalación de latón envejecido, 282-936 instalación en bronce frotado con

aceite) o UPC (6940500313269 instalación de latón envejecido,

6940500313276 instalación en bronce frotado con aceite).
