HAMPTON BAY 272-775 User manual

INSTRUCTIONS MANUAL

EXTERIOR POST LANTERN

HOME DEPOT SKU# 272-775 (UPC# 046335848597)

Page 1

Page 2

Thank you for purchasing this Hampton Bay Exterior Post Lantern. This

product has been manufactured with the highest standards of safety and

quality.

1. Easy to install

2. Beautifully crafted aged iron finish with seeded glass.

3. Solid cast aluminum resists elements.

FEATURES:

Before returning to your local Home Depot, please call our Customer

Service Team at 1-877-527-0313 or visit www.homedepot.com. Please

reference your SKU (272-775) or UPC (046335848597).

QUESTIONS, PROBLEMS, MISSING PARTS:

Page 3

TOOLS REQUIRED FOR INSTALLATION AND ASSEMBLY

(not included):

CAUTION:

1. Before starting installation of this fixture or removal of a previous

fixture, disconnect the power by turning off the circuit breaker or by

removing the fuse at the fuse box.

2. CONSULT A QUALIFIED ELECTRICIAN IF YOU HAVE ANY

ELECTRICAL QUESTIONS. If you have any non-electrical

questions about this fixture, please call our Customer Service Team at

1-877-527-0313 or visit www.homedepot.com. Please reference your

SKU (272-775) or UPC (046335848597).

3. KEEP your receipt and these Instructions for Proof of Purchase.

Safety

goggles

Electrical

tape

Wire

strippers

Phillips

screwdriver Wire

cutters

Flathead

screwdriver

3 Candelabra

Light Bulbs (60

watt maximum)

PARTS INCLUDED FOR ASSEMBLY (parts are not to scale):

2 ea Hood Screws

(#3)

ASSEMBLY INSTRUCTIONS:

Page 4

1 ea Cage (#4)

1 ea Hood (#1)

1. Carefully unpack the fixture. Lay out all parts on a clean surface.

2. Install three incandescent candelabra Light Bulbs (#2) into the sockets of the

Main Fixture Body (#1). Do not exceed a 60 watts for each light bulb.

3. Attach the Hood (#1) to the Cage (#4) using the provided Hood Screws (#3).

ASSEMBLY:

1. Hood

2. Light Bulb

Page 5

4. Cage

3. Hood Screw

Page 6

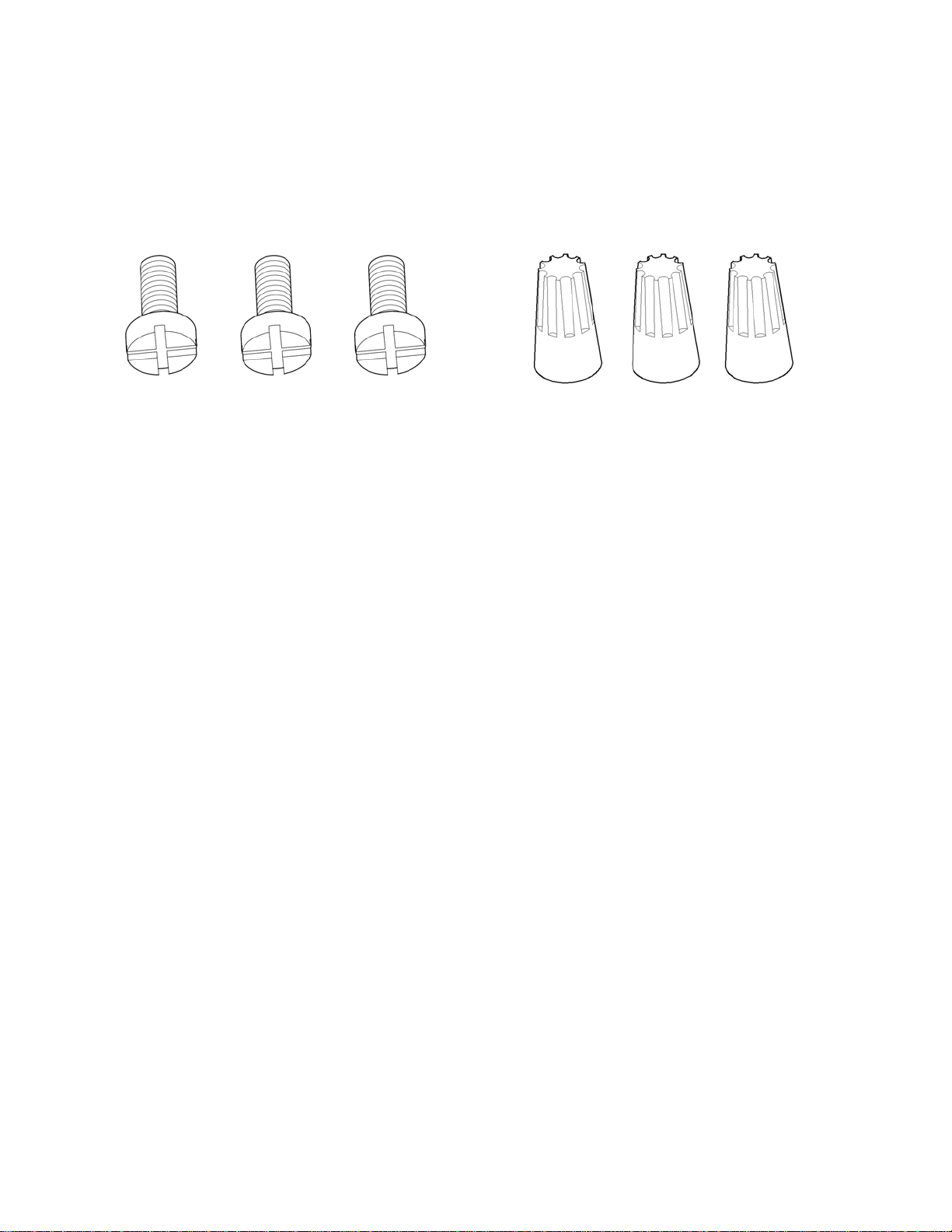

PARTS INCLUDED FOR INSTALLATION (parts are not to

scale):

3 ea Wire

Nuts (#7)

3 ea Fixture

Mounting Screws

(#14)

INSTALLATION INSTRUCTIONS:

1. Pull the power supply wires out from the Post (#10).

2. Attach the Black Supply Wire (#8) to the Black Fixture Wire (#6) and the

White Supply Wire (#13) to the White Fixture Wire (#11) using Wire Nuts

(#7). Connect the Fixture Ground Wire (#12) and the Supply Ground Wire

(#9) together using a Wire Nut (#7). Wrap all wire connections with electrical

tape for a more secure connection. Note: If you have electrical questions,

consult your local electrical code for approved grounding methods.

3. Carefully tuck all the wires and wire connectors into the Post (#10). Slide the

Post Cap (#5) of the fixture onto the Post (#10). Secure the Post Cap (#5) to

the Post (#10) using the provided Fixture Mounting Screws (#14).

4. Installation is complete. Turn on power at the circuit breaker or fuse box.

Turn the light switch on to activate the fixture.

Page 7

INSTALLATION:

5. Post Cap

6. Black Fixture Wire

8. Black Supply Wire

10. Post

9. Supply Ground Wire

7. Wire Nut

11. White Fixture

Wire

13. White Supply Wire

12. Fixture Ground Wire

10. Post

5. Post Cap

14. Fixture Mounting

Screw

Page 8

Possible Cause Corrective Action

1. Power is off. 1. Make sure power supply is on.

2. Faulty switch. 2. Test or replace switch.

3. Faulty wire connection. 3. Check wiring.

Fuse blows or circuit breaker

trips when light is turned on. 1. Crossed wires or power wire is grounding

out. 1. Check wire connections.

Lights will not turn on.

TROUBLESHOOTING:

PRODUCT MAINTENANCE:

1. To clean the outside of the fixture, use a dry or slightly dampened clean cloth (use clean

water, never a solvent) to wipe the surface of the fixture.

2. To clean the inside of the fixture, first disconnect power to the fixture by turning off the

circuit breaker or by removing the fuse at the fuse box. Next, use a dry or slightly

dampened clean cloth (use clean water, never a solvent) to wipe the interior surface of the

fixture.

3. Do not use any cleaners with chemicals, solvents or harsh abrasives. Use only a dry soft

cloth to dust or wipe carefully.

LIMITED WARRANTY

The manufacturer warrants this lighting fixture to be free from defects in materials and workmanship for a

period of three (3) years from date of purchase. This warranty applies only to the original consumer

purchaser and only to products used in normal use and service. If this product is found to be defective, the

manufacturer’s only obligation, and your exclusive remedy, is the repair or replacement of of the product at

the manufacturer’s discretion, provided that the product has not been damaged through misuse, abuse,

accident, modifications, alterations, neglect or mishandling. This warranty shall not apply to any product

that is found to have been improperly installed, set-up, or used in any way not in accordance with the

instructions supplied with the product. This warranty shall not apply to a failure of the product as a result of

an accident, misuse, abuse, negligence, alteration, or faulty installation, or any other failure not relating to

faulty material or workmanship. This warranty shall not apply to the finish on any portion of the product,

such as surface and/or weathering, as this is considered normal wear and tear. The manufacturer does not

warrant and specially disclaims any warranty, whether expressed or implied, of fitness for a

particular purpose, other than the warranty contained herein. The manufacturer specifically

disclaims any liability and shall not be liable for any consequential or incidental loss or damage,

including but not limited to any labor/expense costs involved in the replacement or repair of said

product.

MANUAL DE INSTRUCCIONES

FAROL DE PIE PARA EXTERIORES

HOME DEPOT SKU# 272-775 (UPC# 046335848597)

Página 1

Página 2

Gracias por comprar este Farol de Pie para Exteriores de Hampton Bay.

Este producto ha sido fabricado con los estándares más altos de

seguridad y calidad.

1. Fácil de instalar.

2. Acabado en hierro envejecido trabajado de manera excepcional con

vidrio de fantasía.

3. El sólido aluminio fundido resiste los elementos.

CARACTERÍSTICAS:

Antes de regresar el producto a su Home Depot, llame a nuestro Equipo

de Servicio al Cliente al 1-877-527-0313 o visite www.homedepot.com.

Dé como referencia el SKU (272-775) o UPC (046335848597).

PREGUNTAS, PROBLEMAS, PARTES FALTANTES:
