Farmington

52 in Ceiling Fan

Owner’s Manual

Farmington

Ventilador de Techo de 1,32 m

Manual del Propietario

247 276

Farmington by Hampton Bay

52” Farmington

Ceiling Fan by Hampton Bay

Date Purchased

UL Model No.

Serial No.

Thank you for purchasing our ceiling fan. This product has been

manufactured with the highest standards of safety and quality.

Table of Contents

Safety Rules . . . . . . . . . . . . . . . . . . . . 1

Unpacking Your Fan . . . . . . . . . . . . . . 2

Installing Your Fan . . . . . . . . . . . . . . . 3

Operating Your Fan . . . . . . . . . . . . . . 11

Care of Your Fan . . . . . . . . . . . . . . . . 12

Troubleshooting . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . 13

Warranty Information . . . . . . . . . . . . 14

Vendor No. 11289

Store Purchased

UPC 792145353942

247-276

Safety Rules – Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only CUL

Listed outlet boxes marked “FOR FAN SUPPORT.”

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

10.

11.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND

THE BLADE ARMS (ALSO REFERRED TO AS FLANGES), WHEN

INSTALLING THE BRACKETS, BALANCING THE BLADES OR

CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS IN –

BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE

OUTLET BOX.

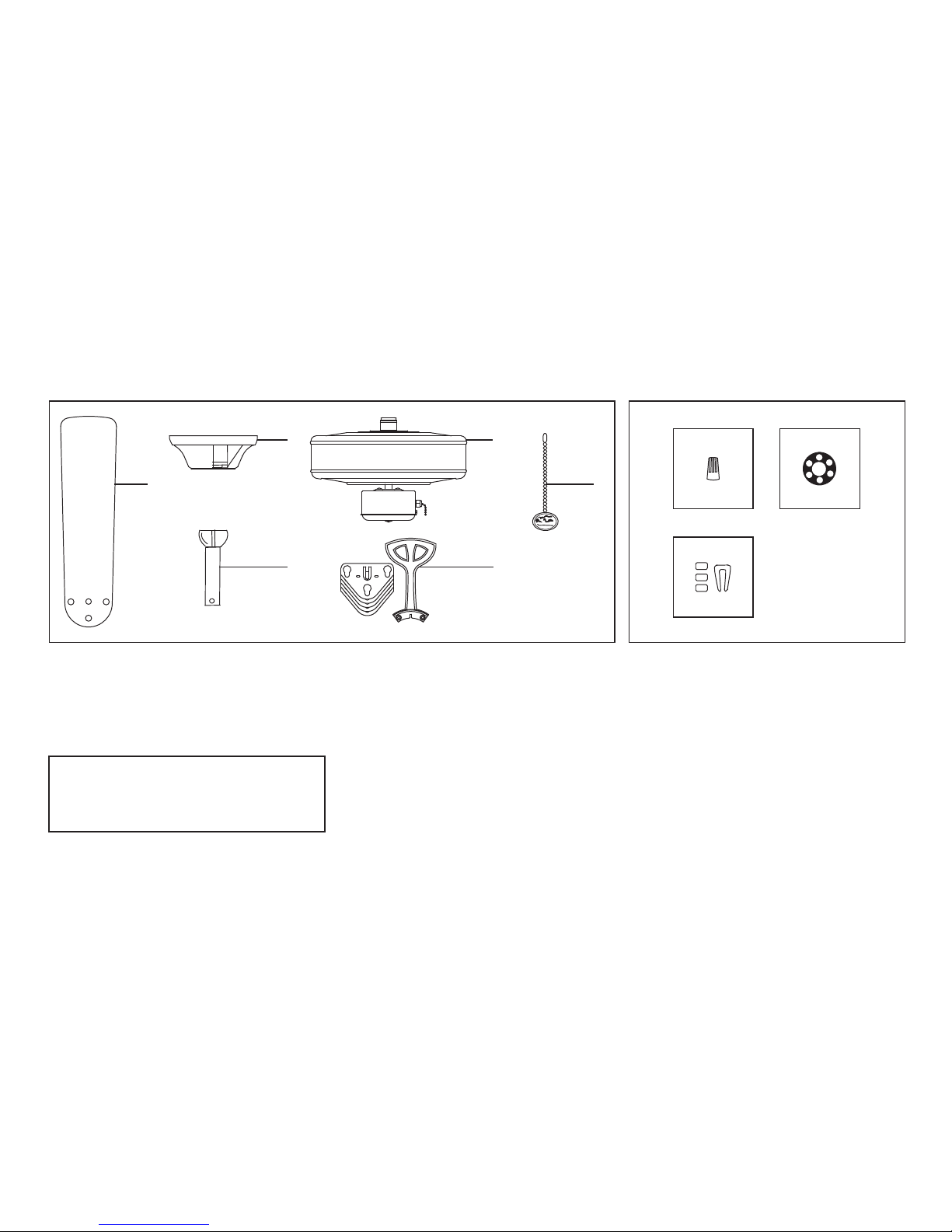

Unpacking Your Fan

Set of blades (5)

Canopy assembly

Ball/downrod assembly

Fan motor assembly

Blade arms assembly (5)

Pull chain and fob

Electrical Hardware

(3 plastic wire connectors)

Rubber gasket

Balance kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-877-902-5588.

Unpack your fan and check the contents. You should have the following items:

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

If there isn't an existing CUL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to maintain

proper blade clearance when installing on a steep,

sloped ceiling. The maximum angle allowable is

18°. If the canopy touches downrod, remove the

decorative canopy bottom cover and turn the

canopy 180°before attaching the canopy to the

mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

NOTE: This ceiling fan is supplied with two types

of hanging assemblies; the standard ceiling

installation using the downrod with ball and socket

mounting, and the "close-to-ceiling" mounting.

The "close-to-ceiling" mounting is recommended

in rooms with less than 8-foot ceilings or in areas

where additional space is desired from the floor to

the fan blades.

When using the standard downrod installation, the

distance from the ceiling to the bottom of the fan

blades will be approximately 12 inches. The

"close-to-ceiling" installation reduces the distance

from the ceiling to the bottom of the fan blades to

approximately 9 inches.

Once you have decided which ceiling installation

you will use, proceed with the following

instructions. Where necessary, each section of the

instructions will note the different procedures to

follow for the two types of installation.

Hanging the Fan

Option 1:

Standard Ceiling Mounting WARNING

FAILURE TO PROPERLY INSTALL CLEVIS PIN

AS NOTED IN STEP 5 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Figure 7

Loosen but

do not Remove Remove

Figure 6

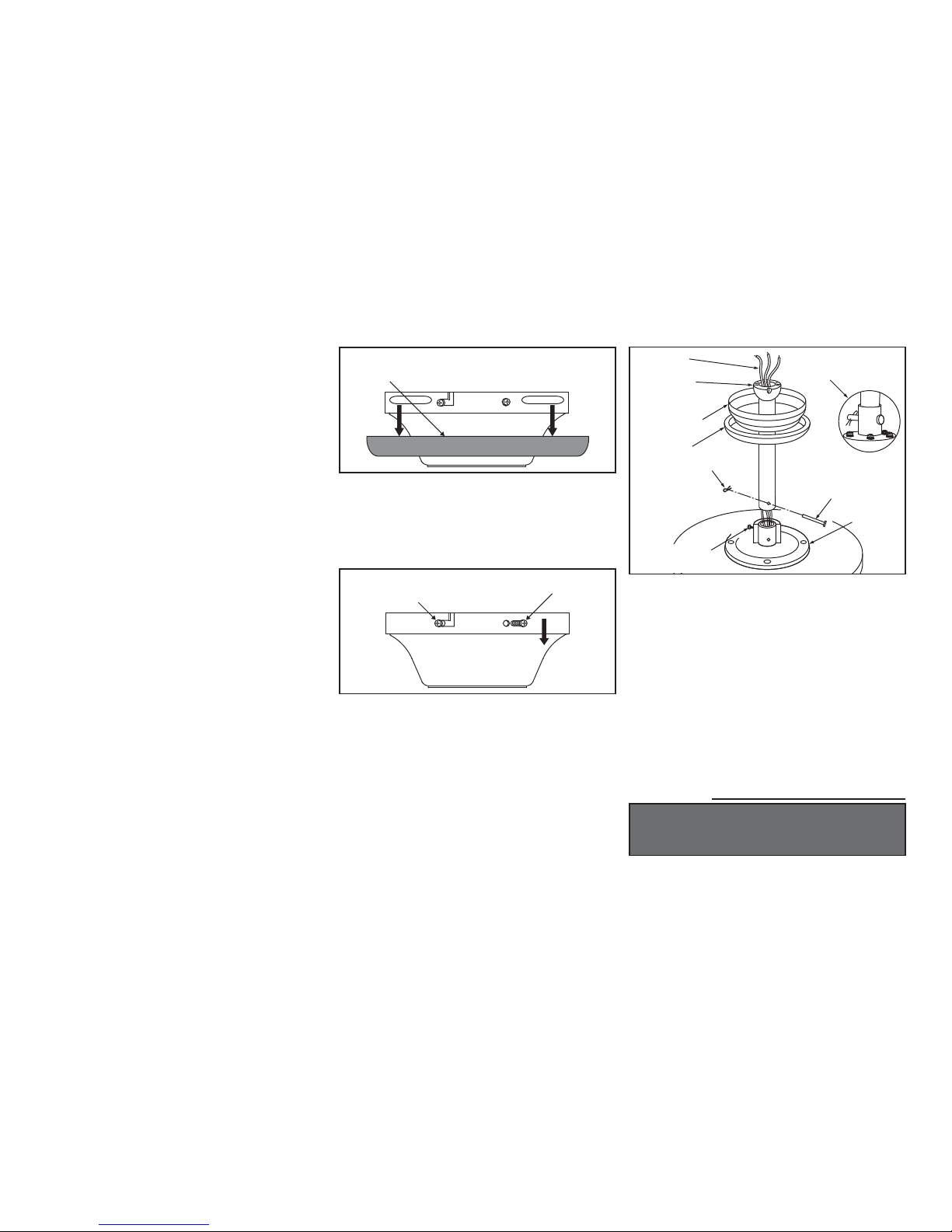

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. (Figure 6)

Align the holes at the bottom of the downrod

with the holes in the collar on top of the motor

housing. (Figure 7) Carefully insert the clevis

pin through the holes In the collar and

downrod. Be careful not to Jam the pin against

the wiring inside the downrod. Insert the cotter

pin and bend to ensure security, as noted in the

circle inset of Figure 7.

Tighten two set screws on top of the fan motor

firmly. (Figure 7)

Route wires exiting from the top of the fan

motor through the canopy ring. Make sure the

slot openings are on top. Route the wires

through the canopy and then through the

ball/downrod assembly. (Figure. 7)

Loosen, but do not remove the 2 set screws on

the collar on top of the motor housing.

Motor Wires

Ball/Downrod

Assembly

Ceiling Canopy

Canopy Ring

Pin in Locked

Positioon

Motor Collar

Clevis Pin

Cotter Pin

Tighten Screw

Firmly

Remove the

Canopy Ring

Figure 5

Remove the decorative canopy bottom cover

from the canopy by turning the canopy bottom

cover counterclockwise. (Figure 8)

Remove three of the six screws and lock

washers (every other one) from the collar of

top motor. (Figure 9)

Route the wires exiting the top of the fan motor

through the canopy ring (make sure the slot

openings are on top). then proceed to place the

rubber gasket and ceiling canopy over the

collar at the top of the motor. (Figure 10)

Align the mounting holes with the holes in the

motor and fasten using the screws and lock

washers removed in step 4. (Fig. 10)

Tighten the mounting screws security.

WARNING

FAILURE TO COMPLETELY TIGHTEN THE

THREE SCREWS IN STEP 7 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Motor

Collar Screw and Lock Washer

(3 of 6 Places)

Figure 9

Option 2:

Close-to-Ceiling Mounting

Remove the canopy ring from the canopy.

(Figure 5)

Remove the mounting bracket from the canopy

by loosening the four screws on the top of the

canopy. Remove the two non-slotted screws

and loosen the slotted screws. (Figure 6)

Canopy

Bottom

Cover

Remove

Figure 8

Figure 10

Collar

Ceiling

Canopy

Screw and

Lock Washer

(3 Places)

Canopy Ring

Rubber Gasket

NOTE: If a longer downrod is needed, take out

the screw located in the hanger ball, lower the

hanger ball and remove the pin, remove all 3

pieces from the downrod and assemble them onto

the new longer downrod before proceeding step 3.

(The longer downrod is available at any Home

Depot store)

Installing Fan to

the Electrical Box

WARNING

THE TAB AS SHOWN IN FIGURE 12 IS ONLY TO

BALANCE THE FAN WHILE ATTACHING

WIRING. FAILURE TO HANG AS SHOWN IN

FIGURE 12 MAY RESULT IN TAB BREAKING

CAUSING THE FAN TO FALL. TAB MUST PASS

FROM INSIDE TO OUTSIDE OF CANOPY.

WARNING

WHEN USING THE STANDARD BALL/ DOWN-

ROD MOUNTING. THE TAB IN THE RING MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN

THE GROOVE COULD CAUSE DAMAGE TO

WIRING.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

UL Listed Outlet Box

Ceiling Mounting

Bracket Tab

120V

Wires

Mounting

Screws (Supplied

with Outlet Box)

Figure 11

Carefully lift the fan assembly up to the ceiling

mounting bracket and hang the fan on the tab

provided by utilizing one of the holes at the outer

rim of the ceiling canopy. (Figure 12) If use

standard mounting, seat the hanger ball in the

mounting bracket socket. Make sure the tab on

the mounting bracket socket is properly seated in

the groove in the hanger ball. (Figure 12)

Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket as

shown in Figure 11.

Install the ceiling mounting bracket on the

outlet box with the screws and washers

provided with your outlet box. (Figure 11)

When using “close-to-ceiling” mounting, it is

important that the mounting bracket be level. If

necessary, use leveling washers (not included)

between the mounting bracket and the outlet

box. Note that the flat side of the mounting

bracket is toward the outlet box. (Figure 11)

Security tighten the two mounting screws.

Figure 12

Groove

Standard Mounting Close-to-Ceiling Mounting

Hook

Making the Electrical

Connections

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

WARNING

ELECTRICAL DIAGRAMS ARE FOR REFER-

ENCE ONLY. OPTIONAL USE OF ANY LIGHT

KIT SHALL BE UL LISTED AND MARKED

SUITABLE FOR USE WITH THIS FAN.

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut. (Figure 13)

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

blue wire will be on the other side, and push

carefully up into the outlet box.

Connect the ground cnductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan. (Figure 13) When using

standard ceiling mounting, there are two green

grounding leads; one from the ceiling mount-

ing bracket and one from the ball/downrod

assembly. When using “Close-to-Ceiling”

mounting, there is only one green ground lead

from the ceiling mounting bracket since the

ball/downrod assembly is not used.

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut. (Figure

13)

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

SUPPLY CIRCUIT

Figure 13

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

Other manuals for Farmington

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY 52119 User manual

HAMPTON BAY

HAMPTON BAY FB50-16H User manual

HAMPTON BAY

HAMPTON BAY EDELWEISS User manual

HAMPTON BAY

HAMPTON BAY Middleton 42 inch User manual

HAMPTON BAY

HAMPTON BAY CARROLTON II AM215-ORB User manual

HAMPTON BAY

HAMPTON BAY YG098B-NM User manual

HAMPTON BAY

HAMPTON BAY CEVA AK363HA-BN User manual

HAMPTON BAY

HAMPTON BAY Savona Tiffany User manual

HAMPTON BAY

HAMPTON BAY 593-548 AC324A-WH User manual

HAMPTON BAY

HAMPTON BAY GLENDALE III AK488-MBK User manual

HAMPTON BAY

HAMPTON BAY Mena User manual

HAMPTON BAY

HAMPTON BAY PANACHE 92407 User manual

HAMPTON BAY

HAMPTON BAY NORWOOD 52129 User manual

HAMPTON BAY

HAMPTON BAY PALM BEACH III 51499 User manual

HAMPTON BAY

HAMPTON BAY Carrolton User manual

HAMPTON BAY

HAMPTON BAY 42010 User manual

HAMPTON BAY

HAMPTON BAY Andross User manual

HAMPTON BAY

HAMPTON BAY 91126 User manual

HAMPTON BAY

HAMPTON BAY Altura 128 925 User manual

HAMPTON BAY

HAMPTON BAY 1005 819 968 User manual

HAMPTON BAY

HAMPTON BAY 133-715 User manual

HAMPTON BAY

HAMPTON BAY 286-780 User manual

HAMPTON BAY

HAMPTON BAY CALTRIS AK382HG-MBK User manual

HAMPTON BAY

HAMPTON BAY Brookhurst 549-742 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
