HAMPTON BAY 670-787 User manual

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

670-787

445993

718212341629

Hampton Bay Lifetime Motor Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material

present at time of shipment from the factory for a lifetime after the date of purchase by the

original purchaser. The retailer also warrants that all other fan parts, excluding any glass or

plexiglass blades, to be free from defects in workmanship and material at the time of

shipment from the factory for a period of one year after the date of purchase by the original

purchaser. We agree to correct such defects without charge or at our option replace with a

comparable or superior model if the product is returned to the retailer. To obtain warranty

service, you must present a copy of the receipt as proof of purchase. All costs of removing

and reinstalling the product are your responsibility. Damage to any part such as by accident

or misuse or improper installation or by affixing any accessories, is not covered by this

warranty. Because of varyingclimatic conditions inthe United States this warranty does not

cover any changesin brass finish,including rusting, pitting,corroding, tarnishing orpeeling.

Brass finishes of this type give their longest useful life when protected from varying weather

conditions. A certain amount of wobble is normal and should not be considered a defect.

Servicing performed by unauthorized persons shall render the warranty invalid. There is no

other express warranty. The retailer hereby disclaims any and all warranties,

including but not limited to. Those of merchantability and fitness for a particular

purpose to the extent permitted by law. The duration of any implied warranty which

cannot be disclaimedis limited to the time period as specified in the express warranty. Some

states do not allow limitation on how long an implied warranty lasts, so the above limitation

may not apply to you. The retailer shall not be liable for incidental, consequential, or

special damages arising out of or in connection with product use or performance except

as may otherwise be accorded by law. Some states do not allow the exclusion of incidental

or consequential damages, so the above exclusion or limitation may not apply to you. This

warranty gives specific legal rights, and you may also have other rights which vary from

state to state. This warranty supersedes all prior warranties.

Lifetime Motor Warranty

Table of Contents

SAFETY RULES....................................................................................................

PACKAGE CONTENTS ........................................................................................

INSTALLING YOUR FAN.....................................................................................

HANGING THE FAN.............................................................................................

ELECTRICAL CONNECTIONS ..........................................................................

FINISHING THE INSTALLATION.......................................................................

BLADE INSTALLATION .....................................................................................

............................................................

...........................................................................

OPERATING YOUR FAN....................................................................................

CARE OF YOUR FAN..........................................................................................

TROUBLESHOOTING.......................................................................................

SPECIFICATIONS..............................................................................................

INSTALLING THE MOUNTING PLATE

INSTALLING THE LIGHT KIT

1. Before you begin installing the fan, shut power off at

the circuit breakeror the fuse box.

2. Be cautious! Read all instructions and safety

information before installing your new fan. Review

accompanying assembly diagrams.

3. Make sure that all electrical connections comply with

local codes, ordinances, or National Electrical Codes.

Hire a qualified electrician or consult a do-it-yourself

wiring handbook if you are unfamiliar with installing

electrical wiring.

4. Make sure the installation site you choose allows the fan

blades to rotate without any obstructions. Allow a

minimum clearance of 7 feet from the floor and 18

inches from thetip of the blades to the wall.

5. If you are mounting the fan to a ceiling outlet box, use

U.L. Listed metal octagonal outlet box marked

"Acceptable for fan support". Secure the box directly to

the building structure. The outlet box and its support

must be able to support the moving weight of the fan (at

least 50 lbs.)Do not use a plastic box.

6. Caution: To reduce the risk of personal injury use only

the screws providedwith the outletbox.

7. If you are mounting the fan to a joist, make sure it is able

to support themoving weight of the fan (at least 50 lbs.).

1. Safety Rules

8. After you install the fan, make sure that all mountings are

secured to preventthe fan from falling.

9. Do not insert anything into the fan blades while the fan is

operating.

10. Turn the fan off and wait for it to stop completely beforechanging

the fan direction.

NOTE: The important safeguardsand instructions appearing in this

manual are notmeant to cover all possible conditions and situations

that may occur. It must be understood thatcommon sense, cautionand

care are factorswhich can not be built into this product. These factors

must be suppliedby the person(s) installing, caring for and operating

the unit.

TO REDUCETHE RISK OF FIRE, ELECTRIC SHOCK, OR OTHER PERSONAL

INJURY, MOUNT FAN ONLY TOAU.L. LISTED OUTLETBOX OR SUPPORTING

SYSTEM MARKEDACCEPTABLE FORFAN SUPPORT ANDUSE MOUNTING

SCREWS PROVIDED WITHTHE OUTLETBOX IN CONJUNCTIONWITH THE

LOCK WASHERS PROVIDED WITHTHE FAN, MOST OUTLETBOXES

COMMONLYUSED FOR THESUPPORT OFLIGHTING FIXTURES ARE NOT

ACCEPTABLE FORFAN SUPPORT ANDNEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IFIN DOUBT.

TO REDUCETHE RISK OF PERSONAL INJURY,DO NOT BENDTHE BLADE

HOLDERS WHILE INSTALLING, BALANCING THEBLADES, OR CLEANING

THE FAN.DO NOT INSERT FOREIGN OBJECTSBETWEEN ROTATING FAN

BLADES.

TO REDUCETHE RISK OF FIRE OR ELECTRIC SHOCK, DO NOTUSE THIS FAN

WITH ANYSOLID-STATE SPEED CONTROLDEVICE

WARNING

NOTE

READ AND SAVE ALL INSTRUCTIONS!

Unpack your fanand check thecontents. You should havethe following items;

1 Fan blades (5)

2. Hanger bracket

3. Canopy

4. Canopy cover

5. Downrod assembly

7. Fan motorassembly

Coupling cover

8. Blade holders(5)

9. Mounting plate

10. Light kit

11. Glassshade

12. Pull chain fob (2)

13. 13 Watt compact fluorescent bulbs (2)

15. Balancing kit

14. Extra plug

Package Contents 2.

815

13 ab

a. Mounting hardware:

Wire nuts(3)

b. Blade attachmenthardware:

Screws (16)

Phillips screw driver; slotted screw driver; step-

ladder; wire cutters;electrical tape.

If there isn't an existing mounting box, then read

the following instructions. Disconnect the power

by removing fusesor turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 50 lbs.). Use a UL Listed metal outlet box.

Do not usea plastic outlet box.

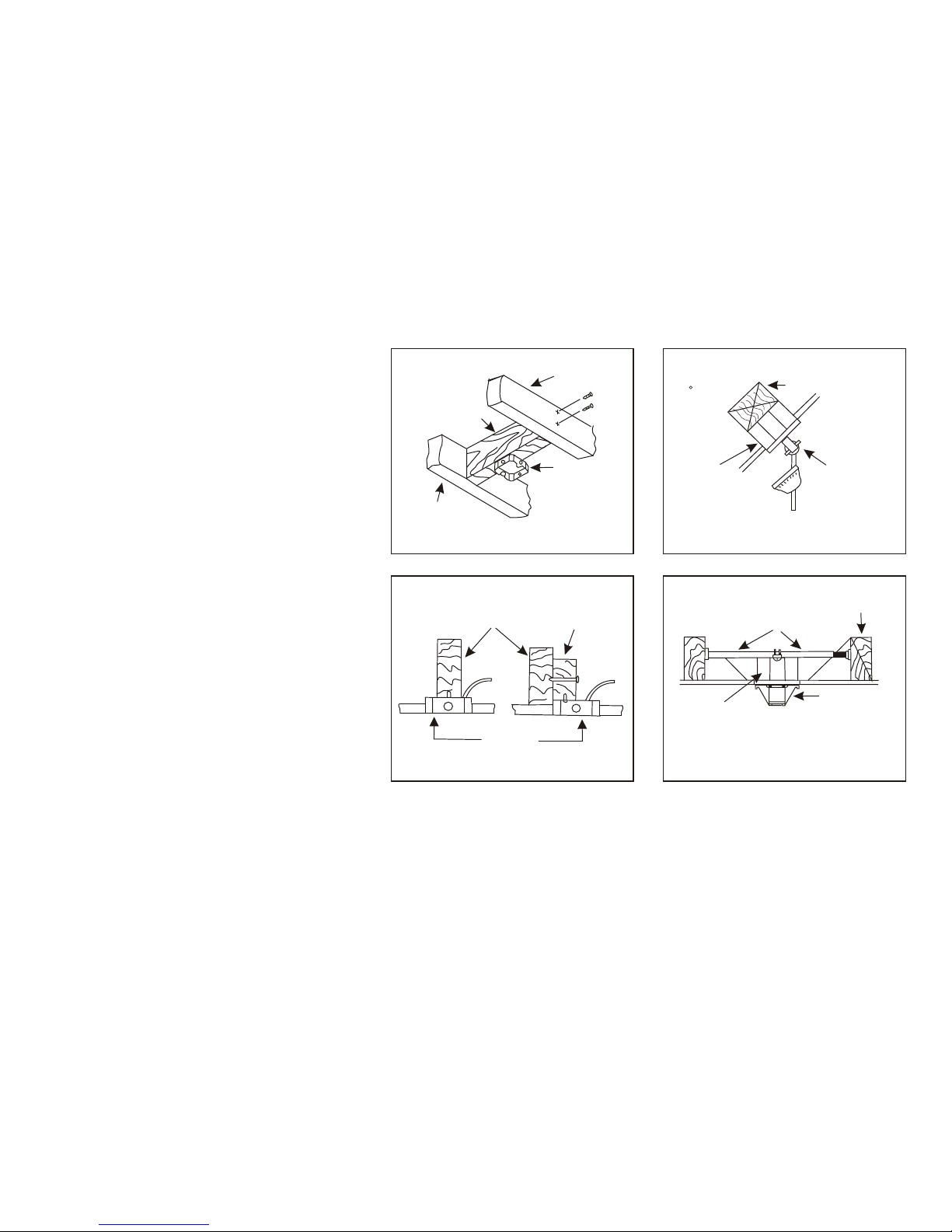

Figure 1, 2 and 3 are examples of different ways to

mount the outletbox.

Note: You may need a longer downrod to maintain

proper blade clearance when installing on a steep,

sloped ceiling. Longer downrods are available

from your HamptonBay dealer.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need to install a

hanger bar as shown in Fig. 4 (available at your

Hampton Bay dealer).

Tools Required

Mounting Options

3. Installing Your Fan

Outlet box

Figure 1

Ceiling

joist

Ceiling

joist

Cross brace

Outlet box

Figure 2

Ceiling joist

or cross brace Parallel

wood brace

Provide strong

support

Recessed

outlet box

Hanger bracket

opening must

be facing up-side

Figure 3

Outlet box

Figure 4

Ceiling

joist

Hanger bar

(optional)

Hanger

bracket

Angled ceiling

maximum

20 angle

Figure 9

Figure 10

Registration

slot

Downrod

Canopy

Canopy cover

Set screws

Hitch pin

Lock pin

Hanger ball

4.Hanging the Fan

REMEMBER to turn off the power.

Follow the stepsbelow to hang your fan

properly:

Step 1. Secure the hanger bracket to the

ceiling outlet box using screws and lock

washers included with your outlet box.

(Fig.5)

Step 2. Loosen the two set screws and

remove the hitch pin and lock pin from the

top coupling ofthe motor assembly. (Fig.6)

Step 3. Remove hanger ball from downrod

assembly by looseningset screw, removing

the cross pin, and sliding ball off rod.

(Fig.7)

Step 4. Carefully feed fanwires up through

the downrod. (Fig. 8) Thread the rod into

the coupling. Next, line up holes and

replace lock pin and hitch pin. Tighten set

screws.

Step 5. Slip coupling cover, canopy cover

and canopy onto downrod. (Fig.9)

Carefully reinstall hanger ball onto rod

being sure that cross pin is in correct

position, set screws are tighten and wires

are not twisted.

Step 6. Now lift motor assembly into

position and place hanger ball into hanger

bracket. Rotate until the check groove has

dropped into the registration slot and seats

firmly. (Fig. 10) Rod should not rotate if

this is donecorrectly.

Outlet box

Hanger bracket

Cross pin

Hanger

ball

Downrod

Supply

wires

Figure 5

Figure 7 Figure 8

Figure 6

Hitch

pin Lock

Set

screws

Coupling cover

5. Electrical Connections

WARNING: To avoid possible electricalshock, be

sure electricity is turned off at the circuit breaker

or main fusebox before wiring.

Follow the steps below to connect the fan to your

house supply wires. Secure the wire nuts supplied

with your fan by wrapping the connections with

electrical tape.

Step 1. Connect the Black (hot) wire from the

ceiling to the black and blue wires from the fan.

Connect the white (neutral) wire from the ceiling

to the whitewire from the fan. (Fig. 11)

Step 2. If your outlet box has a ground wire (green

or bare copper) connect the fan ground wire from

hanger ball and hanger bracket to it; otherwise

connect the fan ground wire from the hanger ball

and hanger brackettogether.

Step 3. Figures 12 and 13 illustrate the wiring

connections for optional wall control (available at

your Hampton Bay Retailer, the wire color out of

wall control may vary, see wall control's

installation manual forcorrect wire connections.)

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITEWHITE

BLACK

BLUE

GREEN

Figure 11

Diagram indicates optionallight kit wiring.

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 12

Diagram indicates optionallight kit wiring.

Light Switch

6. Finishing the

Installation

Step 1. Tuck connections neatly into ceiling

outlet box.

Step 2. Slide the canopy up to ceiling and

over the two crews on hanger bracket. Rotate

canopy clockwise. Next, while holding the

canopy with one hand, slide the canopy

cover over the screws and rotate clockwise

until tight. Note: adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig.14)

Figure 14

Outlet box

Hanger

bracket

Hanger

ball

Canopy

cover

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 13

Diagram indicates optionallight kit wiring.

Light

Fan

7. Blade Installation

Step 1. Attach the fan blades to the blade

holders using the screws and rubber washers

provided, tighten screwssecurely. (Fig. 15)

Step 2. Remove rubber stops from motor.

Rotate motor so that the screw holes are

revealed through the opening on switch cap

plate. Align motor holes to blade holders and

secure with screws provided, tighten screws

securely. (Fig. 15)

Screws

Blade holders

Blades

Screws

Rubber

washer

Slot

Tab

Figure 15

Connectors

Screws

Pull chain

Glass

shade

Bulbs

Light kit

assembly

Glass cap

Metal nut

Finial

Mounting plate

Figure 17

9. Installing the Light

Kit

While holding the light kit assembly

under your fan, snap together the wire

connection plugs .

NOTE: Before starting installation,

disconnect the power by turning off the

circuit breaker or removing the fuse at fuse

box.

2. Carefully push all wires back into the

switch housing, then install the light kit

assembly onto the mounting plate with 3

screws provided. Be sure to tighten all

screws. (Fig.17)

3. Install 2 x 13 Watt compact fluorescent

bulbs (included).

4. Remove the metal nut, glass cap and finial

from the light kit. Raise the glass shade

up against the light kit. Place the metal

nut with rubber on the top over the stem

and turn it clockwise until it locks up

against the glass shade. Do not

overtighten. (Fig. 17)

5. Raise the glass cap and final against the

glass shade and secure it to the stem by

turning the final clockwise until snug. Do

not overtighten. (Fig.17)

Note: Make sure to leave enough space

between the fan pull chain and the bulbs so

the chain doesn'trub against any of the bulbs.

8. Installing the Mounting

Plate

Step 1. Remove 1 of the 3 screws from the

mounting ring and loosen the other 2 screws.

(Do not remove)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened from

the mounting ring, turn mounting plate until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

previously loosened and the one previously

removed. (Fig. 16)

Figure 16

Mounting plate

Mounting ring

Screws

Restore power to ceiling fan and test for proper

operation.

Speed Pull ChainOperation:

This pull chaincontrols the fan speed as follows;

1-Pull = HighSpeed

2-Pulls = MediumSpeed

3-Pulls = LowSpeed

4-Pulls = FanOff

The reverse slide switch located on the side of the

switch housing controls the direction of the blade

rotation:.

Speed settings for warm or cold weather depend on

factors such as room size, ceiling height and number

of fans, etc.

NOTE: Wait for the fan to stop before changing the

setting of theslide switch

Warm weather (Forward) A downward airflow

creates a cooling effect as shown in Figure 19. This

allows you to set your air conditioner on a warmer

setting without affecting your comfort.

Cool weather (Reverse) An upward airflow moves

warmer air off the ceiling area as shown in Figure 20.

This allows you to set your heating unit on a cooler

setting without affecting your comfort.

Operating your Fan 10.

Figure 19

Figure20

Fan without Light Kit

lease keep the nut and washer

for install theplug to the switch housing)

3. olding the under your fan,

snap together the wire connection plugs.

Disassemble the switch housing from the

light kit (p

you can keepthe light kit for future use.

2. Attachthe plug tothe switch housing with

the washer and nut previously removed.

(Fig. 18)

H switch housing

(Fig. 18)

Install the switch housing to the mounting

plate with screws provided. (Fig. 18)

Figure18

Switch

housing

Washer

Nut

Plug

Connectors

Screws

Mounting plate

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Andross User manual

HAMPTON BAY

HAMPTON BAY GAZEBO II YG188-WH User manual

HAMPTON BAY

HAMPTON BAY Marlston N375B-BN User manual

HAMPTON BAY

HAMPTON BAY WELLSTON EF200B-44 User manual

HAMPTON BAY

HAMPTON BAY MORESCO 14411 User manual

HAMPTON BAY

HAMPTON BAY 7136-01 User manual

HAMPTON BAY

HAMPTON BAY CYPRUS 220 635 User manual

HAMPTON BAY

HAMPTON BAY PENDLETON User manual

HAMPTON BAY

HAMPTON BAY BPT18-34A-1 User manual

HAMPTON BAY

HAMPTON BAY Minuet III AG806C-EB User manual

HAMPTON BAY

HAMPTON BAY AL663A-LN User manual

HAMPTON BAY

HAMPTON BAY Largo User manual

HAMPTON BAY

HAMPTON BAY LDS-BF2002 User manual

HAMPTON BAY

HAMPTON BAY Devereaux II User manual

HAMPTON BAY

HAMPTON BAY SAN MARINO 91153 User manual

HAMPTON BAY

HAMPTON BAY Glendale 52 User manual

HAMPTON BAY

HAMPTON BAY YG269AP-MWH User manual

HAMPTON BAY

HAMPTON BAY Pendleton 91252 User manual

HAMPTON BAY

HAMPTON BAY Y52YH5-06 Owner's manual

HAMPTON BAY

HAMPTON BAY MINNA HE-12026 User manual

HAMPTON BAY

HAMPTON BAY Renwick User manual

HAMPTON BAY

HAMPTON BAY Gazebo 473-131 User manual

HAMPTON BAY

HAMPTON BAY AK376-MBK User manual

HAMPTON BAY

HAMPTON BAY 1002 498 557 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
