Safety Rules – Read and Save These Instructions

To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

All wiring must be in accordance with the National Electrical Code

“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician.

WARNING: To reduce the risk of electrical shock or fire, do not use this

fan with any solid-state fan speed control device. It will permanently

damage the electronic circuitry.

CAUTION: To reduce the risk of personal injury, use only the screws

provided with the outlet box.

The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 pounds, Use only UL

Listed outlet boxes marked “FOR FAN SUPPORT”.

The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

Avoid placing objects in path of the blades.

To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box and ungrounded conductor on the

other side of the outlet box.

All set screws must be checked and retightened where necessary before

installation.

WARNING: Use only with light kit marked "Suitable for Use in Wet

Locations".

10.

11.

12.

WARNING

TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND

THE BLADE HOLDERS (ALSO REFERRED TO AS FLANGES),

WHEN INSTALLING THE HOLDERS, BALANCING THE BLADES

OR CLEANING THE FAN. DO NOT INSERT FOREIGN OBJECTS

IN–BETWEEN ROTATING FAN BLADES.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE

FOR FAN SUPPORT WITH THE SCREWS PROVIDED WITH THE

OUTLET BOX.

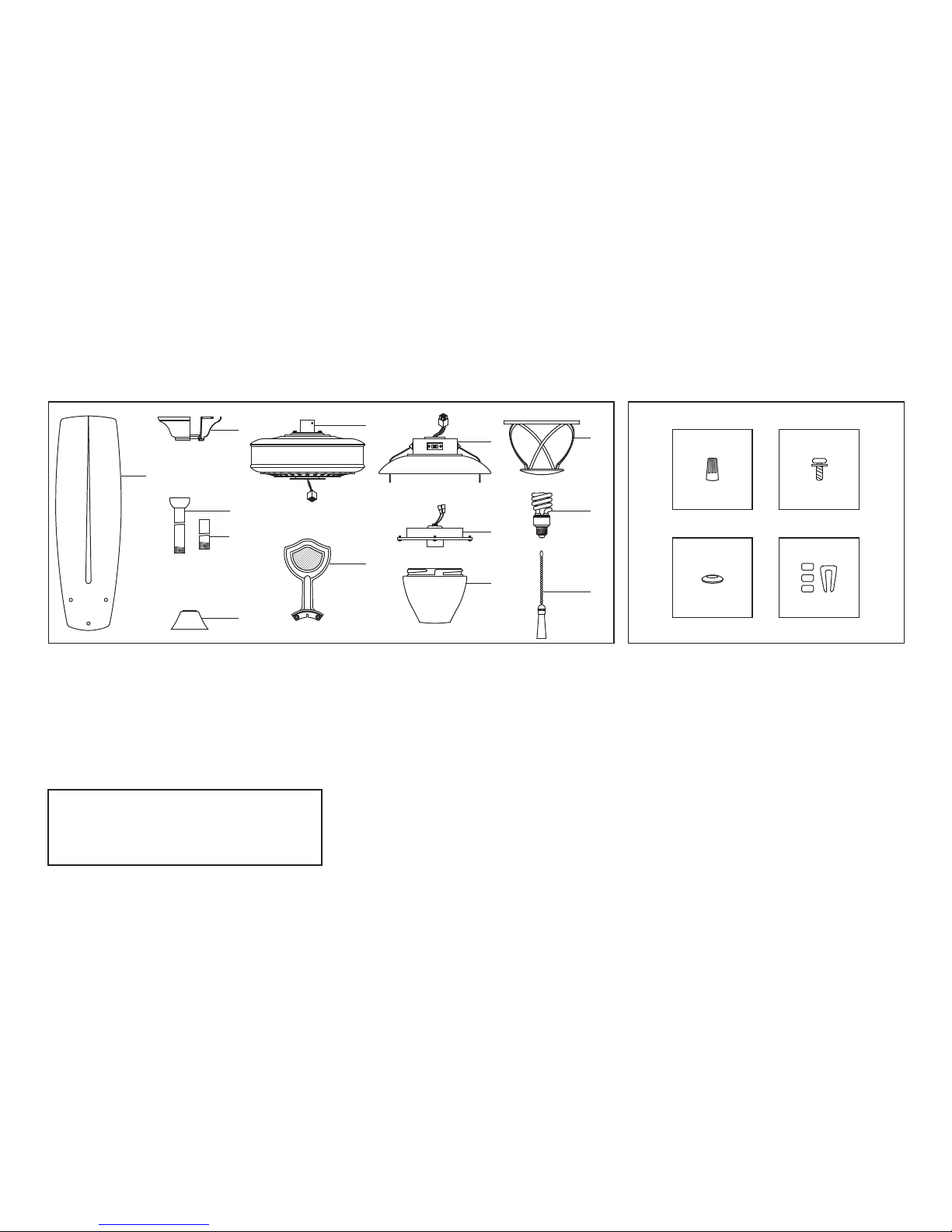

Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:

Set of blades (5)

Canopy assembly

Standard Ball/downrod assembly

Minimum-length downrod (for close to

the ceiling installation only)

Coupling cover

3a.

3b.

Fan motor assembly

Blade holders (5)

Switch housing assembly

Light plate

Glass shade

Glass frame

13 Watt compact fluorescent bulb

Pull chains and fobs (2)

10.

11.

12.

Electrical Hardware

(3 Plastic Wire Nuts)

Blade Attachment Hardware

3/16"×7.5mm Screws with Rubber

Washers (16PCs.)

Hanger Ball Rubber Cover

Balancing Kit

WARNING

DO NOT INSTALL OR USE FAN IF ANY

PART IS DAMAGED OR MISSING.

CALL TOLL FREE 1-800-527-0998.

Installing Your Fan

Figures 1~3 are examples of different ways to

mount the outlet box.

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off circuit

breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the fan

(at least 35 lbs). Do not use plastic outlet boxes.

Tools Required

Mounting Options

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

ONLY TO AN OULET BOX MARKED ACCEPT-

ABLE FOR FAN SUPPORT AND USE THE

MOUNTING SCREWS PROVIDED WITH THE

OULET BOX. OUTLET BOX COMMONLY USED

FOR THE SUPPORT OF LIGHTING FIXTURE

MAY NOT BE ACCEPTABLE FOR FAN SUPPORT

AND MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Outlet Box

Figure 2

Figure 1

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling. The maximum angle

allowable is 18°. If the canopy touches downrod,

remove the decorative canopy bottom cover and

turn the canopy 180°before attaching the canopy

to the mounting plate.

To hang your fan where there is an existing fixture

but no ceiling joist, you may need an installation

hanger bar as shown in Figure 4 (available at any

Home Depot store).

Ceiling

Mounting

Plate

Provide Strong

Support

Recessed

Outlet Box

Figure 3

Figure 4

Phillips screwdriver, straight slot screwdriver, step

ladder and wire cutters.

REMEMBER to turn off the power. Follow the

steps below to hang your fan properly.

Remove the canopy cover from the canopy by

turning the cover counter clockwise. (Figure 5)

Remove the hanger bracket from the canopy by

removing the non-slotted screws from the

bottom of the hanger bracket and loosening the

other one a half turn from the screw head. Next,

turn the canopy counter clockwise to removing

the hanger bracket from the canopy. (Figure 5)

Remove the clevis pin, cotter pin and set

screws from the top of the motor assembly.

(Figure 6)

Remove hanger ball from downrod assembly

by loosening set screw, removing the cross pin,

and sliding ball off rod. (Figure 7)

Carefully feed motor wires up through the

downrod. Thread the rod into the coupling.

Next line up holes and replace cotter pin and

clevis pin. Tighten set screws. (Figure 8)

Slip coupling cover, canopy cover and canopy

onto downrod. Carefully reinstall hanger ball

onto rod being sure that cross pin is in correct

position, set screws are tighten and wires are

not twisted. (Figure 9)

WARNING

FAILURE TO PROPERLY INSTALL COTTER

PIN AS NOTED IN STEP 5 COULD RESULT IN

FAN LOOSENING AND POSSIBLY FALLING.

Hanging the Fan

Figure 6

Set Screws

Clevis Pin

Cotter Pin

Figure 7

Cross Pin

Hanger Ball

Downrod

Hanger

Bracket

Ceiling Canopy

Canopy Bottom

Cover

Figure 5

Figure 8

Downrod

Motor Wires

Figure 9

Pin in Locked

Positioon

Motor Wires

Downrod

Ceiling Canopy

Canopy Bottom

Cover

Motor Collar

Coupling Cover

Tighten Screw Firmly

Cotter Pin

Set Screw

Cross Pin

Clevis Pin

Hanger Ball

WARNING

THE TAB IN THE RING MUST REST IN THE

GROOVE OF THE HANGER BALL AS FIGURE 12.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Installing Fan to the

Electrical Box

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR OTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX OR

SUPPORTING SYSTEM MARKED ACCEPTABLE

FOR FAN SUPPORT AND USE THE MOUNTING

SCREWS PROVIDED WITH THE OUTLET BOX.

Pass the 120-volt supply wires through the

center hole in the hanger bracket as shown in

Figure 11.

Install the hanger bracket on the outlet box

with the screws and washers provided with

your outlet box. (Figure 11)

Security tighten the two mounting screws.

Carefully lift the fan assembly up to the hanger

bracket and seat the hanger ball in the bracket

socket. Make sure the tab on the hanger bracket

socket is properly seated in the groove in the

hanger ball. (Figure 12) This will help to

balance the ceiling fan.

Figure 11

UL Listed Outlet Box

Hanger Bracket

120V

Wires

Mounting

Screws (Supplied

with Electrical Box)

Tab

Figure 12

Groove

Tab

Figure 10

Hanger Ball

Rubber Cover Hanger Ball

Motor Wires

Route the wires through the hanger ball rubber

cover and then attach the rubber cover onto the

hanger ball. (Figure 10)

blue wire will be on the other side, and push

carefully up into the outlet box.

Connect the ground conductor of the 120V

supply (this may be a bare wire or a wire with

green colored insulation) to the green ground

lead(s) of the fan (Figure 13).

Connect the fan motor white wire to the supply

white (neutral) wire using a wire nut (Figure

13).

Connect the fan motor black wire to the supply

black (hot) wire using a wire nut (Figure 13).

Connect the blue wire for light kit to the black

household supply wire.

Turn wire nut connections upward, spreading

them apart so the green (ground) will be on one

side of the outlet box and the white, black and

Making the Electrical

Connections

REMEMBER to disconnect the power.

If you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to your

household wiring. Use the wire nuts supplied with

your fan. Secure the wire nuts with electrical tape.

Make sure there are no loose strands or

connections.

WARNING

CHECK TO SEE THAT ALL CONNECTIONS ARE

TIGHT, INCLUDING GROUND, AND THAT NO

BARE WIRE IS VISIBLE AT THE WIRE NUTS.

EXCEPT FOR THE GROUND WIRE.

ELECTRICAL DIAGRAMS ARE FOR

REFERENCE ONLY. OPTIONAL USE OF ANY

LIGHT KIT SHALL BE UL LISTED AND

MARKED SUITABLE FOR USE WITH THIS FAN.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK. DO NOT USE THIS FAN WITH ANY

SOLID-STATE SPEED CONTROL DEVICE.

WARNING

SUPPLY CIRCUIT

Figure 13

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Outlet Box

Ground

Conductor

Green

Ground

Lead

Ground to

Downrod

Repeat procedure with remaining blades.

Screws with

Rubber Washers

Screws Blades

Blade Holders

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY,

DO NOT BEND THE BLADE HOLDERS WHILE

INSTALLING, BALANCING THE BLADES, OR

CLEANING THE FAN. DO NO INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN BLADES.

Attach the fan blade to the blade holder using

the screws with rubber washers provided,

tighten screws securely. (Fig. 16)

Align the holes in the motor and the blade

holder, then secure with the screws

pre-installed on the blade holder, tighten

screws securely. (Fig. 16)

Attaching the Fan Blades

Figure 14

Outlet Box

Hanger

Bracket

Screw

Canopy

Bottom Cover

Finishing the Fan

Installation

Tuck connections neatly into ceiling outlet

box.

Slide the canopy up to hanger bracket and

place the key hole on the canopy over the

screw on the hanger bracket, turn canopy until

it locks in place at the narrow section of the key

holes. (Fig. 14)

Align the circular hole on canopy with the

remaining hole on the hanger bracket, secure

by tightening the two set screws. Note: Adjust

the canopy screws as necessary until the

canopy and canopy cover are snug. (Fig. 14)

WARNING

MAKE SURE THE TAB ON THE HANGING

BRACKET PROPERLY SITS IN THE GROOVE IN

THE HANGER BALL BEFORE ATTACHING THE

CANOPY TO THE BRACKET BY TURNING THE

HOUSING UNTIL IT DROPS INTO PLACE.

Figure 16

NOTE

MOTOR IS SHIPPED WITH RUBBER MOTOR

STOPS TO PREVENT MOVEMENT DURING

TRANSPORTATION. REMOVE MOTOR STOPS

PRIOR TO ATTACHING BLADE BRACKETS.

(FIG. 15)

Figure 15

Screws

Rubber packing mounts

This manual suits for next models

Table of contents

Other HAMPTON BAY Fan manuals

HAMPTON BAY

HAMPTON BAY Alida User manual

HAMPTON BAY

HAMPTON BAY SOUTHWIND II 52-RMGII User manual

HAMPTON BAY

HAMPTON BAY 670-787 User manual

HAMPTON BAY

HAMPTON BAY 597-730 User manual

HAMPTON BAY

HAMPTON BAY Brookedale User manual

HAMPTON BAY

HAMPTON BAY GAZEBO YG188-BN User manual

HAMPTON BAY

HAMPTON BAY YG204D-BN User manual

HAMPTON BAY

HAMPTON BAY CEDAR LAKE 52109 User manual

HAMPTON BAY

HAMPTON BAY WILLIAMSON 37302 User manual

HAMPTON BAY

HAMPTON BAY Vasner 529-751 User manual

HAMPTON BAY

HAMPTON BAY Devereaux II User manual

HAMPTON BAY

HAMPTON BAY MENA 92404 User manual

HAMPTON BAY

HAMPTON BAY Trusseau User manual

HAMPTON BAY

HAMPTON BAY N375A-BN User manual

HAMPTON BAY

HAMPTON BAY HAVANA 48-HVA User manual

HAMPTON BAY

HAMPTON BAY GLENDALE III AK338-MBK User manual

HAMPTON BAY

HAMPTON BAY CARROLTON II User manual

HAMPTON BAY

HAMPTON BAY FS40-21MA User manual

HAMPTON BAY

HAMPTON BAY SAUTERNE AL975-BN User manual

HAMPTON BAY

HAMPTON BAY SUSSEX II AL694LED-BN User manual

HAMPTON BAY

HAMPTON BAY MENA HUGGER 92402 User manual

HAMPTON BAY

HAMPTON BAY HOLLIS 52196 User manual

HAMPTON BAY

HAMPTON BAY 69156 User manual

HAMPTON BAY

HAMPTON BAY 132 cm Fan User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
