HAMPTON BAY Katie Jig Appendix C Technical document

®

®

appendix C

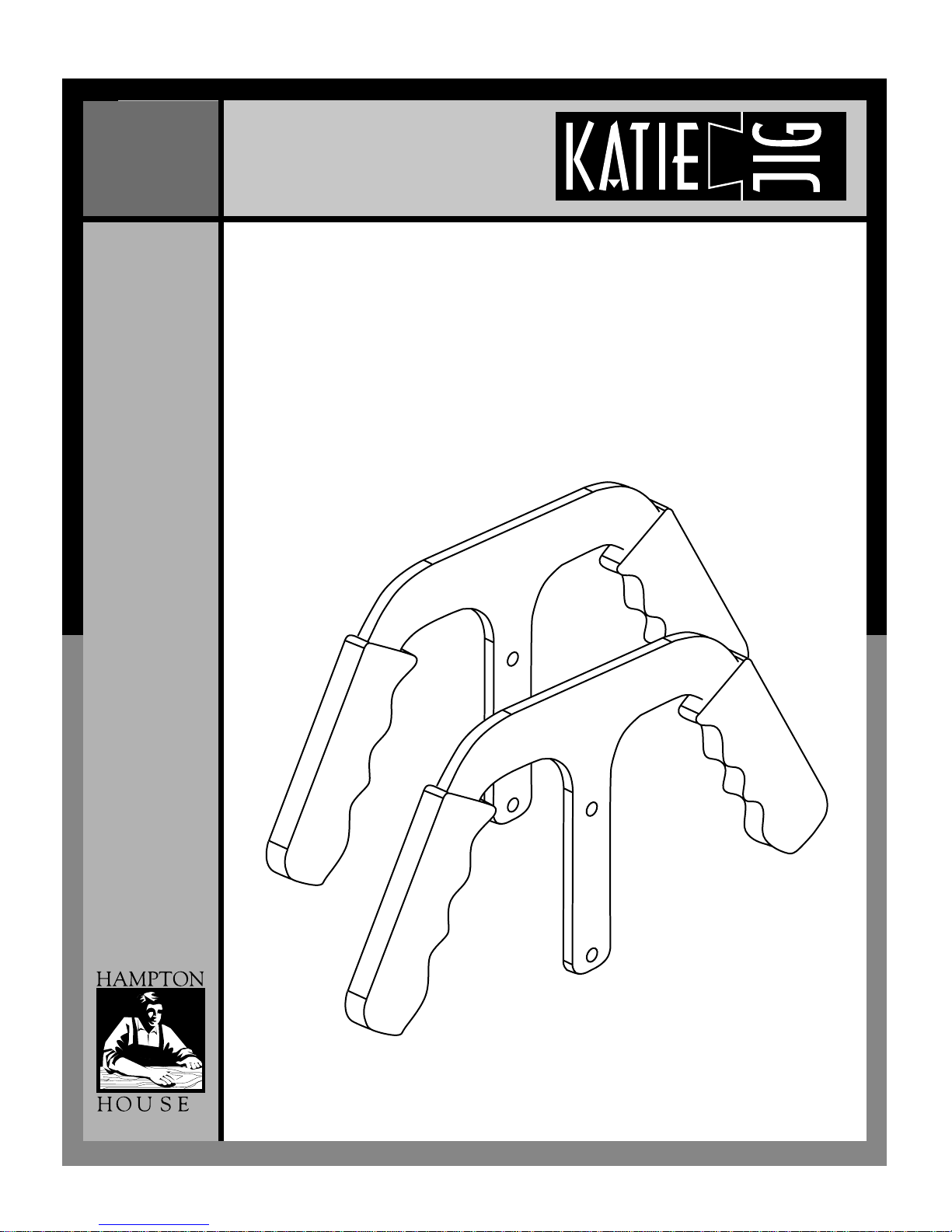

Router Table Handles

Copyright © 1997-2000 Hampton House, Inc. Page C-1

Appendix C - RouterTable Handles

Follow the safety and general instructions for using the KATIE JIG™ System except as

indicated below.

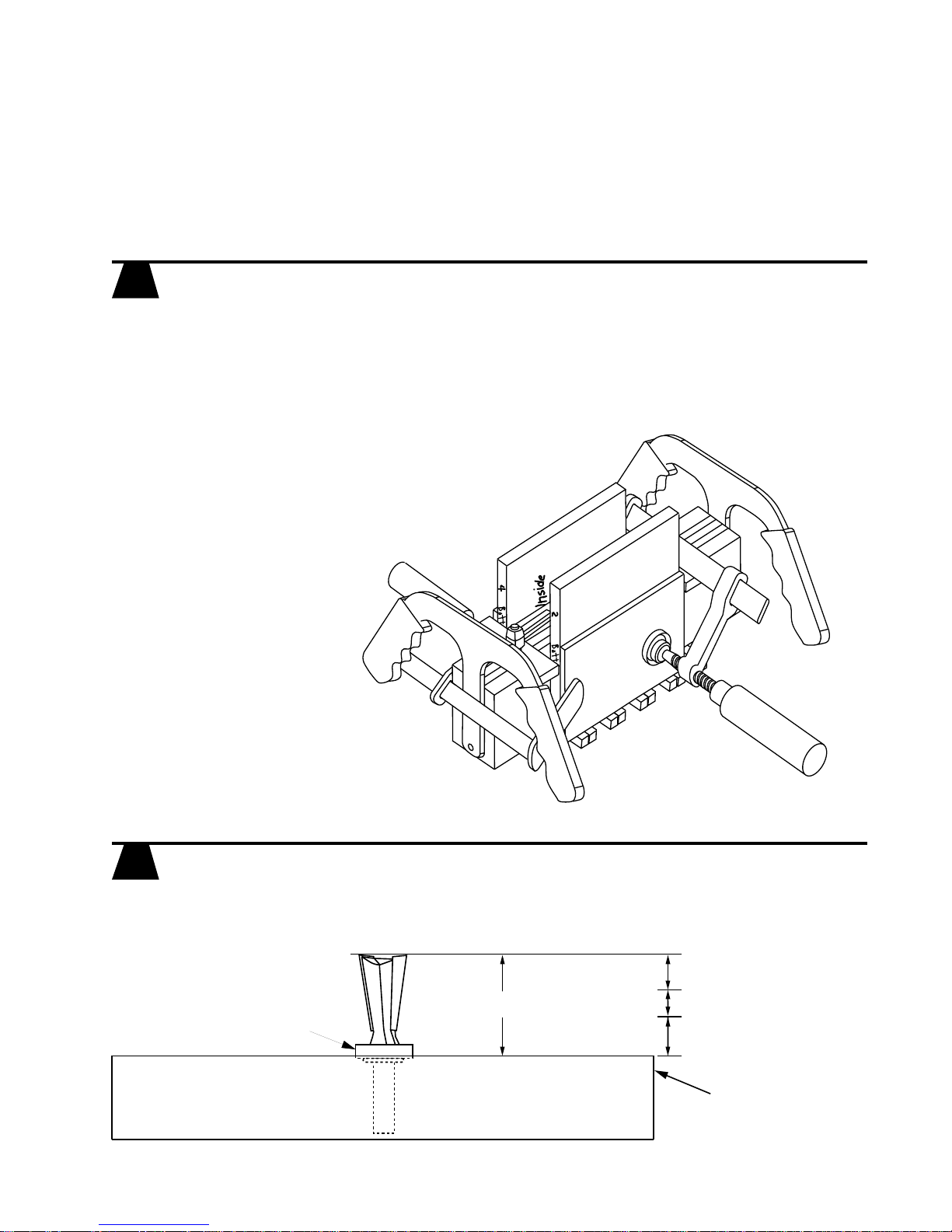

Attaching RouterTable Handles to the KATIE JIG™ System

Attach handles to ends of KATIE JIG™ System fixture using screws provided

so that the guide/tuning forks will be down. Securely clamp the boards to

the KATIE JIG®System using 2 clamps. Placement of these clamps should be

done to best accommodate the boards.

CAUTION: Make sure the clamps do not interfere with the router bits.

Prepare RouterTable and Set Height of Bits

For best results, use two routers mounted in router table.

Determine height for dovetail bit.

1/2" for guide/tuning forks

Base of router

table

Thickness of pin board

Trim stock or spacer

At least 1/16" of bearing

must extend above base

of router table.

Dovetail bit depth

Page C-2 Copyright © 1997-2000 Hampton House, Inc.

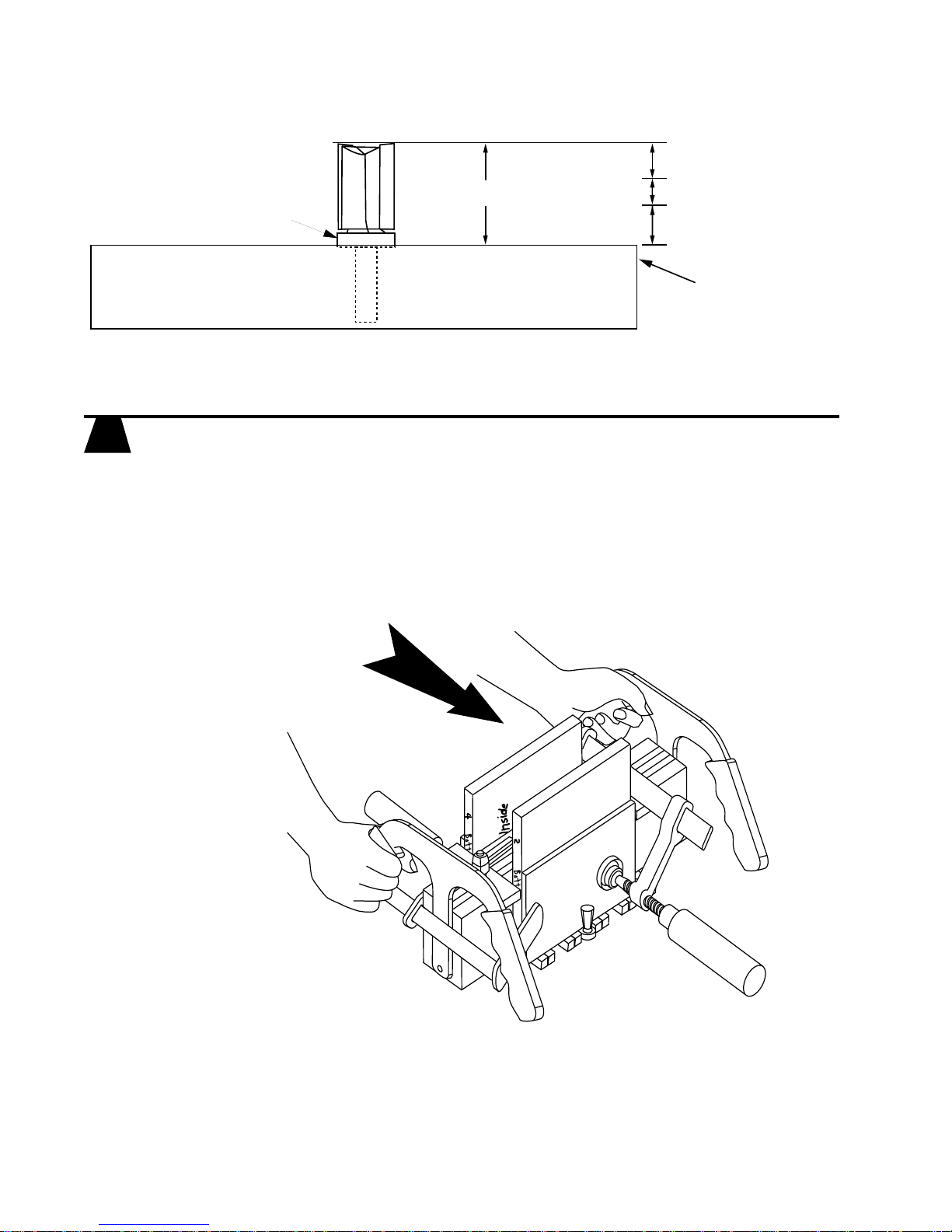

Slide fixture toward bit

Determine height for pattern bit.

1/2" for guide forks

Base of router

table

Thickness of tail board

Trim stock or spacer

At least 1/16" of bearing

must extend above base

of router table.

Pattern bit depth

Routing Pins andTails

Grasp the router table handles on the side opposite the board that you wish to

route, and slide the KATIE JIG™ System toward the bit. Carefully route the

areas between each of the guide/tuning forks.

CAUTION: DO NOT lift the KATIE JIG™ System while the router is running!
