IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS!

When using your flatiron, basic safety precautions should always be followed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.

2. To protect against risk of electric shock, do not immerse the iron in water or other liquids.

3. The iron should always be turned to OFF before plugging or unplugging from outlet.

Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.

4. Do not allow cord to touch hot surfaces. Let iron cool completely before putting away.

Loop cord loosely around iron when storing.

5. Always disconnect iron from electrical outlet when filling with water or emptying and

when not in use.

6. Do not operate iron with a damaged cord or if the iron has been dropped or damaged.

To avoid the risk of electric shock, do not disassemble the iron. Call our toll-free customer

service number for information on examination, repair or electrical or mechanical adjust-

ment. Incorrect reassembly can cause a risk of electric shock when the iron is used.

7. Close supervision is necessary for any appliance being used by or near children. Do not

leave iron unattended while connected or on an ironing board.

8. Burns can occur from touching hot metal parts, hot water, or steam. Use caution when

you turn a steam iron upside down – there may be hot water in the reservoir.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage appliance on the same

circuit.

2. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords

rated for less amperage may overheat. Care should be taken to arrange the cord so that

it cannot be pulled or tripped over.

This product is intended for household

use only.

This appliance is equipped with a polarized

plug. This type of plug has one blade wider

than the other. The plug will fit into an

electrical outlet only one way. This is a

safety feature intended to help reduce the

risk of electrical shock. If you are unable to

insert the plug into the outlet, try reversing

the plug. If the plug should still fail to fit,

contact a qualified electrician to replace the

obsolete outlet. Do not attempt to defeat

the safety purpose of the polarized plug by

modifying the plug in any way.

Use the iron on an ironing board. Ironing

on any other surface may damage that

surface.

Do not operate the iron with the Quick

Storage Shield attached.

Do not iron or vertical steam clothes that

are being worn.

Do not use vertical steam in the direction

of people or pets.

Consumer Safety Information

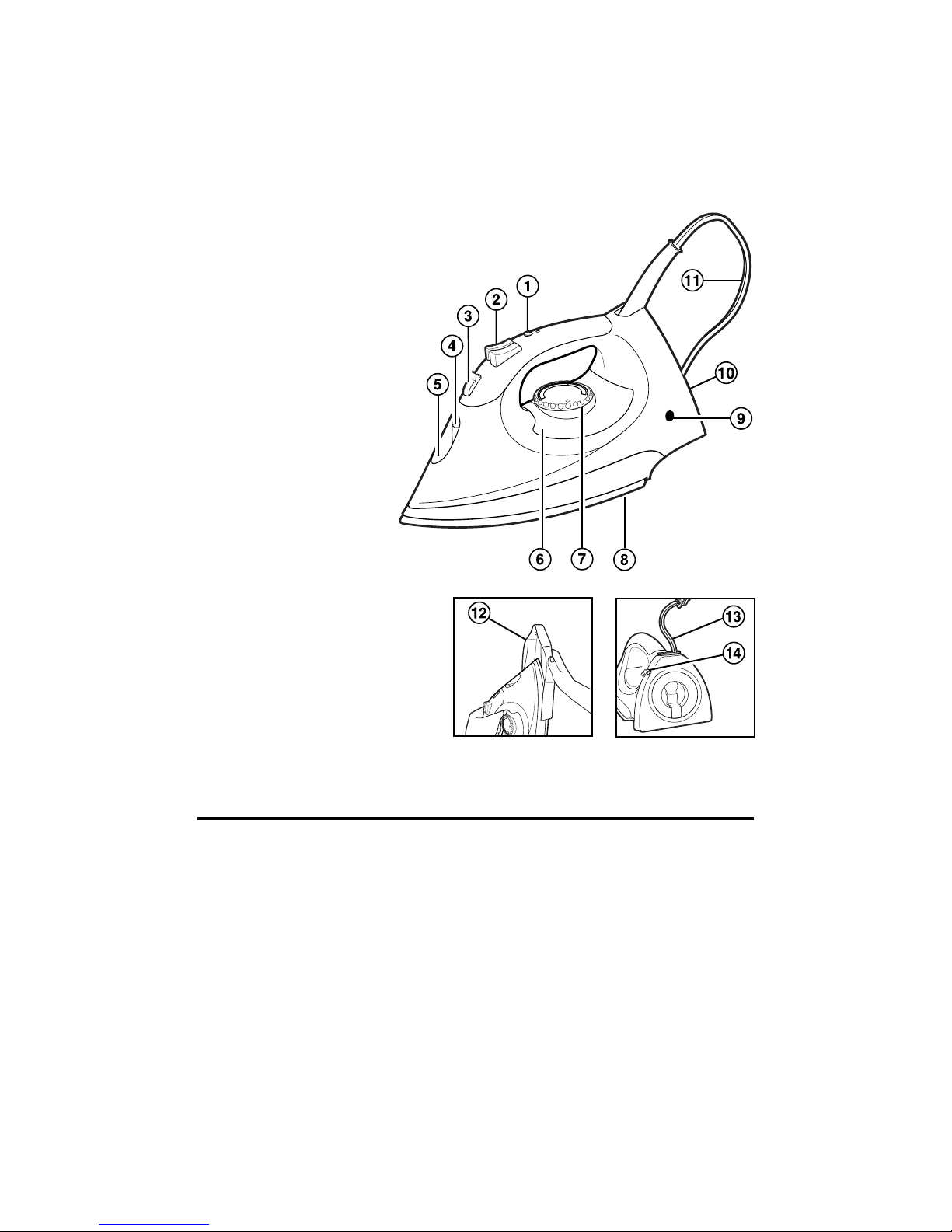

Parts and Features

* Features on selected models.

1. Automatic Shutoff

Reset Button and Light

2. Spray/Blast

3. Adjustable Steam

Switch

4. Spray Nozzle

5. Water Tank Opening

6. Water Window

7. Temperature Control

Dial

8. Soleplate

9. Power On Light

10. Heel Rest

11. Cord

12. Quick Storage Shield*

13. Retractable Cord*

14. Cord Release Button*

Before First Use

• Steam vents should be cleaned

before first use. Prepare iron for

steam ironing, then iron over an old

cloth for a few minutes while letting

the iron steam. Press the Blast

button several times. This will

clean the vents.

• Many irons spit or sputter during

the first few uses with tap water.

This happens as the steam chamber

becomes conditioned. This will stop

after a few uses.

• During first use of the iron, it may

appear to smoke. This will stop and

does not indicate a defect or hazard.

1. Unplug iron. Using a cup, slowly

pour 5 ounces

of tap water

into water tank

opening.

Do not fill iron

directly from

the faucet.

2. Plug iron into outlet.

3. Turn the Temperature Control Dial to

desired fabric

setting in the

steam range.

Set the

Adjustable

Steam Switch

to the recom-

mended steam

level. See the

“Fabric Setting Chart” on page 3.

To Steam Iron

Opening

4. Allow two minutes for the iron to

reach desired temperature.

5. To turn iron off, set Adjustable

Steam Switch to O(Dry Iron). Turn

the Temperature Control Dial to Off.

Unplug iron.

6. Empty water from the iron following

directions in “Caring for Your Iron.”

Water

Please use ordinary tap water. If you

have extremely hard water, alternate

between tap water and distilled water

for use in the iron.

To Dry Iron

3. Turn Temperature Control Dial

to desired

temperature.

Allow two

minutes for iron

to reach

desired

temperature.

4. To turn iron Off, turn Temperature

Control Dial to Off and unplug iron.

1. Plug iron into outlet.

2. Set the Adjustable Steam Switch

to O (the Dry

Iron position).

Using Your Iron

1. Unplug iron. Using a cup, slowly

pour 5 ounces

of tap water

into water tank

opening.

Do not fill iron

directly from

the faucet.

2. Plug iron into outlet.

3. Turn the Temperature Control Dial

to the highest

setting. Set the

Adjustable

Steam Switch

to O.

4. Allow two minutes for the iron to

reach desired temperature.

To Vertical Steam

Opening

5. Hang garment in a location that is

not susceptible to damage from heat

or moisture. Do not hang in front of

wallpaper, window, or mirror.

6. Hold iron about 6 inches away from

garment and

press and

release the

Blast Button

to steam out

wrinkles. Do

not press Blast

Button more

than once every

2 seconds.

7. To turn iron off, turn Temperature

Control Dial to Off. Unplug iron.

8. Empty water from the iron following

directions in “Caring for Your Iron.”

NOTE: Do not allow hot soleplate to

touch delicate garments.

Fabric Setting Chart

Steam

Setting

Steam Range Dry Iron

Temperature Setting

OOff

1Nylon, Acrylic

2Silk

3Wool

4Polyester

5Rayon

6Cotton, Linen

Ironing Instructions

Dry iron using spray if necessary.

Dry iron on the inside of the garment.

Use a press cloth and steam iron on the

inside of garment.

Iron while fabric is still damp.

Iron using spray if necessary.

For cotton, iron while still damp or use

spray. For linen, iron fabric on the inside

of the garment. For vertical steaming.

Spray and Blast of Steam Buttons

Push Blast Button for an extra blast of

steam. Push Spray

Button to release a

fine spray of water

for difficult wrin-

kles in cotton or

linen.

Auto Shutoff Reset Button/Light

The light comes on when the iron is

first plugged in.

After one hour,

the iron will shut

off and the light

will go out. Push

the Reset Button

to turn the iron

back on.

Power On Light

This light comes on when the iron

is plugged in

and remains on

until the iron is

unplugged. The

light stays on even

if Temperature

Control Dial is

turned to Off.

Adjustable Steam Switch

This switch provides minimum steam

for wool or maxi-

mum steam

for linen. Set the

switch to Oto

change to Dry Iron

or to vertical

steam.

Power

Light

Reset

Button

Optional Features (on selected models)

Blast Spray

Light

Retractable Cord

(not available on all models)

1. Press and hold the Cord Release

Button while

pulling cord to

desired length.

Do not unwind

cord beyond the

tape indicator

on the cord.

2. To store cord, place the iron, sole-

plate down, on

ironing board.

Unlatch

Retractable

Cord Handle

and wind

clockwise.

IMPORTANT! Do not press Cord

Release Button while winding cord.

Only wind clockwise or the cord may

jam. See illustration.

3. If cord jams while winding, push the

Cord Release Button to unwind

slightly until cord is free. Then slowly

start to wind clockwise again.

If Retractable Cord Handle

comes off, it is designed to snap

back in place.

1. Place pins of handle into slots in reel.

See illustration.

2. Lift handle up until it snaps in place.

Quick Storage Shield

There is no need to wait for the iron to

cool before storing.

Make sure the iron

has been turned off

and unplugged.

Then, place the

Quick Storage

Shield on the iron

immediately after

ironing.

CAUTION: The soleplate may be hot,

so care must be used in placing the

Quick Storage Shield on the soleplate.

Caring for Your Iron

Soleplate

1. Never iron over zippers, pins, metal

rivets, or snaps, as these may

scratch the soleplate.

2. To clean occasional build-up on the

soleplate, wipe with a sudsy cloth.

Do not use abrasive cleansers or

metal scouring pads. Do not

immerse in water.

3. Always store iron upright in the heel

rest position.

Iron

1. The water tank of your iron should

be emptied after each use. Turn

Temperature Control Dial to Off.

Unplug the iron and hold over a sink.

Slowly tilt pointed end of iron

down over sink. Water will run out

of water tank opening.

2. After iron has completely cooled,

wrap cord loosely around the iron

and store in an upright position. Do

not store iron laying flat on soleplate.

Optional Features (continued)

Cord

Release

Button

Wind

clockwise

Retractable

Cord Handle

Troubleshooting

PROBLEM

Iron won’t heat.

Water is leaking

out of the iron.

Iron won’t steam.

Iron leaves spots

on clothing.

Wrinkles not

removed.

Iron too hot.

Cord is twisted.

(Non-retractable

model only.)

Retractable cord

will not unwind.

Vertical steam is

weak or leaks.

Things TO CHECK

• Is the iron plugged in and the outlet working?

Check the outlet by plugging in a lamp.

• Is the Temperature Control Dial turned to

a fabric setting?

• If auto shutoff model, is the Reset Light

illuminated? If not, push to reset.

• Do not overfill the water tank.

• If steam ironing, is Adjustable Steam Switch in a

steam position that matches the Temperature Control

Dial steam range? Did the iron have enough time

to preheat?

• If dry ironing, make sure the Adjustable Steam Switch

is in the DRY IRON position.

• Check the water level.

• Is the Adjustable Steam Switch in the STEAM position?

• Has the iron had enough time to preheat?

• ALWAYS empty the water tank of the iron after

using. Water left in the tank may discolor clothing

and soleplate.

• Check Temperature Control Dial is set to

correct fabric.

• Check Temperature Control Dial and set to lower

setting. Let iron cool down 5 minutes before

continuing.

• Unplug iron and let cool. Hold iron cord in the middle

of entire length. Let plug and iron dangle freely until

cord uncoils. This will extend the life of your iron cord.

• Rewind a small amount of the cord, then fully depress

the Cord Release Button and pull the cord to desired

length.

• Check the water level.

• Is the Adjustable Steam Switch in the Oposition?

• Is the Temperature Control Dial at highest setting (6)?

• Has the iron had enough time to preheat?

If you have a claim under this warranty, please call our Customer Service Number.

For faster service please have model, series, and type numbers ready for operator

to assist you. These numbers can be found on the heel rest of your iron.

MODEL: _______________ TYPE: ________________ SERIES: _________________

Customer Service

LIMITED WARRANTY

This product is warranted to be free from defects in material and workmanship for a period

of two (2) years for Hamilton Beach Portfolio products or one (1) year for Hamilton Beach

products from the date of original purchase, except as noted below. During this period, we

will repair or replace this product, at our option, at no cost. THE FOREGOING WARRANTY

IS IN LIEU OF ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, WRITTEN

OR ORAL INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. ANY LIABILITY IS EXPRESSLY LIMITED TO AN AMOUNT

EQUAL TO THE PURCHASE PRICE PAID, AND ALL CLAIMS FOR SPECIAL, INCIDENTAL

AND CONSEQUENTIAL DAMAGES ARE HEREBY EXCLUDED. There is no warranty with

respect to the following, which may be supplied with this product: glass parts, glass

containers, cutter/strainer, blades, and/or agitators. This warranty extends only to the

original consumer purchaser and does not cover a defect resulting from abuse, misuse,

neglect, use for commercial purposes, or any use not in conformity with the printed

directions. This warranty gives you specific legal rights, and you may also have other legal

rights which vary from state to state, or province to province. Some states or provinces do

not allow limitations on implied warranties or special, incidental or consequential damages,

so the foregoing limitations may not apply to you.

If you have a claim under this warranty, DO NOT RETURN THE APPLIANCE TO THE

STORE! Please call our CUSTOMER SERVICE NUMBER. (For faster service please have

model, series, and type numbers ready for operator to assist you.)

CUSTOMER SERVICE NUMBERS

In the U.S. 1-800-851-8900

In Canada 1-800-267-2826

Web site address: www.hamiltonbeach.com

KEEP THESE NUMBERS FOR FUTURE REFERENCE!

Web site address: www.hamiltonbeach.com

HAMILTON BEACH PROCTOR-SILEX,INC.PROCTOR-SILEX CANADA,INC.

263 Yadkin Road

Southern Pines, North Carolina 28387

Picton, Ontario K0K 2T0

5/01

840087000

This manual suits for next models

Table of contents

Languages:

Other Hamilton Beach Iron manuals

Hamilton Beach

Hamilton Beach 840131600 User manual

Hamilton Beach

Hamilton Beach Pro SteamMax HB608WB User manual

Hamilton Beach

Hamilton Beach 14431 - Smart Grip Iron Owner's manual

Hamilton Beach

Hamilton Beach Easy Fill 19752 User manual

Hamilton Beach

Hamilton Beach HIR800 User manual

Hamilton Beach

Hamilton Beach 840124900 User manual

Hamilton Beach

Hamilton Beach 840066300 Installation instructions

Hamilton Beach

Hamilton Beach HIR400 - Hospitality Iron 1 EA User manual

Hamilton Beach

Hamilton Beach DURATHON Owner's manual

Hamilton Beach

Hamilton Beach 840043400 Installation instructions

Hamilton Beach

Hamilton Beach 19801 User manual

Hamilton Beach

Hamilton Beach 14525 User manual

Hamilton Beach

Hamilton Beach 14975 - Professional Iron User manual

Hamilton Beach

Hamilton Beach 14515 - Steam Storm Iron User manual

Hamilton Beach

Hamilton Beach 14975 - Professional Iron User manual

Hamilton Beach

Hamilton Beach 17130 User manual

Hamilton Beach

Hamilton Beach 14X60 - Expression Ergonomic Handle Iron User manual

Hamilton Beach

Hamilton Beach 14340 - Digital Iron A O Spray Owner's manual

Hamilton Beach

Hamilton Beach Durathon 19701 Owner's manual

Hamilton Beach

Hamilton Beach 840101300 User manual

Hamilton Beach

Hamilton Beach 14751 Owner's manual

Hamilton Beach

Hamilton Beach 14671 Owner's manual

Hamilton Beach

Hamilton Beach 14505 Owner's manual

Hamilton Beach

Hamilton Beach 14710 Owner's manual

Popular Iron manuals by other brands

Clatronic

Clatronic DB 3703 instruction manual

TEFAL

TEFAL FV4093Z0 manual

Gorenje

Gorenje SIH 2200 BS instruction manual

Philips

Philips GC6012 Service manual

Bosch

Bosch 2 Series operating instructions

Riffel

Riffel Catena KB-819 instruction manual

Texi

Texi Hestia Instructions for use

Maxwell

Maxwell MW-3010 Manual instruction

TREVIDEA

TREVIDEA Girmi ST60 user manual

Philips

Philips HI5914/30 quick start guide

Primula

Primula Vapormat instruction manual

Magio

Magio MG-541 manual

Scarlett

Scarlett SC-1334S instruction manual

Bosch

Bosch Sensixx B22L manual

Philips

Philips GC651 Specifications

Vitek

Vitek VT-1247 VT Manual instruction

Cleanmaxx

Cleanmaxx 3397 instruction manual

Philips

Philips GC800 user manual
