Philips GC6012 User manual

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Provapor new proﬁ

GC 6012

SAP coding GC 6012

PRODUCT INFORMATION

Feataures : inox sole plate

boiler capacity 1 litre

length steam hose 1,9 metre

length cord set 1,9 metre

maximum steam output 70 gr/min

Voltage : 220-240 Volt

Frequency : 50-60 Hz

Power consumptium : Boiler : 1200 Watt

Pressure : 3 bar

Iron : 800 Watt

4322 277 00521

01/04

Product meets the requirements regarding interference

suppression on radio and television.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as laid

down ofﬁcially established at this moment.

!Service

Information

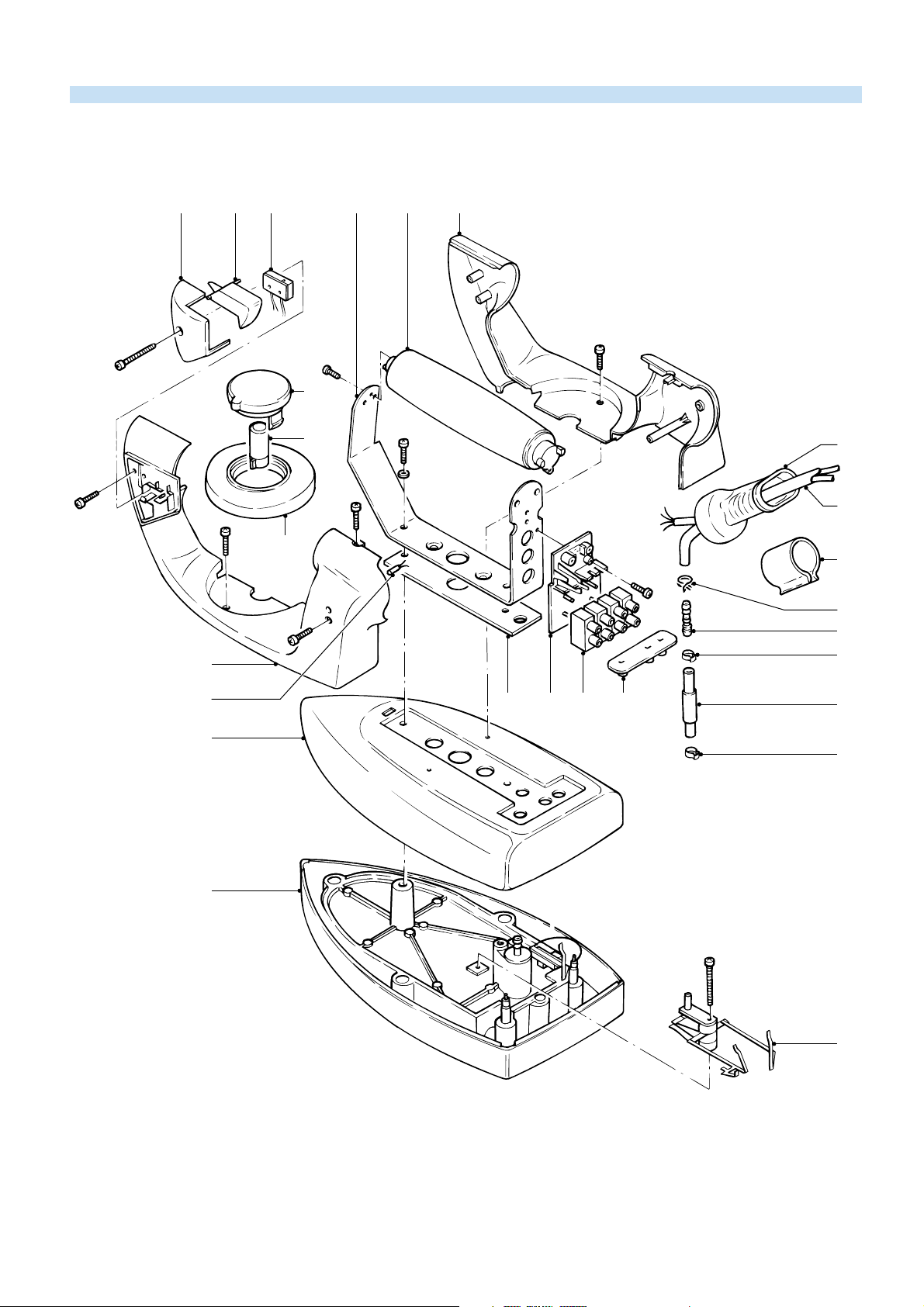

EXPLODED VIEW IRON

15 8

4 3 21 11

17232220

PARTS LIST IRON DISASSEMBLY ADVISE IR

DIAL 1

RING 2

MICROSWITCH 3

LEVER

MICROSWITCH 4

remove SCREW A

remove COVER

MICROSWITCH 5

lift MICROSWITCH 3

unsolder WIRING

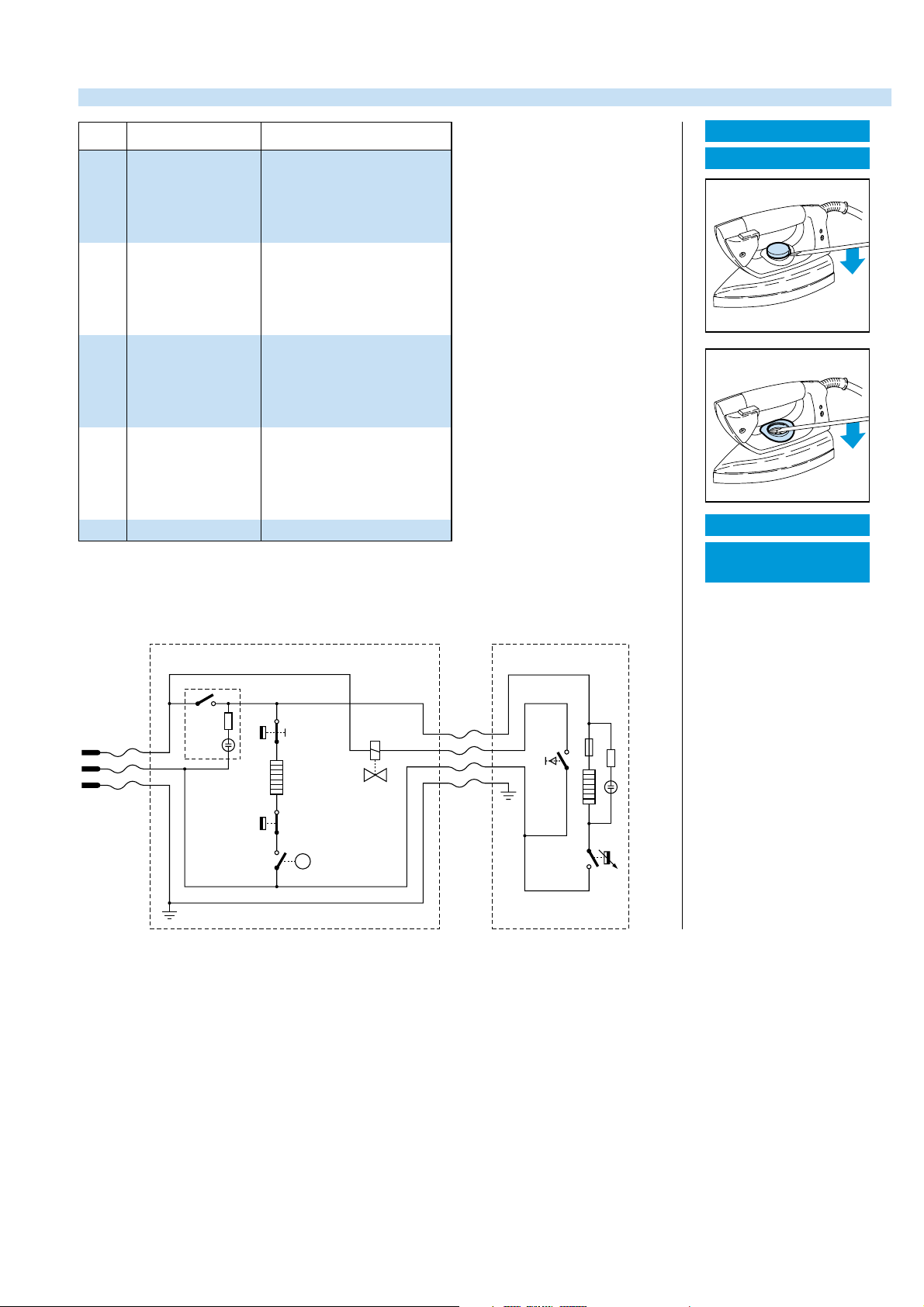

Cut

out

Boiler

thermostat

Main

switch

STAND IRON

Steam-

switch

Thermostat

Electro-

valve

Boiler

heating

element

Pos DescriptionService Nummer

Insert dial

Dial ring

Microswitch

Lever microswitch

Cover microswitch

9965 000 08247

4822 532 12772

4822 282 30239

9965 000 08184

4822 442 00787

Handle right + left part

Swivel black

Steam hose / electric cable

Pilot light

Cork grip

6+7

4822 310 10944

4822 325 10193

9965 999 08248

4822 134 10076

4822 498 10638

Clamping ring

Sleeve

Connecting bracket therm.

Metal cover

4822 492 71001

4822 532 12742

4822 325 10194

4822 402 10689

4822 442 00788

Insulating bracket

Sole plate + pos. 19

Thermostat

Insulating plate

Bracket + item 22 and 23

4822 466 11473

4822 259 10234

4822 282 30238

4822 466 11474

4822 310 10945

Hose joint24 4822 526 10669

ADJUSTMENT AND CONTROLS

Thermostat 19

Thermostat ( 19 ) supplied as a spare part or ﬁtted to

the sole plate ( 18 ) has already been adjusted by the

supplier and secured by glue.

To avoid disfunction of the iron , NEVER readjust the

thermostat.

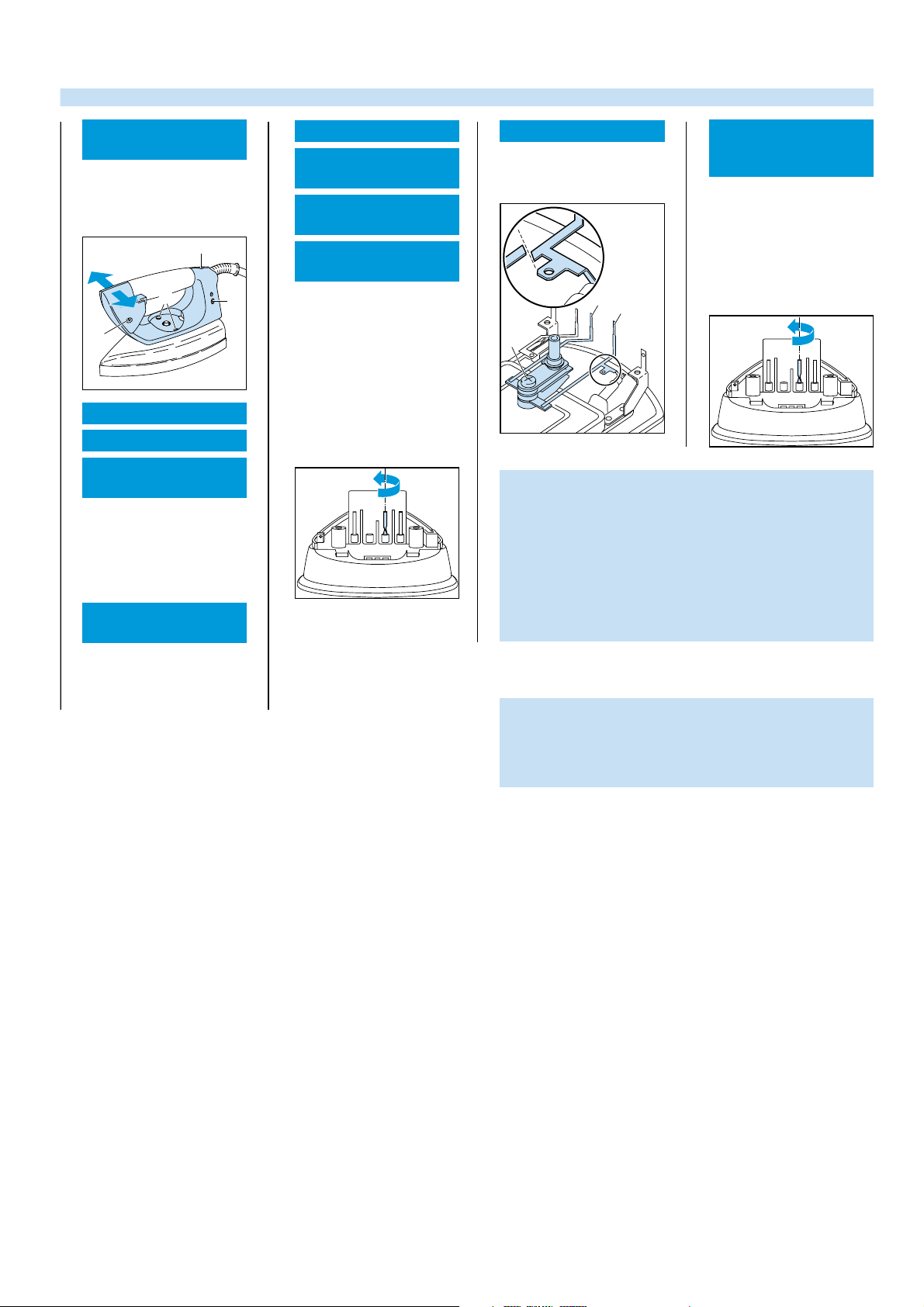

REPLACE

HANDLE 6 + 7

remove SCREW B

remove SCREW C

remove SCREW D

remove SCREW E

REPLACE SWIVEL 8

REPLACE HOSE 9

REPLACE

PILOT LAMIP 10

disassemble HANDLE

PARTS 6+7

remove SCREW F 2 x

remove CONNECTING

WIRES

remove CLAMP( S )

REPLACE

CORK GRIP 11

disassemble HANDLE

PARTS 6+7

remove SCREW G

remove SCREW H

REPLACE COVER 16

REPLACE

SOLE PLATE 18

REPLACE

THERMOSTAT 19

REPLACE

INSULATING PLATE 20

remove DIAL 1

remove RING 2

remove HANDLE

PARTS 6+7

remove HOSE

remove SLEEVE

remove CORK GRIP

remove SCREW I

remove BRACKET 21

turn conductor B through

180 degrees

remove PLATE 17

THERMOSTAT 19 ONLY

cut CONDUCTOR A

at location P

remove SCREW J

NOTE :

For opening you need aTorx screwdriver 362 TR

T20 x 100.

ASSEMBLY

REQUIREMENTS

THERMOSTAT 19

Instead of metal conductor A,

the new thermostat has a wire

with AMP clamp.

After ﬁxing screw J, connect

the AMP clamp to tag Q.

After assembling cover 16

ALWAYS turn conductor B

through 180 degrees.

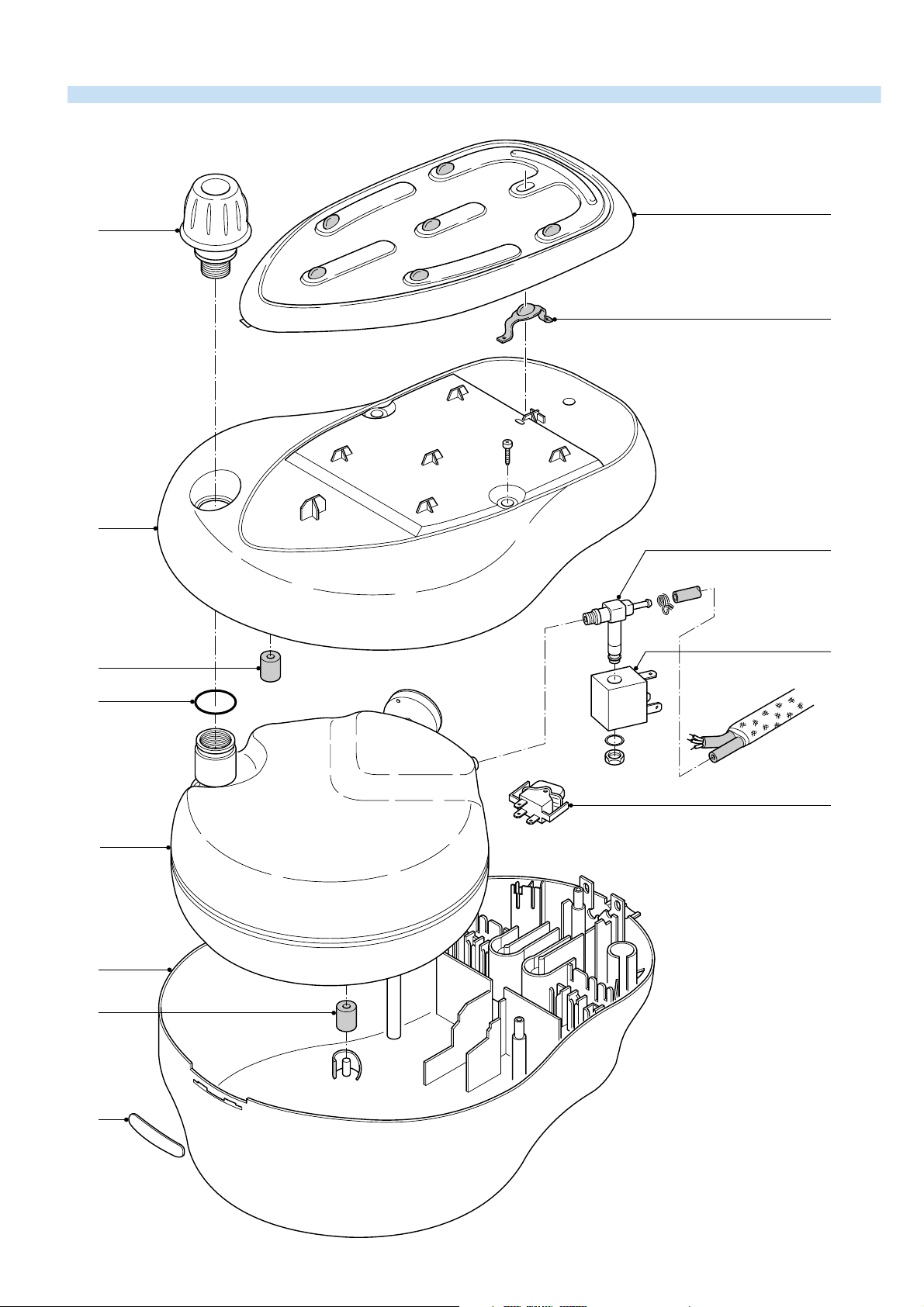

EXPLODED VIEW STAND

DAP1580

PARTS LIST + DISASSEMBLY ADVICE STAND

OPEN THE STAND

pressure ﬁxation rubber through

the tray

remove SCREW E (3 x)

remove LOCKED INSERT 38

NOTE:

OPEN NOWTHE STAND.

DON’T WORRY IF THE SNAPS AT THE SIDE WILL BE

BROKEN.

THEY ARE ONLY FORTHE ASSEMBLY.

THE STAND REMAINS CLOSE WITHOUT THESE SNAPS.

ADJUSTMENT AND CONTROLS

– To avoid leakage of the sealings and damage to

the components in and on the boiler, NEVER clean

the boiler with vinegar, a descaling agent or other

chemicals.

– The boiler doesn’t contain serviceable parts.

Never disassemble the boiler body and /or compo-

nents on and in the boiler.

– ALWAYS REPLACETHE BOILER ( 37 ) WHEN:

*the mechanical safety valve ( 33 ) has been acti-

vated.

*the boiler thermostat or hand - resettable safety

thermostat are open, because the boiler has

been subjected to too high temperatures.

*the electrovalve ( 42 ) fails or the sieve is soiled

with scale.

–After the product has been repaired, it should func-

tion properly and has to meet the safety require-

ments as laid down and ofﬁcially established at this

moment.

Pos Service Nummer

Tray rubber foot for ﬁxation

Complete tray

Safety cap for boiler

Filling hole gasket for alu boiler

Superior stand printed

9965 000 08193

9965 000 08194

9965 000 08195

9965 000 01782

9965 000 08250

Description

4822 462 71999

9965 000 08238

9965 000 08201

9965 000 08202

9965 000 01790

Boiler rubber feet

Complete boiler

Locket insert

Inferior stand

Filter

9965 000 08203

4822 218 11561

Main switch

Electrovalve
