Haier XPB90-99GS User manual

Twin-tub Washing Machine

Please read this manual carefully before using.

Retain it for reference

please check if the power receptacle is earthed

reliably before usage to guarantee your safety

The manufacturer is not responsible for any

risks occurred owing to disobey these

stipulations.

User's manual

Names of the parts.............the 2nd cover

Safety precautions ...............................1

Installation and adjustment ..................3

Introduction of the major functions .......5

Preparation before washing ................6

The musts in washing .........................7

Usage of the detergent .......................8

Washing sequence ..............................9

Disposal after washing .......................13

Contents

Before using

Using process

Trouble-shooting*

Answers to question.....................15

Specification*

Circuit diagram...........the back cover

Packing list ......................................16

XPB90-99GS

Before Using

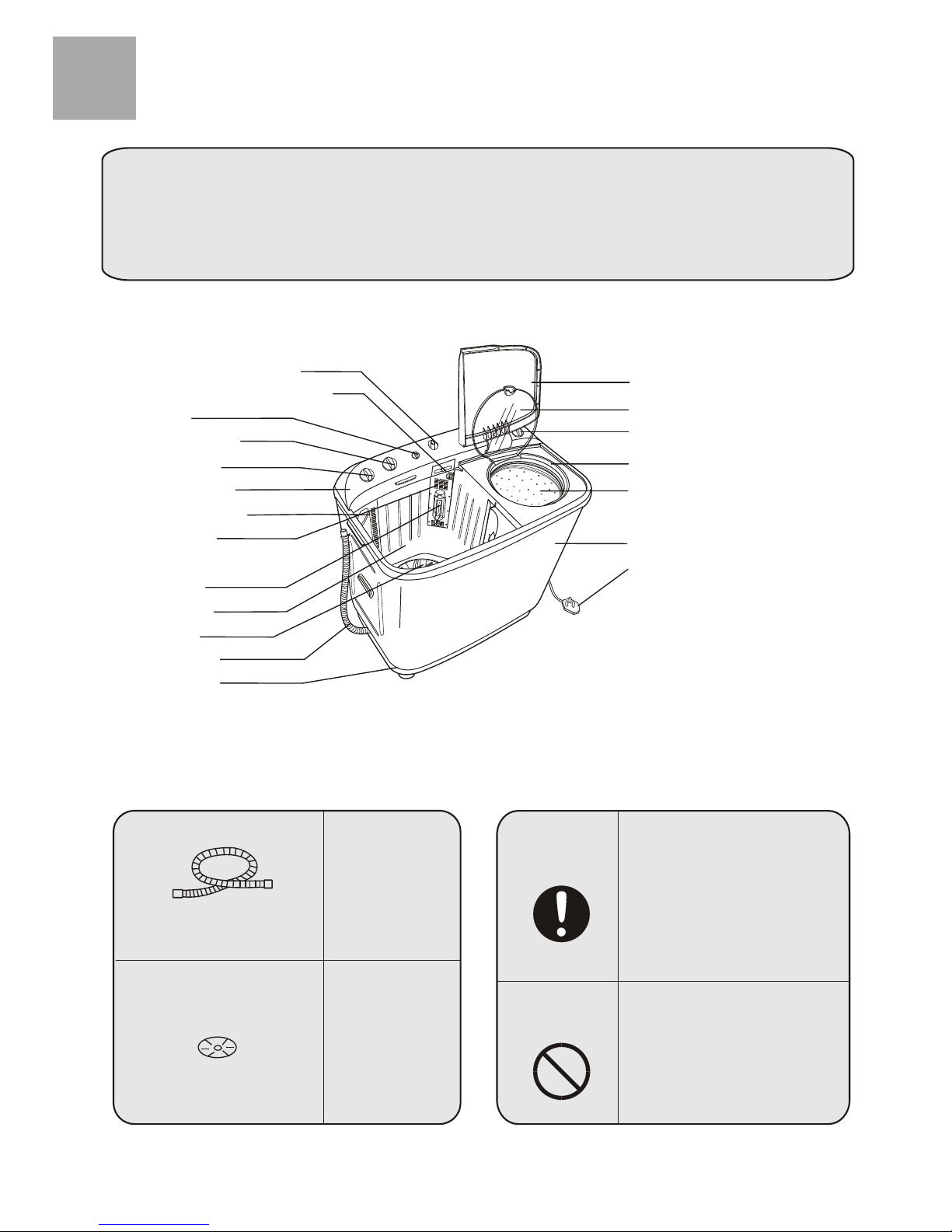

Names of the parts

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Cabinet

Power cord

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Water-filling entrance

Water inlet selector handle

Buzzer

Wash selector

Wash timer

Control panel

Cascade outlet

filter frame

Lint filter

Inner tube

Pulsator

Drain hose

Base frame

Water inlet hose

(one piece)

Gland

(one piece)

Honourable users,

Thank you for choosing our products.

Our products integrate high-tech, precision, frontier science .To facilitate using it, please read this manual

carefully and operate this machine according to it.

Before Using

Safety precautions

If the power cord is bad, to avoid risk it is required to replace it by the technicians

of our special shop or the after-sale service department. Keep the pin of the power

plug clean.

Be sure to use three-phase receptacle.

Earth the earthing terminal of the

receptacle reliably.

Do not put the machine at damp place

like the bathroom . Never wash it with

water.

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Be sure to pull the plug off when there's

power failure, or the machine is being

moved, cleaned or when it is idle.

Do not use water hotter than 50 C .

Do not share one receptacle with other

electric appliances. Do not use it in

case that the power plug is damaged

or the inserting into the receptacle is

loose.

Earth

Do not wash water-proof laundries such

as the raincoat, bicycle shelter etc. To

avoid abnormal vibration during spinning.

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Handicapped or children without care

shall not use the machine.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

Safety precautions

To prevent your laundries and washing

machine from damage , be sure to take

out of the foreign materials from your

pocket , such as coins, buttons, sand

or hair pins etc.

Before washing, please check if the

water tap is open, and if the water inlet

pipe is connected properly.

It is suggested to use low-foaming

washing powder

Before Using

Installation and adjustment

Install the water inlet hose; Select the water level

(about 68L)

Maximum Max

(about 83L)

Minimum Min

(about 49L)

Medium Med

Insert the water inlet hose into the water-filling

entrance on the control panel directly. (pull it

out to dismantle it)

Select water level according to the

quantity of the laundries.

Attention:

In water filling, do not exceed

the"Max" water level. Otherwise

the water may overflow out of the

washing machine.

Water inlet hose Water-filling

entrance

Water level

adjusting lever

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall

be less than 10cm. or the drainage

will not be smooth enough and cause

incomplete drainage.

3.If the drain hose is too long, cut

it at mid point. To make smooth

drainage, cut the front end of

the hose slantingly.

2.Do not step on or press the drain hose.

4.IF extra drain hose is needed,

please make separate purchase.

The inner diameter of the extra

hose shall be not less than

30mm, and the length shall

be not exceed 1.5m.

Extend the drain hose from the rear side

How to change the direction of the drain hose

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Dismantle the drain hose fixing clamp and take

the hose out of the fixing groove.

(See to Figure 2).

Embed the drain hose into the groove along the side

of the spin tub in the order of (1)~(3), heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Figure 1

Figure 2

Figure 3

Figure 4

Embed into the

groove in turn

Back

Before Using

Extend the drain hose from the side of spin tub

Soft item

Extend to the

spin tub side

Dismantle the drain hose fixing clamp.

Take out the drain hose from the fixing groove.

Extend it from the rear side as per the direction

of the arrow. (When the drain hose is extended

from the rear side, it can be hung on the point

for drain hose at the two sides of the cabinet.)

(See to Figure 4).

Front

Drain hose fixing clamp

Using process

Introduction of the major function

Use the foam-removing spinning to

remove the extra detergent liquid. It

can both shorten the washing time

and save the water consumption.

Foam-removing

spinning

Remove most of

the foam extra

detergent liquid.

Remove the detergent

liquid remained

The effect is best when the

laundries quantity is below

80% of the rated value.

Spin

Fill water for

about 1 minutes Spin for about

1~2 minutes

The machine has good comprehensive performance, and nice appearance.

For the design on mute ,It adopts complete enclosed base frame and low-noise

motor, and thus reduces the working noise significantly. We can guarantee that the

purchase of this machine will bring you a clean world without disturbing your quiet life.

Foam-removing spinning during high-efficiency rinsing

The cascade washing it adopts can enhance

the strength of the water current, and dissolve

the detergent quickly and completely. At the

same time it can produce flushing effect, and

improve the washing effect.

Cascade washing

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

Preparation before washing

Pay attention to followings before washing the laundries

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Reference weight of the laundries

Working suit up,down

Jeans about 800g

The capacity of washing and spinning of

the machine refer to the largest weight of

the standard laundries under dry condition

that can be washed or spinned in one time.

Laundries quantity in one washing cycle

shall be lower than the rated capacity.

The largest capacity of this machine is

9.0 kg.

The thickness ,size , type of the cloth will

influence the actual washing capacity. It

is suitable to put in reasonable amount of

laundries and the laundries can be turned

round in washing for one time washing.

Do not select " Max " water level for

laundries less than 4.0kg, so as to avoid

splashing of water.

Blending coat

about 800g

Shirt Jacket

Single bed sheet

Socking

Underpants

Undershirt

Pajamas

Blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

Using process

The musts in washing

cotton,about 1120g

Selection of the quantity of the washing powder list 1

Selection of the current , water level and washing time list 2

How to use the washing powder

How to use the whitener

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the

washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30 seconds to

dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing powder:

1.Prepare warm water of 30 C and a container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

It is suggested not to use high sudsing

detergent.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Laundries

quantity

Laundries

quantity

Water level

Current

Standard dosage

Concentrated washing

powder

Laundries

Common washing

powder

Washing time

(minutes)

Water quantity

About About

About3~6

About8~10

About10~13

About7~13

About2~4

About3~6

About8~10

About About

6.4kg~9.0kg

4.8kg~9.0kg

4.0kg~6.4kg

Below4.0kg

Below4.8kg

Maximum (about83L)

Maximum(about83L)

Strong

Minimum(about49L)

Standard

Medium (about68L)

75g

61g

43g

83g

68g

49g

Usage of the detergent Using process

Using process

Knitwear

Cotton,blending,linen

Very dirty and thick

Bed sheet

Silk(thin laundries)

Chemical fiber

Cotton,blending,linen

This manual suits for next models

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
