Haier HWM85-9288 User manual

User’s Manual

Fully Automatic Washing Machine

This manual is for

Please read this manual carefully before using.

Retain it for future reference.

Index

Safety precautions............... 2

Packing list...........................

Names of the parts............... 4

Installation and

adjustment............................ 5

Preparation before

washing .................................

Use the operation buttons....11

Disposal after washing.........

Trouble-shooting Answer

to question............................ 15

Speciﬁcation.........................16

HWM85-9288

Safety precautions

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage

of the machine or injure the personal safety of the user.

FORBIDDEN

Contents marked with that symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

WARNING

Meaning and description of the symbols

Please check if power receptacle has good earthing condition before using to guarantee

your safety.

Please check if the water faucet is open, and if the connection of the water inlet pipe is

proper.

It is suggested to use foamless washing powder.

Please don’t use the washer in the environment below 0 °C; if the washer has been stored

below 0°C, please be sure to ensure the washer is placed under the room temperature

more than 2 hours and then use otherwise the washing effects may be lowered or the

washer may be damaged.

Please insert the power cord into special receptacle with rated voltage.

Be sure to use single-phase three pins receptacle.The earthing terminal of

the receptacle must be earthed reliably. If possible,please adopt electric

leakage protector.

The washing machine must be positioned so that the plug is accessible. Be

sure to pull the plug off and close the water faucet in following cases: power

failure, delivering the machine, setting the machine idle or cleaning the

machine.

Do not plug or pull the power plug with wet hand.

Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.

Keep the pin of the power plug clean, if the power plug is polluted with dust,

please wipe with dry cloth carefully.

If the supply cord is damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualiﬁed person in order to avoid a hazard.

Do not let the machine share one receptacle with other

electric appliances. If the plugging into the receptacles

loose, do not use the plug any more.

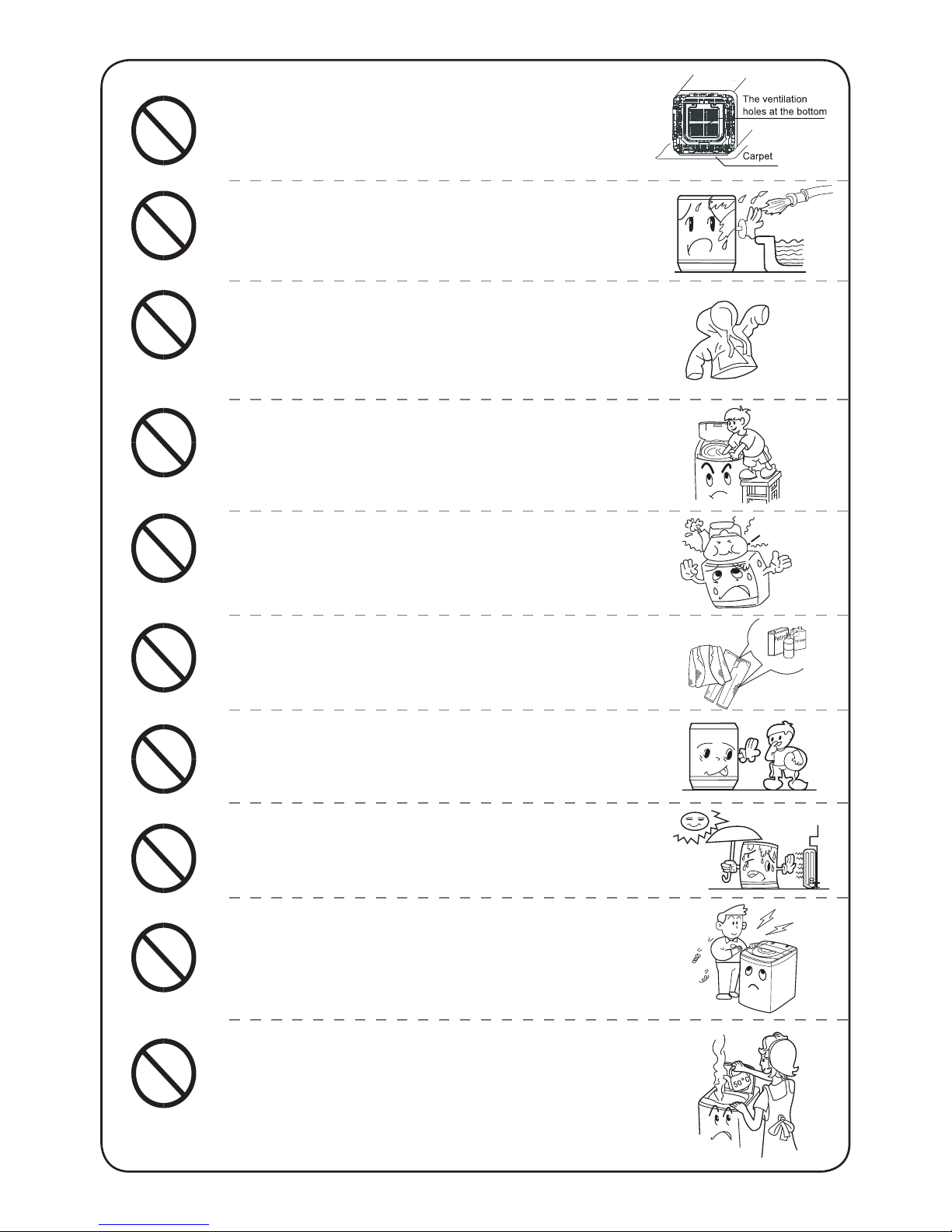

In case the washing machine is installed on ground

with carpet, do not block the ventilation hole

with carpet. Ensure carpet does not obstruct the

opening in the bases.

Do not put the machine at damp place like the

bathroom. Never wash it with water. Do not put wet

laundries on the control panel.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations

in spinning. Wash the clothes that can ﬂoat

on the water surface easily, please be careful

especially,for fear damage.

Do not stretch hands into the working machine. It is

dangerous even if the rotation is slow. Take special

care of the children.

Do not put any hot or heavy items (such as the

kettle with hot water ) on the washing machine.

Do not wash laundries with volatile materials (such

as thinner, petrol etc.)

The children shall not approach the working

washing machine.

Keep the machine away from direct sunlight and

heat source like the heater.

Do not decompose, repair or alter the machine by

yourself.

Do not use water hotter than 50 °C.

Alcohol

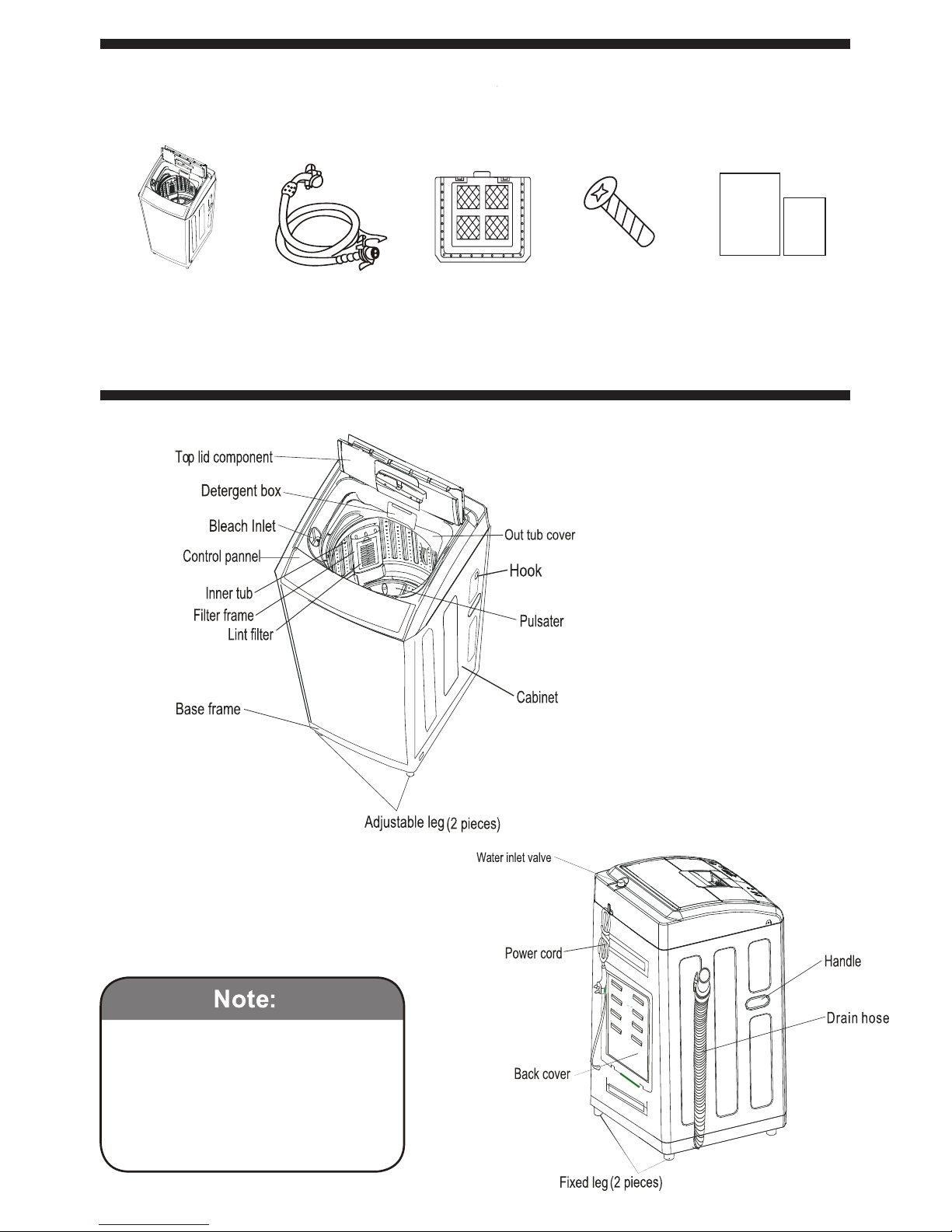

Packing list

Fully automatic

washing machine

Water inlet hose Bottom plate Tapping screws

(One Piece)

User’s manual

Warranty card

All illustrations in this Manual are

given for reference only. Your

products and accessories may

show differences from these

illustrations due to our continuous

improvement.

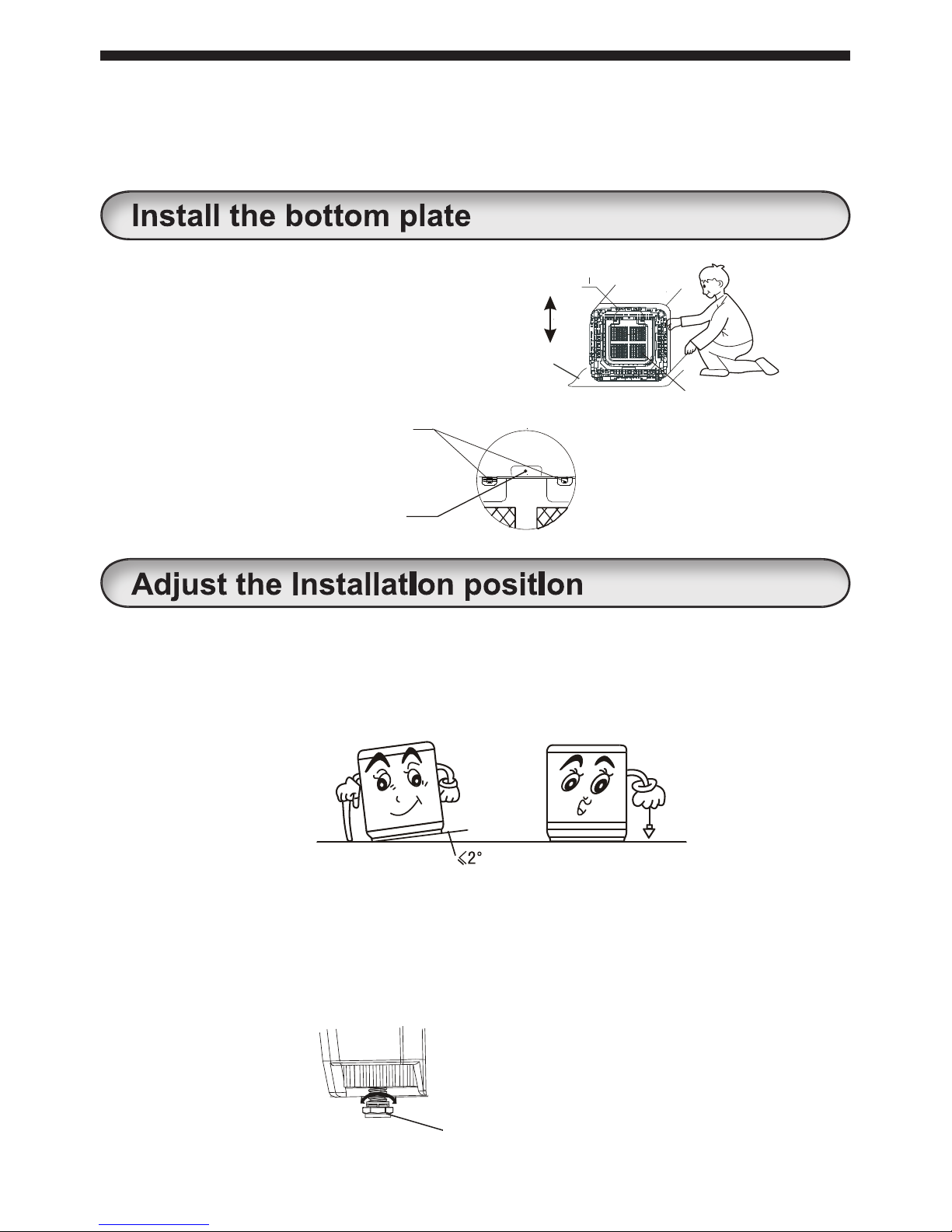

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is very important

to your security and correct operating the machine.

Adjust the adjustable foot:

To twist the adjustable foot, please ﬁrst lift up the side of the foot slightly, and then you

can twist the two adjustable feet. Please make sure to keep the washing machine

in balance.

The adjustable foot

The washing machine away from wall should be overrun 20mm. The largest allowable slope

of the shank base of the machine is 2°. The slanting or rough ground will result in unstable

running or stoppage of the machine. Please adjust it with following methods:

Confirm

it's horizontal:

Hang the lead line to check if it is horizontal.



Soft items

Back

Front

Bottom plate

Section I enlarging

After you open the package, please lean

the washing machine gently down on soft

items (like the towel cloth, blanket, ect. ).

Install the bottom plate to the bottom of

the machine, then lift the machine up

gently. See to the figure:

Two claws at the bottom cover shall

be inserted in two bar-shaped holes

in the stand. Make sure the claws

are firmly in place.

Fasten the bottom plate to

base frame with one screw

High Low

Screw knife

Figure 4

Figure 5

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

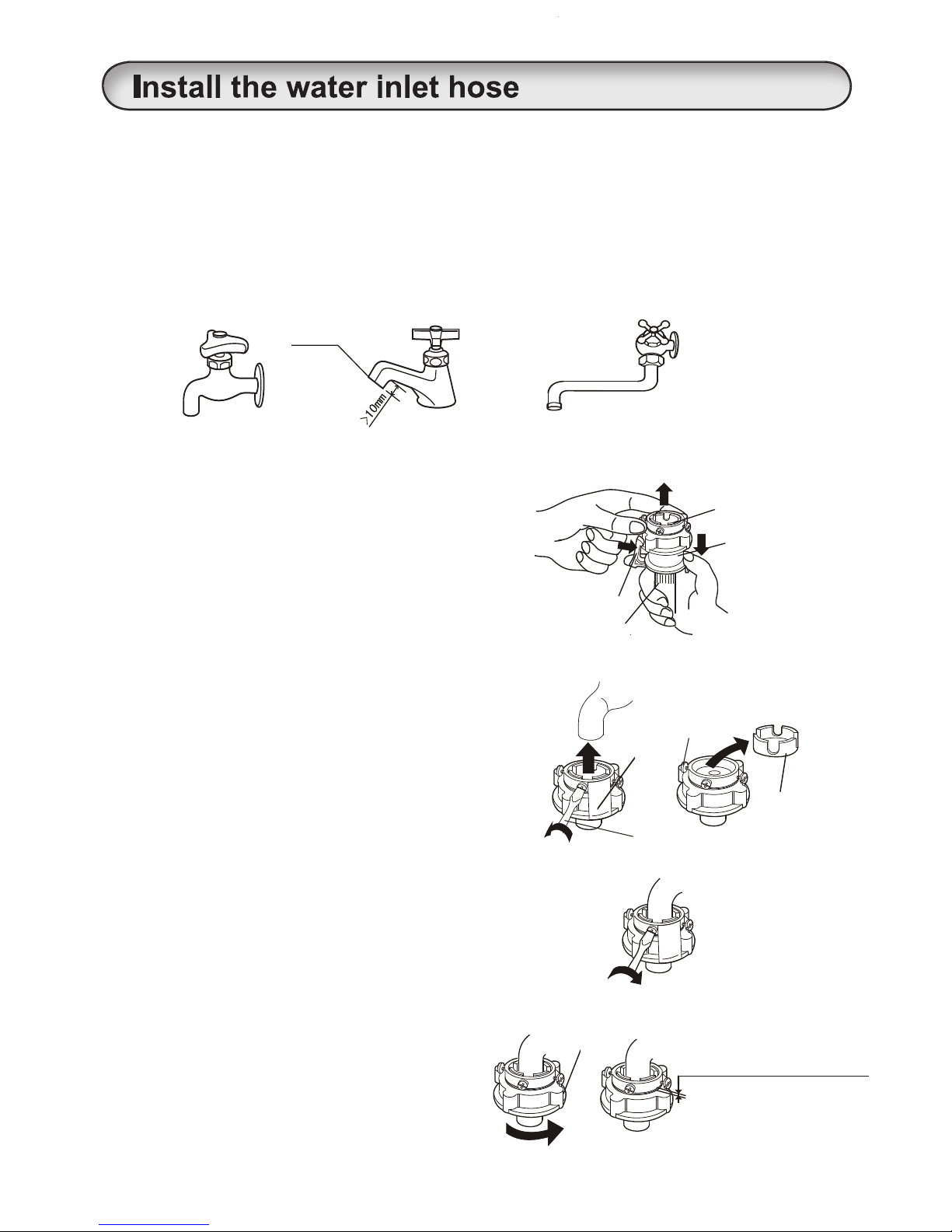

2.Loosen the screw till the water faucet can be

accessed. Put the jointer of the water inlet

hose on the faucet. See to Figure 2. (If the

faucet is too large and the jointer can not be

set on the water faucet,please loosen the four

screws and take out the bushing in the jointer.

The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

3.Fasten the four screws evenly. See to Figure 4.

4.Take off the nameplate. Twist the fastening nut

as per the indication of the figure to seal up the

exit end face of the faucet. See to Figure 5.

Remark: Before installation, the threading is

4mm above the upper surface of the nut.After

installation, the threading is 2mm above the

upper surface of the nut.See to Figure 6.

Connection between the water inlet hose jointer and the

water faucet

1.Press the lower end of the lock lever and push

down the slider. Take off the water inlet hose

jointer from the water inlet hose component.

See to Figure 1.

water inlet hose jointer

water inlet hose

Figure 1

Slider

Lock lever

The exit end face of the faucet

water faucet, suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth.If not please file it to avoid leakage.

Confirm the water faucet



water faucet, not suitable

NOTE:The appliance is to be connected to the water mains using new hose-sets and

that old hose-sets should not be reused.

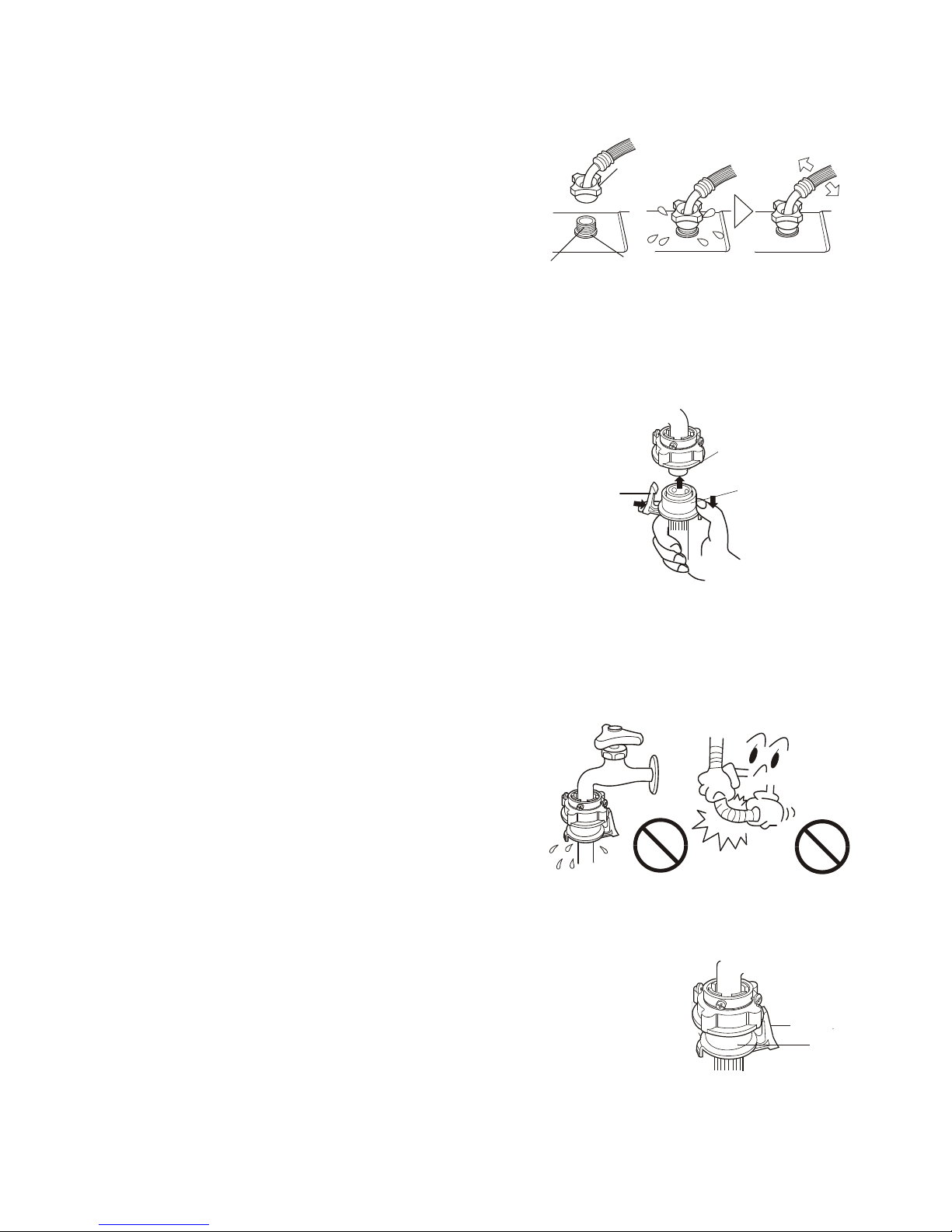

1.Do not take off the water absorption cushion. Please

check if the cushion is dropped or damaged before

each usage. If it happens please contact our

after-sale department immediately.

2.Put the nut of the water inlet hose on the valve

jointer.

3.Fasten the nut. Swing it gently to confirm if it's

suitable.

1.Push down the slider. Insert the water inlet hose

into the jointer.

2.Hang the lock lever to the jointer. Release the

slider till a click sound is heard.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection between

the jointer of the water inlet hose and the water faucet, and

the installation of the water inlet hose are firm, so as to

prevent dropping from improper installation position.

1.Close the water faucet.

2.Press the locking lever. Push down the slider.Then pull off the water inlet hose.

If the machine is used frequently, the jointer of the water inlet hose can be kept

on the faucet to prevent damaging the fixing screw.

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose and the

water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

Locking lever

Slider

water absorption

cushion

nut of the water

inlet hose

The jointer of the

water inlet hose

Slider

Locking lever

jointer of the

water inlet valve

Connection between the water inlet hose and the washer

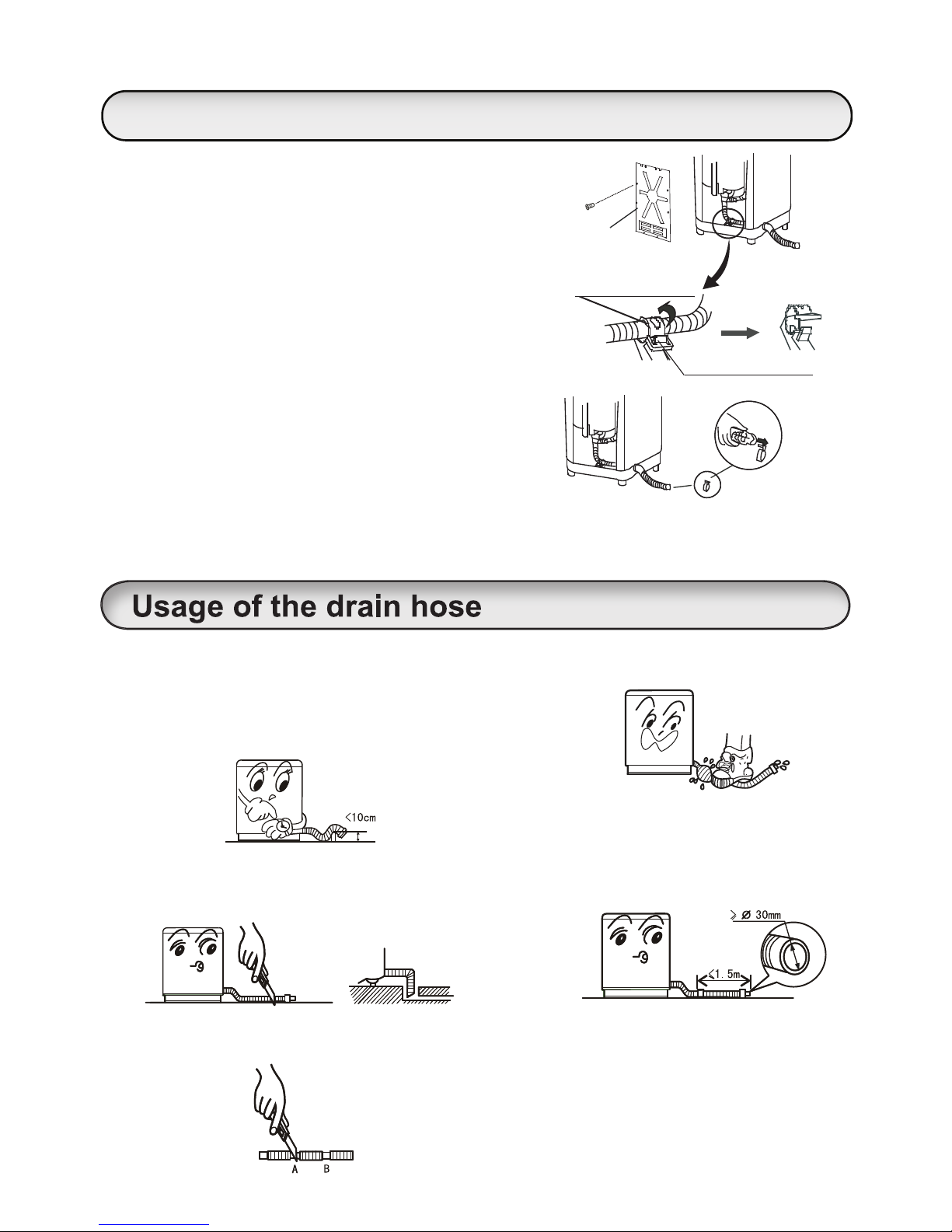

The drain hose shall drain smoothly.

Do not trample or press the drain hose.2.The height of the drain hose shall be less

than 10cm , or the drainage will not be smooth,

and cost such long time that the machine may

stop at mid way.

If the drain hose is too long, cut it at mid

point. To make smooth drainage,cut the front

end of the hose slantingly.

If the extra hose is too long,cut it either at A or at B point.

If extra drain hose is needed,please

make separate purchase.The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

Remark: In order to make sure of the correct of installation, it is suggested to change the

direction of the drain hose with our company serviceman.

1.Dismantle the back cover of the washing machine.

2.Press the spring lamination lightly and pull the top

segment of the drain hose decumbent then put

down the drain hose from the drain hose frame.

3.Put down the drain hose, squeeze the drain hose

lightly and take off the hook, put the drain hose into

the cabinet. Take off the small baffle which installed

on the other drain outlet and install it on the side

which won't install the drain hose.

4.Extend the drain hose from the other side and install

it on the base by the drain hose frame

5.Install the back cover.

How to change the direction of the drain hose

Back cover

Drain hose frame

Spring lamination

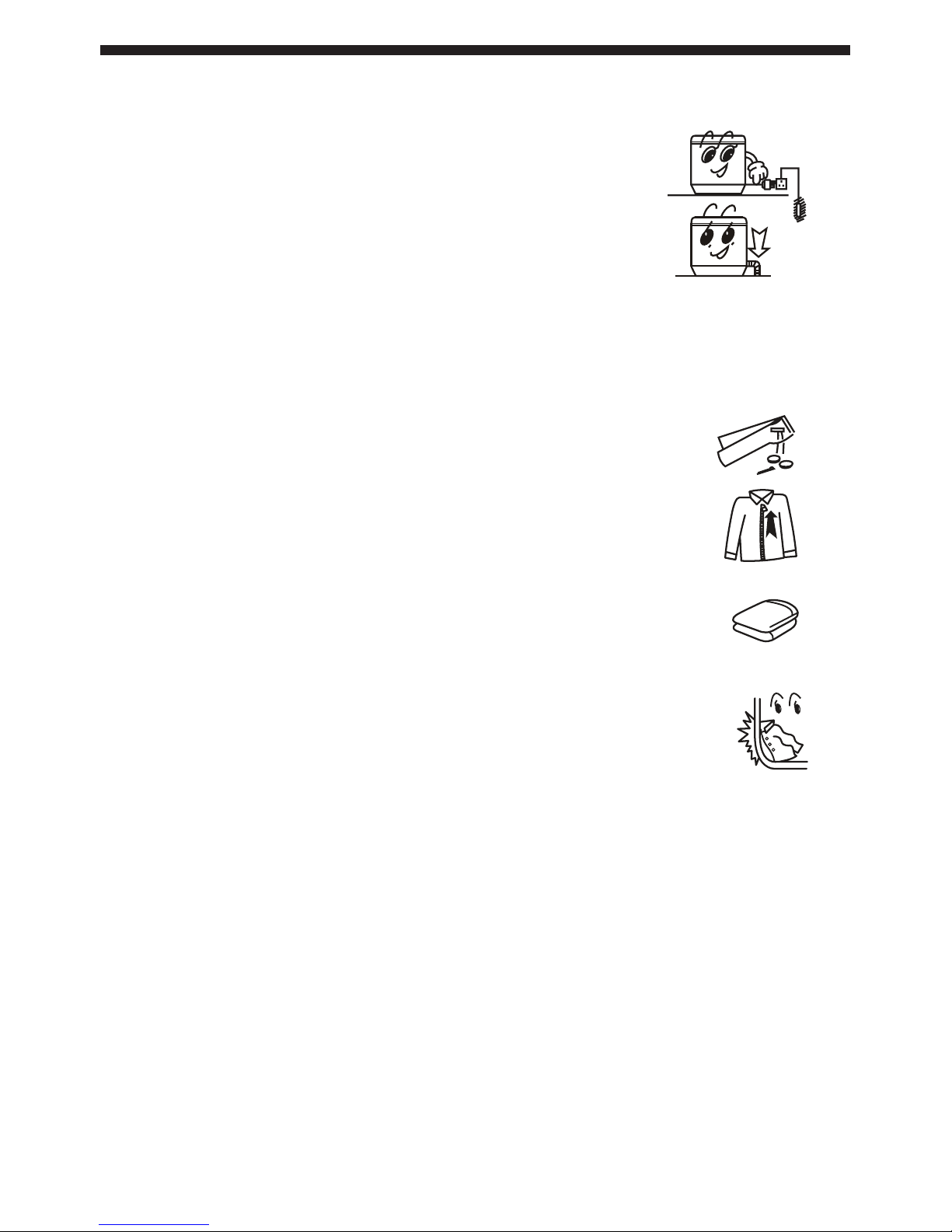

Preparation before washing

Connect the water inlet hose. Open the water faucet.

Conﬁrm that the washing machine is earthed reliably. Then insert

the power plug into the receptacle. The earth terminal shall not

link to gas pipeline and faucet water pipeline.



Put down the drain hose.

Slanting or uneven ground may result in unstable working or

abnormal noise. Please make the machine stand horizontally.



Clear the pocket. Take out the coins,sand, hairpins etc.

Confirm if there is special requirement for the laundries.

Check if the laundries are applicable for washing with machine.

Please repair the damaged cloth before washing in order to avoid the situation worse.

Divide the laundries that are not colorfast from other laundries.

Put those laundries difﬁcult to absorb water into water with hand.

For those laundries with heavy soil, please ﬁrst remove the dirt like mud or dust. For the parts

with heavy soil, please apply detergent on them in advance, which can make it easier to remove

the soil.



For those laundries that may get lint ball and those with long fur, turn it over before putting in.

Do not put those laundries polluted by chemicals into the washing machine directly.

The foreign materials will result in damage of the machine.

The quantity of the laundries shall not be too large. Stretch and loosen the

laundries before putting them in the tub.

When the pulsator is running, the buttons of the laundries may cause noise.

For the sake of discretion, please put the laundries with buttons into other

laundries.

Tie the long strips; fasten the buttons;close zippers.

Pay attention to followings before washing the laundries

How to use the whitener

How to use the washing powder

Fill water to decided level. Dilute the whitener with container. Pour it slowly into the washing tub.

Avoid using whitener on laundries with color or pattern as they are prone to lose color.

The whitener shall not touch the laundries directly.

Refer to the user’s manual for the usage and quantity of the whitener.

For powder whitener, please dissolve it before using.

Directly dissolved in the machine: (not applicable for fuzzy program )

.retawfoytitnauqllamslliF.1

completely.tievlossidotsdnoces03rofnuR.redwopehtddA.2

.levelretawelbatiustceleS.seirdnualehtnituP.3

The instant dissolving of the washing powder:

.reniatnocadnaC°03foretawmraweraperP.1

.tievlossidyllufotgnirritselihwredwopehtddA.2

The quick program, it is suggested to adopt liquid detergent instead of

washing powder to guarantee the washing effect.

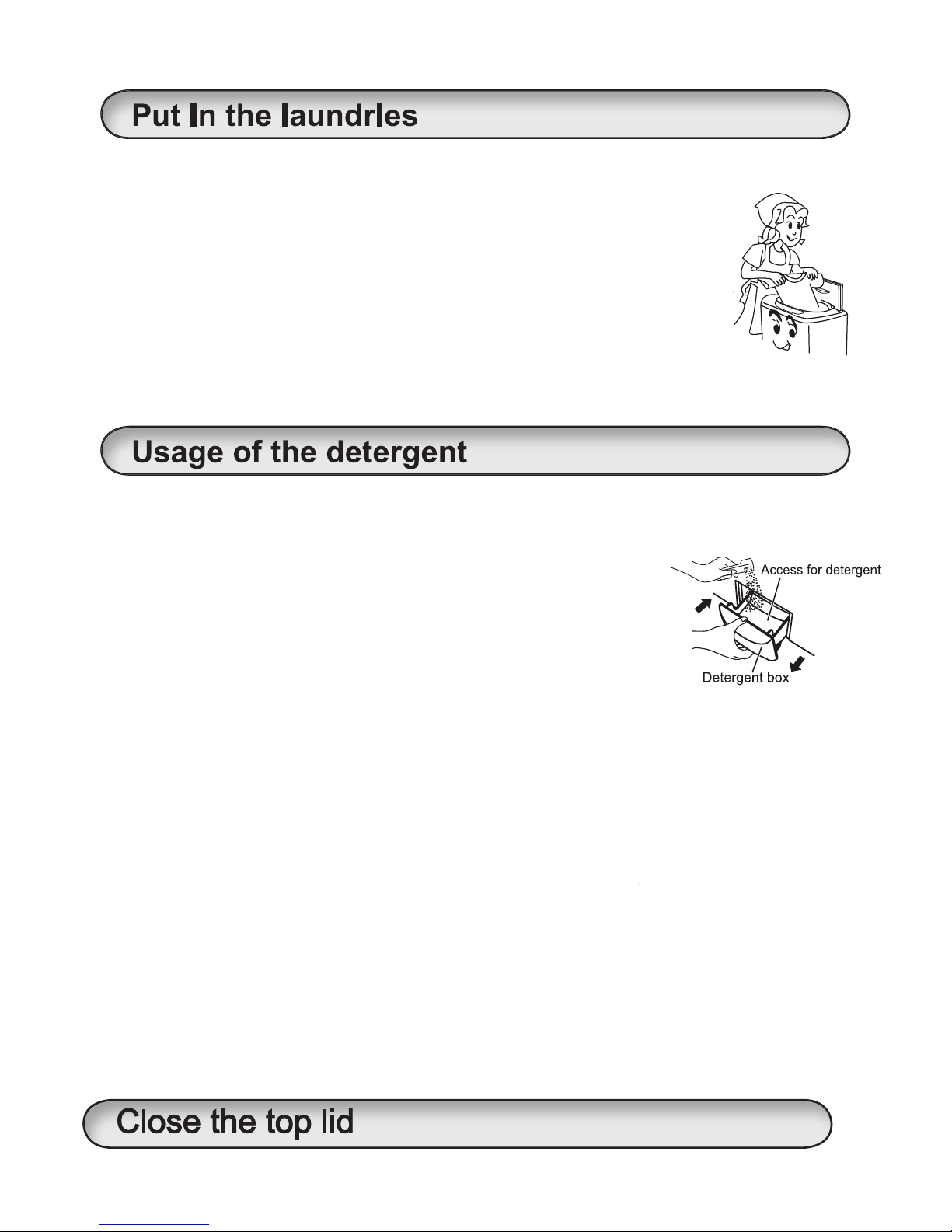

Put in the proper quantities detergent according to the water level and the

laundries quantities.

It is suggested not to use high sudsingdetergent. Washing powder with poor

quality or long time storage maybe caked. Please pay attention to cleaning the

detergent box in time.

The capacity of washing and spinning of he machine refer to the largest weight

ofthe standard laundries under dry conditionthat can be washed or spinned in one

time. One time washing quantity shall be lower than the rated capacity.

The thickness, size, type of the cloth will inﬂuence the actual washing capacity. It

is suitable for one time washing to put in reasonable amount of laundries and the

laundries can be turned round in washing.

Do not select the high water level for laundries less than 1.0kg ,so as to avoid

splashing of water.

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
