Haier HW80-BP14636N User manual

User manual

Washing machine

HW80-BP14636N

HW90-BP14636N

HW100-BP14636N

Thank You GB

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

symbol with the household waste. Return the product

to your local recycling facility or contact your municipal

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions con-

tain important information which willhelp you get the best out of the appliance and ensure

safe and proper installation, use and maintenance.

Keep this manualin aconvenient place so you can always refer to it for the safe and proper

use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure

you also pass this manual so that the new owner can become familiar with the appliance

and safety warnings.

WARNING!

of it.Remove the door catch to prevent children and pets to get closed in the appliance.

GB Content

1-Safety information......................................................................................................................... 4

2-Product description ...................................................................................................................... 7

3-Control panel .................................................................................................................................. 8

4-Programmes.................................................................................................................................11

5-Consumption................................................................................................................................12

6-Daily use .........................................................................................................................................13

7-Eco-friendly washing ..................................................................................................................18

8-Care and cleaning ........................................................................................................................19

9-Troubleshooting ...........................................................................................................................22

10- Installation...................................................................................................................................25

11-Technical data.............................................................................................................................29

12- Customer service......................................................................................................................30

1-Safety information GB

ing safety hints!

WARNING!

▶Make sure there is no transport damage.

▶Make sure all transport bolts are removed.

▶Remove all packaging and keep out of children´s reach.

▶Handle the appliance always with at least two persons because it

is heavy.

Daily use

▶This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental ca-

pabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

▶Keep away children under 3 years of age from the appliance un-

less they are constantly supervised.

▶Children shall not play with the appliance.

▶Do not let children or pets come close to the appliance when the

door is open.

▶Store washing agents out of reach of children.

▶-

vent laundry from being entangled.If necessary,use an appropri-

ate bag or net.

▶Do not touch or use the appliance when barefoot or with wet or

damp hands or feet.

▶Do not cover or encase the appliance during operation or after-

wards to allow any moisture or dampness to evaporate.

▶Do not place heavy objects or sources of heat or damp on top of

the appliance.

▶Do not use or store ﬂammable detergent or dry cleaning agent in

close vicinity to the appliance.

▶Do not use any ﬂammable sprays in close vicinity to the appliance.

▶Do not wash any garments treated with solvents in the appliance

without having dried them previously in the air.

GB 1-Safety information

WARNING!

Daily use

▶Do not remove or insert the plug in the presence of ﬂammable

gas.

▶Do not hot wash foam rubber or sponge-like materials.

▶Do not wash any laundry which is polluted with ﬂour.

▶Do not open detergent drawer during any wash cycle.

▶Do not touch the door during the washing process, it gets hot.

▶Do not open the door if the water level isvisibly over the porthole.

▶Do not force the door to open. The door is tted with a self- lock

device and will open shortly after the washing procedure is ended.

▶

undertaking any routine maintenance and disconnect the appli-

ance from the electrical supply to save electricity and for safety.

▶Hold the plug, not the cable, when unplugging the appliance.

Maintenance / cleaning

▶Make sure children are supervised if they carry out cleaning and

maintenance.

▶Disconnect the appliance from the electrical supply before un-

dertaking any routine maintenance.

▶Keep the lower part of the porthole clean and open door and de-

tergent drawer if appliance is not in use to prevent odours.

▶Do not use water spray or steam to clean the appliance.

▶Replace adamaged supply cord only by the manufacturer,its ser-

▶Do not try to repair the appliance by yourself. In case of repair

please contact our customer service.

Installation

▶The appliance should be placed in a well- ventilated place. Ensure

a location which allows opening the door fully.

▶Never install the appliance outdoors in adamp place,or in an area

which may be prone to water leaks such as under or near a sink

unit. In the event of a water leak cut power supply and allow the

machine to dry naturally.

1-Safety information GB

Intended use

This appliance is intended for washing machine-washable laun-

dry only. Anytime follow the instructions given on the label of each

garment label. It is designed exclusively for domestic use inside the

house. It is not intended for commercial or industrial use.

Changes or modiﬁcations to the device are not allowed. Unintended

use may cause hazards and loss of of all warranty and liability claims.

WARNING!

Installation

▶Install or use the appliance only where the temperature is above

5 °C.

▶Do not place the appliance directly on a carpet, or close to a wall

or furniture.

▶Do not installthe appliance in direct sunlight or in the near of heat

sources(e.g. stoves, heaters).

▶Make sure that the electrical information on the rating plate

agrees with the power supply. If it does not, contact an electri-

cian.

▶Do not use multi- plug adapters and extension cables.

▶Make sure only the delivered electric cable and hose set are used.

▶Make sure not to damage the electric cable and the plug. If dam-

aged have it replaced by an electrician.

▶Use a separate earthed socket for the power supply which is easy

accessible after installation. The appliance must be earthed.

Only for UK: The appliance’s power cable is ﬁtted with 3-cord

(grounding) plug that ﬁts a standard 3-cord (grounded) socket.

Never cut oﬀ or dismount the third pin (grounding). After the ap-

pliance is installed,the plug should be accessible.

▶Make sure the hose joints and connections are ﬁrm and there is

no leakage.

GB 2-Product description

2.1 Picture of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

Check the accessories and literature in accordance with this list (Fig.2-3):

Inlet hose-

assembly 5 Blanking

plugs Drain hose

bracket User manual

Warranty-card

Note:

2- 3

134

T1 T2

T3 S1

S2 S6

134

265

1 Detergent /Softener drawer

2 Worktop

3 Programme selector

4 Panel

1 Transportation bolts (T1-T4)

2 Back cover

3 Back cover screws (S1-S6)

4 Power cord

5 Water inlet valve

6 Drain hose

2- 1 2-2

5 Rating plate

Service ﬂap

Adjustable feet

S3 S5

Noise

reduction pads

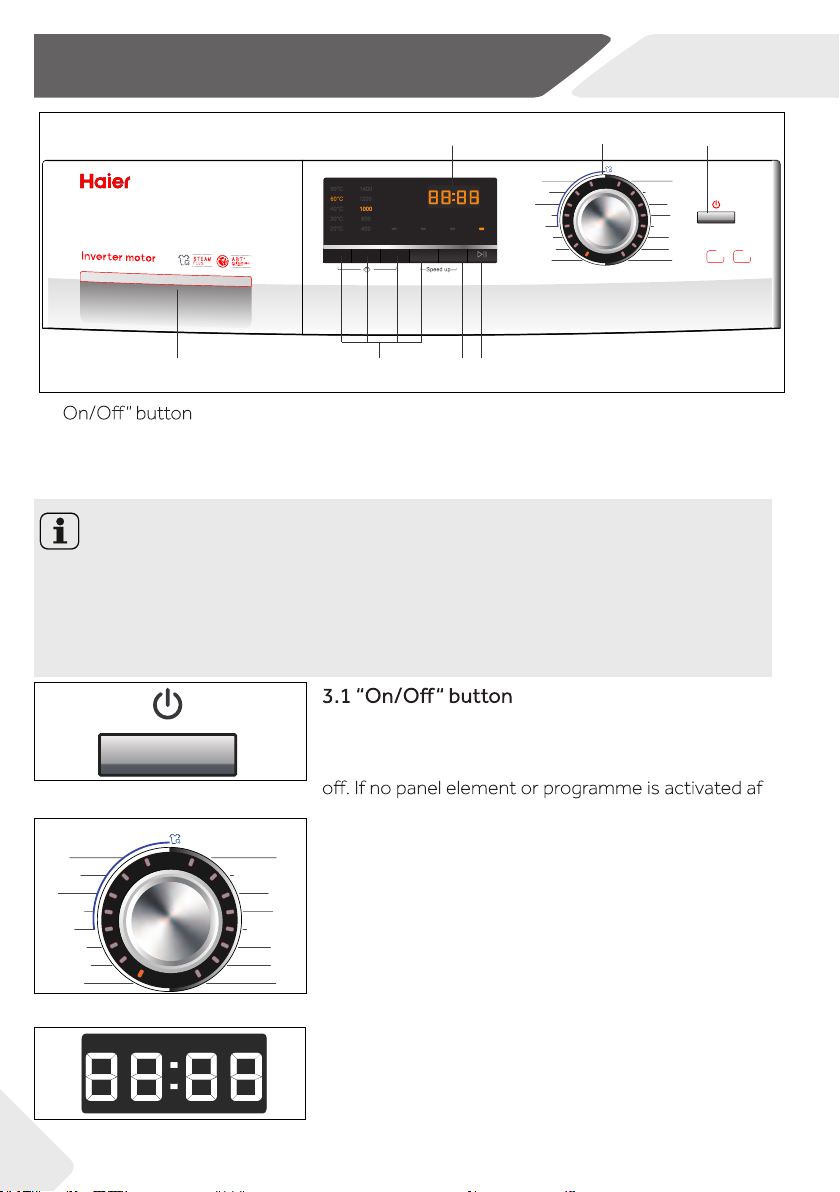

3-Control panel GB

1 “

2 Programme selector

3 Display

4 Detergent /Softener drawer

Press this button (Fig. 3-2) gently to switch on, the dis-

playisshining, the indicatorofthe “Start/Pause” button

is ﬂashing. Press it again for about 2 seconds to switch

ter a while machine will shut down automatically.

3-2

3.2 Programme selector

By turning the knob (Fig. 3-3) one of 16 programmes

can be selected, related LED will light up, its default

settings will be displayed.

3.3 Display

The display (Fig. 3-4) shows following information:

▶Washing time

▶End time delay

▶Error codes and service information

3-4

5 Function buttons

6 “Delay” button

7 “Start/Pause“ button

Note : Acoustic signal

In following cases, an acoustic signal is no sounds by default:

▶when pressing a button

▶when turning the programme selector

▶at the end of programme

The acoustic signal can be selected if necessary ; see DAILY USE.

Express 15 min

Temp.Speed Steam Delay Start/Pause

Extra rinse

Duvet

Cotton

Synthetic

Mix

Baby Care

Eco 40-60

Cotton 20°C

Hygiene

Underwear

Wool

Sport

Jeans

Spin

Fast

Delicate/silk

HW100-BP14636N

rpm Capacity

10kg1400

3-1

5 6 7

3-3

Express 15 min

Duvet

Cotton

Synthetic

Mix

Baby Care

Eco 40-60

Cotton 20°C

Hygiene

Underwear

Wool

Sport

Jeans

Spin

Fast

Delicate/silk

GB 3-Control panel

3.5 Function buttons

The function buttons (Fig. 3- 6) enable additional op-

tions in the selected programme before programme

starts. The related indicators are displayed.

gramme, all options are disabled.

If a button has multiple options, the desired option can

be selected by pressing the button sequentially.

To delete the setting or to cancel the setting process,

press the function button until the desired LED lights

3- 6

3.5.1-Function button “Temp.“

Press this button (Fig. 3- 7) to change the washing

temperature of the programme. If no value is illumi-

nated the water will not be heated.

In conjunction with the “Steam” button, the child lock

3.5.2-Function button “Speed”

Press this button (Fig. 3-8) to change or deselect the

spin of the programme. If no value is illuminated the

laundry will not spun.

Note: Factory settings

there is no special requirement default settings are recommended.

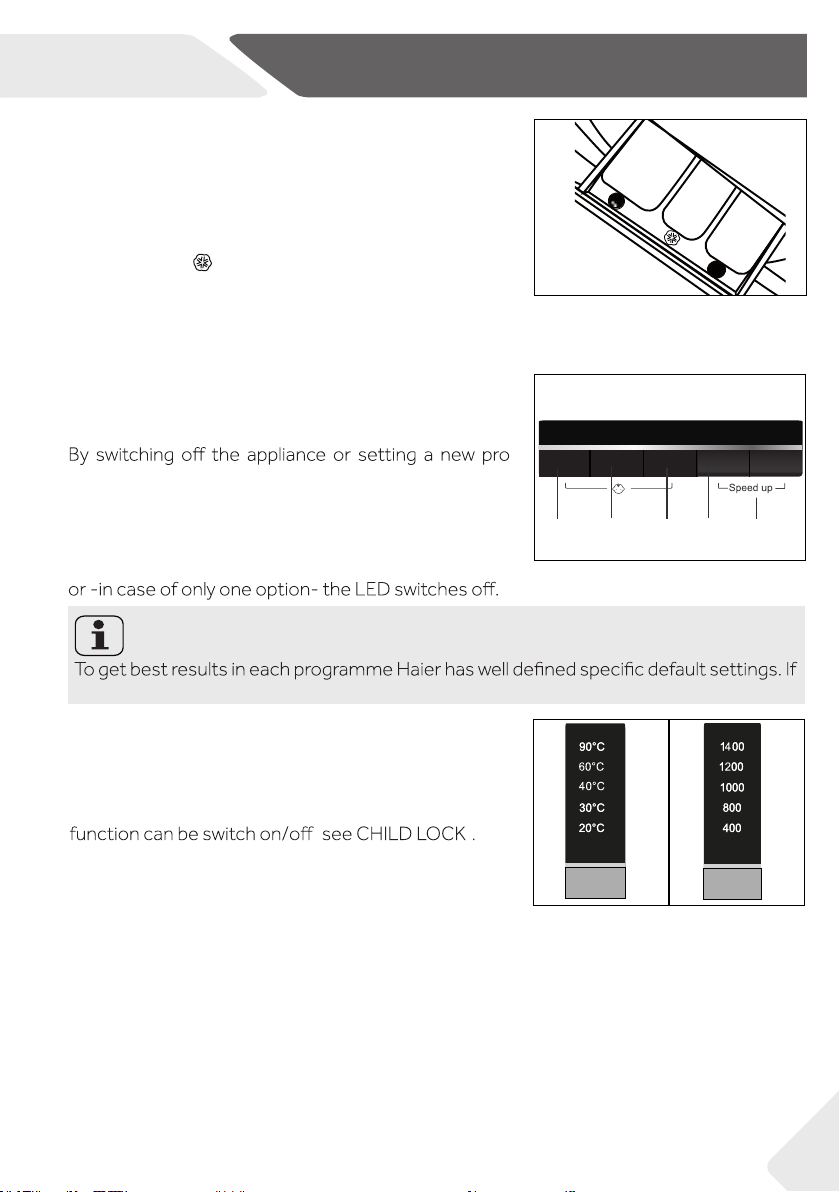

3.4 Detergent drawer

Open the drawer, three compartments can be

seen (Fig. 3- 5):

Compartment 1 : Water inlet only, no detergent

Compartment 2 : Detergent for programme

Compartment : Softener, Conditioning agent etc.

The recommendation on the type of detergents is

suitable for the various washing temperatures, please

refer to the manual of detergent.

3- 5

3.5.3-Function button “Steam“

3- 7 3-8

Temp.

Speed

Press this button (Fig.3-9) to activate the steam function.When this function is activated

the default temperature is the maximum temperature of the programme selected.This

function can be activated only with the following programmes: Cott on, Synthetic, Mix,

Baby Care, Hygiene.When the function is activated the led above the button will light up.

Pushing again this button the function can be deactivated and the led above the button

will turn oﬀ.When the function is activated the temperature of the programme cannot

be changed.

( )

3.5.1 3.5.2 3.5.3 3.5.4 3.5.5

Temp.Speed Steam Delay

Extra rinse

3-Control panel GB

3.5.4 Function button“Extra rinse“

Press this button (Fig. 3- 10) to rinse the laundry more

intense with fresh water. This is recommended for

people with sensitive skin.

By pressing the button several times one to three ad-

ditional cycles can be selected. They appear in the dis-

play with P--1/P--2/P--3.

3.5.5 Function “Speed up“

This function saves time and energy.Preferable if laun-

dry is slightly soiled.Press simultaneously button

“Extra

rinse“ and ”Delay” (Fig. 3- 11) for about 3 seconds

to activate the “Speed up” function;

SPEEd

is dis-

played. This function is not available in all programmes

(see PROGRAMMES).

3.7 “Start/Pause“ button

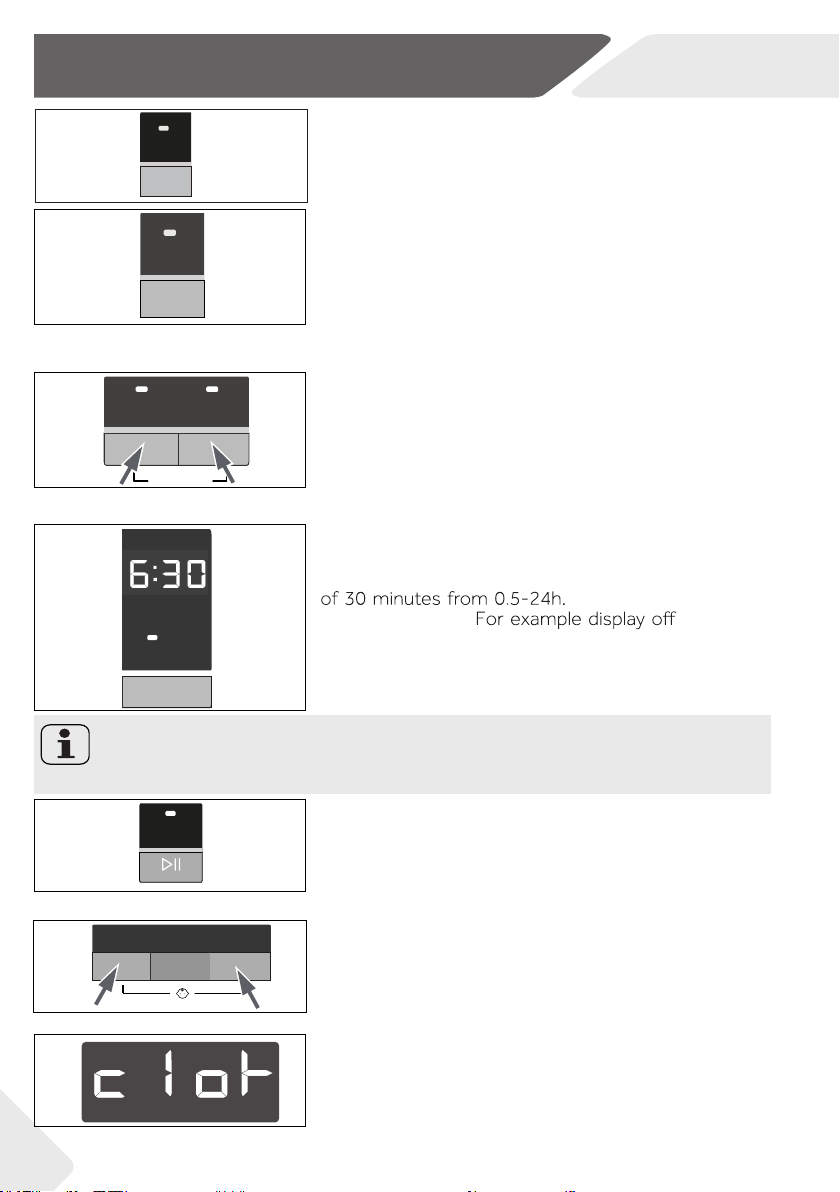

Press this button (Fig. 3-13) gently to start or inter

rupt the currently displayed programme. During pro-

gramme setting and during programme run the LED

above the button is shining, or if interrupted blinking.

3.6 Function button “Delay”

Press this button (Fig. 3-12) to start the programme

with a delay. End time delay could be increased in steps

6:30 means

end of programme cycle will be in 6 hours and 30 minut-

es.Press “Start/Pause” button to activate delay. It is not

applicable to programme Spin,Eco 40- 60.

Note: Liquid detergent

If using liquid detergent, it is not recommended to activate the end time delay.

3.8 Child lock

Press button “Temp.“ and ”Steam” (Fig. 3-14) for 3

seconds simultaneously to block all panel elements

against activation. For unlocking please press again

the two buttons.

The display shows cLo

I-

(Fig. 3-15) if a button will be

pressed, when the child lock is activated. The change

is not running.

3- 15

Extra rinse

3- 10

Delay

Extra rinse

Speed up

3- 11

Delay

3- 12

Start/Pause

3- 13

3- 14

Temp.Speed Steam

Steam

3- 9 If “Temp.” button is pushed the “Steam” function will be

deactivated.You can activate “Steam” function only bef-

ore t o start any programme. You cannot activate “Steam”

function while the appliance is already executing a programme.

(add time to the original

programme time).

This manual suits for next models

Table of contents

Languages:

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
