L19A11W

1. Features

2. Safety Precautions

3. Images of Module and Circuit Boards

4. Key IC Description& Trouble Shooting Guide

5.Signal Flowing Chart

6. Bus Control Adjustment

7. Circuit Diagram

Model

L19Ａ1１Ｗ

1Screen size 19inch

2Aspect　ratio 16:10

3Brightness 300cd/m2

4Contrast Ratio(Darkroom) 700:1

5Resolution 1440*900

6Response Time（ms)8

7Angel of view H：150/V：135

8Color display 16.7M

9NO.of preset channels 100

10 OSD language English,Italian,Deutsch,French,Espanol

11 3D decoder NO

12 2D comb filter Yes

13 DNR YES

14 3A ENGINE NO

15 Same picture split demo(SPD) NO

16 double picture demo (DPD) NO

17 Color system PAL/SECAM

18 Audio system DK,BG,I,L,L'

19 AV stereo YES

20 Surrounding sound NO

21 NICAM YES

22 MUSIC/STANDARD/THEATRE/USE MUSIC/THEATRE/PERSONAL/VOICE

23 Bass,Treble YES

24 Balance YES

25 BBE NO

26 LIP SYNC NO

27 Equalizer NO

28 Ear phone YES

29 Mute YES

30 AV input NO

31 DVD terminal NO

32 S-video jack YES

33 Y PBPRYES

34 Monitor out NO

35 D-SUB jack YES

36 DVI socket NO

37 HDMI YES

38 SCART jack YES

39 Windows Menu NO

40 pc automatic adjust YES

41 moive mode NO

No. Functions

Model

L1９Ａ１１Ｗ

42 Semitransparent menu YES

43 ZOOM NO

44 16:9 mode YES

45 ADVANCED 4:3 YES

46 PIP NO

47 POP NO

48 PBP NO

49 3A WINDOWS NO

50 ATS NO

51 Nation Select YES

52 Channel List NO

53 Input Frequecy by Manual

and Channel Number Input NO

54 Lock YES

55 TELTEXT 10

56 NO. of built-in speakers 2

57 NO. of outer speakers No

58 Audio output power(Built-in)(W 1.5W×2

59 Audio output power(outer)(W) No

60 Total power input（W）<60W

61 Voltage range（V）AC150V~AC240V

62 Power frequency（Hz）50~60Hz

63 Time of sleep timer(MINS) 240

64 Net weight(KG) 5.04

65 Gross weight(KG) 6.50

66 Net dimension(MM) 522*195*422

67 Packaged dimension(MM) 595*265*500

68 Loading Q'ty(40H'C) 700

69 Compatible NO

70 Approval CE

71 Suitable market EUROPE

No. Functions

Images of Module and Circuit Boards

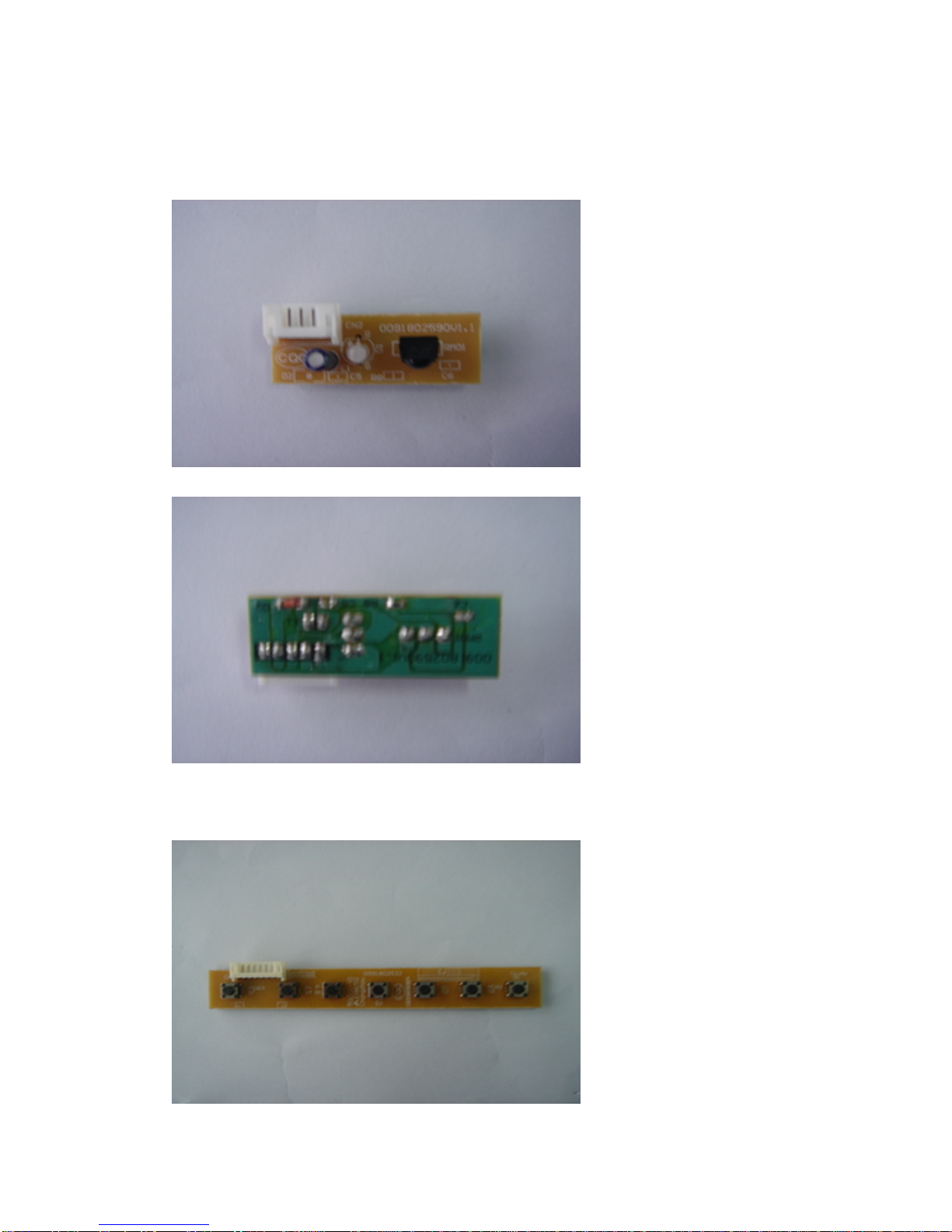

1.Images of Remote Board Subassembly

2.Images of Key Board Subassembly

3.Images of Main Board Subassembly

4.Images of Power supply

5.Images of Inverter
