Haier HRF-349NAA User manual
(1) Four temperature zones
Four temperature zones for satisfaction of varied storage needs
(2) 0°C zone
Temperature ranges between -2°C and +3°C for storage of fresh and uncooked
food with an ideal outcome of nutrient contents preservation.
(3) -7°C storage
Food stored in the wide-temp zone (-7°C) requires no preservice defrosting and
additional labor on processing but well keeps the nutrient value.
(4) Automatic temperature control
In Fuzzy mode, the appliance adjusts inside temperature automatically according
to variation of ambient temperature conditions for an optimized cooling
performance.
(5) Over temp alarm
The alarm function is activated when temperature exceeds the set temperature
value.
(6) Holiday mode
The appliance keeps operation but consumes the least energy while ensuring
that no unwanted odor in refrigerator and remaining food in good condition.
(7) Fresh food basket
The basket is designed for storage of fresh vegetables in an extended period.
(8) Deodorizer
The deodorizer incorporates advanced biological sterilization technology to
exterminate most bacteria and bacillus and remove bad odors in the air.
(9) VFD flashing display
Application of vacuum fluorescence technology for display of the refrigerator
operation status.
(10) 007 mode
The wide temp zone can be set for super freeze 007 mode for nutrient value
preservation.
(11) Ice cube tray
An ice cube tray is installed inside the freezer door to avoid odor contact.
(12) Touch control
The appliance uses a touch control panel with sensitive performance and elegant
design.
Primary features
Technical data in this manual may vary from that of the refrigerator you have just
purchased due to technical improvement.
Parts and features
Lights
Food shelf
Crisper
0°C zone
Wide temp drawer
Freezer drawer
Power plug
Bottle holder cover
Short bottle holder
Small bottle holder cover
Small bottle holder
Vegetable basket
Deodorizer
Large bottle holder
Ice cube box
Wine rack
Warning: The plug should be accessible after the appliance positioned.
If the supply cord is damaged, it must be replaced by the manufacture or its
service agent or a similary qualified person in order to avoid a hazard.
Warning: The appliance is not intended for use by young children or infirm persons without
supervision.
Warning: Young children should be supervised to ensure that they do not play with the
appliance.
Warning: Keep ventilation openings in the appliance enclosure or in the built-in structure;
clear of obstruction.
Warning: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufaturer.
Warning: Do not damage the refrigerant circuit (applicable only for appliances with
refrigeration circuits which are accessible to the user).
Warning: Do not use electrical appliances indide the food storage compartments, unless
they are of the type recommended by the manufacturer.
Safety precautions
This refrigerator requires a 220-240V
/50Hz supply
Failure in operation and damage to the
control panel, thermostat or the
compressor will occur if voltage is outside
the range 187-242V unless a regulator
with a capacity of over 750W or higher is
installed.
A separate earthed socket is required.
Care for external cable
* Hold the plug, not the electric cable,
when unplugging the appliance.
* Ensure that the electric cable is not
trapped by the appliance.
* Do not step on the cable. Avoid damage
to the electric cable when moving the
appliance.
Damaged electric cable
When the electrical cable is damaged or
worn, turn off the appliance and consult to
an authorized service agent for
replacement.
If inflammable gas leaks in the vicinity
of the appliance
* Turn off any leaking valve;
* Open the doors and windows;
* Do not, under any circumstances,
unplug electrical appliances in the vicinity
of the leak.
Unplug the appliance for the following:
* Cleaning or maintenance;
* Replacement of lamp
Never store inflammable, explosive or
corrosive materials in the appliance.
This appliance should only be used for
household purpose and cannot be used
for storage of blood, pharmaceuticals and
microbiological products.
Do not install the appliance near gasoline
or other inflammable articles.
Don't place electrical plugs, regulators or
microwaves on top of the appliance. Don't
use electric appliances (Except those
allowed by manufacturer) inside the
appliance.
Do not swing on or apply excessive
pressure to the appliance door.
Don't place heavy or unstable articles or
water containers on top of the appliance.
Mousse Spray Gas Acid Alkali
Vaccine
Chemical Agent
Bacterin
Safety precautions
Remove the appliance door and door seal
if the appliance is discarded to prevent
accidental entrapment in the appliance.
Do not touch inside surface of freezer
compartment in operation, especially with
wet hands as hands may freeze onto the
surface.
Do not spray or splash the appliance
when cleaning the appliance, nor place
the appliance in a damp area.
Disassembly, renovation or cooling
system maintenance of appliance must be
authorized.
Unplug the appliance in the event of a
power interruption or during cleaning.
Allow at least 5 minutes lapse before
restarting the appliance.
Never store bottled beer or beverages in
the freezer compartment.
Safety precautions
Location
The appliance should be placed on a flat and solid surface. If the appliance is placed on
a plinth, flat, strong and fire-resistant materials must be used. The front black foot of the
appliance can be adjusted clockwise or anti-clockwise to lift or lower the appliance if it is
placed on an uneven surface.
Adjustable Foot
The appliance shall be placed away from
heat sources or direct sunlight.
The appliance should be placed in a well-
ventilated area, and a space of 10cm or
more should be allowed around the
appliance.
Never place the appliance near to a water
source. Clean and dry any water splashes
and stains with soft cloth.
Never operate the appliance in low
ambient temperature (below 5°C) or
outdoors.
Clockwise Anti-clockwise
Space
>10cm
>10cm
>10cm
Preparation
Unpacking
Remove all packing materials.
Check attached accessories
and materials.
Check if all accessories specified in the
Packing List are available. Contact the
local distributor if shortage is found.
Ensure that the appliance is
properly located.
(See section “Location”)
Clean the appliance before
using.
(See section “Cleaning”)
Time lapse before power supply
Connect the appliance to power source at
least 30 minutes after the appliance is sited
and cleaned.
Operation
Manual
Warranty
Certificate
Caution: After unpacking, write down the model and manufacture number of
the appliance on the Warranty Certificate which will be required if technical
services are applied for.
Operation
Connection to power supply
When the appliance is connected to a power supply, the Fuzzy mode is set,
icon of the mode goes on, and temperature in wide temp and freezer zones
are displayed, default time is 12:00 and icon of freezer coruscates.
Setting of operation mode
Either of the following operation modes can be selected.
(1) Fuzzy mode: If no special requirement is intended, it is recommended that fuzzy mode
be used. Hold Fuzzy button pressed for 3 seconds until the icon appears. The appliance
is then operational automatically. (Refer to section “Functions”).
(2) Manual mode: In lock-off mode, press temperature button for temperature adjustment.
(See section “Functions”)
Suggestion
Regardless of irrespective fluctuations in ambient
temperature, selection of the Fuzzy Operation Mode
will guarantee the most efficient and energy-saving
operation of the appliance.
Loading the appliance with food
Load the appliance with food when the over temp
alarm icon disappears, indicating that the set
temperature of the appliance compartments has
been reached.
Caution: Some time is required before reset temperature is reached. The
length of this period depends on the extent of the temperature change,
ambient temperature, frequency of door opening and amount of food in
storage.
Functions

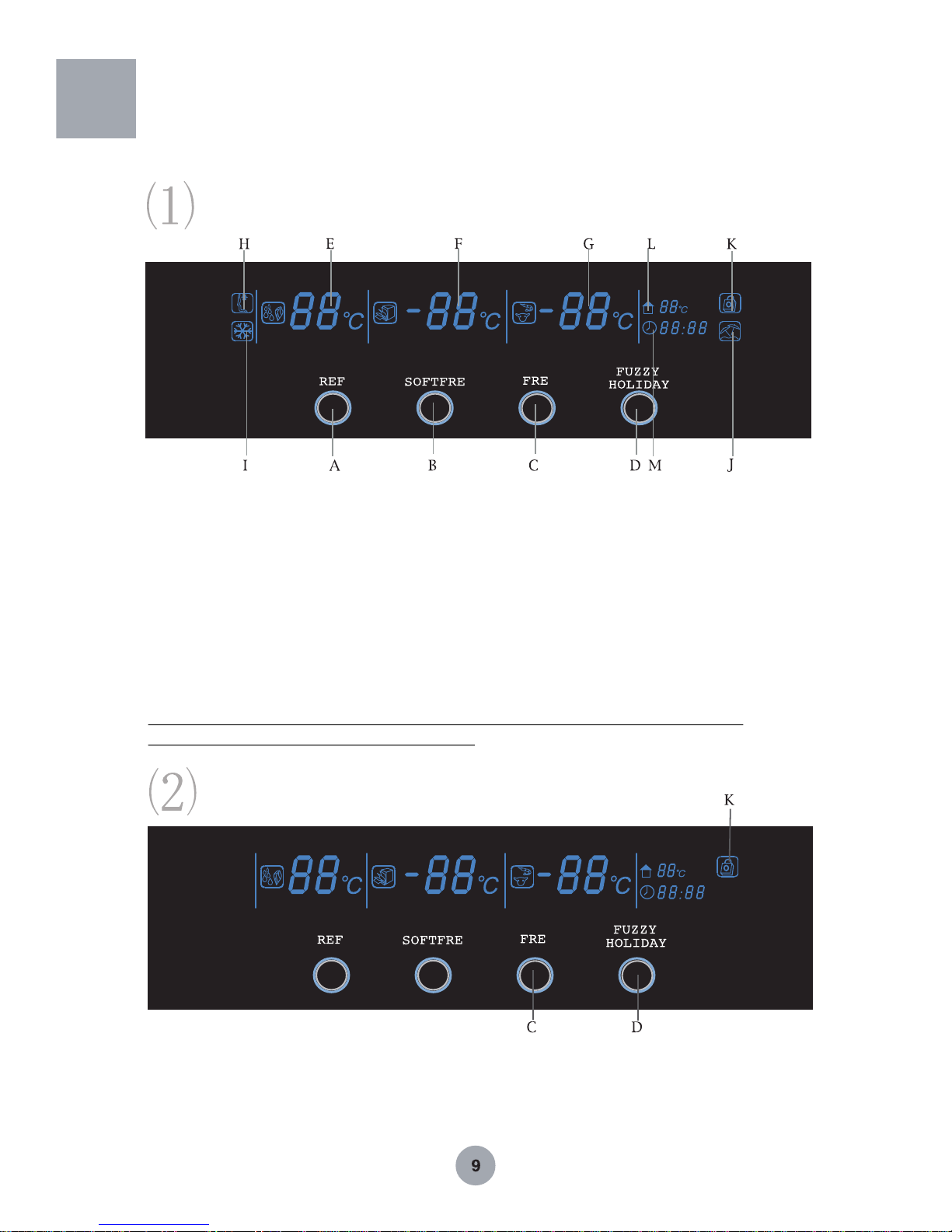

A. Refrigerator/(pressed for 3 seconds in lock-on mode) Refrigerator ON/OFF
B. Wide temp zone / (pressed for 3 seconds in lock-on mode) wide temp zone ON/OFF/
pressed for 3 seconds, 007 super freeze mode ON/OFF
C. Freezer / (pressed for 3 seconds in lock-on mode) super freeze
D. Fuzzy mode / (pressed for 3 seconds in lock-on mode) holiday mode
C+D Lock-on and Lock-off E. Refrigerator average temperature display
F. Wide temp zone average temperature display
G. Freezer average temperature display H. Fuzzy mode icon
I. Super freeze mode icon J. Holiday mode icon
K. Lock-on mode icon L. Ambient temperature display icon M. Clock icon
Note: These block English letters in front of the phrases above listed will be used
hereinafter to represent the phrases thereof.
Control panel
Lock-on and lock-off mode
In lock-off mode, if button C and button D are held pressed simultaneously, icon K appears;
In lock-on mode, if button C and button D are pressed simultaneously, icon K disappears
and lock-on mode is inactivated and the following modes can be adjusted.
