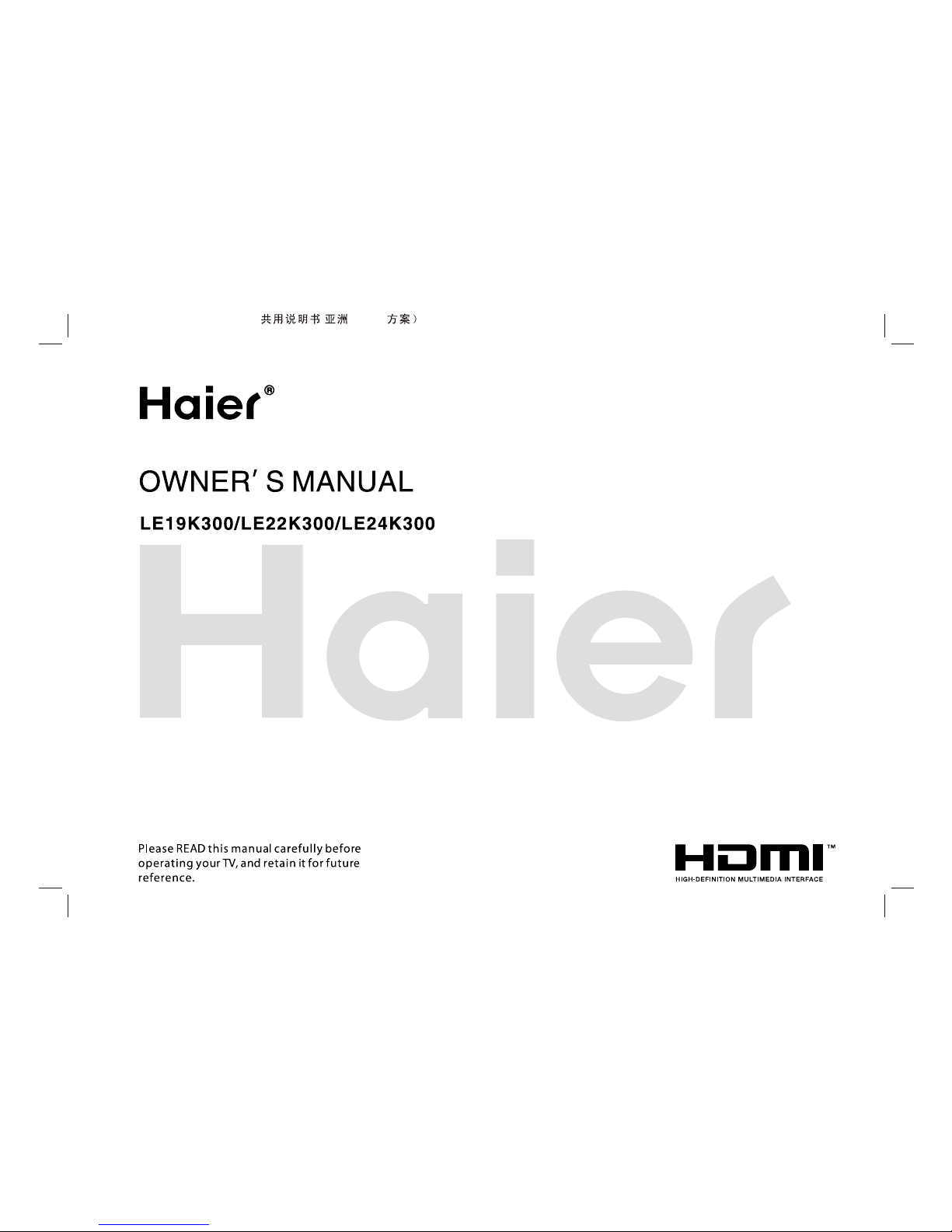

Haier HDMI LE19K300 User manual
LED BACKLIGHT LCDTELEVISION
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
TABLE OF CONTENTS
Important Safety Instructions 1
Product Introduction 3
General information 3
Features 4
listing 8
& Connection 9
Panel Control Keys 16
Remote control 17
Basic Operation Instruction 19
Power On 19
Standby 19
Signal Source Selection 19
Menu Operation Instruction 20
PICTURE 20
SOUND 22
OSD 23
ADVANCE 24
TV 25
Simple troubleshooting 29
Installation
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
1
Important Safety Instructions
Thank you to choose the LED backlight LCD TV made by our company, a valuable product with excellent quality and
multiple functions. This machine will bring you more audiovisual enjoyment. Its design can insure user's safety. All
machine are strictly tested before leaving factory. But incorrect use can lead to electric shock or fire. In order to insure
safety and extend its life, please read below regulations carefully before using it and comply with the following safety
instructions.
1) Read the manual and marking label before using the machine, and keep the user manual for later use.
2) There is high voltage inside the machine, follow all the warnings and instructions strictly on the manual.
3) Don't use the attachments which are not recommended by the machine manufacturer as they may cause hazards.
4) The power cord must be placed correctly so as to avoid be trample or crush.
5) Please do not make the power socket overloaded or the power cord extended. Otherwise it will cause fire or electrical
shock.
6) If you are going to pull out the power cord from this product, please dry your hands, pull the cord by grasping the plug.
Never pull the cord itself.
7) If you will not use the machine for a long time, please pull out the power cord. Do not keep the sleeping mode for too
long time.
8) Please put this machine in the place of well ventilation instead of extremely hot, cool or moist, and direct sunshine.
9) The slots on the case is designed to release heat so as to assure that all inside components will not reach an extra
high temperature and can work normally for a long time. Please do not cover the holes while place it. Don't place the
machine near or over heat source or place in built-in installation.
10) The power cord must be taken off before you clean the machine. Don't use the liquid cleanser or aerosol cleanser. It
is recommended to use a wet soft cloth to clean the machine. Don't use the alcohol, impregnant or ammoniac liquid
to wipe the screen.
11) Please don't place it on an unstable position so as to avoid falling off.
12) Don't place the LCD TV near water source, like a bathtub, pool, washing machine, or moist cellar and similar
environment.
13) The LCD panel is fragile and expensive. The surface of the panel is easy to be scratched. Please don't use the hard
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
2
thing to knock, press, score the panel. Otherwise it will be harmful for the panel. The exchange cost is very high.
14) There is high voltage inside the machine but no parts which can be repaired by users themselves. In order to assure
the people's safety, please don't open the case to repair it by yourself. If it is needed to repair, please contact
qualified engineer to repair.
15) All cables can be connected or pull out only after power supply is turned off.
16) During a thunder rain weather, do not touch the power cord and antenna cable.
17) When the following troubles occur, please pull out the plug and call the professional engineers to repair.
A. The cable or plug is damaged.
B. The product was fallen down or the case is damaged.
C. Obvious abnormal situation occurs. In spite of correct operation according to the user manual but it still can't work
normally.
D. Some abnormal substances or liquid fall into it.
E. Unusual sound or smell sends out.
18) When the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain
readily operable.
19) The machine should not suffer from waterdrop or watersplash, do not place the vessel with water (or other liquids) on
it, for like this it is possibly to cause fire or electric shock.
20) The attaching plug should be inserted into the power point completely, otherwise it may cause spark to bring fire.
21) Please do not put candle, ash-tray, incense, inflammables or explosive nearby this machine.
22) Please do not stretch into any sharp object, metal or liquid, or touch the signal attachment or the inner of radiation
hole, in order to avoid short circuit and product damage, or possibly causing electric shock. Especially pay attention
when there are children on the spot.
23) Please don't use the machine immediately when moving the machine from low temperature place to high temperature
one, or install and use at the place of facing air conditioning, otherwise it may cause the condensation in the machine,
to cause fault.
24) Must be careful when moving this machine, avoiding being struck, especially pay attention to protect the screen part.
In addition, if using handcart, must note the injury as the product is overturned from the handcart because of hard
braking, overexerting and uneven ground.
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
Product Introduction
General information
High-quality LED backlight LCD screen, energy saving, environmental protection, ultra-thin, brilliant features
Having inter high quality speakers, which will give you purely audiovisual enjoyment and save your table
place.
Having many ideal connectors, you may directly connect your DVD, vidicon etc. its disport components of
input connector let you enjoy beautiful image effect. The product can be used as a computer monitor with
VGA and HDMI connectors. Also it can be used as a TV machine when you insert the antenna.
Much faster response time will completely eliminate shadow of picture. seeing film and playing game may
be more fluent.
Enough colours can reach 16.7 millions kinds .
Wider viewing angle, higher brightness, higher contrast, lower consumption.
Intelligent image mode and sound mode can offer you intelligent audiovisual effect.
Built-in the latest digital comb filter, which makes image more clear. The internal 3D De-Interlace technique
can totally eliminate the screen dithering caused by interlace signals.
Own perfect timing functions, you can set time to turn off. It will be turned off in state of no signals, too.
Automatically operated convenient with telecontrol device.
Auto-setup function help you set the image to best performance in several seconds in PC mode.
Auto color balance adjustment technology takes your machine to the best color setting for all different kinds
of display adapters in PC mode.
Automatic denoise technique can greatly eliminate background noise caused by menu interference and the
noise caused by weak signals so as to make the picture on the screen clear.
Support USB interface, you can look through picture of JPG format and play music files of Mp3 format.
3
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
Features
interface specification:
4
Working Environment:
Atmosphere pressure:86kPa 104kPa Temperature: 5 40 Humidity: 10% 85%
Storage Environment:
Atmosphere pressure:86kPa 104kPa Temperature: -20 55 Humidity: 5% 95%
VGA
HDMI
CVBS Input/Output
S-VIDEO Input
YCbCr/Ypbpr
Audio Input/Output
TV(RF)
Earphone
Interface Specification
DB-15, 75 0.5~0.7Vp-p H/V:TTL Level (Support mode refer to VGA Input Mode )
Video signal: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Audio: LPCM
48KHz, 44.1KHz, 32KHz, 24Bit, 20Bit, 16Bit
75 1Vp-p (PAL/NTSC/SECAM)
Y: 75 1Vp-p; C: 75 0.286Vp-p
Y: 75 1Vp-p; Cb/Cr: 75 0.7Vp-p
Signal mode: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
20K , 0.5Vp-p
75 Imbalance
16~300 100mW+100mW
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
5
The Technical Specifications forFinal ProductThe Technical Specifications forFinal Product
Max. Resolution
Best resolution
Pixel pitch
Active area
Power supply
Volume
TV receive system
Unpacking Dimension(LHW)
Packing Dimension(LHW)
Net weight
Gross weight
Color
Surface treatments
Remote control range
Storage channels
LE19K300
1
1 @60Hz
0.3mm 0.3mm
409.80mm 230.40mm
Anti-glare
366 768
360 768
100V-240VAC 60/50Hz
3W+3W
469 362 36
528 415 100
16.7M
8m 30
199
PAL+NTSC/PAL+SECAM
mm
mm
4.0Kg
5.0Kg
LE22K300
1920 1080
1920 1080@60Hz
0.24825mm 0.24825mm
476.64mm 268.11mm
100V-240VAC 60/50Hz
3W+3W
/PAL+SECAM
535 394 36 mm
595 445 100 mm
5.0Kg
6.0Kg
PAL+NTSC
16.7M
8m 30
199
Anti-glare
Model Name
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
Max. Resolution
Best resolution
Pixel pitch
Active area
Power supply
Volume
TV receive system
Unpacking Dimension(LHW)
Packing Dimension(LHW)
Net weight
Gross weight
Color
Surface treatments
Remote control range
Storage channels
LE24K300
1920 1080
1920 1080@60Hz
0.2655mm 0.2655mm
509.76mm 286.74mm
100V-240VAC 60/50Hz
3W+3W
PAL+NTSC/PAL+SECAM
568 418 36 mm
630 465 100 mm
4Kg
5Kg
16.7M
Anti-glare
8m 30
199
6
Model Name
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
VGA input mode
VGA
SVGA
XGA
WXGA
720 400
640 480
800 600
1024 768
1360 768
70
60
60
60
60
1
2
3
4
5
1
2
3
4
5
6
7
8
9
10
720 400
640 480
800 600
1024 768
1280 960
1280 720
1280 1024
1360 768
1600 900
1920 1080
70
60
60
60
60
60
60
60
60
60
VGA
XGA
SXGA
WXGA
SVGA
WUXGA
S/N Mode Resolution Refresh(Hz)
S/N Mode Resolution Refresh(Hz)
Note: Recommended mode: @60Hz1360 768
Note: Recommended mode: @60Hz1920 1080
7
LE19K300
LE22K300/LE24K300
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
Power supply: Complywith EPA standard,compatiblewith VESADPMS standard.
Note: This specification issubject to change without notices. If there are differencesbetween manual and real
operation, please doaccording to real operation.
Power LED indicator
Off
On
Mode
On
Standby
Power consumption
Listing
Please make sure that all of the following items are complete
LCD TV (Include base)
User manual
Remote control
If any of above listed items is missing, please contact your dealer or our service department.
LE19K300/LE22K300
35W
1W
LE24K300
40W
1W
8
HAIER 19L11A/ 22L11A/ 23L11 ( )(6M16
