Haier L1510P User manual
Please read this manual carefully
before using this TV set and keep it
for future reference.
L1510A/L1910A/L2310A/L1510P
LCD TV
USER MANUAL
WARNING AND CAUTION
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.FOR
ANY PROBLEM, REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
THERE IS A LIGHTNING ARROW SYMBOL IN THE TRIANGLE:
THIS SYMBOL INDICATES HIGH VOLTAGE IS PRESENT INSIDE.
IT IS DANGEROUS TO MAKE ANY KIND OF CONTACT WITH ANY
INSIDE PART OF THIS PRODUCT.
THERE IS A EXCALMATION MARK IN THE TRIANGLE: THIS
SYMBOL ALERTS YOU THAT IMPORTANT LITERATURE
CONCERNING. OPERATION AND MAINTENANCE HAS BEEN
INCLUDED WITH THIS PRODUCT.
CAUTION
DO NOT OPENDO NOT OPEN
RISK OF ELECTRIC SHOCKRISK OF ELECTRIC SHOCK
!!
!!
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK AND FIRE,
DO NOT PUT THE TV SET NEAR SOURCES OF HUMIDITY.
DO NOT USE ANY ABRASIVE CLEANSERS WHICH MAY
SCRATCH OR DAMAGE THE LCD SCREEN. AVOID CONTACT
WITH OBJECTS THAT MAY SCRATCH THE LCD SCREEN.
NOTE: SERVICING THE UNIT YOURSELF IS UNAUTHORIZED
AND COULD LEAD TO INJURY OR PRODUCT DAMAGE.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
8) Do not install near any hear sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purposes of the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. When the provided plug does
not fit into your outlet, consult an electrician for replacement of the obsolete
outlet.
10) Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11) Only use the attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all serving to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15 Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To users:
Thank you for our LCD-TV.purchasing
CONTENT
Safety Notice Items...................................................................................
Front Panel Controls..................................................................................
Connection Options...................................................................................
Connection Options(continued)..................................................................
Remote Control Key Functions...................................................................
Remote Control ..................................................................................
Installing Batteries..................................................................................
Connection Instructions.............................................................................
Grounding..............................................................................................
External equipment Connections..............................................................
Antenna Connection.............................................................................
PC Setup.............................................................................................
VCR Setup...........................................................................................
Cable TV Setup....................................................................................
External AV Source Setup......................................................................
Basic Operating Instructions.......................................................................
Turn on the LCD-TV.................................................................................
Audio Control..........................................................................................
Mute......................................................................................................
Select the TV Channel You Want...............................................................
Picture Mode...........................................................................................
Program Scan.........................................................................................
Sleep......................................................................................................
Menu Operations.......................................................................................
Picture Menu Options...............................................................................
Picture Menu Options Continued...............................................................
Sound Menu Options................................................................................
Sound Menu Options Continued................................................................
Function Menu Options.............................................................................
Function Menu Options Continued.............................................................
Adjust Menu Options................................................................................
Tuning Menu Options..............................................................................
Tuning Menu Options Continued..............................................................
Parental Menu Options.............................................................................
Parental Menu Options Continued.............................................................
Troubleshooting Guide...............................................................................
Specifications...........................................................................................
Warranty terms.........................................................................................
1
2
3
4
5
6
6
7
7
7
7
8
9
9
10
11
11
11
11
12
12
12
12
13
13
14
14
15
16
17
17
18
19
19
20-22
23
24
25
Before connecting the LCD-TV and turning on the power, please
read this book carefully. Please keep this book for later use.
If the unit is disabled by an electrostatic discharge, please turn off
the power to the unit and turn it back on to reset.
Safety Notice Items
Incorrect usage maycause fire orelectric shock.
Please keep this manual for later use;
Please comply strictly with the warning instructions on the machine and
in this book;
Before operation, please make sure that the operating voltage of your unit is
correct;
Do not remove the back cover. If service is needed, please contact an
Authorized service technician.
To prevent this, please do as
required when you are installing, using and cleaning this machine. To insure your
safety and extend the life-span of LCD-TV, please readthe following items
carefully before using:
lPlease read and understand all the instructions before operation;
l
l
lPlease comply with the instructions provided;
lPlease do not use additional devices that are not recommended by
manufacturer:
l
lDo not placethe unit onunstable, dusty andhumid places;
lNever put theunit in directsunlight or nearheat sources;
lAllow enough space for proper ventilation;
lPlease keep water away from the LCD-TV . If water comes in contact with the
LCD-TV, disconnect the power cord from the power source, then wipe the set
with a dry soft cloth;
l

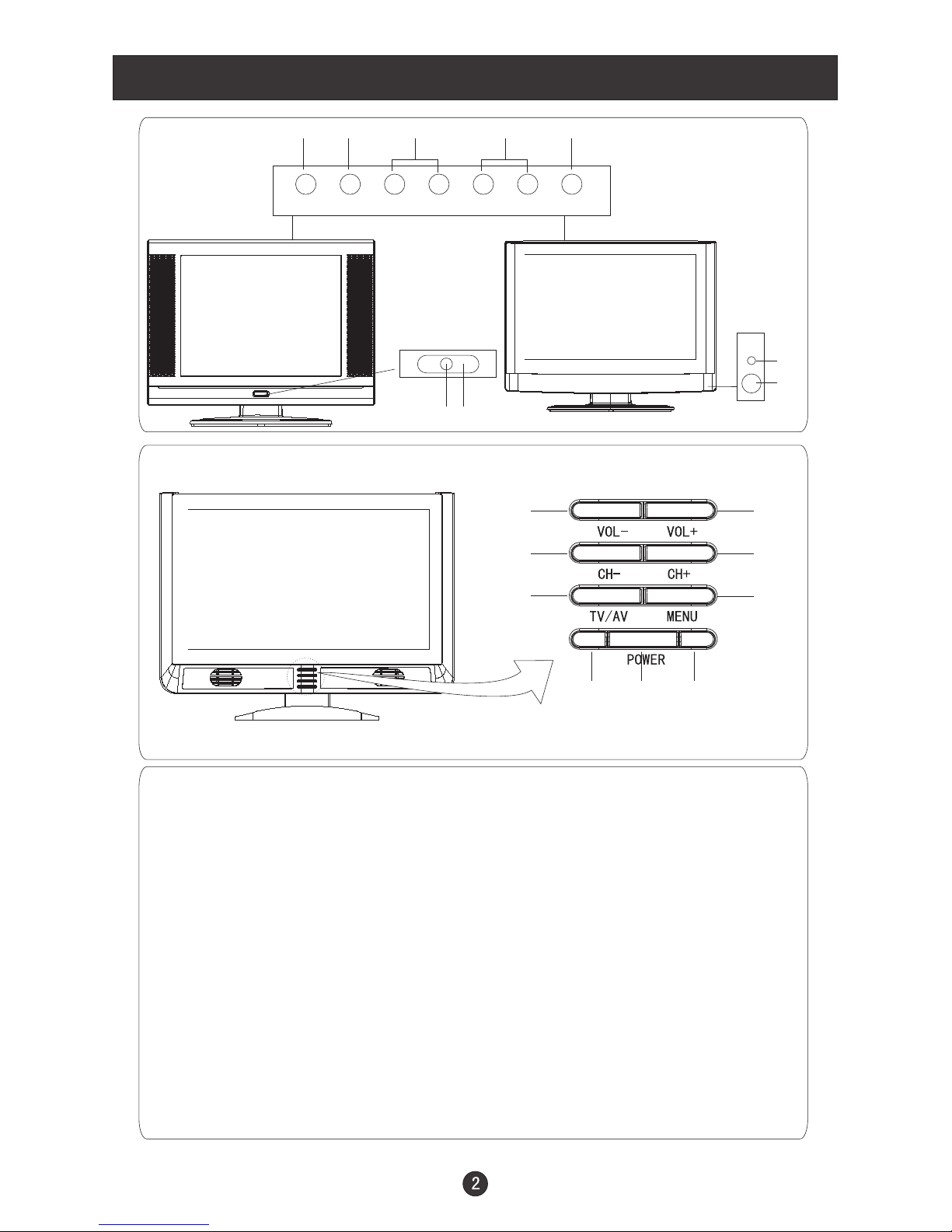

Front Panel Controls
Control Panel Function
67
TV/AV MENU VOL- VOL+ CH- CH+ POWER
2345
1. Power supplyswitch
2.TV/AV PC/COMPONENT/AV/SV/TV
3. MENU Press to select the main menu
4. VOL- Volume down/ Left orientation to adjust the item in the OSD
VOL+ Volume up / Right orientation to adjust the item/Press to enter
5. CH- TV channel down / to select the item in the menu
CH+ TV channel up / to select the item in the menu
6. Power indicator
Illuminates red in standby mode, illuminates green when the
display is turned on
7.Remote Sensor
Selects the input signals:
Receives the signals from the remote control
/blue
1
4
5
4
23
167
5
L1510A/L1510P
L2310A
6
7
L1910A
AV /S-VIDEO/COMPONENT Audio Input
Connect audio
output from an external
device to thisjack
VGA Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Connection Options
Earphone port
PC Audio Input
Connect the PC output
connector from aPC to
the audio inputport
The figure is just for reference, please see the actual unit. )
L1510A/L1910A/L1510P
DVD/DTV Input
Connect a componentvideo/audio
device to thesejacks
ANT IN S-VIDEO VGA IN
PC AUDIO IN AUDIO IN
R L
VIDEO IN
V
Pb
Pr Y
COMPONENT IN
ANT IN S-VIDEO VGA IN
PC AUDIO IN AUDIO IN
R L
VIDEO IN
V
Pb
Pr Y
COMPONENT IN
Video Input
Connect video
output from an external
device to thisjack
AV /S-VIDEO/COMPONENT Audio Input
Connect audio
output from an external
device to thesejacks
VGA Input
Connect to theVGA
15PIN analog output
connector of thePC
display card forPC
display purpose
S-Video Input
Connect S-Video out
from an S-Video device
to the jacks.
Antenna Input
Connect cable or
antenna signals to
the TV, either direc-
tly or through your
cable box.
Connection Options
Earphone port
PC Audio Input
Connect the PC output
connector from aPC to
the audio inputport
(The figure is just for referrence, please see actual unit. AC power supply switch button is on the back )
L2310A
DVD/DTV Input
Connect a componentvideo/audio
device to thesejacks
ANT IN
S-VIDEO
VGA IN PC AUDIO IN AUDIO IN
R
L
VIDEO IN
V
Pb PrY
COMPONENT IN
ANT IN
S-VIDEO
VGA IN PC AUDIO IN AUDIO IN
R
L
VIDEO IN
V
Pb PrY
COMPONENT IN
Video Input
Connect video
output from an external
device to thisjack
Remote Control Key Functions
When using theremote control, aimit towards the remote sensor on the TV
2. Power supply switch
9. MENU
To display/exit the main menu
11. CH+/CH-
TV channel up/down or select the item of the menu
12. VOL+
Volume up/ to selectthe main menu/to adjust the item/ to
enter the submenu.
VOL- Volume down/ to select the main menu/ to adjust the item
6. 0-9 TV channel numberselect
3. RECALL
Quick TV channel switch(return to the last channel)
10. TV/AV Select PC/COMPONENT/AV/SV/TV
7. MTS/SAP Select MONO,STEREO, SAP in NTSC system
1. MUTE MUTE
8. P.STD Select picture mode:PERSONAL/STANDARD/MILD/FRESH
5. DISPLAY Display current input signal information
4. EXIT Menu exit
Illustration of the keys on the remote control:
MUTE
RECALL DISPLAY EXIT
123
456
789
MTS/SAP P.STD
MENU TV/AV
CH+
CH-
VOL
-
VOL
+
CCD SLEEP SCAN
0
12
34
5
6
78
910
11
12
13 14
15
13. CCD
Closed caption on/off
14. SCAN
Channel scan
15. SLEEP
TV sleep button
Remote Control
Installing Batteries
1.Slide open thecover of thebattery compartment on the back of the remote
control.
2.Load two batteries in thecompartment. (plus and minus poles to
respective mark)
3.Replace the coverof the batterycompartment.
AAA alkaline
Precautions
Make sure that there is no
obstacle between theremote
controller and televisionset.
As strong light may interfere with the
signals, change yourposition to
operate the remote control if
the television cannot be turned
on or off as expected.
Keep the remote control
away from heat sources or
humid areas toensure
effective performance of
the remote.
Make sure that two alkaline
batteries are loaded. The batteries
must be of the same type, must be
inserted properly, and must not be
rechargeable.
AAA
+
-
This manual suits for next models
3
Table of contents
Other Haier LCD TV manuals
Haier
Haier LC32F2120 User manual
Haier
Haier SRT32HC4433 User manual
Haier
Haier LE19Z6 User manual
Haier
Haier LR47T1 User manual
Haier
Haier LE32C13200 User manual
Haier
Haier LD42U7000 User manual
Haier
Haier LE32K6000 User manual
Haier
Haier 22T51 User manual
Haier
Haier LE19B13200 User manual
Haier
Haier L32A9A-A1 User manual
Haier
Haier LE32V600 User manual
Haier
Haier HL32P2 User manual
Haier
Haier HL19SL2 User manual
Haier
Haier L26M3 User manual
Haier
Haier HL19SL2 User manual
Haier
Haier HL37XLE2 User manual
Haier
Haier LE40K6600G User manual
Haier
Haier LE55B8000 User manual
Haier
Haier HL22F1 - Designer F-Series - 22" LCD TV User manual
Haier
Haier LE29C810C User manual
