Haier WQP12-EFMS User manual

WQP12-EFMS

Dishwasher

Service Manual

Models:

 Features



Eco wash



Water overflow protection is provided

 Three spraying instruction, which makes washing more thorough

Haier Group

Manual code: 0120501827 Edition:2003.01.01

Contents

1. Product Code illumination and Series introduction …………………….………...2

2. Features………………………………………………… ……………………………….3

3. Specifications…………………………………………… ……………………………….4

4. Safety Precaution………………………………………… ………………………….…...6

5. Warning and Cautions………………………………… ………………………………..8

6. Net Dimension……………………………………………………………………………9

7. Installation and Accessory Parts…………………… …………………………………10

8. Parts and Functions………………………………… ………….. ………………...…...12

9. Function Schedule………………………………………………………………………..17

10. Program Diagram…………………………………………………………………………18

11. Maintenances Service and Trouble Shooting……… ………………………………….19

12. Circuit Diagram……………………………… ………………………………….….…. 25

13. Exploded View…………………………………… …………………………………...26

14. List of Parts………………………………………… …………………………………27

15. Damageable Parts List ……………………………………………….. ………31

Product Code illumination and Series Introduction

1.Product Code Illurmination and Series Introduction

Model Identification

□□□□─□ □□□

A BC D E F G H

A: Abbreviation of dishwasher

B: Automatic/semi-autometic

C: Type of washing

D: Code name of Nominal capacity

E: Series of factory design

F: Freestanding/built –in/semi-built-in

G: Mechnical/electronic

H: The second series of factory design,code name delicatied./outter side material..

Example:

WQP12-BFE

It represents automatic spraying electronic freestanding dishwasher,the cavity capacity

is 12 standard sets.

WQP12-BFESS

It represents automatic spraying electronic freestanding dishwasher,the cavity capacity is

12 standard sets,with stainless steel outter side.

WQP12-HFE

It represents automatic spraying electronic freestanding dishwasher,the cavity capacity is

12 standard sets,with stainless steel outter side.

WQP12-HFE ME

It represents automatic spraying electronic freestanding dishwasher,the cavity capacity is

12 standard sets,with stainless steel outter side.

Features / Specifications

2.Features

2.1 This product is provided with economic washing mode that users can select

optionally.

2.2 This product can contain 12 sets of eating utensils, applicable to big family.

2.3 This product utilizes the technique of multipoint spraying and double layers

four-sprinkle, which can wash dirty of eating utensils away anywhere.

2.4 Water softening function is provided which can prevent incrustation forming.

2.5 Water overflow protection is provided.

3.Specifications

DISH WASHER FREE STANDING

Last update 2002-5-23

Supplier Type N°. WQP12-EFMS

Suppliers bar code N°. EAN -

Sales Brand / Model GXCH -

Sales bar code N°. EAN -

1. Key-features

Energy efficiency Class A

Washing efficiency Class B

Drying efficiency Class B

Noise level power / pressure dB(A) 55

Energy consumption* kWh / y 384

kWh/24h

1.05

Water consumption* l 18

Duration of programme (Based on 65° normal prog.) mins.

100

Place settings (international standard) 12

Programs (incl. additional programme functions) n°. 8

Programme selection single dial / electronic / -

Washing temperatures °C 50 / 60

Spray levels n°. 3

Certification's (CE / LGA / ISO 9001 / ISO 9002) CE / ISO 9001

2. Technical equipment

Work top / -removable -/

Decor frame / optional - /-

Water heating element hidden / open / -

Refill spy-lamps salt / rinse aid /

Program progress indicator LED / visual /

Inner door S= stainless steel / P=

plastic

Interior S= stainless steel / P=

plastic

Dispenser system Detergent / Rinse aid /

Water softening system / n°. of water hardness levels /4

Electronically controlled water hardness -

Easy clean filter system / self cleaning micro filter /-

Height adjustable top basket 

Cuttlery sliding tray

removable basket

/

Plates sizes bottom basket / upe

basket cm 19,23,26/14

Water inlet hose cold water / hot water /-

Water drain hose / -hose support /

Drying system Condenser / Turbo vented natural

Height adjustable feet n°. / max. mm 4/20

Delay timer (from - to) h

3. Safety systems

Child resistant door lock CDL -

Anti flood system AFS 

Waterproof anti leak system ALS 

Water return protection WRP 

Acqua Stop kit 

4. Programs

Normal C° -

Intensive C° 60

Economic C° 55

Delicate or Light wash C° 50

Rinse C° 60

Mixed C° -

Rapid C°

Pre-wash (soak) C° 

5. Additional program settings (optional function keys)

Half load 

Economic 

Rapid 

Delicate glasses -

6. Technical data

Voltage/frequency V/Hz

220-240V~50Hz

Nominal power W 2100

Main fuse (intensity) A 13

7. Product dimensions

Unitdimensions (HxWxD) cm 85X60X60

Depth with open door cm 7.5

Net weight kg 43

8. Built-In

Requested measures of niche (H x W x D) cm

Dimensions of door panel (H x W) cm

9. Packing

Dimensionsofpacking (HxWxD) cm 88X66X67.5

Weight of packing (all materials) kg 48.00

10. Informations for importer

14,5 m (84 CBM.) Truck load capacity pcs -

Jumbo (120 CBM.) Truck load capacity pcs -

40' Container load capacity pcs -

40' HC load capacity pcs 162

Max. failure rate (12 Months after sales to end customer) pc/% -

11.

Packing materials / Recycling symbols

RS REzY

Carton (weight) g 4,600

Polistyren (weight) g 1,518

Polyetylene foil (weight) g 65

Otherpackingmaterials (weight) g 55

Wood (weight) kg 0.15

Safety Precaution

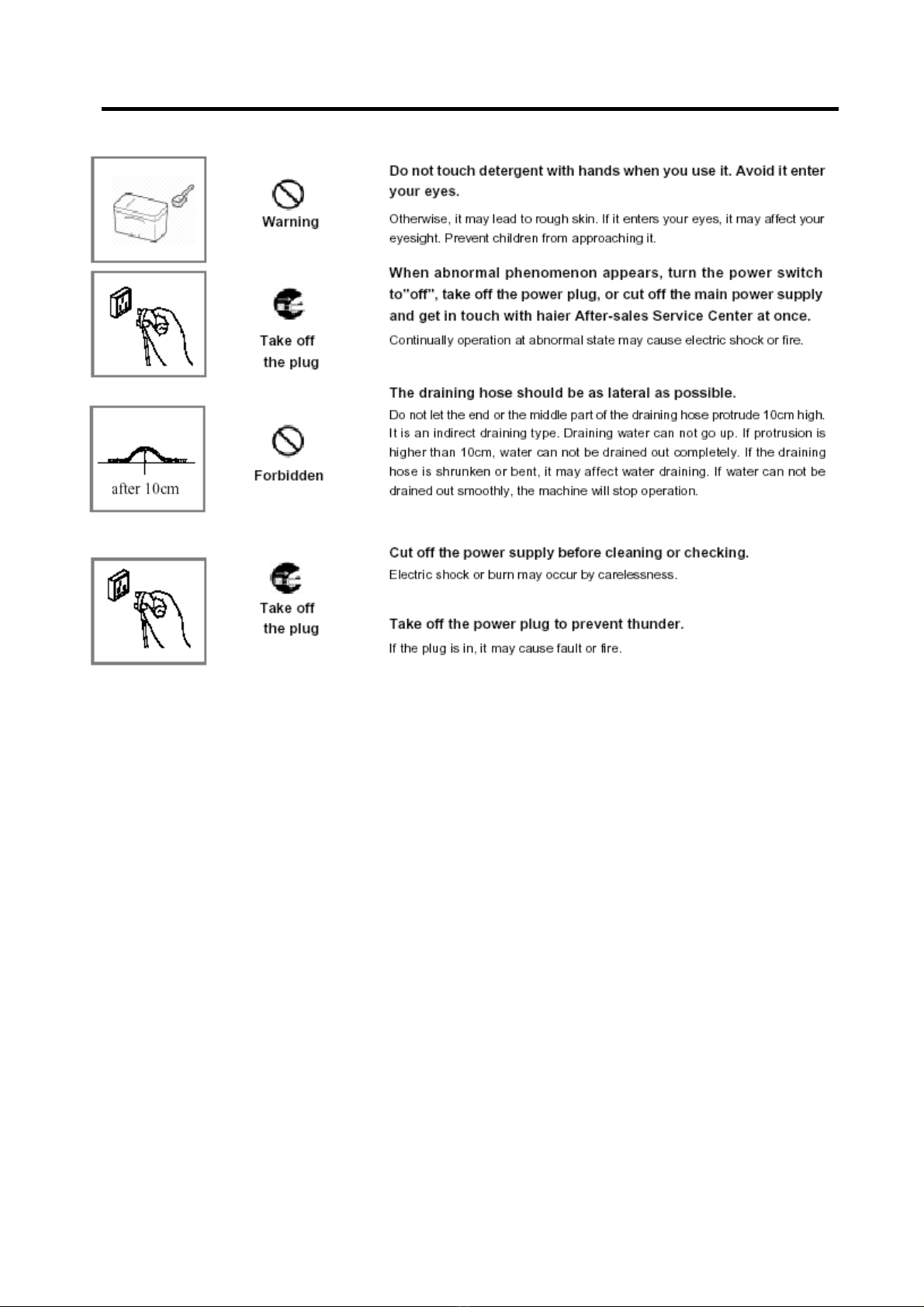

4. Safety Precaution

Safety Precuation

Warning and Cautions

5. Warning and Cautions

1.Shelf(The container which dishes are put in is called shelf)

2.Put the shelf into the washing box

3.Put in detergent

4.End of cycle

Warning and Cautions

5.Weekly maintenance
