Haier DW-8888-24 User manual
1
HAIER
FULLY AUTOMATIC
DISHWASHER
SERVICE MANUAL
PART # DW-8888-24
HAIER AMERICA TRADING, LLC
www.haieramerica.com
1
HDB24EA
Dishwasher
Service Manual
Models:HDB24EA
Features
zHeated Dry Option
zAutomatic Food Disposer
z6 Level Rinse Aid Dispenser
zDetergent Dispenser
zUpper and Lower Rack with Silverware Basket
zTower Style Spray Arm
Haier Group
Manual code: 0120501187 Edition:2003.04.01
2
Contents
1. Features ………………………………………………………………………….…..……...3
2. Specifications……………………..……………………… ……………………………….4-5
3. Safety Precaution………………………………………… ………………………..…….…6
4. Before using your dishwasher……………………… ………………………….………….7
5. Parts and features……………………………………………………………………………8
6. Start-up guide…………………… ……………………………………………………….9-10
7. Dishwasher loading………………………………… ………….. ………………...…...10-12
8. Dishwasher use…………………………………………………………………………..12-16
9. Washing special items…………………………………………………….…………………17
10. Dishwasher care……… ……………………………………………………….……………18
11. Troubleshooting……………………………… ………………..………………….….….19-20
12. Dishwasher installation…………………………… …………..………………………...21-36
13. Program diagram………………………………………… ……….…………………………37
14. Electrical schematic diagram…………………………………………..………………..38
15. Maintenances Services and Trouble Shooting………………………………….……..39-42
3
Features
1.Features
1.1 Heated Dry Option
1.2 Automatic Food Disposer
1.3 6 Level Rinse Aid Dispenser
1.4 Detergent Dispenser
1.5 Upper and Lower Rack with Silverware Basket
1.6 Tower Style Spray Arm
4
Specifications
2.Speciafications
1Haier Model Number HDB24EA
2Features
Installation Type Built-in
Wash System Standard
Wash Levels 2
Filtration System twice/filtration
Door Liner Plastic
Tub Liner Plastic
Food Disposer Yes
3Cycles
Pre-wash Yes
Pots & Pans Wash Yes
HeavyWash Yes
NormalWASH Yes
Light WASH No
Glassware No
Rinse & Hold Yes
4Additional programm settings
Upper Wash No
Hi-temp wash No
Convection dry No
Vented Dry No
Heated Dry Yes
DelayStart No
Start/Pause No
Rapid Dry ON/OFF Yes
5Rack, Shelf & Basket
Material of cover PA(NYLON)
Upper Rack Deluxe(not adjustable)
Lower Rack Deluxe(not adjustable)
Silverware Basket Deluxe
Cup shelf No
Sprayer Stainlesssteel(lower)+Plastic(upper)
6Function description
Control Type Dial/Push Button
Indicator lights No
Touch Pad/Push Button Push Button
Rinse Aid Dispenser Yes
Detergent Dispenser Yes
120'F Inlet Water Yes
Overfill Safety Control(flood cotrol) Yes
5
Heating element Yes
Leveling Legs Yes
Color Availability White
Power wire No
Washing pump & Drain pump Yes/Yes
fan for drying No
7System Performance Spec
Normal wash Performance Yes
Main wash noise (dBa) 60
DOE energy(KWH/Y) 560
Normal wash water usage 5.5gal(24.8L)
8Regulatory
UL/CSA/ETL/EEV/ISO9001 CSA/EEV/ISO9001
9Unit Dimensions (Inches)
Height w/Olegs retracted 33-7/8
Height w/ legs Extended 34-1/2
Overall Width 23-7/8
Overall Depth 24-5/8
Unit Weight (lbs) 68
10 Carton Dimensions (In.)
Height 36-3/8
Width 26-3/8
Depth 28-1/2
Shipping Weight (lbs) 82
Container Quantity 40`ST/40`HQ/Container Utilization 143(40`ST)/(68%)
45`HQ/Container Utilization
UPC Code
11 Power requirements 115V/60Hz
Watts 920
6

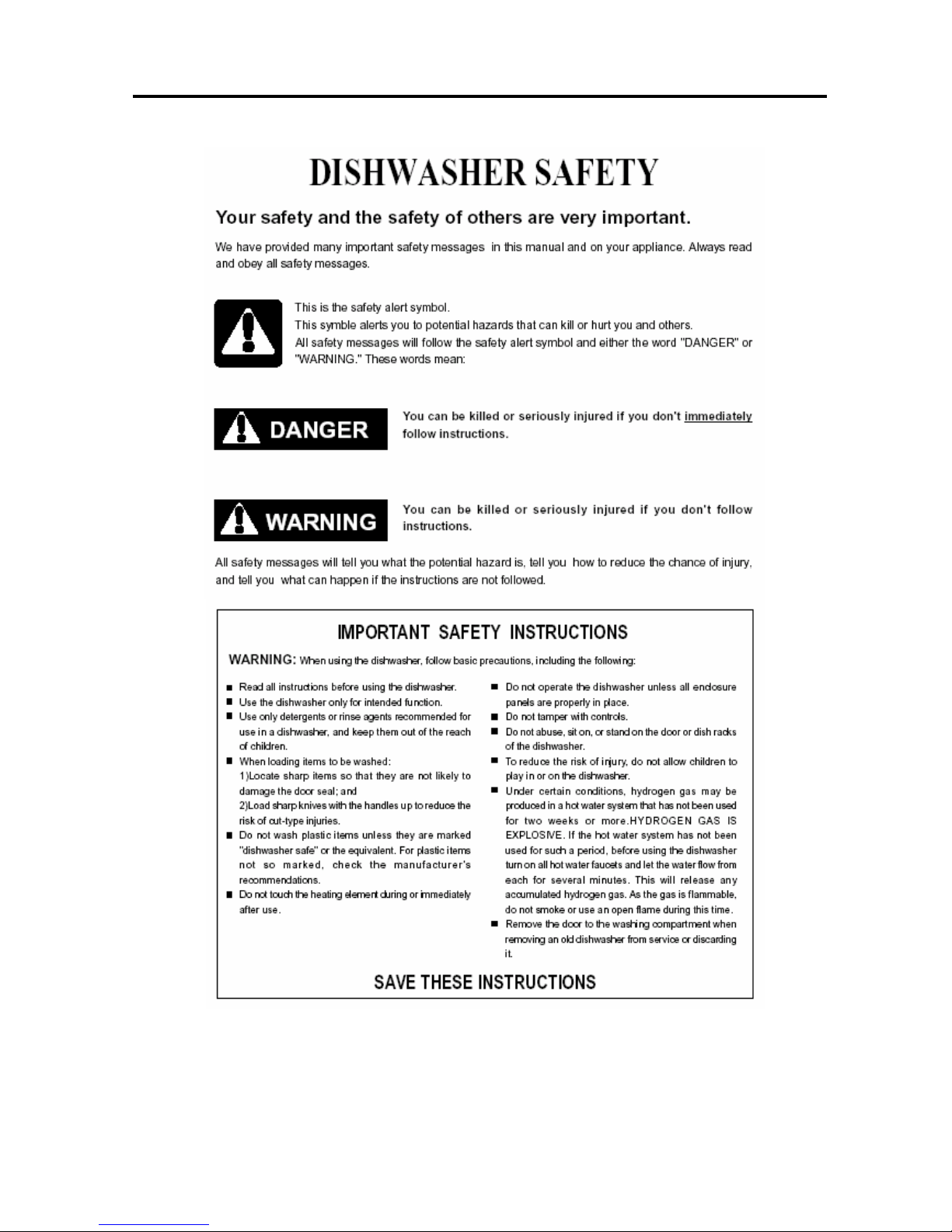

Safety Precaution
3. Safety Precaution
7

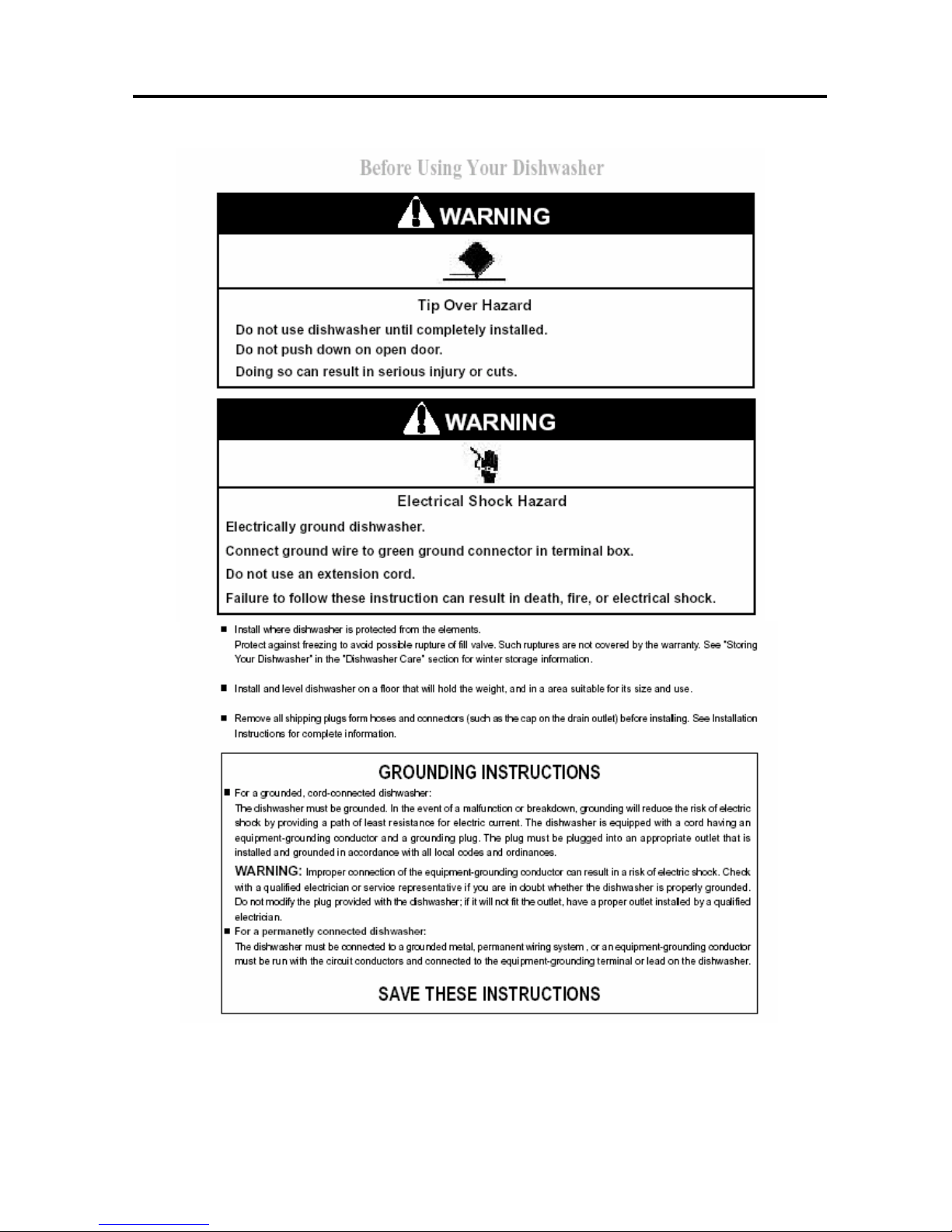

Before using your dishwasher
4. Before using your dishwasher
8

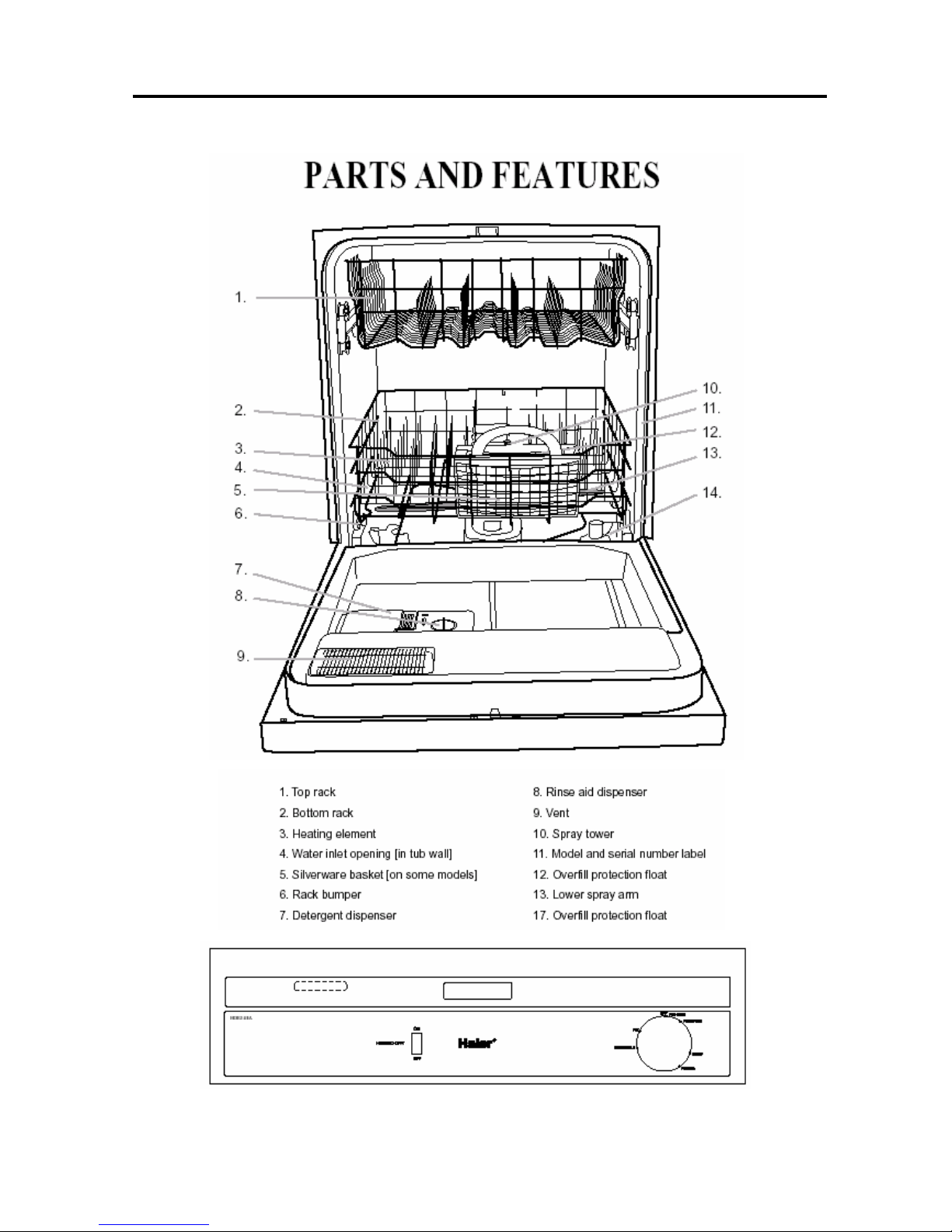

Parts and features
5.Parts and features
9

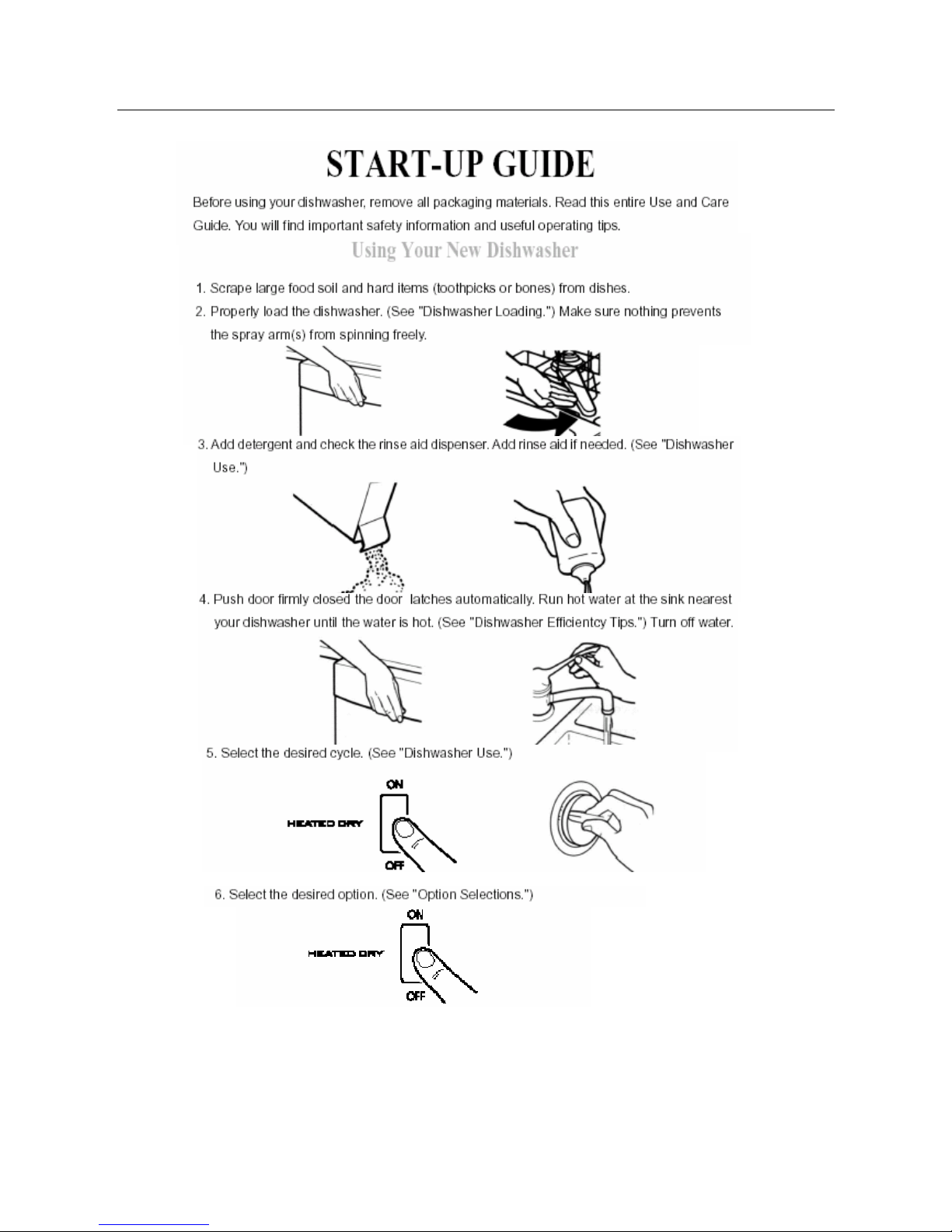

Start-up guide
6.Start-up guide
