HAI RC-1000 User manual

RC-1000 and RC-2000

Programmable Communicating Thermostat

User’s Guide

Contents

About your thermostat ................................................................................................................................. 1

Features:......................................................................................................................................................................1

Getting to know your thermostat’s controls............................................................................................... 2

Getting to know your thermostat’s display (Advanced Display) .............................................................. 4

Filter Reminder ...........................................................................................................................................................4

Getting to know your thermostat’s display (Simplified Display).............................................................. 6

Changing the desired temperature settings ................................................................................................ 7

Changing the thermostat mode.................................................................................................................... 8

About the fan and hold settings ................................................................................................................... 9

About the hold settings ............................................................................................................................... 10

Setting the time and date............................................................................................................................ 11

Modifying the program schedule............................................................................................................... 12

Changing the desired humidity setting (RC-2000)................................................................................... 16

Display the runtime graph of air conditioning and heating usage.......................................................... 17

Document Number 65A17-1, March 2008

About your thermostat

Thank you for purchasing your new Omnistat2 electronic communicating thermostat. Your thermostat will provide you with

comfort, convenience, and energy savings for years to come.

The Omnistat2 is a precision digital thermostat. It has the capability of being controlled both locally and remotely. It offers stand

alone operation, programmability, and communications with automation systems, utility control systems, and personal computers.

Please take a few moments to become familiar with all of the features of your new thermostat by reviewing this guide. A complete

Omnistat2 Owner’s Manual can be downloaded from our web site at www.homeauto.com.

Features:

xDigitally precise temperature control

x7 day programmable

xMulticolor backlight, user defined color

xProximity/motion detector, screen lights up when approached

xVacation mode

xEasy to navigate menus

xCommunicates with automation systems, utility control systems, and personal computers

xDisplays outdoor temperature

xGraphical display of HVAC usage, by week

xFilter reminder

xLarge graphical display

xLearns the patterns of your house and uses smart control to apply maximum comfort with efficiency

xAutomatic heat/cool changeover

xFan cycle mode

xHumidity sensing1

xHumidifier control1

xDehumidifier control1

1Only available on the RC-2000

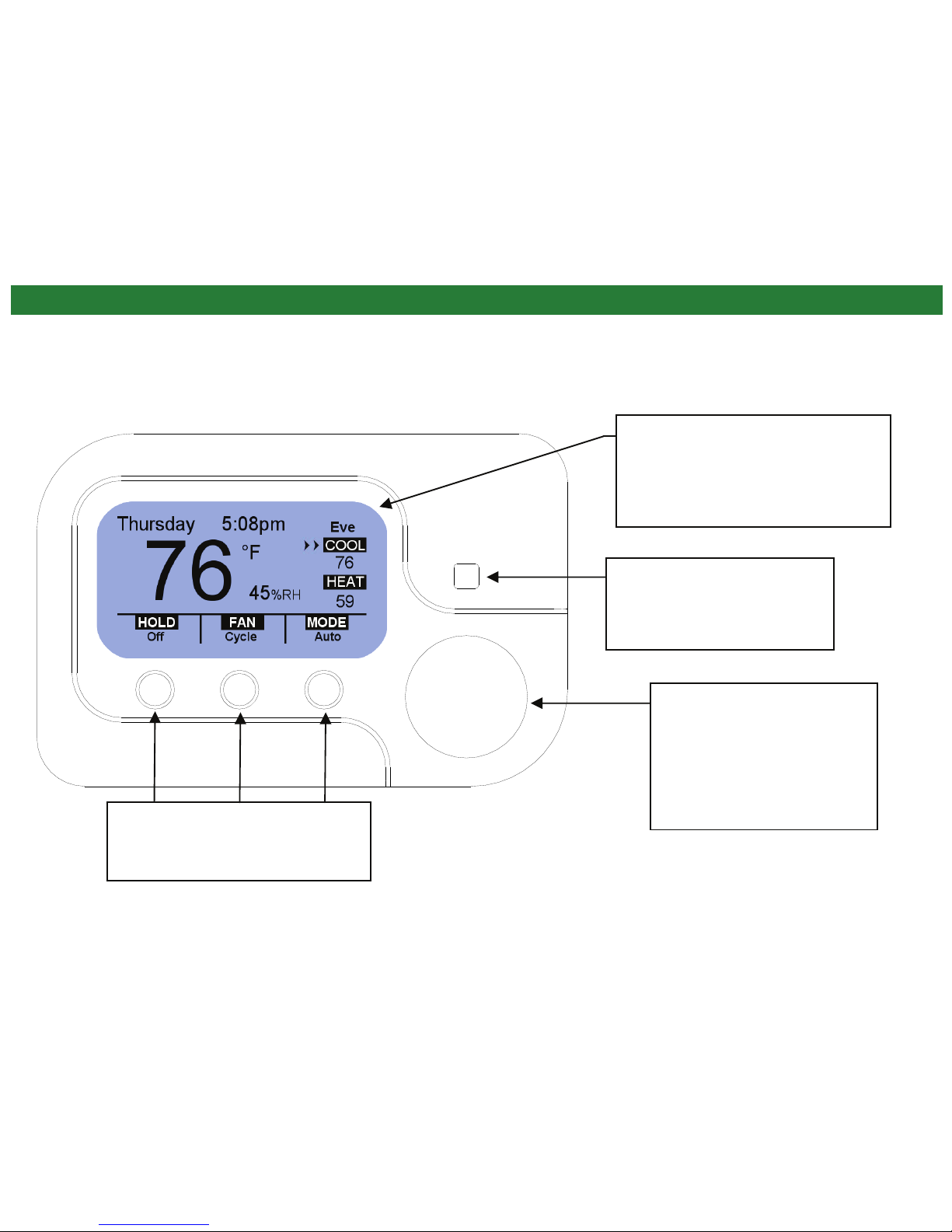

Getting to know your thermostat’s controls

To take advantage of all the benefits and features offered by your new thermostat, we recommend that you start by becoming

familiar with its controls.

Scroll Wheel

Turn to adjust the temperature,

navigate menus, and change

values and settings.

Press for the Main Menu, and to

make or confirm a setting.

Task Buttons

Press to select the task that is displayed

above the respective button.

Proximity/Motion Sensor

The display lights up when

approached, making it easy to

ust in the dark of ni

ht.

Large Graphical Display

Customizable multicolor backlit display

shows everything necessary to operate

your system and monitor temperature

and humidity.

Getting to know your thermostat’s controls

Adjusting the color of the thermostat display:

To adjust the color of the thermostat display press and hold [HOLD] while turning the Scroll Wheel:

Press and hold [HOLD].

While pressing [HOLD], turn the Scroll Wheel to

adjust the color.

When complete, release [HOLD].

The following icons are used throughout this guide:

Turn the Scroll Wheel to the right or to the left.

Press the Scroll Wheel.

Press the Task Button on the left.

Press the Task Button in the middle.

Press the Task Button on the right.

Adjusting the contrast of the thermostat display:

To adjust the contrast of the thermostat display press and hold [FAN]

while turning the Scroll Wheel:

Press and hold [FAN].

While pressing [FAN], turn the Scroll

Wheel to adjust the contrast.

When complete, release [FAN].

Getting to know your thermostat’s display (Advanced Display)

The following graphics will be displayed on the Home Page when using the Advanced Display:

Filter Reminder

Your thermostat logs the amount of time your heating and cooling system has been running and gives you a reminder when it's time to replace your

filter. “Change Filter” will be displayed on the Message Bar when it is time to change your filter.

Press the Scroll Wheel twice to clear the change filter reminder. Don't forget to change your filter!

Message Bar (6) Period Indicator (10)

Cool Setting

(2)

Heat Setting

(

)

Thermostat Mode

(4)

Relative Humidity (9)

(RC-2000)

Fan Setting (8)Hold Setting (7)

Current Indoor

Temperature

(1)

Status Indicators (5)

Getting to know your thermostat’s display (Advanced Display)

(1) Temperature: Displays the current indoor temperature.

(2) Cool Setting: Displays the desired cool setting.

(3) Heat Setting: Displays the desired heat setting.

(4) Thermostat Mode: Displays the current system mode: Off, Heat, Cool, Auto, or EM Heat (Emergency Heat for heat pump systems)

(5) Status Indicators:

Cool 1st stage of air conditioning system is running

Heat 1st stage of heating system is running

Cool 1st and 2nd stage of air conditioning system is running

Heat 1st and 2nd stage of heating system is running

Note: The Status Indicators may flash to indicate a start up delay for equipment protection. After a few minutes, the compressor will start

and the Status Indicators will stop flashing.

(6) Message Bar: The message bar displays messages that you enable. If more than one message type is enabled, the message bar will display

the first message for 4 seconds, and then the next message is displayed. On the advanced display, the available message types are as follows:

Date and Time Outdoor Status (outdoor temperature and/or outdoor humidity) Filter Reminder (time to change the filter)

Energy Status Energy Messages

(7) Hold Setting: Displays the current hold setting: Off, On, or Vacation

(8) Fan Setting: Displays the current fan mode: Auto, On, or Cycle

(9) Relative Humidity: Displays the current relative humidity (RC-2000 only).

(10) Period Indicator: Morn, Day, Eve, or Night is displayed when scheduled temperature changes are made by the thermostat programs.

Getting to know your thermostat’s display (Simplified Display)

The following graphics will be displayed on the Home Page when using the Simplified Display:

(1) Temperature: Displays the current indoor temperature.

(2) Thermostat Mode: Displays the current mode: Heat or Cool. If the thermostat is in Off mode, this area is blank.

(3) Temperature Setting: Displays the desired temperature setting for the current thermostat mode (the mode that is displayed directly above

this setting). If the thermostat is in Off mode, this area is blank.

(4) Status Indicators:

Cool 1st stage of air conditioning system is running

Heat 1st stage of heating system is running

Cool 1st and 2nd stage of air conditioning system is running

Heat 1st and 2nd stage of heating system is running

(5) Time: The current time of day is displayed.

Current Indoor

Temperature

(1) Temperature Setting

for Current Mode

(3)

Thermostat Mode (2)

Status Indicators (4)

Time

(

)

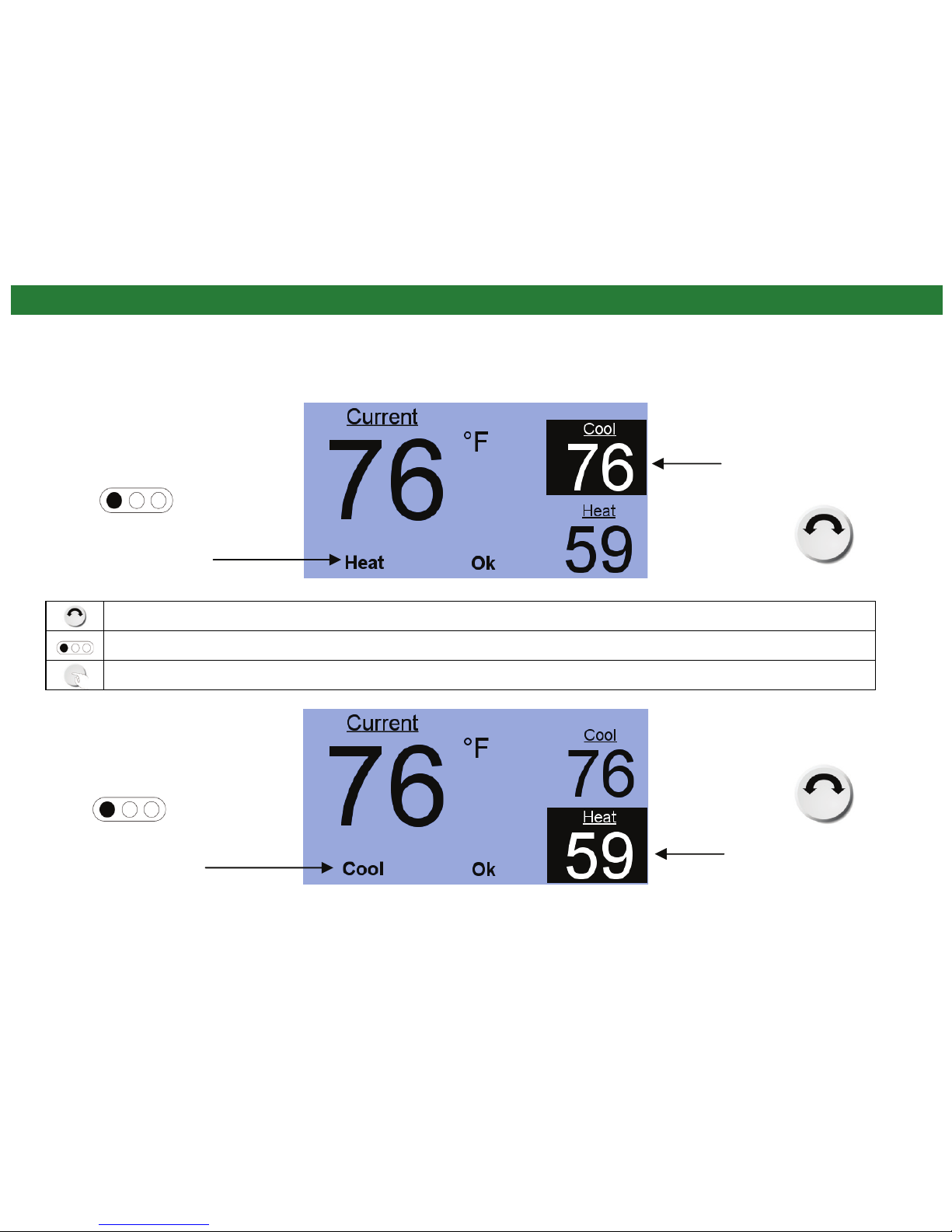

Changing the desired temperature settings

To change the desired temperature setting, simply turn the Scroll Wheel. With the first turn of the Scroll Wheel, the

Temperature Settings Page is displayed:

Turn the Scroll Wheel to adjust the temperature setting for the current mode.

To adjust the temperature setting for the opposite mode, press [Heat] or [Cool].

Press the Scroll Wheel or [Ok] when complete.

Press [Heat] to adjust the

Heat Setting

Turn the Scroll Wheel to

adjust the Cool Setting

Press [Cool] to adjust the

Cool Setting Turn the Scroll Wheel to

adjust the Heat Setting

On the Temperature Settings Page,

you will initially be adjusting the

temperature setting for the current

thermostat mode.

Changing the thermostat mode

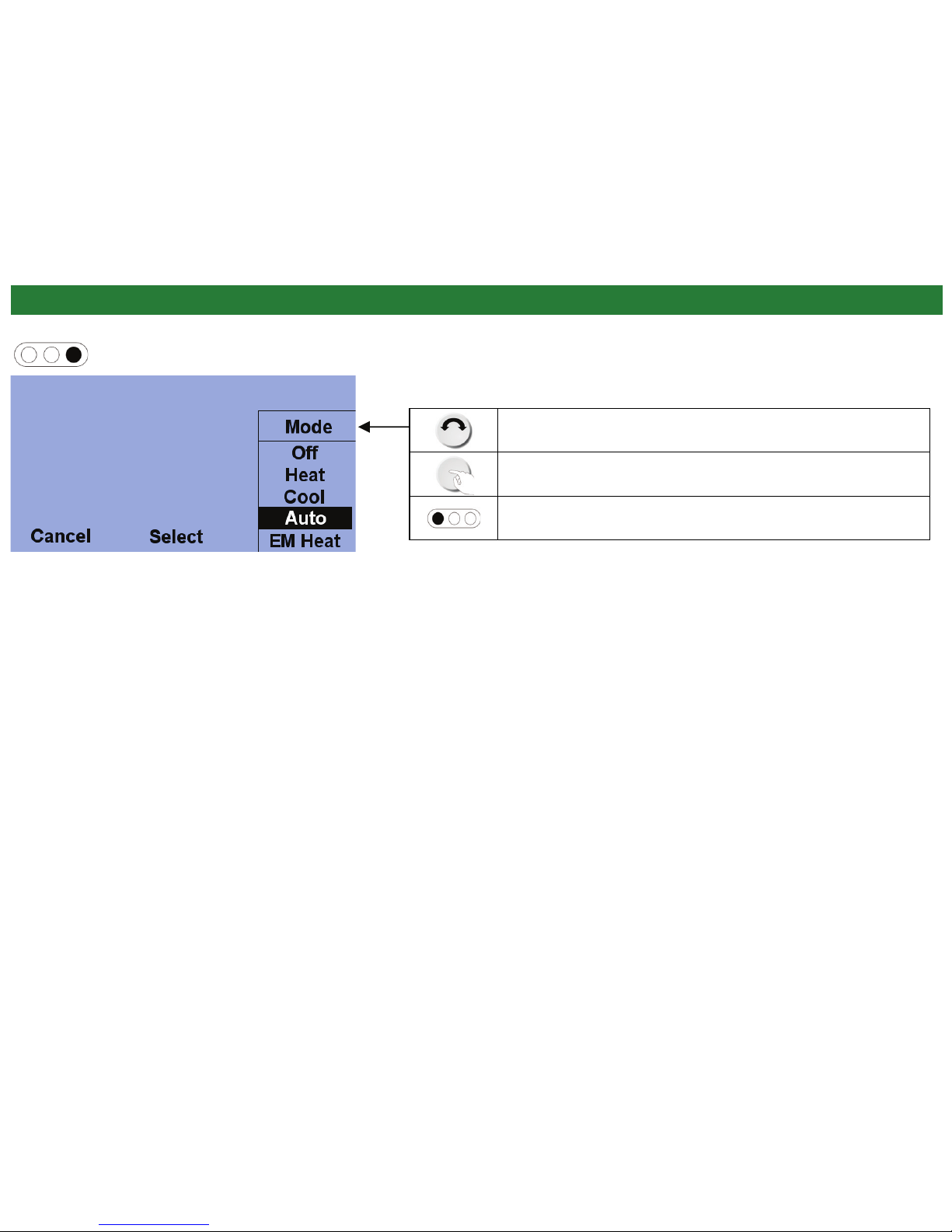

To change the thermostat mode, press [MODE]. When first pressed, the Mode Setting Page is displayed:

Changing the thermostat mode

¾In Off mode, the heating and air conditioning systems are both off and do not respond to changes in the temperature

settings.

¾In Heat mode, the heating system responds to maintain your desired heating temperature setting.

¾In Cool mode, the air conditioning system responds to maintain your desired cooling temperature setting.

¾In Auto mode, your thermostat will automatically switch between heat and cool to maintain your desired heating and

cooling temperature settings.

¾In Emergency Heat mode (for heat pumps with auxiliary heat) the thermostat will turn off the heat pump and use the

auxiliary heating to maintain the heating temperature setting. This mode should only be used if the heat pump is

malfunctioning, because the auxiliary heat costs more to operate than the heat pump.

Turn the Scroll Wheel to scroll through the list of modes.

Press the Scroll Wheel or [Select] to select the highlighted mode.

Press [Cancel] to discard changes and return to the Home Page.

MODE
