Häfele HH-SG70A User manual
1
USER
MANUAL
PRODUCTS NAME: HOOD HH-SG70A
Products Applied: 533.89.021
EnglishVietnamese
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS
CHARACTERISTICS
INSTALLATION
USE
MAINTENANCE
...........................................3
................................................................................6
......................................................................................7
.......................................................................................................9
.....................................................................................10
3
RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
•The manufacturer will not be held liable for any damages resulting from incorrect or
improper installation.
••The minimum safety distance between the cooker top and the extractor hood is 650
mm (some models can be installed at a lower height, please refer to the paragraphs on
working dimensions and installation).
••Check that the mains voltage corresponds to that indicated on the rating plate fixed to
the inside of the hood.
••For Class I appliances, check that the domestic power supply guarantees adequate
earthing.

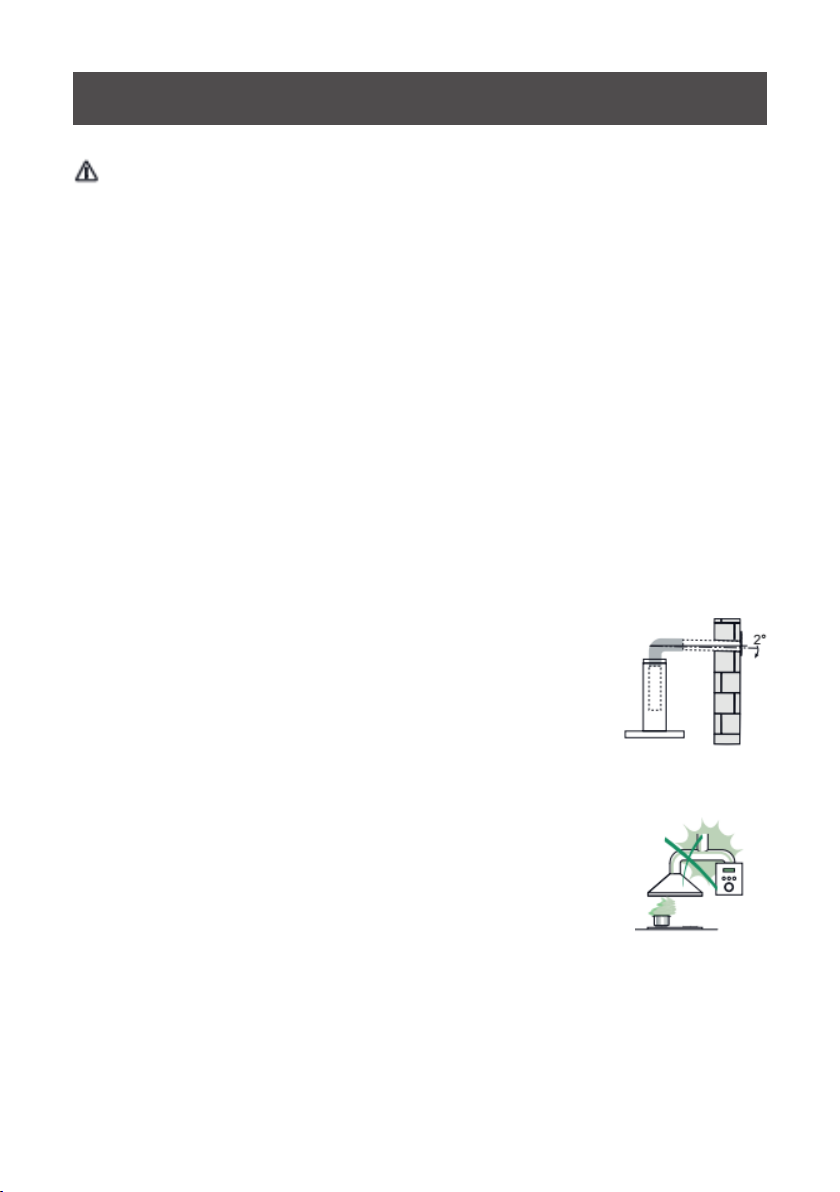

•Connect the extractor to the exhaust flue through a pipe of minimum diameter 120
mm. The route of the flue must be as short as possible.
••Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boil-
ers, fireplaces, etc.).
••If the extractor is used in conjunction with non-electrical applianc-
es (e.g. gas burning appliances), a sufficient degree of aeration
must be guaranteed in the room in order to prevent the backflow
of exhaust gas. The kitchen must have an opening communicating
directly with the open air in order to guarantee the entry of clean
air. When the cooker hood is used in conjunction with appliances
supplied with energy other than electric, the negative pressure in
the room must not exceed 0,04 mbar to prevent fumes being drawn back into the
room by the cooker hood.
••The air must not be discharged into a flue that is used for exhaust-
ing fumes from appliances burning gas or other fuels (not applicable
to appliances that only discharge the air back into the room).
••In the event of damage to the power cable, it must be replaced by
the manufacturer or by the technical service department, in order
to prevent any risks.
The Instructions for Use apply to several versions of this appliance.
Accordingly, you may find descriptions of individual features that do not apply to your
specific appliance.
4
RECOMMENDATIONS AND SUGGESTIONS
••If the instructions for installation for the gas hob specify a greater distance specified
above, this has to be taken into account. Regulations concerning the discharge of air
have to be fulfilled.
••Use only screws and small parts in support of the hood.
Warning: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.
••Connect the hood to the mains through a two-pole switch having a contact gap of at
least 3 mm.
USE
••The extractor hood has been designed exclusively for domestic use to eliminate kitch-
en smells.
••Never use the hood for purposes other than for which it has been designed.

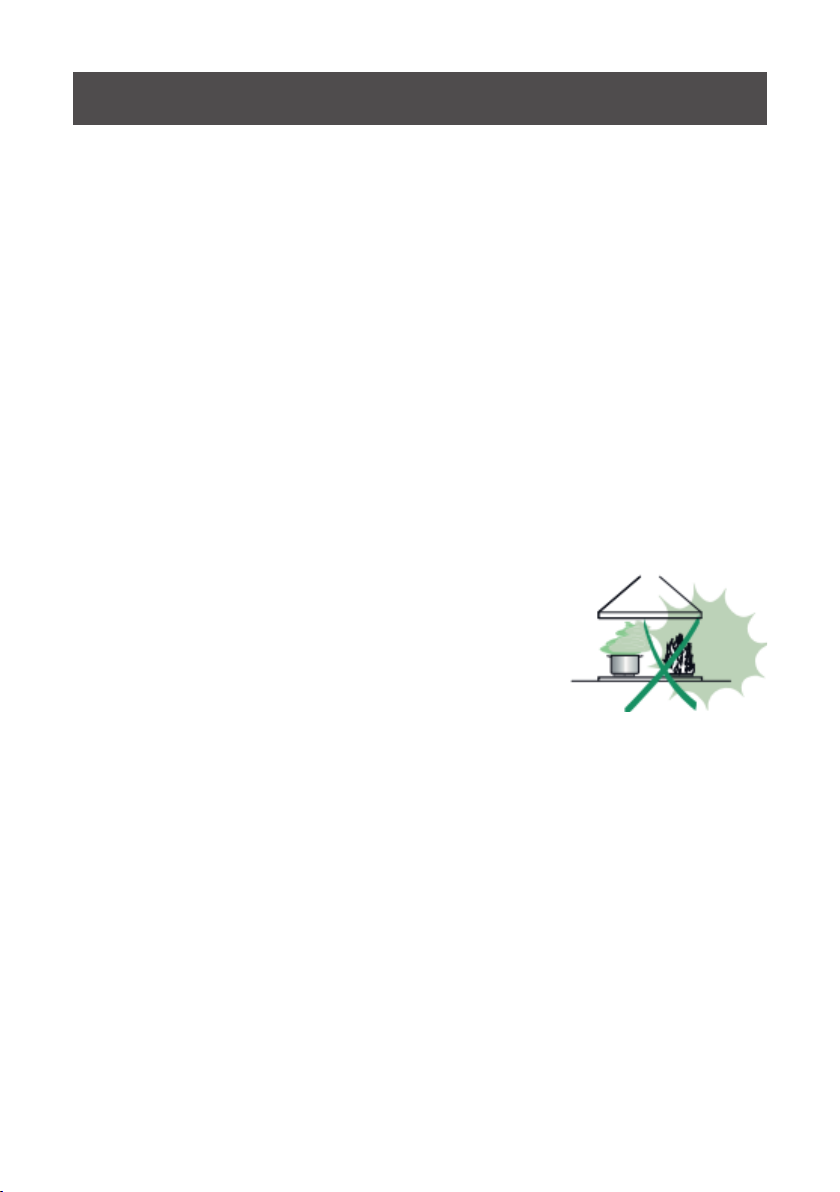

••Never leave high naked flames under the hood when it is in operation.
••Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that
it does not engulf the sides.
••Deep fat fryers must be continuously monitored during use:
overheated oil can burst into flames.
••Do not flambè under the range hood; risk of fire.
••This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
••This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
5
RECOMMENDATIONS AND SUGGESTIONS
•“CAUTION: Accessible parts may become hot when used with cooking appliances.”
MAINTENANCE
••Switch off or unplug the appliance from the mains supply before carrying out any
maintenance work.
••Clean and/or replace the Filters after the specified time period (Fire hazard).
••The Grease filters must be cleaned every 2 months of operation, or more frequently for
particularly heavy usage, and can be washed in a dishwasher.
••The Activated charcoal filter is not washable and cannot be regenerated, and must be
replaced approximately every 4 months of operation, or more frequently for particularly
heavy usage.
•• “Failure to carry out cleaning as indicated will result in a fire hazard”.
•• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the envi-
ronment and human health, which could otherwise be caused by inappropriate waste han-
dling of this product. For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or the shop where you
purchased the product.
6

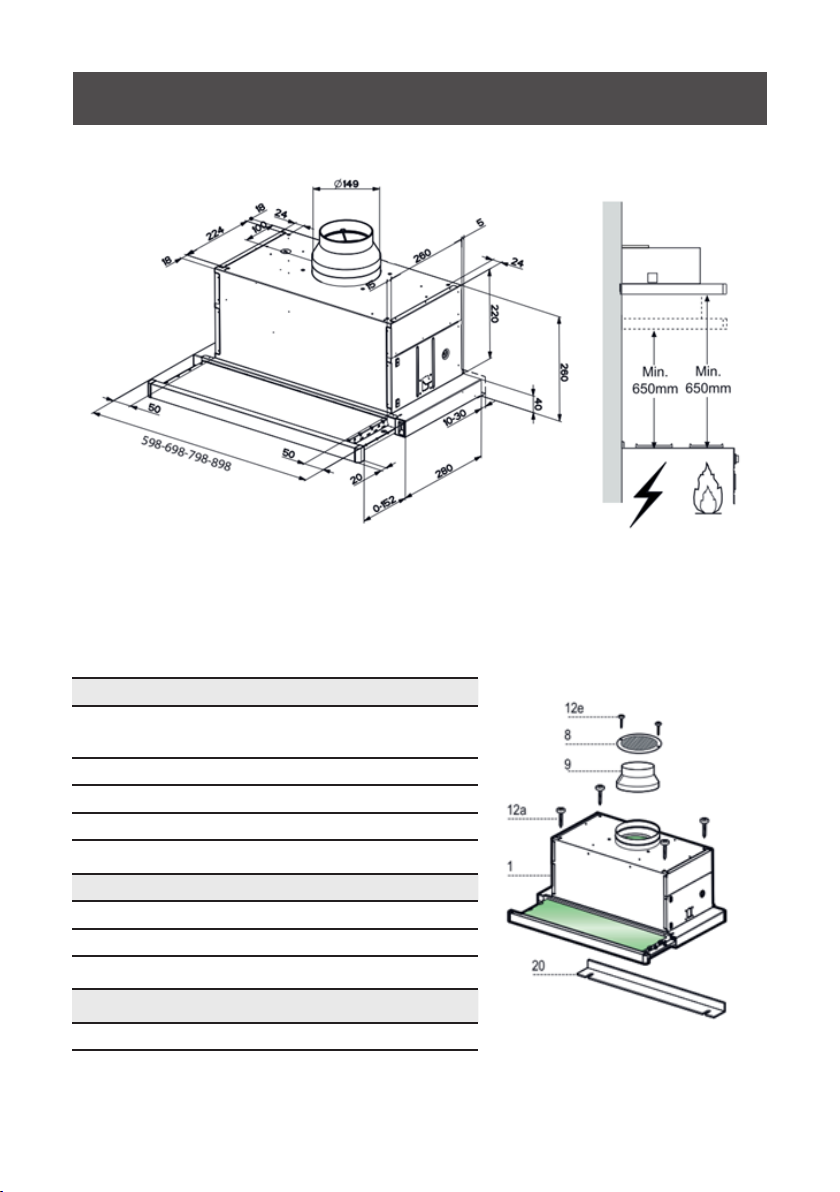

CHARACTERISTICS
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls,
Light, Blower, Filters
8 1 Directional Air Outlet grille
9 1 Reducer Flange • 150-120 mm
20 1 Closing element
Ref. Q.ty Installation Components
12a 4 Screws 4,2 x 44,4
12e 2 Screws 2,9 x 9,5
Q.ty Documentation
1Instruction Manual
Appliance dimensions: 698W x 260H x 280-432D mm
7
INSTALLATION

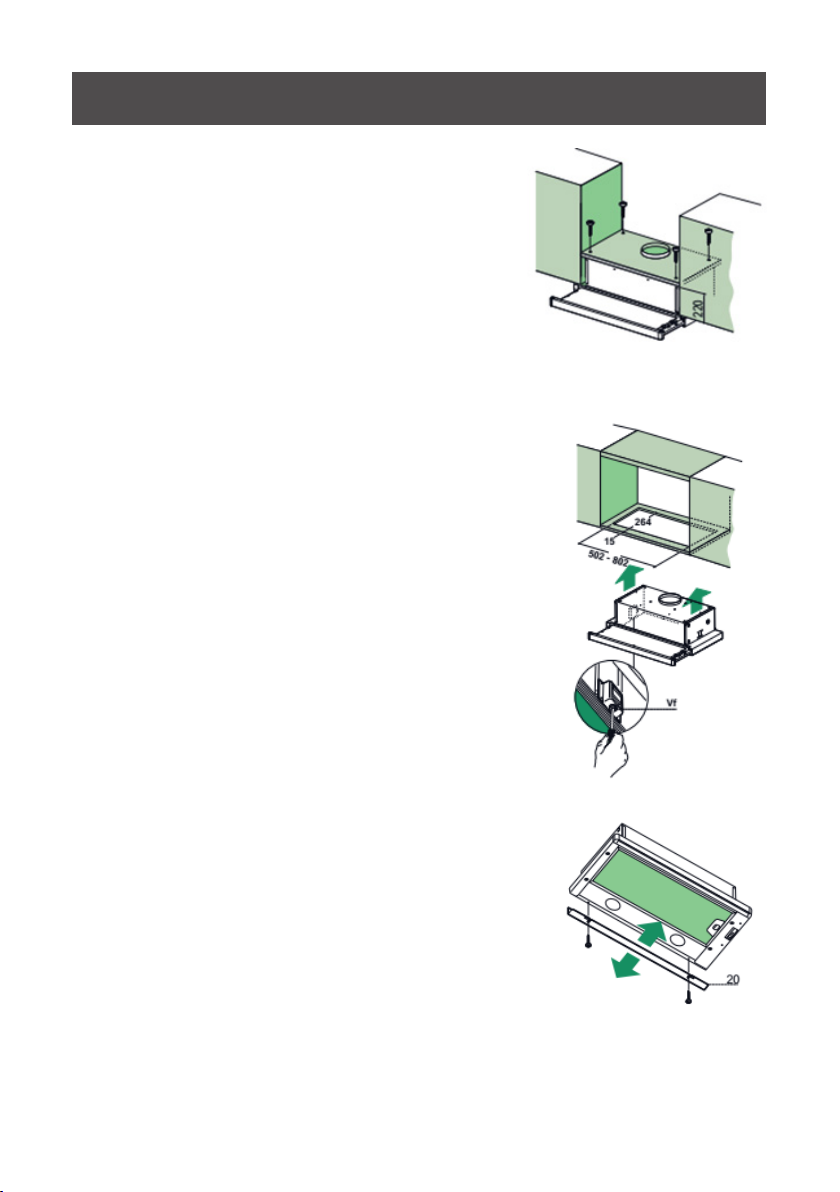

Drilling the Support surface and Fitting the Hood
SCREW FITTING
SNAP-ON FITTING
CLOSING ELEMENT
•The hood support surface must be 220mm above
the bottom surface of the wall units.
•Drill the support with a •Ø 4,5 mm drill bit, using the
drilling template provided.
•Cut a hole Ø 150 mm in size on the support surface,
using the drilling template provided.
•Fix using the 4 serews 12a (4,2 x 44,4) provided.
•The hood can be installed either directly on the bottom
surface of the wall units using snap-on side supports.
•Cut a fitted opening in the bottom surface of the wall
unit, as shown.
•Insert the hood until the side supports snap into place.
•Lock in position by tightening the screws Vf from un-
derneath the hood.
•The space between the edge of the hood and the rear
wall can be closed by applying the element 20 provid-
ed, using the screws supplied for this purpose.
8
INSTALLATION

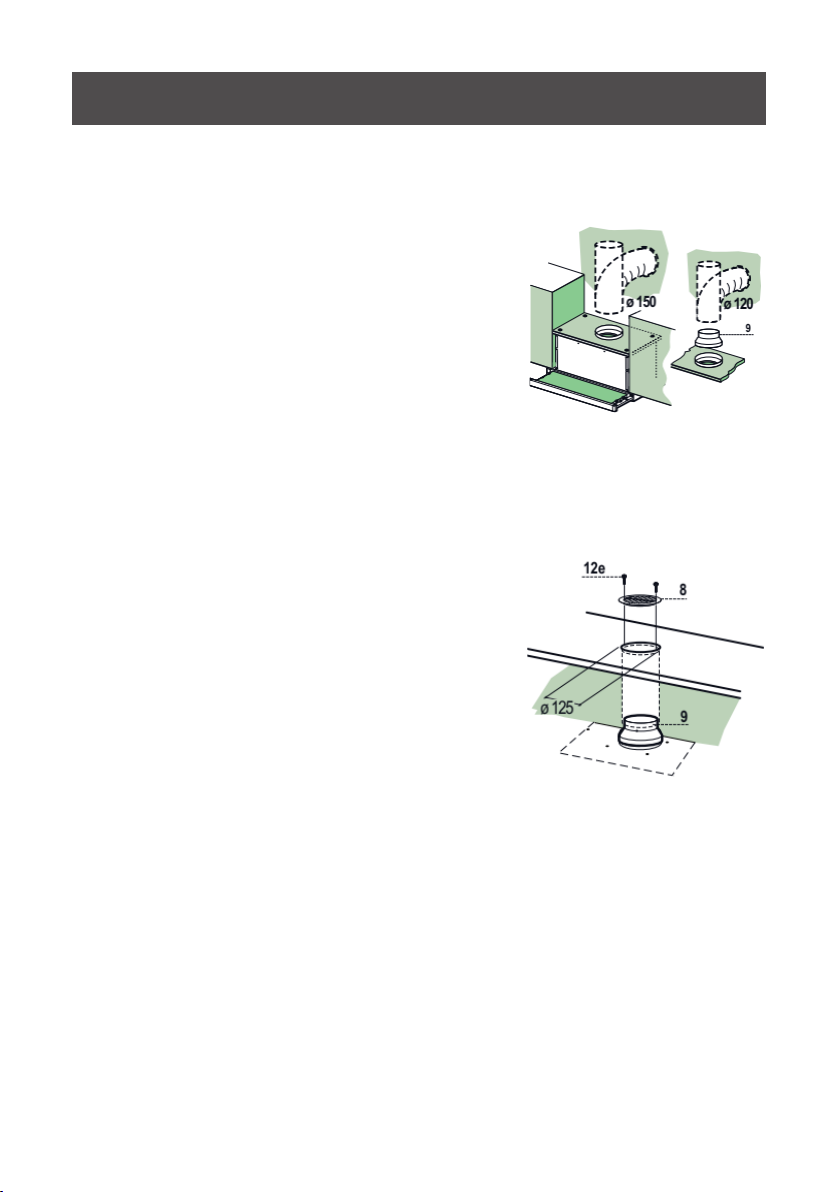

Connections
DUCTED VERSION AIR EXHAUST SYSTEM
RECIRCULATION VERSION AIR OUTLET
ELECTRICAL CONNECTION
•To install a • Ø 120 mm air exhaust connection, insert
the reducer flange 9 on the hood body outlet.
•Fix the pipe in position using sufficient pipe clamps
(not supplied).
•Remove possible charcoal filters.
•Cut a hole Ø 125 mm in any shelf that may be posi-
tioned over the hood.
•Insert the reducer flange 9 on the hood body outlet.
•Connect the flange to the outlet on the shelf over the
hood by using a flexible or rigid pipe Ø120 mm,
•Fix the pipe in position using sufficient pipe clamps
(not supplied).
•Fix the air outlet grid 8 on the recirculation air outlet
by using the 2 screws 12e (2,9x9,5) provided.
•Ensure that the activated charcoal filters have been
inserted.
•Connect the hood to the mains through a two-pole switch having a contact gap of at
least 3 mm.
•When opening the sliding carriage for the first time after installing the hood, pull it out
briskly until it clicks.
When installing the ducted versionm connect the hood to
the chimney using either a flexible or rigid pipe •Ø150 or
120 mm, the choice of which is left to the installer.
9
USE

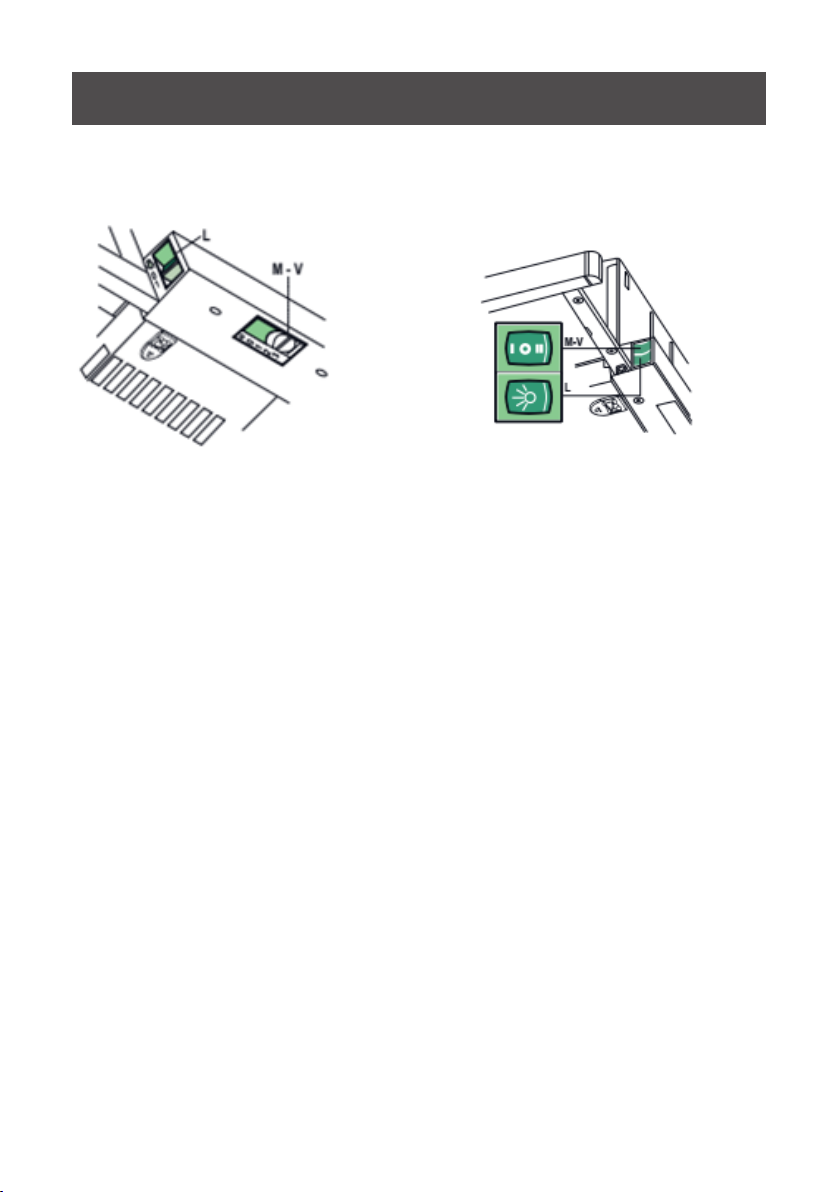

Control panel
LLight Swiches the lighting system
on and off
MMotor Swiches the exractor motor
on and off
VSpeed Set the operating speed of
the extractor:
1. Low speed, used for a
continuous and silent air
change in the presence of
light cooking vapour.
2. Medium speed, suitable
for most operating conditions
given the optimum treated air
flow/noise level ratio.
3. Maximum speed, used for
eliminating the highest cook-
ing vapour emission, includ-
ing long periods.
LLight Swiches the lighting system
on and off
MMotor Swiches the exractor motor
on and off
VSpeed Set the operating speed of
the extractor:
1. Low speed, used for a
continuous and silent air
change in the presence of
light cooking vapour.
2. Medium speed, suitable
for most operating conditions
given the optimum treated air
flow/noise level ratio.
10
MAINTENANCE

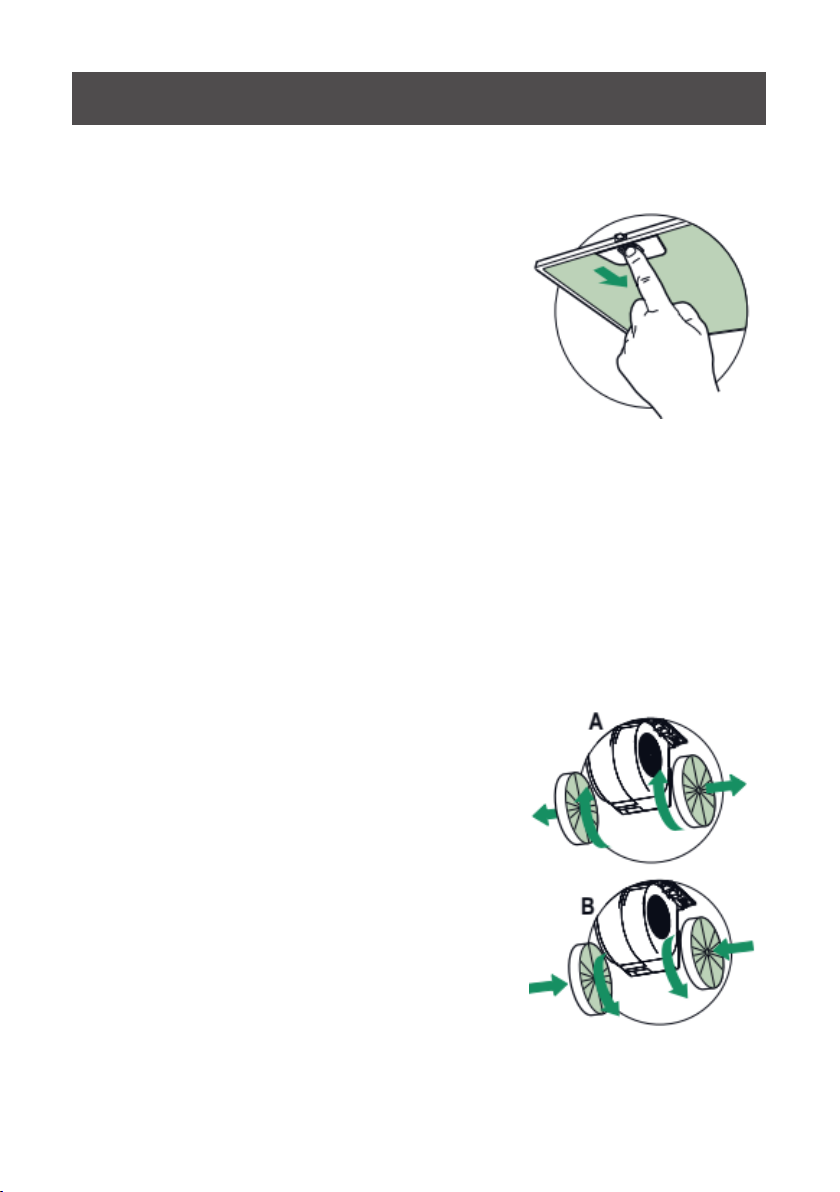

Grease filters
Activated charcoal filter (Recirculation version)
CLEANING METAL CASSETTE GREASE FILTERS
CLEANING METAL CASSETTE GREASE FILTERS
•The filters must be cleaned every 2 months, or more
frequently in case of particularly haevy use of the
hood. Filters can be washed in a dishwasher.
•Pull out the sliding suction panel.
•Remove the filters one by one, after having discon-
nected the relative fastening elements.
•Wash the filters, taking care not to bend them. Let
them get dry before refitting them. (The colour of the
filter surface may change throughout the time but
this has no influence to the filter efficiency)
•When refitting the filters, make sure that the handle is
visible on the ouside.
•Close the sliding suction panel.
•Remove the metal grease filters.
•Remove the saturated activated charcoal filter as
shown (A).
•FIt the new filters (B)
•Replace the metal grease filters.
These filters are not washable and cannot be regenerat-
ed, and must be replaced approximately every 4 months
of operation, or more frequently with heavy usage.
