GVM RGB-T20R User manual
RGB-T20R
DAFTAR ISI
Product introduction Page 1-------------------------------------------
Disclaimers Page 2--------------------------------------------------------
Precautions Page 2-------------------------------------------------------
Product parameter Page 3---------------------------------------------
Product structure analysis Page 4------------------------------------
Installation method Page 5 6------------------------------------------ ,
Light control folding installation Page 7----------------------------
Description of product control keys Page 8-----------------------
Function introduction & instruction for use Page 9,10----------
Use and preservation Page 10-----------------------------------------
Simple faults and troubleshooting Page 11------------------------
Packing list Page 12------------------------------------------------ -------
1
Welcome to "RGB-T20R". This product is specially designed for senior
photography enthusiasts. The product is suitable for live / outdoor / studio
photography, and also for youtube video shooting. The main features of
the product are:
PENGENALAN PRODUK
①Step-less adjustable RGB color and Bi-Color Temperature feature, color
range 3200K ~ 5600k, with 368 LED bulbs, which is helpful to restore and
enrich the color of objects and provide you with natural and vivid shooting
effect.
It has an OLED display and a stable system, and it is very light and can be
a hand-held fill light, and can also be installed on a light stand. You can
also install foldouts to avoid extra light, and customize the fill light,
allowing you to easily shoot the desired results at will.
We believe that once using our product correctly, you can make huge progress
when shooting. Before using the product, you are strongly recommended to
read the instructions below carefully.
The product can simulate 8 kinds of scene lights: lightning, cop car,
candle, TV, bad bulb, party, disco, paparazzi.
2
PERHATIAN
Before using this product, please read the instructions carefully and make sure
use the product correctly. If you don’t obey the instructions and warnings, you
maybe cause harm to yourself and the people around, or even damage the
product and other things around.
Once you use this product, you are deemed to have read the disclaimer and warning
carefully, understand and acknowledge all the terms and contents of this statement,
and promise to take full responsibility for the use of this product and possible
consequences.
PERHATIAN BAHAYA
①Please use the matching power adapter or lithium battery with the same
specification to power the product. Do not use power adapter with
different output voltage parameters.
The product is not waterproof, please use it in rainproof environment.
The product is not anti-corrosion, therefore do not let the product touch
any corrosive liquid.
When using the product, make sure the product is put firmly and prevent
from falling and damage.
If the product will not be used for a long time, please switch off the power
to reduce energy loss.
3
SPESIFIKASI PRODUK
Brand : GVM
Name : photography light
Type : photography fill light
Number : RGB-T20R
Material : Plastic & aluminum alloy
Number of light beads : 368
Color-rendering Index : ≥97
Color Temperature : 3200K---5600K
HUE : RGB 0°~360°
Luminance : 1500lux/0.5m, 600lux/1m
Light adjustment method : Stepless adjustment
Function / Feature : High color rendering index light beads,
RGB, Special light, Portable, Touch
Power : 20W
Power Supply Mode : DC input & Battery
Voltage : DC9V
Power specification : DC9V/3A
Battery Capacity : 7.4V-4400mAh*1
Weight : 0.47KG
Size ( mm ) : D52 567
Cooling : Natural heat dissipation
Origin : Huizhou, China
( does not include, need to be purchased separately)
4
Glowing surface A
1/4 Screw
holes
Glowing surface B
Mode button
1/4 Screw holes
Power switch
Battery tank
Down select key
OLED display
Control panel
Adapter interface
This light has two luminous surfaces on both sides of the AB.
The AB surface cannot be lit at the same time, and one of them is lit
according to the mode and scene.
BAGIAN PRODUK
5
1The lamp can be installed and fixed on the bracket by rotating the knob
clockwise, and unloaded by rotating in the counterclockwise direction.
CARA PEMASANGAN

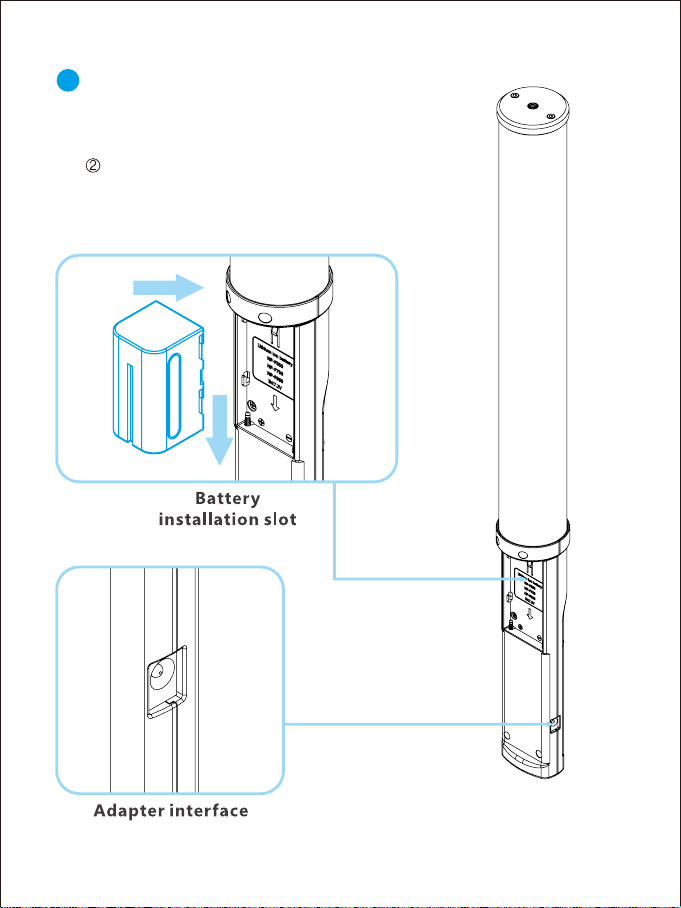

There are two power supply modes to choose.
2
6
(Adapter sold separately)
①Insert the battery into the battery slot as shown
below, and use the battery to supply power.
Purchase a suitable power cord and adapter
separately and connect them to supply power.
7

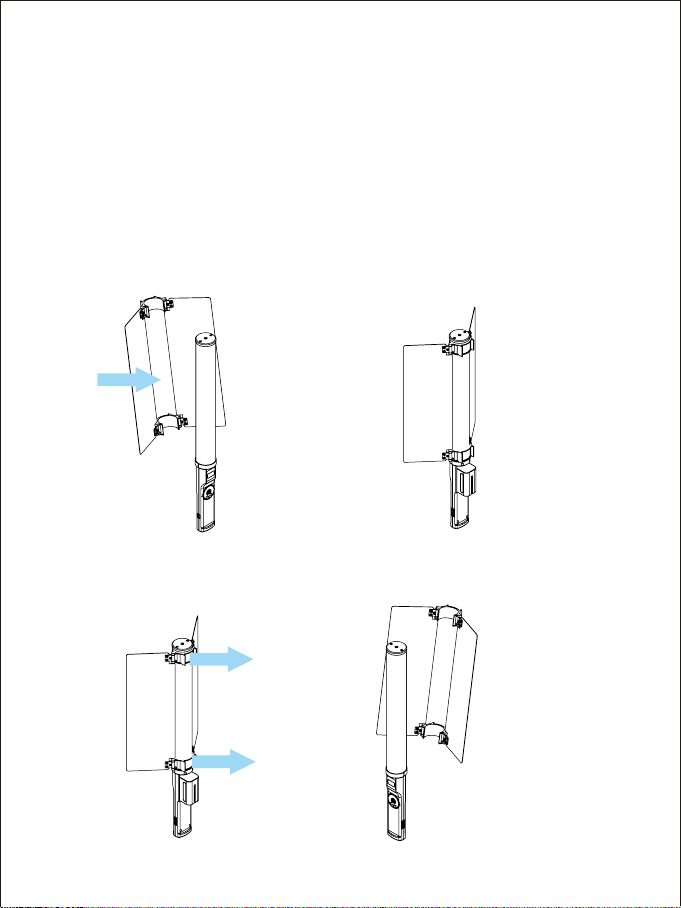

Light control folding:
As shown in the figure below, directly put the folding on the downlight, you
can install the folding on the downlight.
As shown in the figure below, directly pull the folding back to remove the
folding installed on the downlight.
Only some sets are equipped with the following accessories, subject to the
actual purchase of product kit.
By adjusting the left and right blades, the angle of
light can be effectively controlled.
PEMASANGAN REFLEKTOR
8
1
2
3
5
4
Power switch: dial up to turn on the
power, dial down to turn off the power.
Downward selection key: Touch this
key,the option box will jump to the
next level.
Mode switch key: Touch this key to
switch modes.There are three
modes: CCT, HSI, SCENE.
Control panel: Touch and slide to adjust
the parameters in the current option.
1
2
5
4
3
OLED display: displays the current
menu and parameters.
PENGENALAN TOMBOL PRODUK
