GSM Bellini BDWM126W Installation instructions
60cm Freestanding Dishwasher
Model No.
BDWM126W
BDWM126W-F FINELINE: 0057544
BDWM126X
BDWM126X-F FINELINE: 0057543
V.5 SEPT20
INSTALLATION & OPERATION
INSTRUCTIONS
PART 1
'We recommend you open the door slightly 50mm to assist in the drying of the
dishes after every wash as the drying of the dishes is a natural process'
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373199 Aus Or 0800 764 912 NZwww.belliniappliances.com.au
Model: BDWM126W-F FINELINE: Aus/NZ, BDWM126X-F FINELINE: Aus/NZ 60cm Freestanding Dishwasher
Thank you
Thank you for choosing Bellini Appliances.
Bellini prides itself on ‘affordable living’ making sure there is
no compromise in your favourite room … The Kitchen
All Bellini appliances carry a 3 year In Home warranty,
be sure to retain your installation and user manual and
receipt.
For all warranty and technical queries please
contact 0800 764 912
SAFETY INFORMATION
3
CONTENTS
PRODUCT OVERVIEW
6
USING YOUR DISHWASHER
Basket Used Tips
7
7
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
9
9
9
12
INSTALLATION INSTRUCTION
13
About Power Connection
Water Supply And Drain
Connection Of Drain Hoses
Position The Appliance
Free Standing Installation
TROUBLESHOOTING TIPS
18
21LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1
25
13
PART 2 INSTALLATION & OPERATION INSTRUCTIONS
SAFETY INFORMATION
WARNING
When using your dishwasher , follow the
precautions listed below:
•This appliance is intended to be used in household and similar applications
such as:
•Staff kitchen areas in shops, offices and other working environments;
•farm houses;
•by clients in hotels, motels and other residential type environments;
•bed and breakfast type environments.
3
•This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be done by children without supervision.(For EN60335-1)
•This appliance is not intended for use by
persons(including children )with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge ,unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.(For IEC60335-1 )
•Packaging material could be dangerous for children!
•This appliance is for indoor household use only.
•To protect against the risk of electrical shock, do not immerse the unit, cord or
plug in water or other liquid.
•Please unplug before cleaning and performing maintenance on the appliance.
•Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it
again.
Earthing Instructions
•This appliance must be earthed. In the event of a malfunction or
breakdown, earthing will reduce the risk of an electric shock by providing a
path of least resistance of electric current. This appliance is equipped with
an earthing conductor plug.
•The plug must be plugged into an appropriate outlet that i s i installed a nd
earthed in a accordance with all local codes and ordinances.
•Improper connection of the equipment-earthing conductor can result in the
risk of an electric shock.
•Check with a qualified electrician or service representative if you are in
doubt whether the appliance is properly grounded.
4
•Do not modify the plug provided with the appliance; If i t does not fit the
outlet.
•Have a proper outlet installed by a qualified electrician.
•Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
•Do not operate your dishwasher unless all enclosure panels are properly in
place.
•Open the door very carefully if the dishwasher is operating, there is a risk of
water squirting out. Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
•When loading items to be washed:
oLocate sharp items so that they are not likely to damage the door
seal;
oWarning: Knives and other utensils with sharp points must be
loaded in the basket with their points facing down or placed in a
horizontal position.
•Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.
•Check that the detergent powder is empty after completion of the wash
cycle.
•Some dishwasher detergents are strongly alkaline. They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.
•Check that the detergent powder is empty after completion of the wash
cycle.
5
•Do not wash plastic items unless they are marked “ dishwasher safe” or the
equivalent.
•For unmarked plastic items not so marked, check the manufacturer's
recommendations.
•Use only detergent and rinse agents recommended for use in an automatic
dishwasher.
•Never use soap, laundry detergent, or hand washing detergent in your
dishwasher.
•The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
•During installation, the power supply must not be excessively or dangerously
bent or flattened.
•Do not tamper with controls.
•The appliance needs to be connected to the main water valve using new hose
sets. Old sets should not be reused.
•To save energy, in stand by mode , the appliance will switch off automatically
while there is no any operation in 30 minutes .
Disposal
•For disposing of package and the
appliance please go to a recycling centre.
Therefore cut off the power supply cable
and make the door closing device
unusable.
•Cardboard packaging is manufactured from recycled paper and should be
disposed in the waste paper collection for recycling.
•By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this
product.
•For more detailed information about recycling of this product, please contact
your local city office and your household waste disposal service.
•DISPOSAL: Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
PRODUCT OVERVIEW
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
6

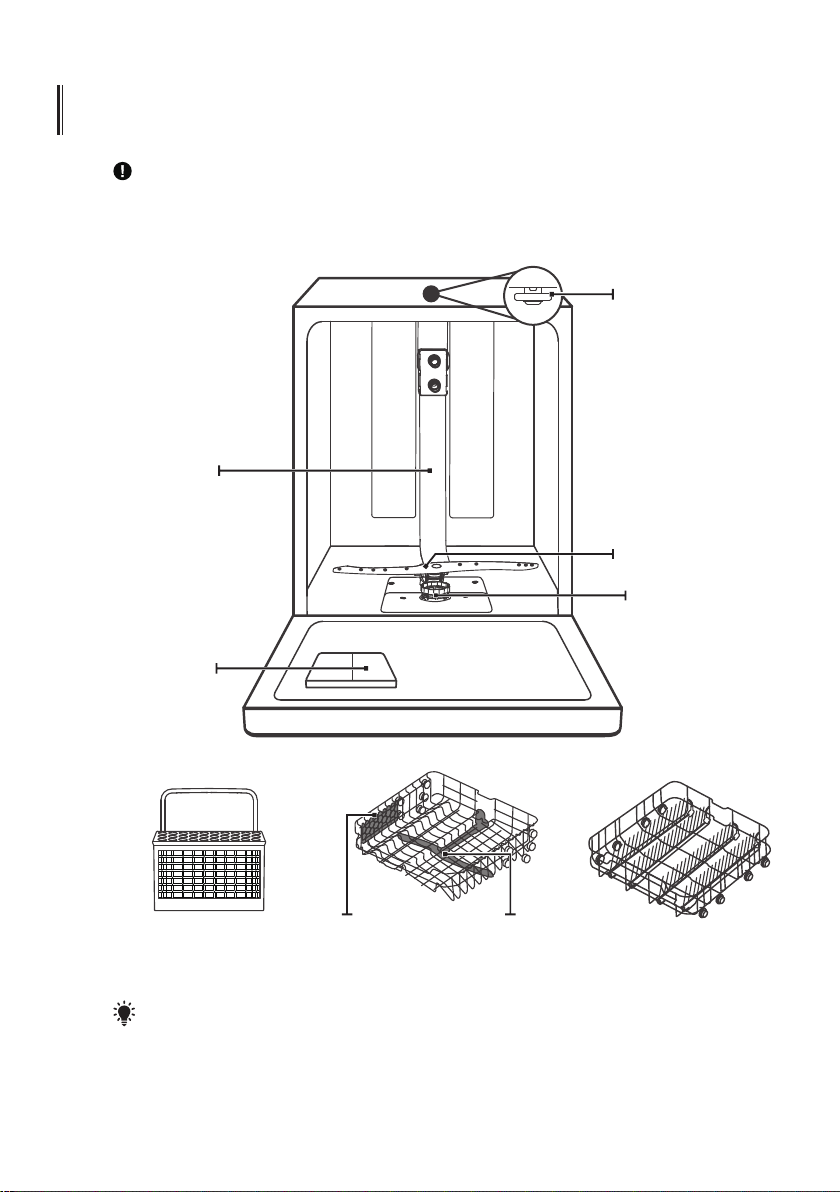

Cutlery basket
upper spray arm
Upper basket Lower basket
Cup rack
Pictures are only for reference, different models may be different. Please prevail
in kind.
NOTE:
Top spray arm
Dispenser
Lower spray arm
Filter assembly
Inner pipe
USING YOUR DISHWASHER
1. Loading the basket
2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version)
3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version)
1. Loading the basket
2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version)
3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version)
7

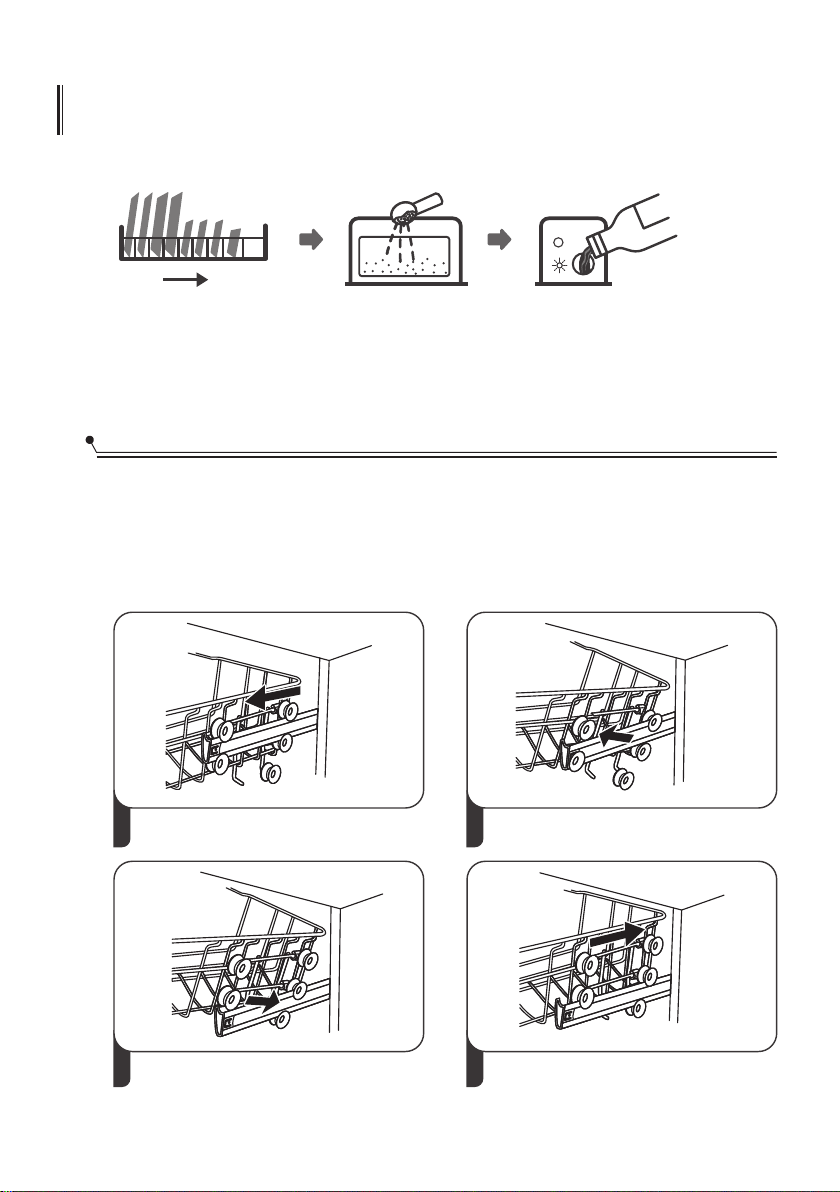

Adjusting the upper basket
The height of the upper basket can be easily adjusted to accommodate taller dishes
in either the upper or lower basket.
To adjust the height of the upper rack, follow these steps:
4
1Pull out upper basket. 2Remove upper basket.
3Re-attach upper basket to the upper
or lower rollers.
Push in upper basket.
lower position
upper position
Type 1:
Basket Used Tips
Before using your dishwasher :
Inside Outside
1To raise the rack to the upper position,
lift rack until both sides are at the same
height. The rack will secure into place.
2To lower the rack, push down on the
handle and release.
Type 2:
8

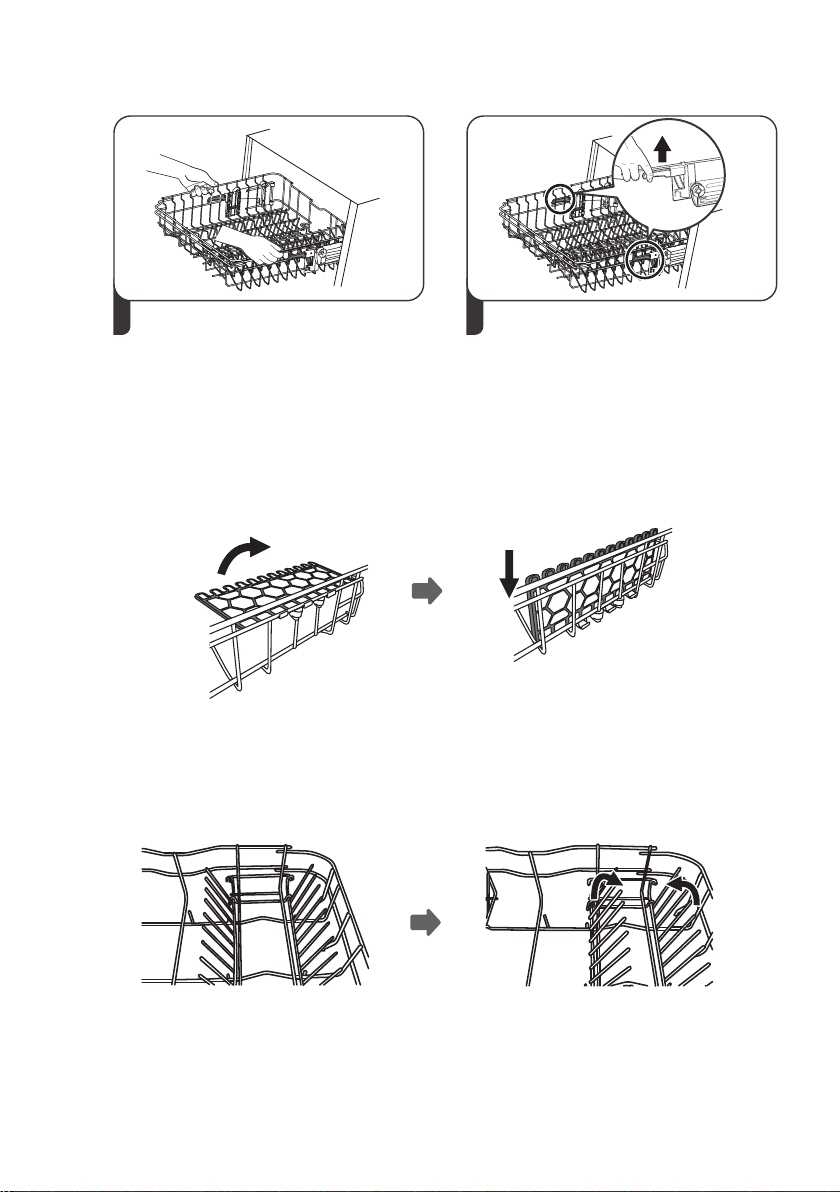

Folding back the cup shelives
To make room for taller items in the dishwasher basket, raise the cup rack upwards.
You can then lean the tall glasses against it. You can also remove it when it is not
required for use.
Folding back the rack shelives
The spikes are used for holding plates and a platter. They can be lowered to make
more room for large items.
raise upwards fold backwards
MAINTENANCE AND CLEANING
External Care
The door and the door seal
Clean the door seals regularly with a soft damp cloth to remove food deposits.
When the dishwasher is being loaded, food and drink residues may drip onto the
sides of the dishwasher door.These surfaces are outside the wash cabinet and are not
accessed by water from the spray arms. Any deposits should be wiped off before the
door is closed.
The control panel
If cleaning is required, the control panel should be wiped with a soft damp cloth ONLY.
To avoid penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Never use abrasive cleaners or scouring pads on the outer surfaces because
they may scratch the finish. Some paper towels may also scratch or leave
marks on the surface.
WARNING
Internal Care
Filtering system
The filtering system in the base of the wash cabinet retains coarse debris from the
washing cycle. The collected coarse debris may cause the filters to clog. Check the
condition of the filters regularly and clean them if necessary under running water.
Follow the steps below to clean the filters in the wash cabinet.
NOTE:
Pictures are only for reference, different models of the filtering system and spray
arms may be different. Please prevail in kind.
