GXP2200
Enterprise Multimedia Phone for AndroidTM
Quick Start Guide
Content
English..............................................................................1
简体中文..........................................................................9
Español............................................................................17
Français...........................................................................25
Deutsch...........................................................................33
Italiano............................................................................41
Русскй.............................................................................49
1 2
The GXP2200 is not pre-congured to support or
carry emergency calls to any type of hospital, law
enforcement agency, medical care unit (“Emergency
Service(s)”) or any other kind of Emergency Service.
You must make additional arrangements to access
Emergency Services. It is Your responsibility to pur-
chase SIP-compliant Internet telephone service, prop-
erly congure the GXP2200 to use that service, and
periodically test your conguration to conrm that it
works as You expect. If You do not do so, it is Your re-
sponsibility to purchase traditional wireless or landline
telephone services to access Emergency Services.
GRANDSTREAM DOES NOT PROVIDE CON-
NECTIONS TO EMERGENCY SERVICES VIA THE
GXP2200. NEITHER GRANDSTREAM NOR ITS
OFFICERS, EMPLOYEES OR AFFILIATES MAY
BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR
LOSS, AND YOU HEREBY WAIVE ANY AND ALL
SUCH CLAIMS OR CAUSES OF ACTION ARISING
FROM OR RELATING TO YOUR INABILITY TO USE
THE GXP2200 TO CONTACT EMERGENCY SER-
VICES, AND YOUR FAILURE TO MAKE ADDITIONAL
ARRANGEMENTS TO ACCESS EMERGENCY SER-
VICES IN ACCORDANCE WITH THE IMMEDIATELY
PRECEDING PARAGRAPH.
PACKAGE CONTENTS:
EN
PRECAUTIONS:
WARNING: Please DO NOT power cycle the GXP2200 during system boot
up or rmware upgrade. You may corrupt rmware images and cause the unit to
malfunction.
WARNING: Use only the power adapter included in the GXP2200 package.
Using an alternative non-qualied power adapter may possibly damage the unit.

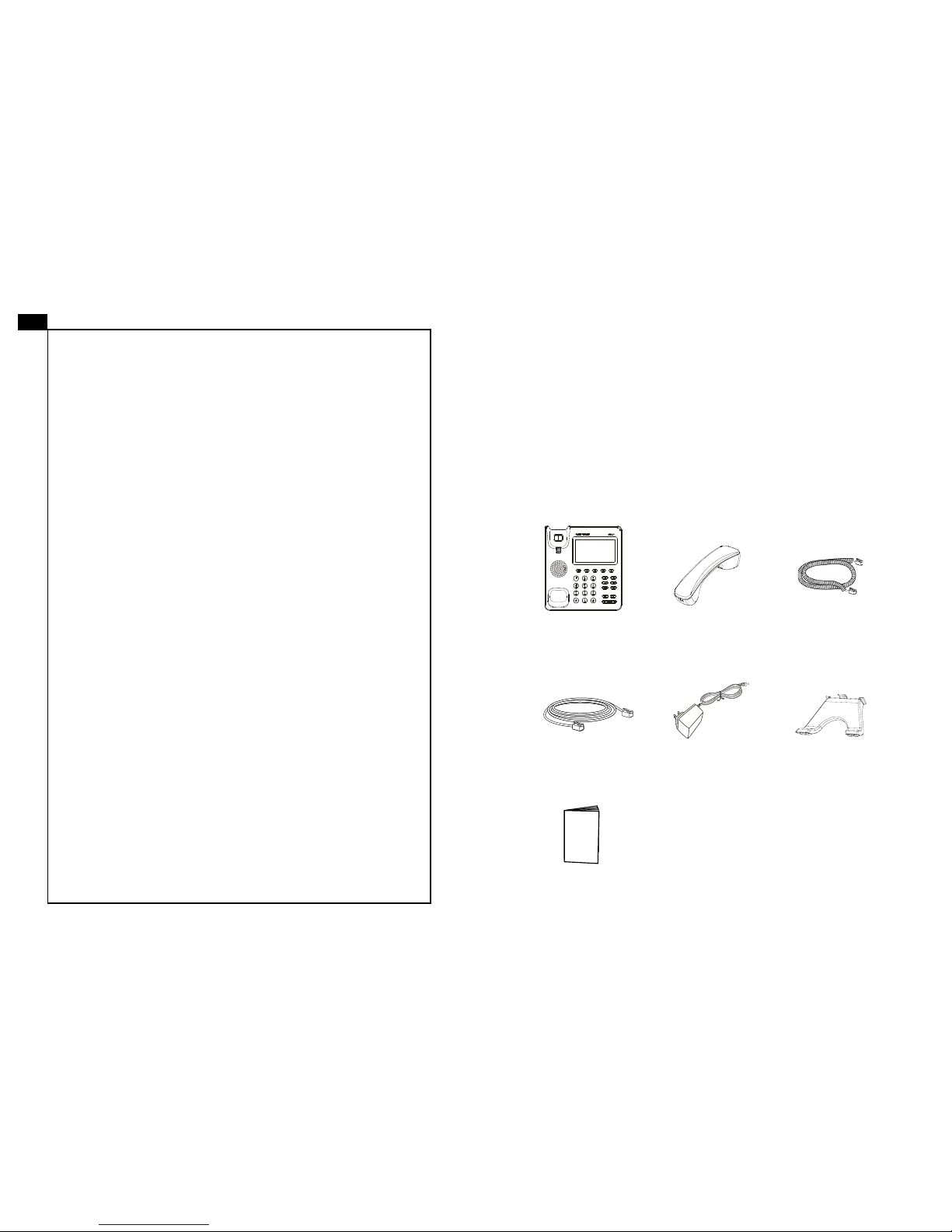

1 X GXP2200 Main Case 1 X Handset 1 X Phone Cord
1 X Ethernet Cable 1 X 12V Power Adapter 1 X Phone Stand
1 X Quick Start Guide
12V
3 4
CONNECTING THE PHONE:

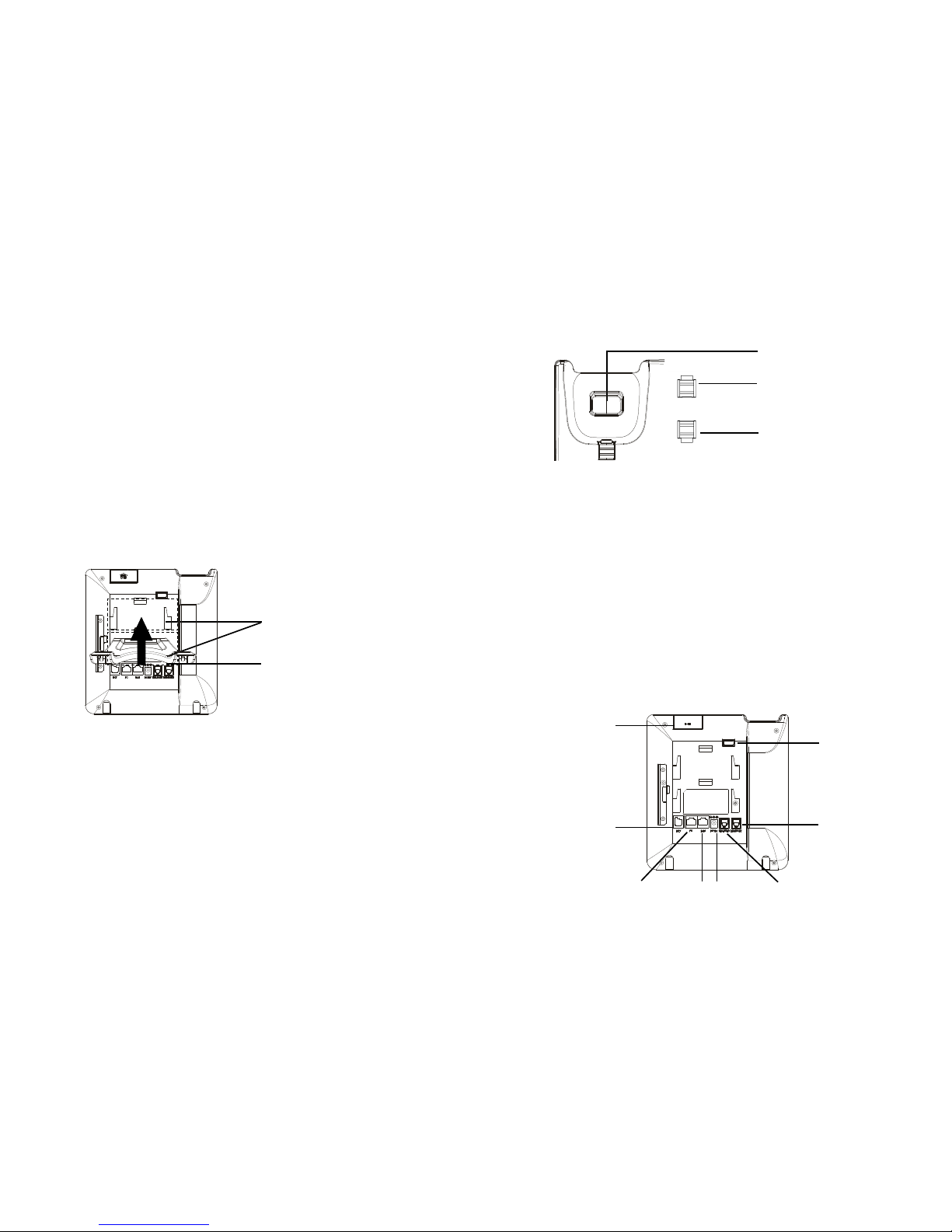

OVERVIEW:
EXT Port
PC Port LAN Port
Handset Port
Tab with extension up
Slots for the phone stand
Handset Rest
Tab with extension down
PHONE SETUP:
GXP2200 represents the future of enterprise business telephones in modern In-
ternet age. Featuring Android Operating System 2.3 and its vast number of 3rd
party applications, a 480x272 capacitive touch screen TFT LCD, dual Gigabit net-
work ports, integrated PoE and Bluetooth, this unique product is distinguished
in a special class of its own. The GXP2200 delivers superior HD audio quality,
leading edge telephony features, integration of rich Web content with access to
the rapidly growing Android applications base, automated provisioning. Built with
advanced security protection for privacy, this enterprise application phone also
features broad interoperability with most 3rd party SIP based devices, IP PBX and
major IMS platforms. The GXP2200 is an innovative smart desk phone loaded
with tremendous value for Web-integrated business communications as well as
unprecedented power for advanced custom business applications development
and personalization.
Push phone stand upwards
Power Headset Port
SD Card Slot
USB Port
1. Attach the phone stand to the back of the phone where there is a slot for the
phone stand. Upper part and bottom part are available for two angels;
2. When using the bottom part for phone stand, you may also adjust the tab from
the handset cradle. Pull out the tab from the handset cradle (see Figure in next
page);
3. Rotate the tab and plug it back into the slot with the extension up to hold the
handset.
Installing The Phone Stand:
1. Connect the handset and main phone case with the phone cord;
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a
router (LAN side of the router) using the Ethernet cable;
3. Connect the 12V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet. If PoE switch is used in step 2, this step could be
skipped;
4. The LCD will display booting up or rmware upgrading information. Before con-
tinuing, please wait for the main screen display to show up;
5. Using the web conguration interface or from the menu of the touch screen,
you can further congure network connection using either static IP, DHCP and etc.
5 6
Tips For Using the Keypad:
Congure the GXP2200 using the Touch Screen:

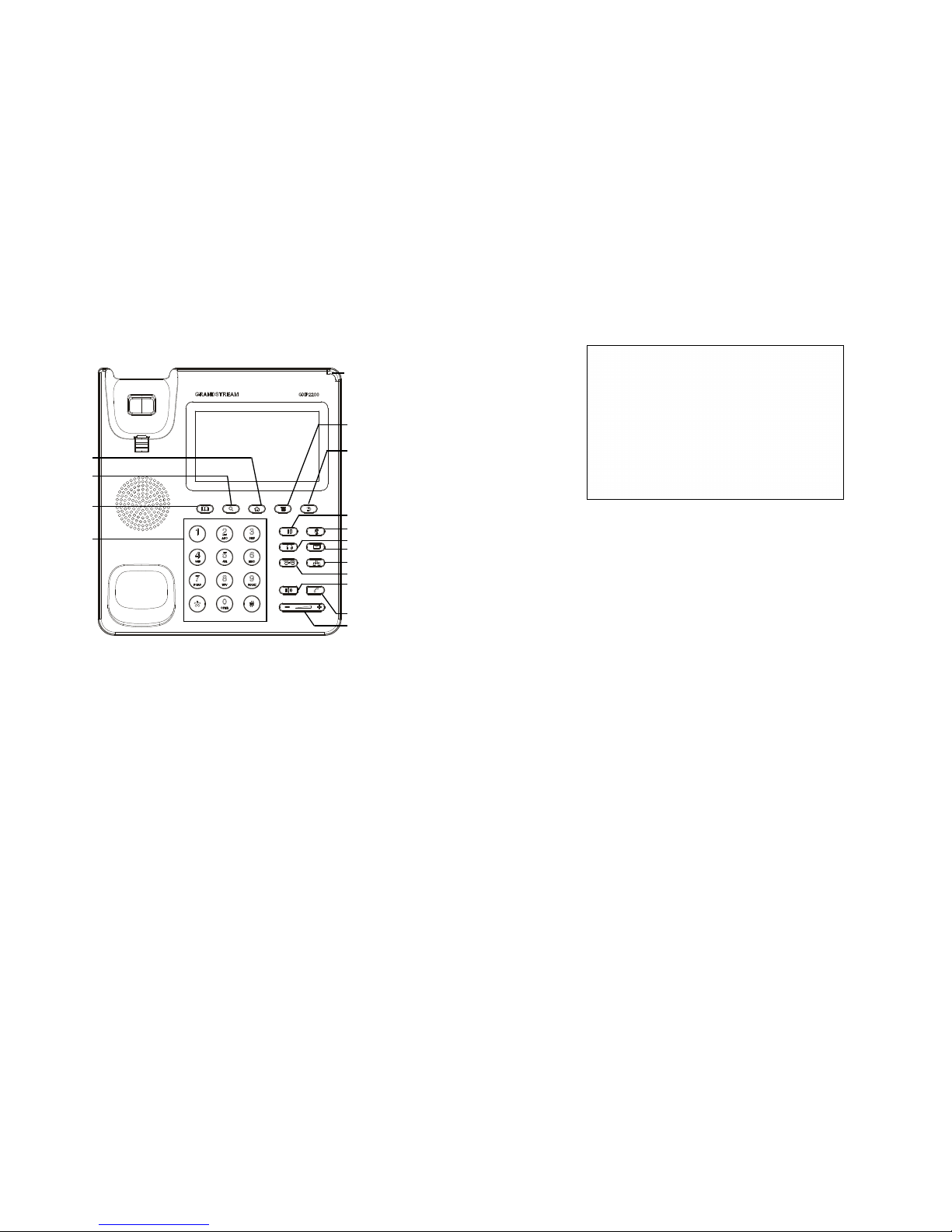

Message Waiting
Indicator
Hold
Mute
Headset
Message
Transfer
Volume
Send
Speaker
Conference
Menu
Back
Home
Search
Contacts
Standard
Keypad
PHONE CONFIGURATION:
Congure the GXP2200 using Web Browser:
1. Ensure your phone is properly powered up and connected to the Internet;
2. The IP address of the phone will show in the main screen when pressing the
Home button;
3. Type the phone’s IP address in your PC’s browser (See Figure in next page);
4. The default username and password for administrator is “admin” and “admin“.
The default username and password for user is “user“ and “123”;
5. In the web GUI, select Account 1/2/3/4/5/6 page to congure Account name, SIP
Server, Outbound Proxy, SIP User ID, Authenticate ID and Authenticate Password
to register the account on GXP2200.
1. Make sure the phone is properly powered up and in idle screen;
2. Tap on the screen Menu icon to access GXP2200’s applications and settings;
3. Select Settings->Advanced Settings->Account. Tap on one of the Account to
congure Account name, SIP Server, Outbound Proxy, SIP User ID, SIP Auth ID,
SIP Auth Password to register the account on GXP2200. After successfully regis-
tered, the main screen will be shown as the gure below;
4. Follow the screen Menu icon options to congure other settings on the phone.
For example: To use Static IP on GXP2200, set up IP address via Settings-
>Networks->Ethernet Settings;
5. Please contact your ITSP (Internet Telephony Service Provider) for additional
settings that may be necessary to congure the phone.
7 8
The GXP2200 extension module is an ideal solution for the busy enterprise envi-
ronment looking to add the ability to receive and dispatch calls efciently. Each ex-
tension module has 20 programmable buttons, Left and Right buttons, supporting
40 Multiple Purpose Keys to be congured. GXP2200 supports up to 4 extension
modules, adding 160 fully programmable phone extensions to the phone.
Note: The extension module is an additional accessory for the GXP2200 and is
not included in the GXP2200 box.
Note: For the detailed user manual, please download from:
http://www.grandstream.com/support
GXP2200 Extension Module Package Content:
Conguring GXP2200 Extension Module:
1. Login GXP2200’s web GUI and congure Multiple Purpose Keys for Extension
board 1/2/3/4 following the GXP2200 web GUI tabs;
2. On the GXP2200 extension board, press Left or Right button to browse all the
MPKs’ status in different pages;
3. For more information, please refer to the GXP2200 user manual.
3. Connect the extension board to GXP2200 via the EXT port using the RJ11-RJ11
cable provided;
4. Install the phone stand on GXP2200 and extension board;
5. Power up the GXP2200. The GXP2200 extension board will show the booting
up screen with version information and connecting status;
6. After successfully booting up, the extension board will stay in idle. Press and
hold the Left button for 3 seconds to check the version information and status.
Installing GXP2200 Extension Module:

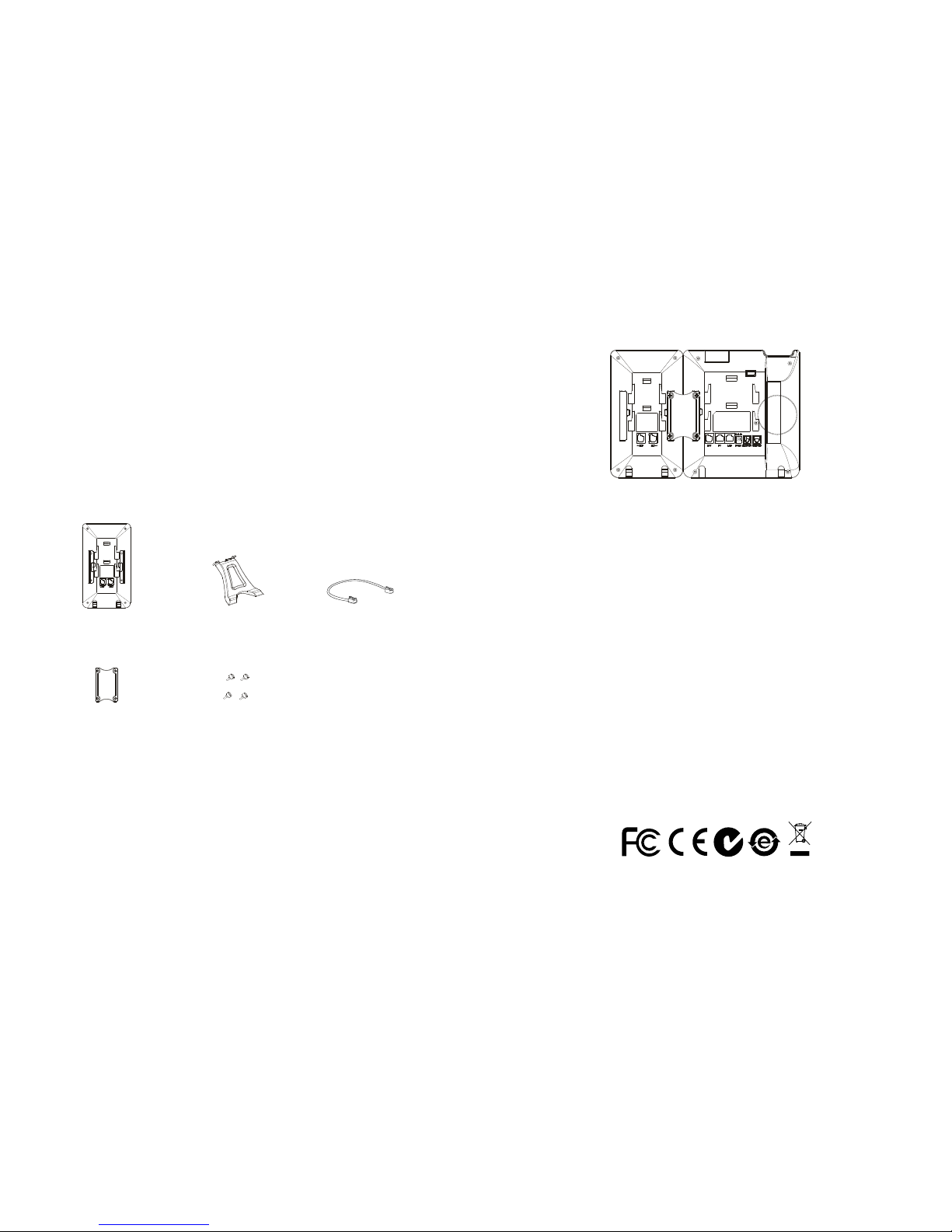

1 X GXP2200
Extension Board
1 X GXP2200
Extension Board Stand
1 X RJ11-RJ11 Cable
1 X Extension Board
Connector Plate
4 X Screws
1. On the back of GXP2200 and the extension board, there are slots for connector
plate. Attach the connector plate between the slots for GXP2200 and the exten-
sion board;
2. Apply the screws provided and securely tighten them in (see Figure in the next
page);
GXP2200 EXTENSION MODULE:
