Grandstream Networks LXP100 User manual

LXP100 USER MANUAL

LXP100

Small-Medium Business HD IP Phone

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page2of61

LXP100 User Manual

Index

GNU GPL INFORMATION...........................................................................5

CHANGE LOG.............................................................................................6

FIRMWARE VERSION 1.0.5.23............................................................................................................6

WELCOME ..................................................................................................7

PRODUCT OVERVIEW...............................................................................8

FEATURE HIGHTLIGHTS.....................................................................................................................8

LXP100 TECHNICAL SPECIFICATIONS..............................................................................................8

INSTALLATION .........................................................................................10

EQUIPMENT PACKAGING .................................................................................................................10

CONNECTING YOUR PHONE............................................................................................................10

SAFETY COMPLIANCES....................................................................................................................12

WARRANTY.........................................................................................................................................12

USING THE LXP100..................................................................................13

GETTING FAMILAR WITH THE LCD..................................................................................................13

GETTING FAMILAR WITH THE KEYPAD...........................................................................................15

MAKING PHONE CALLS.....................................................................................................................16

HANDSET, SPEAKER AND HEADSET MODE ...........................................................................16

MULTIPLE SIPACCOUNTS AND LINES.....................................................................................16

COMPLETING CALLS .................................................................................................................17

MAKING CALLS USING IPADDRESSES...................................................................................19

ANSWERING PHONE CALLS ............................................................................................................20

RECEIVING CALLS......................................................................................................................20

DO NOT DISTURB.......................................................................................................................20

DURING A PHONE CALL....................................................................................................................21

CALL WAITING/CALL HOLD .......................................................................................................21

MUTE............................................................................................................................................21

CALL TRANSFER ........................................................................................................................21

3-WAY CONFERENCING ............................................................................................................22

VOICE MESSAGES (MESSAGE WAITING INDICATOR)...........................................................24

SHARED CALL APPEARANCE (SCA) ........................................................................................24

CALL FEATURES................................................................................................................................24

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page3of61

CUSTOMIZED LCD SCREEN & XML.................................................................................................26

CONFIGURATION GUIDE.........................................................................27

CONFIGURATION VIA KEYPAD.........................................................................................................27

CONFIGURATION VIAWEB BROWSER ...........................................................................................31

DEFINITIONS......................................................................................................................................31

STATUS PAGE DEFINITIONS .....................................................................................................32

ACCOUNTS PAGE DEFINITIONS...............................................................................................33

SETTINGS PAGE DEFINITIONS.................................................................................................41

NETWORK PAGE DEFINITIONS.................................................................................................47

MAINTENANCE PAGE DEFINITIONS.........................................................................................48

PHONEBOOK PAGE DEFINITIONS............................................................................................51

NAT SETTINGS...................................................................................................................................53

WEATHER UPDATE............................................................................................................................54

PUBLIC MODE....................................................................................................................................55

EDITING CONTACTS AND CLICK-TO-DIAL ......................................................................................55

UPGRADING AND PROVISIONING.........................................................58

UPGRADE VIAKEYPAD MENU .........................................................................................................58

UPGRAGE VIA WEB GUI....................................................................................................................58

NO LOCAL TFTP/HTTP SERVERS ....................................................................................................59

CONFIGURATION FILE DOWNLOAD................................................................................................59

RESTORE FACTORY DEFAULT SETTINGS............................................61

Table of Tables

LXP100 User Manual

Table 1: LXP100 TECHNICAL SPECIFICATIONS........................................................................................8

Table 2: LXP100 EQUIPMENT PACKAGING.............................................................................................10

Table 3: LXP100 CONNECTORS...............................................................................................................11

Table 4: LCD DISPLAY DEFINITIONS........................................................................................................13

Table 5: LXP100 LCD ICONS.....................................................................................................................14

Table 6: KEYPAD DEFINITIONS ................................................................................................................15

Table 7: CALL FEATURES..........................................................................................................................25

Table 8: CONFIGURATION MENU.............................................................................................................27

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page4of61

Table of Figures

LXP100 User Manual

Figure 1: LXP100 Ports...............................................................................................................................10

Figure 2: LXP100 Pin-out............................................................................................................................11

Figure 3: Keypad MENU Flow.....................................................................................................................30

Figure 4: Web GUI - Phonebook->Contacts...............................................................................................56

Figure 5: Click-to-Dial..................................................................................................................................56



FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page5of61

GNUGPLINFORMATION

LXP100 firmware contains third-party software licensed under the GNU General Public License (GPL).

Grandstream uses software under the specific terms of the GPL. Please see the GNU General Public

License (GPL) for the exact terms and conditions of the license.

Grandstream GNU GPL related source code can be downloaded from Grandstream web site from:

http://www.grandstream.com/support/faq/gnu_gpl.



FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page6of61

CHANGELOG

This section documents significant changes from previous versions of user manuals for LXP100. Only

major new features or major document updates are listed here. Minor updates for corrections or editing are

not documented here.

FIRMWAREVERSION1.0.5.23

This is the initial version.

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page7of61

WELCOME

Thank you for purchasing LXP100 Small-Medium Business HD IP Phones. Your LXP100 IP phone is

feature-enriched, sophisticated, yet simple to use. It delivers superior HD audio quality, rich and leading

edge telephony features, personalized information and customizable application service, automated

provisioning for easy deployment, advanced security protection for privacy, and broad interoperability with

most 3rd party SIP devices and leading SIP/NGN/IMS platforms.

The LXP100 supports a broad range of codecs, security protection, PoE, dual 10/100Mbps Ethernet ports,

along with customizable XML provisioning and application features. Users can expect superior audio

quality using the new high definition handset, hands-free speakerphone, or headset. Also, it can support

3-way conferencing, multi-languages and dual-color LEDs. It presents a large easy-to-read backlit

graphical display along with multiple XML keys to further enhance the user experience.

The LXP100 is a perfect choice for enterprise users looking for a high quality, feature rich 2-line IP phone

with the best values.

Caution:

Changes or modifications to this product not expressly approved by Grandstream, or operation of this

product in any way other than as detailed by this User Manual, could void your manufacturer warranty.

Warning:

Please do not use a different power adaptor with the LXP100 as it may cause damage to the products and

void the manufacturer warranty.

This document is subject to change without notice.

Reproduction or transmittal of the entire or any part, in any form or by any means, electronic or print, for

any purpose without the express written permission of Grandstream Networks, Inc. is not permitted.

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page8of61

PRODUCTOVERVIEW

FEATUREHIGHTLIGHTS

•128x40 pixel graphical LCD display

•2 line keys with dual-color LED (2 SIP accounts and up to 2 call appearances), 3 XML programmable

context-sensitive soft keys, 3-way conference

•HD wideband handset, hands-free speakerphone with advanced acoustic echo cancellation

•Phonebook with up to 500 contacts and call history with up to 200 records

•Automated personal information service (e.g., local weather), personalized music ring tone/ring back

tone

•Dual switched auto-sensing 10/100Mbps network port, integrated PoE

•Automated provisioning using TR-069 or AES encrypted XML configuration file, SRTP and TLS for

advanced security and privacy protection, 802.1x for media access control, LLDP, IPv6

LXP100TECHNICALSPECIFICATIONS

Table 1: LXP100 TECHNICAL SPECIFICATIONS

Protocols and

Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS

(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE,

TR-069, 802.1x, LLDP, IPv6, TLS, SRTP

Network Interfaces Dual switched 10/100Mbps port, integrated PoE

Graphic Display 128x40 graphical LCD display

Feature Keys

2 line keys with dual-color LED and 2 SIP accounts, 3 XML programmable context

sensitive soft keys, 5 navigation/menu keys, 8 dedicated function keys for HOLD,

TRANSFER, CONFERENCE, VOLUME, HEADSET, MUTE, SPEAKERPHONE,

SEND/REDIAL

Voice Codec Support for G.723.1, G.729A/B, G.711u/a, G.726-32, G.722 (wide-band), iLBC,

in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features

Hold, transfer, forward, 3-way conference, call park, pickup,

shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable

phone book (XML, LDAP, up to 500 items), call waiting, call log (up to 200 records),

off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking,

personalized music ringtones, server redundancy and fail-over

HD Audio Yes, HD handset with support for wideband audio

Headset Jack RJ9 headset jack

FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page9of61

Base Stand Yes, 2-angle positions available

Wall Mountable Yes

QoS Layer 2 (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security User and administrator level passwords, MD5 and MD5-sess based

authentication, 256-bit AES encrypted configuration file, TLS, SRTP, 802.1x media

access control

Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,

Simplified Chinese, traditional Chinese, Korean, Japanese, and etc

Upgrade and

Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or

AES encrypted XML configuration file

Power and Green

Energy Efficiency

Universal power adapter: Input: 100-240VAC 50-60Hz;

Output: 5VDC, 800mA

Integrated Power-over-Ethernet (802.3af);

Max power consumption 2.5W (power adapter) or 3W (PoE)

Physical Unit dimension: 186mm (W) x 210mm (H) x 81mm (D)

Unit weight: 0.7kg

Package weight: 1.1kg

Operating

Temperature and

Humidity 32-104 oF / 0-40 oC, 10-90% (non-condensing)

Package Content LXP100 phone, handset with cord, base stand, wall mount spacers, universal

power supply, network cable, quick start guide

Compliance FCC Part 15 (CFR 47) Class B; EN55022 Class B, EN55024, EN61000-3-2,

EN61000-3-3, EN60950-1; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, RoHS;

UL 60950 (power adapter)



FIRMWAREVERSION1.0.5.23 LXP100USERMANUAL Page10of61

INSTALLATION

EQUIPMENTPACKAGING

Table 2: LXP100 EQUIPMENT PACKAGING

Main Case Yes (1)

Handset Yes (1)

Phone Cord Yes (1)

Power Adaptor Yes (1)

Ethernet Cable Yes (1)

Phone Stand Yes (1)

Quick Start Guide Yes (1)

Wall Mount Spacers Yes (2)

CONNECTINGYOURPHONE

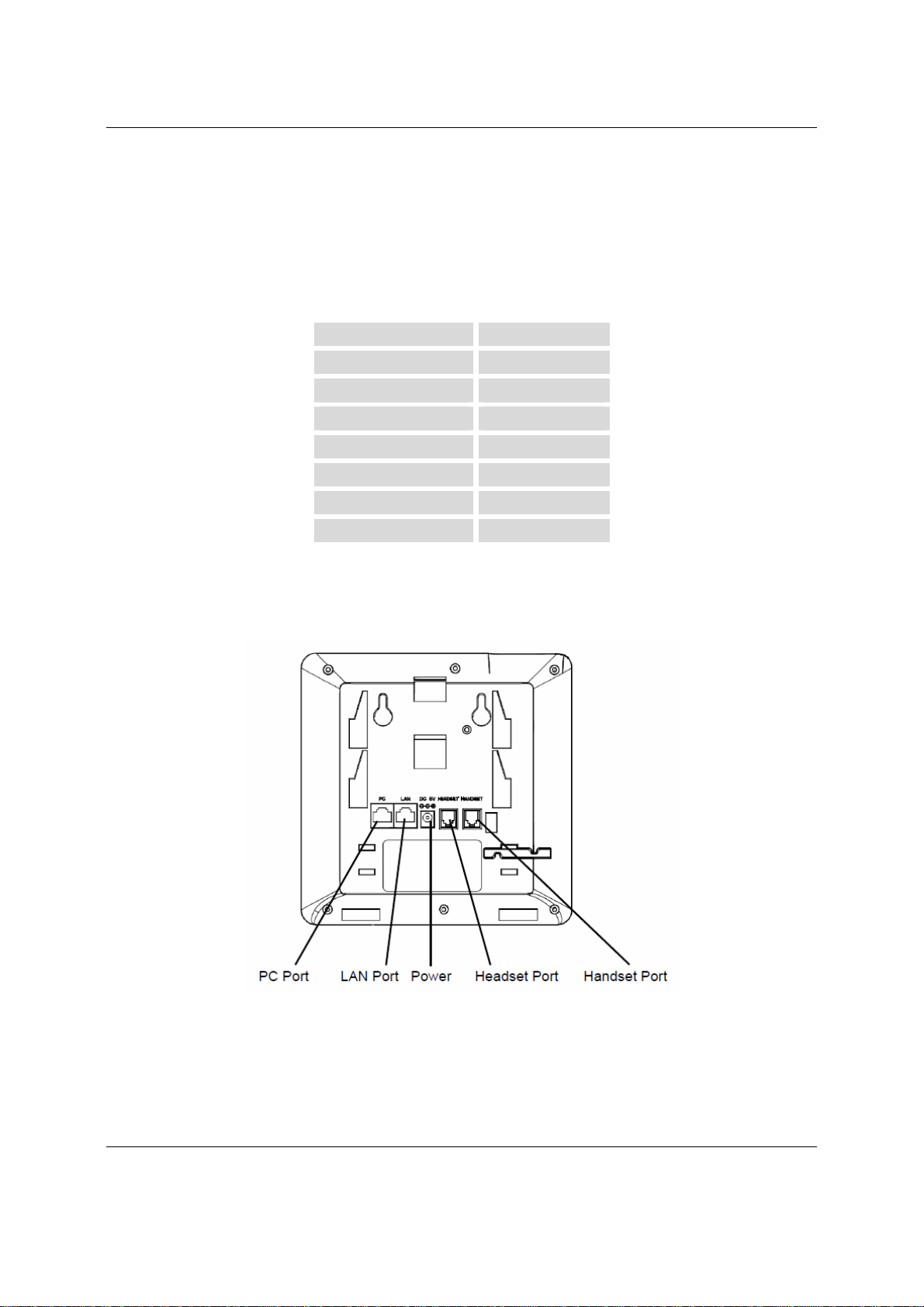

Figure 1: LXP100 Ports

Table of contents

Other Grandstream Networks IP Phone manuals

Grandstream Networks

Grandstream Networks GRP2670 User manual

Grandstream Networks

Grandstream Networks GXP1610 User manual

Grandstream Networks

Grandstream Networks GXV3275 User manual

Grandstream Networks

Grandstream Networks WP810 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GXP1780 User manual

Grandstream Networks

Grandstream Networks GRP260X Series User manual

Grandstream Networks

Grandstream Networks GXP1780 User manual

Grandstream Networks

Grandstream Networks DP715 User manual

Grandstream Networks

Grandstream Networks WP800 User manual

Grandstream Networks

Grandstream Networks GXP1610 Instruction manual

Grandstream Networks

Grandstream Networks GXV317X User manual

Grandstream Networks

Grandstream Networks GXV3175 Operator's manual

Grandstream Networks

Grandstream Networks WP822 User manual

Grandstream Networks

Grandstream Networks GXP2110 User manual

Grandstream Networks

Grandstream Networks GXV34 Series Instruction Manual

Grandstream Networks

Grandstream Networks DP750 User manual

Grandstream Networks

Grandstream Networks GXV3240 Instruction manual

Grandstream Networks

Grandstream Networks GRP2616 Owner's manual

Grandstream Networks

Grandstream Networks GXV3175-T User manual

Grandstream Networks

Grandstream Networks GXV3240 User manual

Grandstream Networks

Grandstream Networks Grandstream GXP-2000 User manual

Grandstream Networks

Grandstream Networks GXP-1100 User manual

Grandstream Networks

Grandstream Networks GXV3370 User manual

Popular IP Phone manuals by other brands

Alcatel

Alcatel 4028 manual

Polycom

Polycom Polycom VVX 600 quick reference

Polycom

Polycom SoundPoint IP 450 datasheet

Cisco

Cisco SPA-500 Series user guide

Polycom

Polycom SoundPoint IP 650 user guide

Proximus

Proximus Maestro 3016 IP quick start guide

Fanvil

Fanvil X4 user manual

Cisco

Cisco 7962 user guide

Snom

Snom 320 quick start guide

Yealink

Yealink Yealink SIP-T46G Guide

Avaya

Avaya 4625SW user guide

Yealink

Yealink SIP-T52S quick start guide

Nortel

Nortel 1140E Getting started

Nexotek

Nexotek NT-P500 user manual

Avaya

Avaya Integral 5 R3.0 user guide

GE 28320EE2 - Dect 6.0 InfoLink 2 user guide

Avaya

Avaya 4600 Series Administrator's guide

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP user guide
