Grandstream Networks GXV3370 User manual

Grandstream Networks, Inc.

GXV3370

User Guide

GXV3370 - User Guide

WELCOME

Thank you for purchasing Grandstream GXV3370 IP Multimedia Phone for Android . The GXV3370 IP Video Phone for

Android combines a 16-line IP video phone with a multi-platform video conferencing solution and the functionality of an

Android tablet to offer an all-in-one communications solution. The phone features a 7” 1024×600 capacitive touch screen TFT

LCD, Mega pixel camera, dual Gigabit ports with PoE/PoE+, HD audio and video, integrated Wi-Fi (802.11a/b/g/n) &

Bluetooth, rich peripheral interfaces, and Android 7.0. By combining a state-of-the-art IP video phone, an advanced video

conferencing solution, and the functionality of a tablet, businesses throughout the world can now use the GXV3370 for all

communication and productivity needs.

PRODUCT OVERVIEW

Feature Highlights

The following tables contain the major features of the GXV3370:

Table 1: GXV3370 Features in a Glance

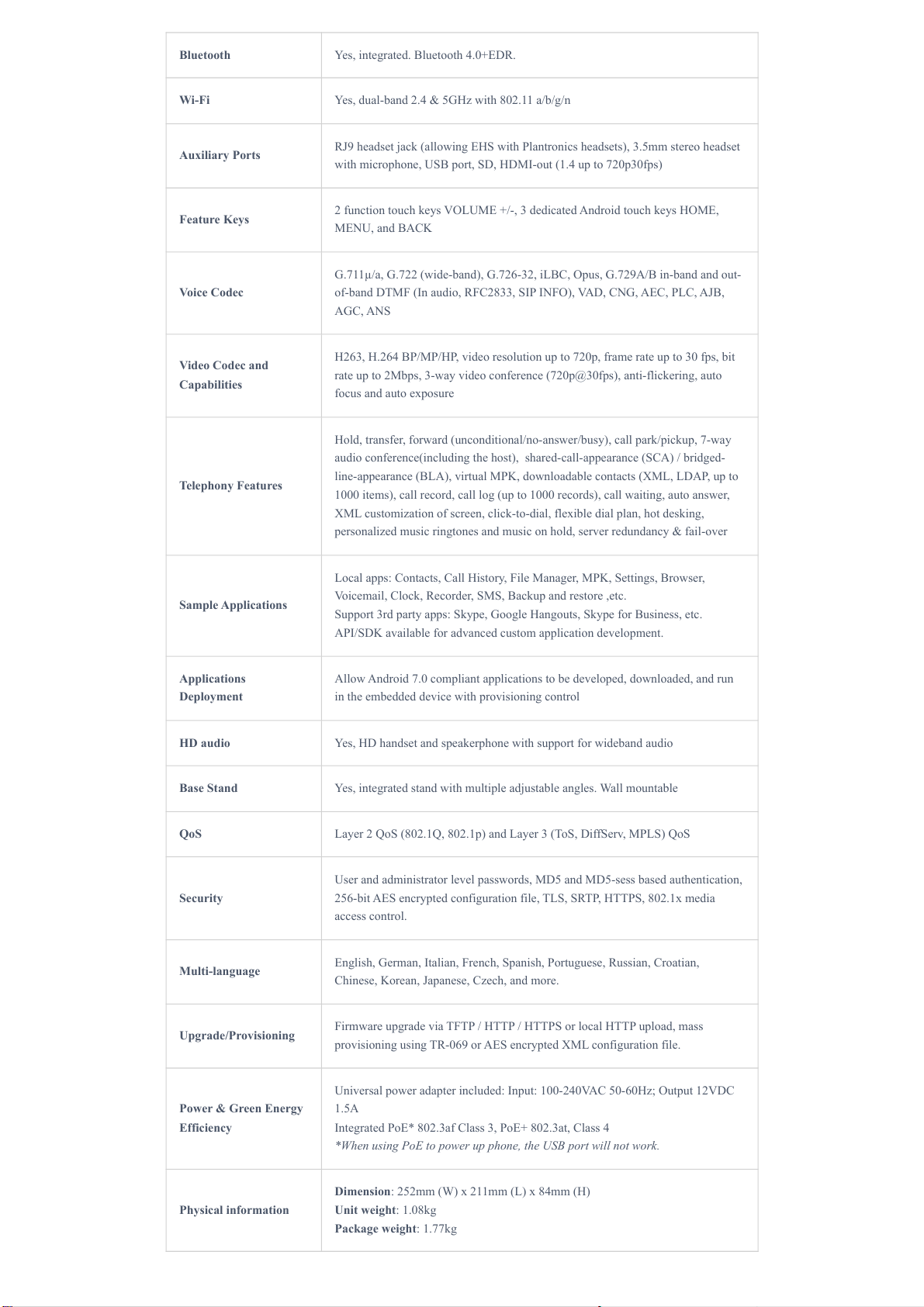

GXV3370 Technical Specifications

The following table resumes all the technical specifications including the protocols / standards supported, voice codecs,

telephony features, languages, and upgrade/provisioning settings for the phone GXV3370.

GXV3370

●16 lines with up to 16 SIP accounts, up to 7-way audio conference and 3-

way 720p 30fps HD video conference, phonebook with up to 1000

contacts, call history with up to 1000 records.

●Dual switched 10/100/1000Mbps network ports, Dual-band 2.4GHz &

5GHz Wi-Fi (802.11a/b/g/n), PoE/PoE+, Bluetooth 4.0+EDR, USB, SD,

HDMI, EHS with Plantronics headsets support.

●7" (1024x600) capacitive (5 points) touch screen TFT LCD, mega pixel

CMOS sensor camera with privacy shutter.

●HD wideband audio, full-duplex hands-free speakerphone with HD

acoustic chamber, advanced acoustic echo cancellation and excellent

double-talk performance.

●Runs the Android™ Operating System 7.0.

●Built-in support for GXV series of video surveillance cameras, and

GDS37xx series of access control devices.

●Create Android applications for any business need to run on GXV3370

using Google's API and Grandstream's SDK toolkit.

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A

record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-

MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6, OpenVPN®.

Network Interfaces Dual switched 10/100/1000 Mbps ports with integrated PoE/PoE+

Graphic Display 7" 1024x600 capacitive touch screen (5 points) TFT LCD

Camera Tiltable 1 mega-pixel CMOS camera with privacy shutter, 720P@30fps

Bluetooth Yes, integrated. Bluetooth 4.0+EDR.

Wi-Fi Yes, dual-band 2.4 & 5GHz with 802.11 a/b/g/n

Auxiliary Ports RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset

with microphone, USB port, SD, HDMI-out (1.4 up to 720p30fps)

Feature Keys 2 function touch keys VOLUME +/-, 3 dedicated Android touch keys HOME,

MENU, and BACK

Voice Codec

G.711µ/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729A/B in-band and out-

of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB,

AGC, ANS

Video Codec and

Capabilities

H263, H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit

rate up to 2Mbps, 3-way video conference (720p@30fps), anti-flickering, auto

focus and auto exposure

Telephony Features

Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 7-way

audio conference(including the host), shared-call-appearance (SCA) / bridged-

line-appearance (BLA), virtual MPK, downloadable contacts (XML, LDAP, up to

1000 items), call record, call log (up to 1000 records), call waiting, auto answer,

XML customization of screen, click-to-dial, flexible dial plan, hot desking,

personalized music ringtones and music on hold, server redundancy & fail-over

Sample Applications

Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser,

Voicemail, Clock, Recorder, SMS, Backup and restore ,etc.

Support 3rd party apps: Skype, Google Hangouts, Skype for Business, etc.

API/SDK available for advanced custom application development.

Applications

Deployment

Allow Android 7.0 compliant applications to be developed, downloaded, and run

in the embedded device with provisioning control

HD audio Yes, HD handset and speakerphone with support for wideband audio

Base Stand Yes, integrated stand with multiple adjustable angles. Wall mountable

QoS Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication,

256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media

access control.

Multi-language English, German, Italian, French, Spanish, Portuguese, Russian, Croatian,

Chinese, Korean, Japanese, Czech, and more.

Upgrade/Provisioning Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass

provisioning using TR-069 or AES encrypted XML configuration file.

Power & Green Energy

Efficiency

Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC

1.5A

Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4

*When using PoE to power up phone, the USB port will not work.

Physical information

Dimension: 252mm (W) x 211mm (L) x 84mm (H)

Unit weight: 1.08kg

Package weight: 1.77kg

Table 2: GXV3370 Technical Specifications

GETTING STARTED

This chapter provides basic installation instructions including the list of the packaging contents and also information for

obtaining the best performance with the GXV3370.

Equipment Packaging

Table 3: Equipment Packaging

Figure 1: GXV3370 Package Content

Temperature and

Humidity

Operation: 0oC to 40oC

Storage: -10oC to 60oC

Humidity: 10% to 90% Non-condensing

Package Content GXV3370 phone, handset with cord, base stand, universal power supply, network

cable, screen cleaning cloth, quick installation guide, brochure, GPL license

Compliance

FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); Part68 (HAC)

CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1,

EN62479, RoHS

RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268

IC: ICES 003, RSS 247, CS 03, RSS 102

GXV3370

●1x GXV3370 Main Case.

●1 x Handset.

●1x Phone Cord.

●1x Ethernet Cable.

●1x 12V Power Adapter.

●1x Wall Mount.

●1x Screen Cleaning Cloth.

●1x Quick Installation Guide.

●1x GPL License.

Description of the GXV3370

Front View

Figure 2: GXV3370 Front

Note

Check the package before installation. If you find anything missing, contact your system administrator.

Item Name Description

1 Front Camera 1 mega pixel front camera. The angle can be adjusted, and the camera can be blocked

by scrolling up/down the wheel on the back of the camera.

2 MWI LED Indicator To indicate message status, call status and phone’s system status using the LED

indicator.

3 LCD 7″ (1024×600) capacitive (5 points) touch screen.

4Back Tap to go back to the previous menu.

5 Menu

Press MENU key to access phone’s display settings, edit widgets and thread manager.

Or press and hold on the MENU key for 2 seconds to enter managing application

interface directly.

6 Home Tap to go back to Home screen; or touch and press for about 2 seconds to take a

screenshot of phone’s screen.

7 Volume Up Tap to turn up the call volume and media volume.

8 Volume Down Tap to turn down the call volume and media volume.

9 Handset Off hook to use handset as the audio channel for calls and media.

Table 4: GXV3370 Front View

Back View

Figure 3: GXV3370 Back View

Table 5: GXV3370 Back View

Side View

Item Name Description

1 Camera Adjusting Wheel Scroll up/down to adjust the camera angle.

2 Phone Stand (built-in) Put the phone stand from left to right into the slots.

3 Handset Port RJ9 handset connector port.

4 Headset Port RJ9 headset connector port (supporting EHS with Plantronics headset).

5 LAN Port

10/100/1000Mbps RJ-45 port connecting to Ethernet.

PoE/PoE+ is supported

6 PC Port 10/100/1000Mbps RJ-45 port connecting to PC.

7 Power Jack 12V DC Power connector port.

8 Side Connectors Cover Open the cover for USB port, SD card slot, 3.5mm headset port and mini HDMI

port.

Figure 4: GXV3370 Side View

Ite

mName Description

1 HDMI Port Connect display device to the HDMI port via HDMI cable.

2 SD Card Port Connect SD storage device to the SD Card Slot.

33.5mm Headset

Port Connect 3.5mm headset.

4 USB Port USB devices can be connected via the USB port. For example, connect a USB flash drive to save

captured pictures.

Table 6: GXV3370 Side View

Connecting and Setting Up the GXV3370

The GXV3370 can be installed on the desktop using the built-in stand or attached on the wall using the slots for wall

mounting.

Using the Phone Stand

The GXV3370 has a built-in phone stand. To set up the GXV3370 as your desk phone, follow the steps below:

1. Take the phone stand out on the back and adjust the angle to place the phone steady on the desk;

2. Connect the handset and main phone case with the phone cord;

3. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the router) using the

Ethernet cable;

4. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet. If PoE

switch is used in step 3, this step could be skipped;

The LCD will display the booting up screen or firmware upgrading information. Before con tinuing, please wait for the main

screen display to show up.

Figure 5: Built in Stand and Mounting Slots on GXV3370

Using the Slots for Wall Mounting

1. Attach the wall mount to the slots on the back of the phone;

2. Attach the phone to the wall via the wall mount hole;

3. Pull out the tab from the handset cradle (see figure below);

4. Rotate the tab and plug it back into the slot with the extension up to hold the handset while the phone is mounted on the

wall.

5. Connect the handset and main phone case with the phone cord;

6. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the router) using the

Ethernet cable;

7. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet. If PoE

switch is used in step 3, this step could be skipped;

The LCD will display the booting up screen or firmware upgrading information. Before con tinuing, please wait for the main

screen display to show up.

Figure 6: Tab on The Handset Cradle

Connecting the GXV3370

To setup your GXV3370, please follow the steps below:

1. Connect the handset and main phone case with the phone cord;

2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a router (LAN side of the router) using the

Ethernet cable;

3. Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet. If PoE

switch is used in step 2, this step could be skipped;

4. The LCD will display booting up or firmware upgrading information. Before continuing, please wait for the main screen

display to show up;

5. Using the web configuration interface or from the menu of the touch screen, you can further configure network

connection using static IP, DHCP etc.

Figure 7: GXV3370 Back / Side View

Cleaning the Phone

For daily dust removal and fingerprint removal, please use the screen cleaning cloth in the factory package to wipe the phone.

For some special cases like medical environment, you can use medical alcohol or isopropanol. The steps are as followed:

1. Before cleaning the phone, stop using it and disconnect it from the power supply.

2. Spray a small amount of disinfectant on screen, camera, handle, and other places that are easily touched by users.

3. Wipe the phone with screen cleaning cloth.

4. Power on until the disinfectant is completely volatilized.

Notes:

Keep the power plug clean and dry or may lead to electric shock or other perils.

DO NOT use disinfectant too frequently.

DO NOT use high degree or even pure disinfectant. It could damage the phone.

GETTING TO KNOW GXV3370

Use the Touchscreen

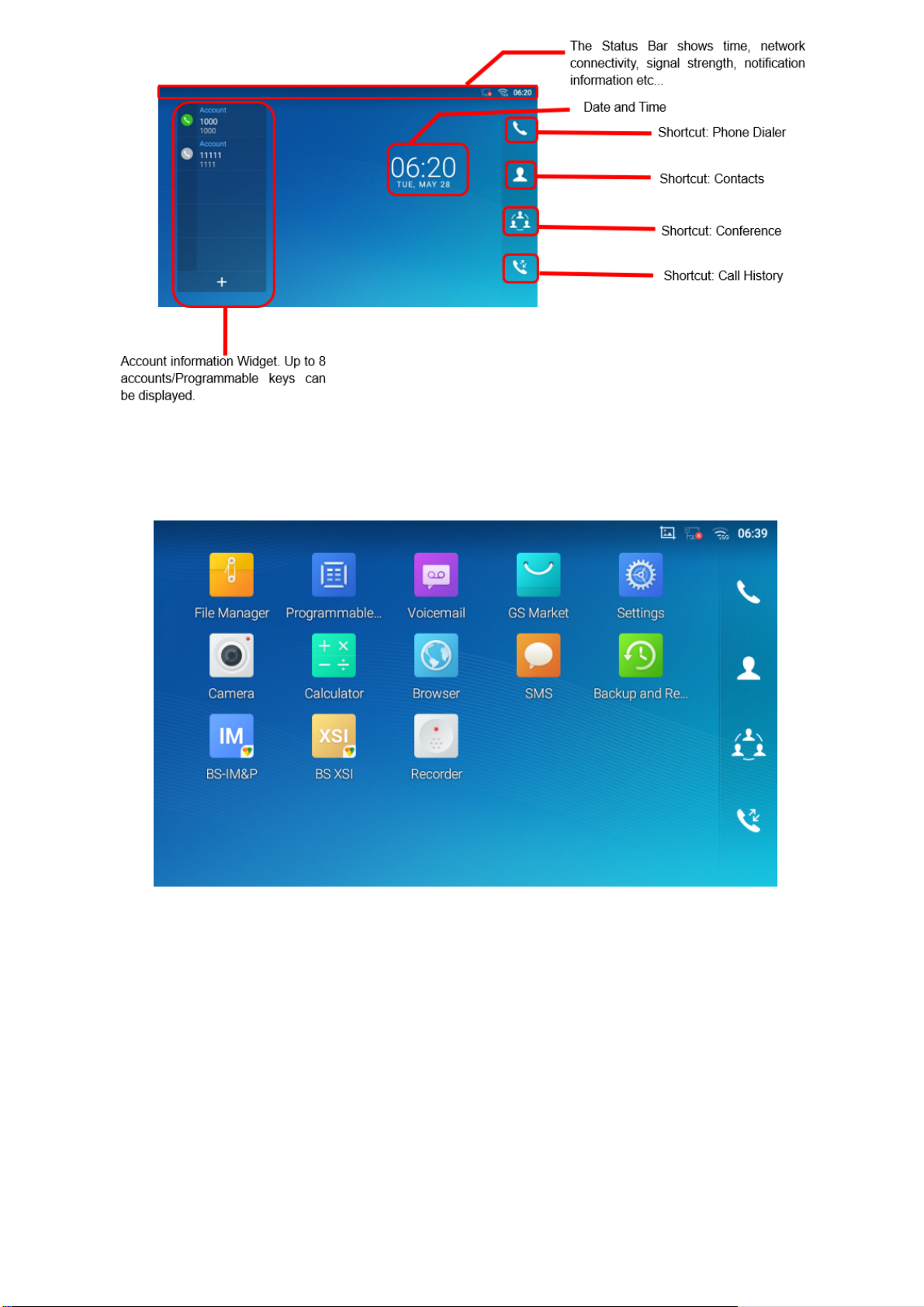

When the phone boots up in HOME screen, the LCD will display as below. A registered account is shown in the following

figure and users might need register their own account to have the account status displayed.

The Status Bar shows time, network connectivity, signal strength, notification information etc…

Figure 8: GXV3370 Default Home Screen

Swipe from right to left to show the application menu of the phone. the settings and applications installed will be brought up

as shown below.

Figure 9: GXV3370 Onscreen Menu

To fully manipulate the GXV3370 capacitive touch screen, use your fingers to operate the following on the GXV3370 icons,

buttons, menu items, onscreen keyboard etc.

Other manuals for GXV3370

Table of contents

Other Grandstream Networks IP Phone manuals

Grandstream Networks

Grandstream Networks GXV3275 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GRP2612 User manual

Grandstream Networks

Grandstream Networks GXP2135 User manual

Grandstream Networks

Grandstream Networks GXP2160 User manual

Grandstream Networks

Grandstream Networks GXP2130 Series User manual

Grandstream Networks

Grandstream Networks GXV3240 User manual

Grandstream Networks

Grandstream Networks GXV3240 Instruction Manual

Grandstream Networks

Grandstream Networks GXV 3140 Manual

Grandstream Networks

Grandstream Networks GXP2170 User manual

Grandstream Networks

Grandstream Networks GRP2616 User manual

Grandstream Networks

Grandstream Networks GXV-3000 User manual

Grandstream Networks

Grandstream Networks GRP2601 User manual

Grandstream Networks

Grandstream Networks GRP26 Series User manual

Grandstream Networks

Grandstream Networks GRP2634 User manual

Grandstream Networks

Grandstream Networks GXP1620 User manual

Grandstream Networks

Grandstream Networks GXP-1400 User manual

Grandstream Networks

Grandstream Networks Grandstream GXP-2010 User manual

Grandstream Networks

Grandstream Networks GXV-3000 Manual

Grandstream Networks

Grandstream Networks GXP2000EXT User manual

Grandstream Networks

Grandstream Networks GXV3275 User manual

Grandstream Networks

Grandstream Networks GXV3275 User manual

Grandstream Networks

Grandstream Networks Grandstream GXP-2000 User manual

Grandstream Networks

Grandstream Networks GXV-3000 User manual

Popular IP Phone manuals by other brands

Alcatel

Alcatel 4028 manual

Polycom

Polycom Polycom VVX 600 quick reference

Polycom

Polycom SoundPoint IP 450 datasheet

Cisco

Cisco SPA-500 Series user guide

Polycom

Polycom SoundPoint IP 650 user guide

Proximus

Proximus Maestro 3016 IP quick start guide

Fanvil

Fanvil X4 user manual

Cisco

Cisco 7962 user guide

Snom

Snom 320 quick start guide

Yealink

Yealink Yealink SIP-T46G Guide

Avaya

Avaya 4625SW user guide

Yealink

Yealink SIP-T52S quick start guide

Nortel

Nortel 1140E Getting started

Nexotek

Nexotek NT-P500 user manual

Avaya

Avaya Integral 5 R3.0 user guide

GE 28320EE2 - Dect 6.0 InfoLink 2 user guide

Avaya

Avaya 4600 Series Administrator's guide

Mitel

Mitel MIVOICE OFFICE 400 6940 SIP user guide
