Graco Ultra Max 309273 User manual
Ultra Maxt
Electric Airless Sprayers
Operating Instructions
The intent of these instructions is to provide the new painter with a quick and easy reference to
become familiar with airless sprayers. This does not replace the Instruction Manual supplied
with this sprayer. Read and understand the instructions and warnings in that manual.
Important Note: The Graco Standard product line has a wide range of sprayer units that vary
slightly. The basic operations procedures are the same for all sprayers. Some illustrations may
not be applicable to the particular sprayer purchased.
Tools Required:
DTwo adjustable wrenches
DTwo 5 gallon metal pails
DGrounding wires and clamps for pails
DPencil
Suggested proper clothing:
DRespirator
DSafety glasses
309273
Rev. D
How To Perform:
SComponent Identification 3. . . . . . .
SSetup 4. . . . . . . . . . . . . . . . . . . . . . . . . . .
SStartup 7. . . . . . . . . . . . . . . . . . . . . . . . . .
SSMARTCONTROLt9. . . . . . . . . . .
SCleanup 11. . . . . . . . . . . . . . . . . . . . . . . .
STrouble Shooting 15. . . . . . . . . . . . . .
SMaintenance 16. . . . . . . . . . . . . . . . . . .
SStorage 16. . . . . . . . . . . . . . . . . . . . . . . .
STip Wear 16. . . . . . . . . . . . . . . . . . . . . . .
3300 psi (227 bar 22.7 MPa) Maximum Working Pressure
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 2000, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
2309273
PRESSURE RELIEF – Do this when cleaning, repairing or shuting down sprayer
WASTE
RESÍDUOS
À JETER
DESECHO
1. Turn pressure to lowest setting.
Turn power OFF.
Unplug sprayer.
2. Trigger gun to relieve pressure.
3. Put drain tube in pail.
Turn prime valve down.
WARNING
Fire and explosion hazard: Solvent and paint fumes can
ignite or explode.
To help prevent a fire and explosion:
DUse only in an extremely well ventilated area.
DEliminate all ignition sources; such as pilot lights, cigarettes
and static arcs from plastic drop cloths. Do not plug or
unplug power cords or turn lights on or off in spray area.
DGround Sprayer, object being sprayed, paint and solvent
pails.
DHold gun firmly to side of grounded pail when triggering into
pail.
DUse only conductive airless paint hose.
DDo not use 1,1,1-trichloroethane, methylene chloride, other
halogenated hydrocarbon solvents or fluids containing such
solvents in pressurized aluminum equipment. Such use
could result in a chemical reaction, with the possibility of
explosion.
DTo reduce risk of electric shock, use grounded outlet
only. Shut OFF and unplug when repairing.
Fluid injection and high pressure hazard: High pressure
spray or leaks can inject fluid into the body.
To help prevent injection, always:
DEngage trigger safety latch when not spraying.
DKeep clear of nozzle and leaks.
DNever spray without a tip guard.
DDo PRESSURE RELIEF if you stop spraying or begin
servicing sprayer.
DDo not use components rated less than sprayer Maximum
Working Pressure.
DNever allow children to use this unit.
If high pressure fluid pierces your skin, the injury might
look like “just a cut”. But it is a serious wound! Get immediate
medical attention.
3309273
Power Switch
Pressure Control
Component Identification
Suction Tube
Filter
Prime Valve
Prime/drain position
Paint position
Spray Gun Trigger Safety
Put trigger safety ON
when not spraying.
Take trigger safety OFF
before triggering gun.
Digital Display
(Not available on all models)
15/20A Switch
AutoClean Valve
(Not available on all models)
Use 15A if sprayer
causes circuit
breakers to trip
(1095/1595 only)
Drain Tube
Note:Unclip drain
tube for best filter
drainage
safety OFF
safety ON
Contractor
Contractor II
4309273
1. Connect Graco airless hose to sprayer.
Tighten securely.
2. Connect other end of hose to gun.
Setup
3. Tighten securely.
4. Remove tip guard.
5309273
5. Check inlet strainer for clogs and debris.
6. Fill throat packing nut with TSL to prevent
premature packing wear.
Do this each time you spray.
Approximate Fill Level
6309273
PAINT
FLUSH

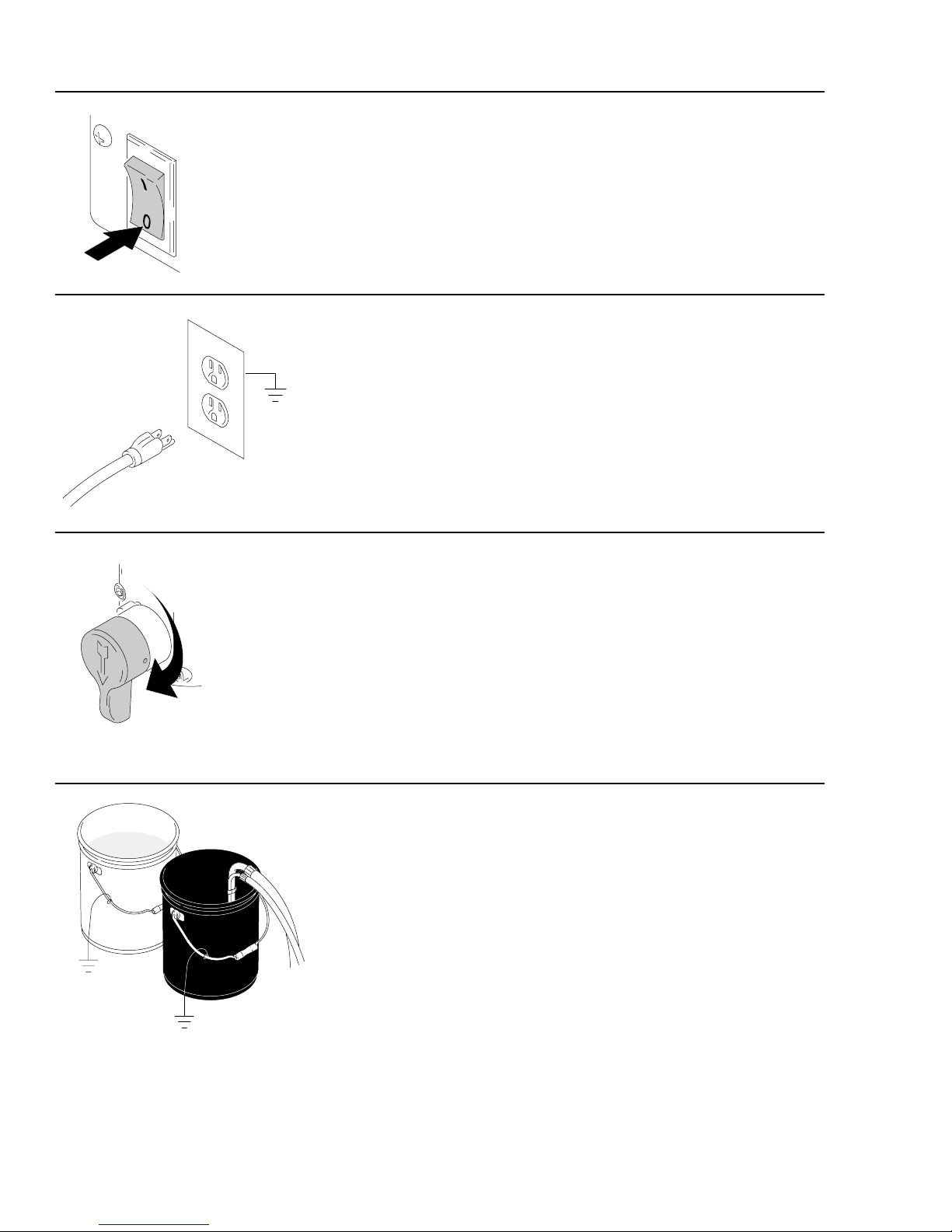

7. Turn power OFF.
8. Plug power supply cord into a properly grounded
electrical outlet.
9. Turn prime valve down.
10.Place suction tube and drain tube in grounded
metal pail partially filled with flushing fluid. Attach
ground wire to pail and to true earth ground. Do 1.
–5. of Startup to flush out storage oil shipped in
sprayer. Use water to flush water base paint and
mineral spirits to flush oil base paint and storage
oil.
7309273
FLUSH
Note: Inspect fittings for leaks. Do not stop leaks with your hand or a rag! If leaks
occur, do Pressure Relief. Tighten leaky fittings. Repeat Startup, 1. – 5. If no
leaks, continue to trigger gun until system is thoroughly flushed. Proceed to 6.
Startup
15 SEC
1. Turn prime valve down.
Turn pressure control to lowest pressure.
2. Turn power ON.
3. Increase pressure enough to start motor
and allow fluid to circulate for 15 sec-
onds; turn pressure down, turn prime
valve horizontal.
4. Take spray gun trigger safety OFF.
5. Hold gun against grounded metal
flushing pail. Trigger gun and increase
fluid pressure slowly until pump runs
smoothly.
safety OFF ContractorContractor II
8309273
FLUSH
PAINT
General Surfaces Tip Recommendations Chart
Wood Interior Cab-
inets, Paneling
Interior Walls or Ceilings
Drywall, Plaster
Over Hang
Surfaces Materials Filter
Mesh 6–8 8–10 10–12 12–14 Orifice
Size (in.)
Fan Width (in.)
at 12 in.
Masonry
Block, Stucco, Concrete
Wood Exterior
Shingle, Siding, Shiplap
Open Joist and Ceiling
Areas
Stain, Sanding
Sealer, Lacquer,
Varnish, Shellac
100
60
60
60
60
60
S
S
.011
Latex, Vinyl, Acrylic
Primers, Enamels
Latex, Vinyl, Acrylic,
Oil Base Alkyds
Exterior Stains,
Latex, Vinyl, Acrylic
Mil White, Hi Builds
S
S
S
S
S
S
S
S
S
S
S
S
.015
.017
.019
S
S
S
S
S
.015
.017
.019
SS
S
SS
.017
.019
.021
S
S
SS
.017
.019
.021
S
SS
.019
.021
.023
.013
6. Place siphon tube in paint pail.
7. Trigger gun again into flushing fluid pail until
paint appears. Assemble tip and guard, page 8.
9309273
SwitchTip and Guard Assembly
1. Insert SwitchTip.
Insert seat and OneSeal.
2. Screw assembly onto gun. Hand tighten.
SwitchTip
OneSeal
seat
Press SMARTCONTROL button to cycle through
PRESSURE – GAL/LTR – TIMER displays
DPRESSURE: Fluid pressure at the sprayer
DGAL/LTR: Accumulated total of gallons/liters sprayed
DTIMER: Duration of AutoClean flush cycle
NOTE: The SMARTCONTROL button is not
active if pressure is above 200 psi
Operation
Error Codes
Sprayer stops and displays error code if fault
occurs
After fault has been corrected or Timer
reaches zero, turn sprayer OFF and then
ON to reset SMARTCONTROL
High pressure limit
Pressure transducer fault
Line voltage too high
Too much current
Motor overheated
Pressure > 2000 psi while in Flush Timer Mode
Line voltage too low
Pressure is below 200 psi
Digital display switches are not set
* Models not equipped with digital displays:
Error codes are displayed inside SMART-
CONTROL. Refer to Manual 309255 for in-
structions.
SMARTCONTROLt
(Not available on all models*)
10 309273
Spray Test Pattern
heavy
edges
Clearing Tip Clogs
1. Trigger gun and spray test pattern.
Slowly adjust pressure to eliminate
heavy edges. Use smaller tip size if
pressure adjustment can not eliminate
heavy edges.
2. Hold gun perpendicular, 10–12 in.
(25–30 cm) from surface. Spray back
and forth. Use strokes overlapped by
50%. Start gun movement before trig-
gering gun and release trigger before
stopping gun movement.
1. Release trigger, put trigger safety ON.
Rotate SwitchTip. Take trigger safety
OFF and trigger gun to clear the clog.
Never point gun towards your hand
or into a rag!
2. Put trigger safety ON, return SwitchTip
to original position, take trigger safety
OFF and continue spraying.
