Graco TX 90 Operating instructions
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2006, Graco Inc. is registered to I.S. EN ISO 9001
For Water-Based Materials Only
Models: 254971 and 254972
70 psi (0.49 MPa, 4.9 bar)
Maximum Fluid Working Pressure
Related Manuals
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
311777
311764
Model 254972 Shown
ti8696a
311770B
Repair
Interior Texture Sprayers
TX 90 & TX 125
U
S
C
Conforms to ANSI/UL
standard 1450
Warnings
2
Warnings
The following are general warnings related to the setup, use, grounding, maintenance and repair of this equipment.
Additional, more specific warnings may be found throughout the body of this manual where applicable. Symbols
appearing in the body of the manual refer to these general warnings. When these symbols appear through the man-
ual, refer back to these pages for a description of the specific hazard.
Warnings
Fire and Explosion Hazard
Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result
in fire or explosion and serious injury.
• The system is for use with water-based materials only. Only use fluids compatible with the equip-
ment. Refer to Technical Data of all equipment manuals. Read fluid and solvent manufacturers warn-
ings.
• Ground all equipment in the work area. See Grounding and Electrical Requirements, page 6.
• If there is any static sparking or you feel an electric shock while using this equipment, stop spraying
immediately. Do not use the equipment until you identify and correct the problem.
• Keep work area free of debris, including solvent, rags and gasoline.
• Comply with all applicable state and national fire, electrical and safety regulations.
• Keep a fire extinguisher in the work area.
Equipment Misuse Hazard
Equipment misuse can cause equipment to rupture, malfunction, or start unexpectedly and cause serious
injury.
• Before operating this equipment, read all manuals, tags, and labels, including material labels and
instructions.
• Do not expose system to rain. Always store system indoors.
• Do not alter or modify equipment.
• Do not spray cementitious materials.
• Do not exceed maximum working pressure of lowest rated component in your system.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• To reduce risk of serious injury, including electric shock and splashing fluid in eyes, follow Pressure
Relief Procedure on page 6 before servicing the unit.
• Do not kink or over bend hoses or use hoses to pull equipment.
• Route hoses away from traffic areas, sharp edges, moving parts and hot surfaces. Do not expose
Graco hoses to temperatures above 130 F (55 C) or below -35 F (-37 C).
• Air hoses at the compressor end, can get very hot! Allow sprayer to cool down 15 minutes before
removing air hose.
• Store hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,
state and national guidelines.
• Never directly inhale compressed air. Compressed air may contain toxic vapors.
Warnings
3
Electric Shock Hazard
To reduce the risk of electric shock:
• Be sure sprayer is adequately grounded through electrical outlet, page 6.
• Use only 3-wire, extension cords.
• Make sure ground prongs are intact on sprayer and extension cords.
• Do not operate with cover removed.
• Turn off sprayer. Follow Pressure Relief Procedure, page 6, and unplug unit, before removing any
parts.
Pressurized Equipment Hazard
Fluid from gun, leaks or ruptured components can splash in the eyes or on skin and cause serious injury.
• Follow Pressure Relief Procedure, page 6 when you stop spraying and before cleaning, checking
or servicing.
• Do not point spray gun at anyone; put hand, fingers or rag over nozzle, or stop or deflect leaks with
your hand, body, glove, or rag.
• Wear protective clothing, gloves, and eyewear.
Cleaning Solvent Hazard with Plastic Parts
Use only compatible water-based solvents to clean plastic structural or pressure-containing parts. Many
solvents can degrade plastic parts to the point where they could fail. Such failure could cause serious
injury or property damage. See Technical Data on page 31 of this instruction manual and in all other
equipment manuals. Read fluid and solvent manufacturer’s warnings.
Burn Hazard
Equipment surfaces and fluid that’s heated can become very hot during operation. To avoid severe burns,
do not touch hot fluid or equipment. Wait until equipment/fluid has cooled completely.
Personal Protective Equipment
You must wear appropriate protective equipment when operating, servicing, or when in the operating
area of the equipment to help protect you from serious injury, including eye injury, inhalation of toxic
fumes, burns, and hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Clothing and respirator as recommended by the fluid and solvent manufacturer
• Gloves
• Hearing Protection
Warnings
Warnings
4

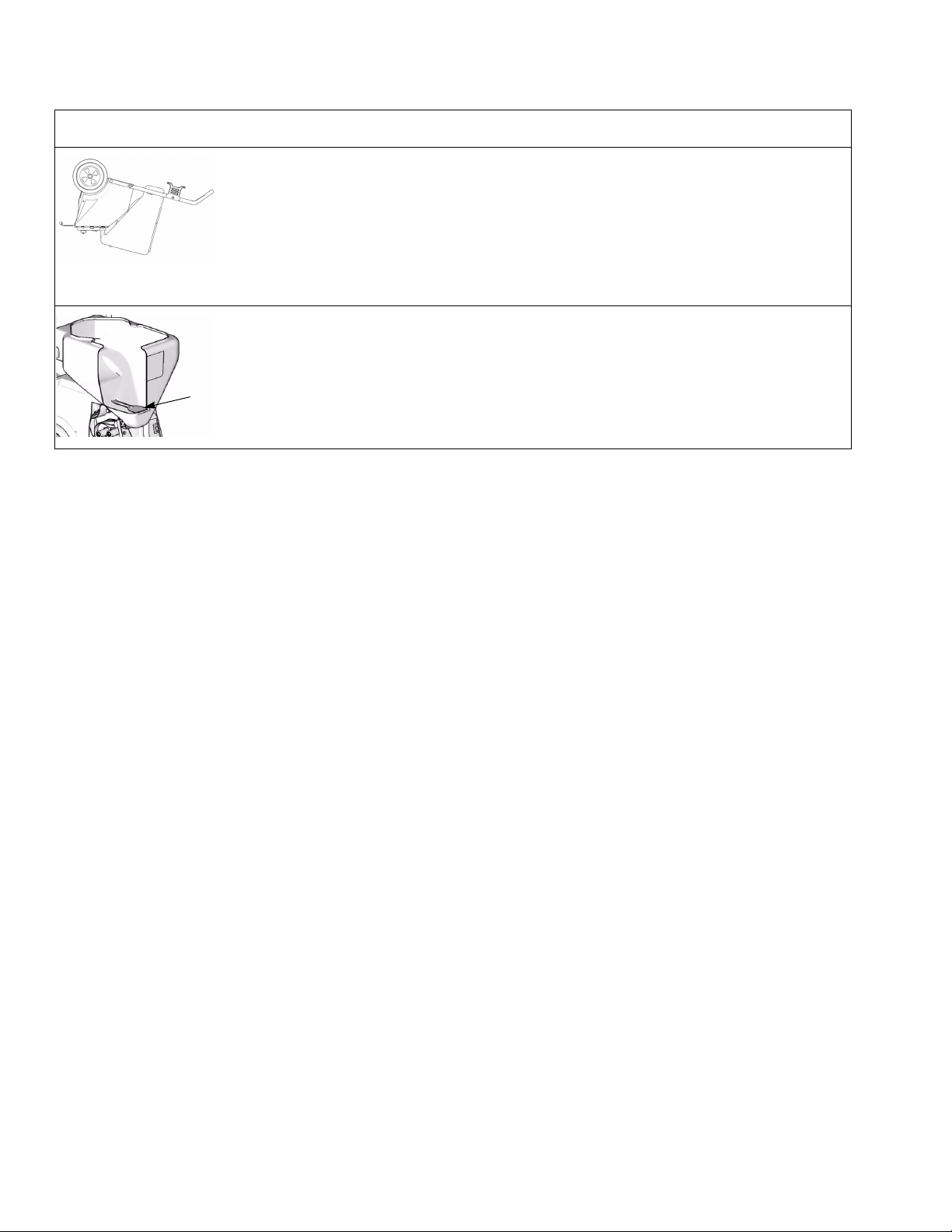

CAUTION
Water or material remaining in unit when temperatures are below freezing can damage
motor and/or delay pump startup. To insure water and material are completely drained out
of unit:
1. Remove material line from sprayer.
2. Tip sprayer up as shown.
Before adding material or starting unit in cold weather, run warm water through pump.
Install burp the guard (J) before adding material to the hopper. When only a small amount of
material remains in the hopper, the burp guard prevents material from shooting out when
the unit is turned off. This material could splash into the operator’s eye or skin.
ti8713a
ti8697a
J
Component Identification
5

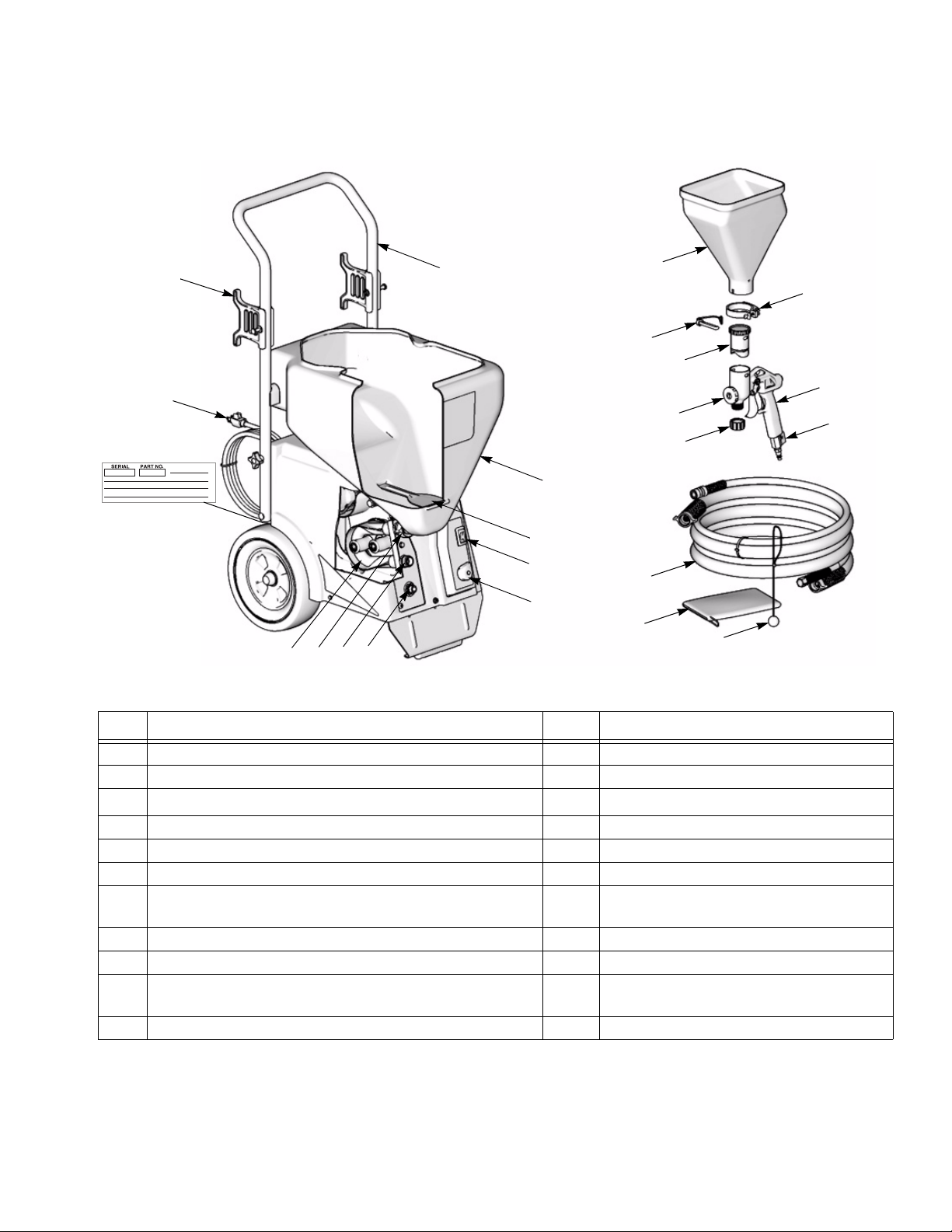

Component Identification
Item Component Item Component
A Hose Rack/Cord Wrap M Touch-Up Hopper (3/4 Gallon)
B Power Cord N Gun Plug Clip
CRotoFlex™II Pump (inside) P Gun Plug
D Hopper Fitting (fluid inlet) Q Nozzle
E Material Hose Outlet R Hose Plug
F Air Hose Outlet S Material/Air Hose
GTX 90 - Hopper Gun/Spray Selector Switch
TX 125 - Hopper Gun Selector & Material Flow Control T Accessories Bag
H ON/OFF Switch U Material Thickness Gauge
J Burp Guard V Gun Air Flow Control Valve
KTX 90 - Material Hopper, 8 Gallon
TX125 - Material Hopper, 10 Gallon W Texture Spray Gun (manual 311777)
L Handle Z Hopper Clamp
DE
HS
A
P
U
Gti8697a
J
CF
T
R
K
Q
N
M
Z
W
V
B
L
Component Identification
6
Pressure Relief Procedure
To reduce risk of injury, follow this procedure
whenever you see this symbol throughout this
manual, Also, perform this procedure whenever
you:
• Stop spraying.
• Check or repair any part of this system.
• Install or clean spray nozzle.
1. Turn Power Switch OFF.
2. Trigger gun into material hopper.
3. Open gun air valve.
Grounding and Electrical
Requirements
This sprayer must be grounded. Grounding reduces the
risk of electrical shock by providing an escape wire for
the electrical current. The sprayer cord includes a
grounding wire with an appropriate grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
Check with a qualified electrician or if grounding
instructions are not completely understood, or if in doubt
as to whether the product is properly grounded. Do not
modify plug provided; if it will not fit the outlet, have
proper outlet installed by a qualified electrician.
120V AC Systems
• This equipment requires a 120V AC, 60 Hz, 15A
circuit with a grounding receptacle. Do not use an
adapter with this product.
Extension Cords
• Use only an extension cord with an undamaged,
3-prong plug.
• For 25 to 50 ft (7.6 to 15.2 m) cords, use 3-wire, 14
AWG (1.5 mm2) minimum.
• For up to 100 ft. (30.48 m) cord, use 3-wire, 12 AWG
(2.5 mm2) minimum.
Auxiliary Air Compressor
Do not use an auxiliary air compressor with this spray
system.
Generator Requirements
3500 W (3.5 KW) minimum.
Hose Size and Length
The system comes with a hose set consisting of a 3/4 in.
ID x 25 ft (25 mm x 7.6 m) material hose and a 3/8 in-ID
air hose.
ti8712a
ti9084a
ti8528a
Shroud Removal
7
Shroud Removal

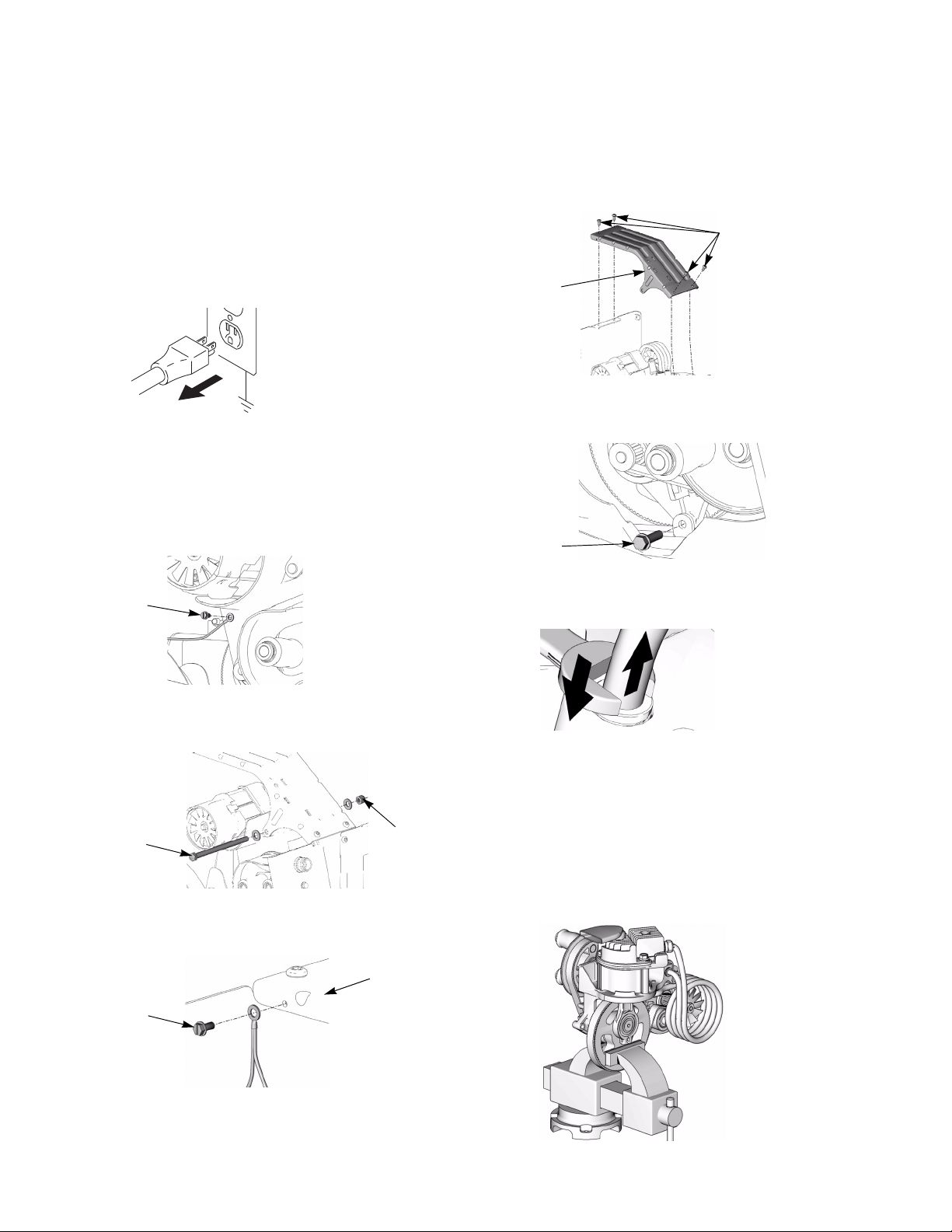

Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Loosen bottom hopper fitting by hand and pull
hopper up and off from handle.
4. Loosen and remove 2 knobs (14) on sprayer handle
(12).
5. Spread sprayer handle (12) apart and remove from
sprayer.
6. Loosen screws (30) and (43) on shroud.
7. Lift bottom front of shroud and pull up and over front
control to remove.
Reassembly
1. Replace shroud, pull over front controls and push
down until shroud snaps into place.
2. Replace and tighten screws (30) and (43).
3. Spread sprayer handle apart and slide handle down
into place.
4. Tighten 2 knobs (14) on sprayer handle (12).
5. Replace hopper and tighten hopper fitting by hand
until snug.
ti2810b
ti8702a
ti9247a
14
12
ti9246a
12
ti9251a
30
43
ti9250a
RotoFlex™II Pump
8
RotoFlex™II Pump

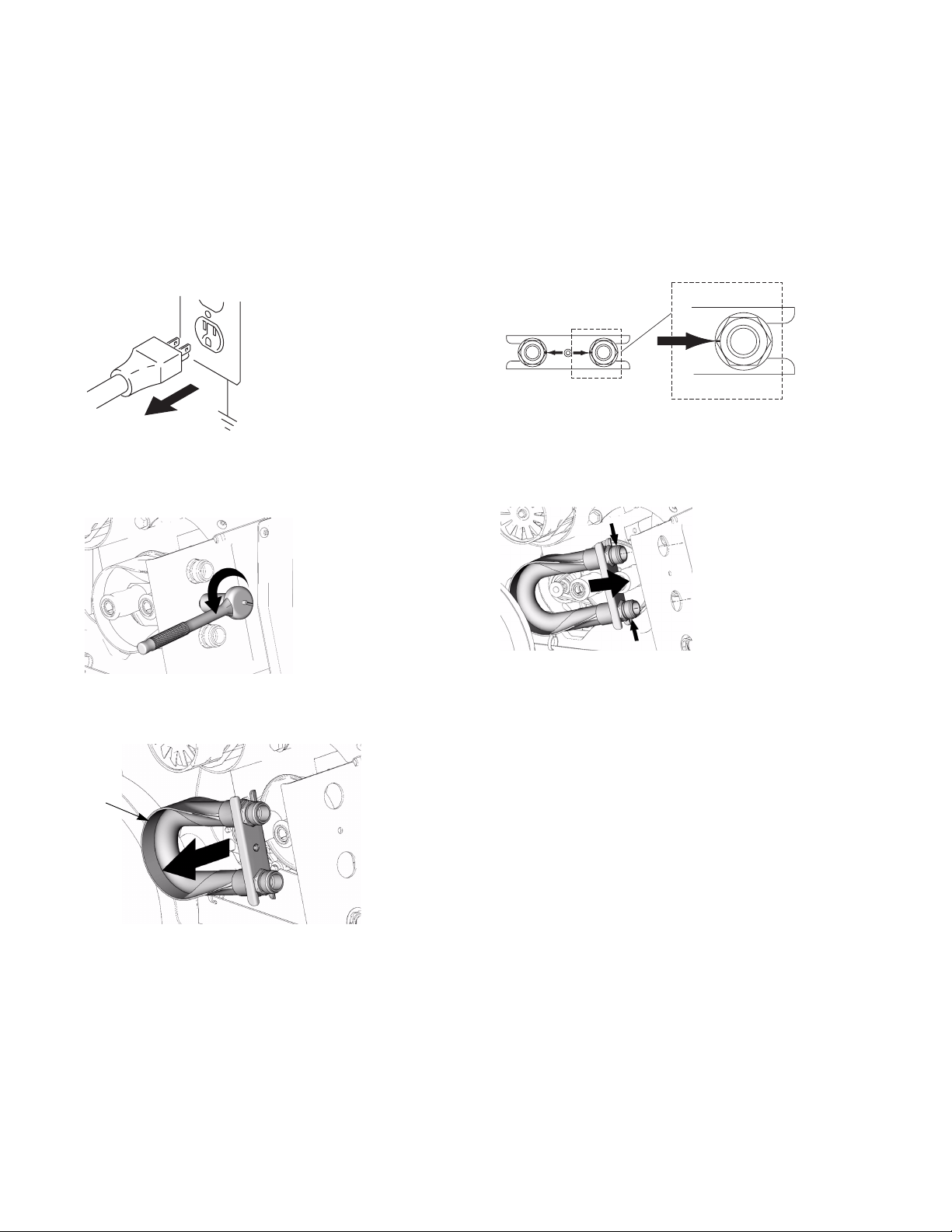

Disassemble
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. Loosen and remove screw (28) on hose bracket.
5. Grab pump hose (16) from side of unit and remove
pump hose by hand.
Reassemble
1. Bend hose (16) so colored dots on hose fittings face
each other.
2. Slide new pump hose (16) over rollers. Move pump
rollers by hand until or flip power switch to rotate
rollers until they are positioned correctly with pump
hose.
3. Feed pump fittings through front of sprayer.
4. Replace and tighten screw (28) on hose bracket.
5. Replace Shroud, page 7.
6. To break in new pump, add 1 cup of water to pump
and run for 3 minutes.
ti2810b
ti9249a
16
ti9248a
ti3084a
ti9245a
Compressor
9
Compressor
Use Compressor Repair Kit, 288612.
Disassembly
1. Relieve Pressure, page 6.
2. Unplug sprayer from outlet.
3. Remove Shroud, page 7.
4. Remove RotoFlex™II Pump hose, page 8.
5. Unscrew and remove grounding screw (49) from
compressor.
6. Use 9/16 in. socket and wrench to remove pivot bolt
(26) and nut (27).
7. Unscrew and remove second grounding screw (49)
from bracket (21).
8. Remove 4 screws (29) and lift bracket (21) off of
compressor.
9. Remove shoulder bolt (35) holding pump roller in
place.
10. Use a wrench to push down on push-to-connect
fitting and pull out all nylon hoses.
11. Disconnect all electrical wire connectors, see
Wiring Diagram, page 25.
12. Thoroughly clean inside housing, removing dust and
debris.
To service the compressor, remove it from the sprayer
body and place it a vice. Tighten the vice onto the main
pulley to hold the compressor in place while servicing.
ti2810b
49
ti8941a
ti9438a
26 27
49
21
ti9013a
ti9440a
29
21
ti8879a
35
ti8952a
ti8951a
Compressor
10
Reassembly
1. Carefully position compressor back into sprayer
body. Make sure piston head facing front of sprayer.
2. Replace and tighten grounding screw (49).
3. Reattach air lines to compressor.
4. Reattach 2 wires to compressor see Wiring
Diagram, page 25.
5. Replace air cylinder and tighten shoulder bolt (35) to
lock into place.
6. Replace bracket (21) and tighten 4 screws (29).
7. Replace in. grounding screw (49) and tighten onto
bracket (21).
8. Replace pivot bolt (26) and use 9/16 in. socket and
wrench to tighten into place. Tighten screw until
spring washers are flattened.
9. Replace and tighten second grounding screw (49) to
bracket (21).
10. Replace RotoFlex™II Pump hose; page 8.
11. Replace Shroud, page 7.
ti9442a
ti9443a
49
ti8941a
ti8873a
ti8879a
35
ti9440a
29
21
ti9438a
26
49
21
ti9013a
This manual suits for next models
3
Table of contents
Other Graco Paint Sprayer manuals
Graco
Graco 232443 Operation manual
Graco
Graco SaniSpray HP 65 Use and care manual
Graco
Graco 390 390 User manual
Graco
Graco HydroShield WMBH00 Parts list manual
Graco
Graco Finishpro 390 User manual
Graco
Graco 254974 User manual
Graco
Graco UNICARB Pro AA4500 Operation manual
Graco
Graco Ultra Guide
Graco
Graco Pro 230ES User manual
Graco
Graco Series A Use and care manual
Graco
Graco 243011 User manual
Graco
Graco EH 333 HYDRA-SPRAY A Series Operation manual
Graco
Graco PRO XS3 309292L User manual
Graco
Graco EM 380 User manual
Graco
Graco 231-323 Operation manual
Graco
Graco 918623 A Series Operation manual
Graco
Graco Magnum X5 User manual
Graco
Graco DURON Performance Max 395 Operating instructions
Graco
Graco 190ES 261825 User manual
Graco
Graco 308640 Operation manual
Popular Paint Sprayer manuals by other brands
zogics
zogics Z-DAS instruction manual
KISANKRAFT
KISANKRAFT KK-KBS-165 Operation manual
Matrix
Matrix SG 650 Translation of the original instructions
Anest Iwata
Anest Iwata SGA-3 Installation, use & maintenance instruction manual
paasche
paasche VV Instructions and parts list
Carlisle
Carlisle DeVilbiss JGA-510 Service manual
