Goldair GPH100-2PK User manual

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they are supervised or have been given instruction

concerning the use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this heater. Covering this heater presents

fire risk and will activate the safety fuse; permanently disabling the unit.

WARNING: Do not use this heater in small rooms when they are occupied

by persons not capable of leaving the room on their own, unless constant

supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any

flammable material a minimum distance of 1 metre from the air outlet.

WARNING: In order to avoid overheating or fire, do not cover the heater.

General Care and Safety Guide

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE

INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

•The heater must not be located immediately below a socket outlet.

•Do not use the heater if it has been dropped or damaged.

•Do not use if there are visible signs of damage to the heater.

•Ensure heater is on a flat, stable, heat-resistant surface.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming

pool or other liquids.

•Keep all objects at least 1 metre from the front and 150mm from the sides of the appliance.

•This appliance is intended for household use only and not for commercial or industrial use.

•Indoor use only.

•Use only the voltage specified on the rating label of the appliance.

•Use this appliance only as described in this manual. Any other use is not recommended by

the manufacturer and may cause fire, electric shock or injury.

•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these

deposits are removed regularly by unplugging the appliance and vacuum cleaning the air

vents and grills.

•Never use the appliance to dry clothes.

•Always unplug appliance when not in use.

•Do not connect the appliance to mains supply until completely assembled and adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient to

become a hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions

or has been dropped or damaged in any manner. Return to a qualified electrical person for

examination, electrical service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to

weaken and split. Always ensure that all cord has been removed from any cord storage area

and is unrolled before use.

•It is recommended that this heater is plugged directly into the wall socket. Power boards are

not rated to supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this heater provided it is

used in a safe manner.

•Do not remove plug from power socket until the appliance has been switched off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot

be tripped over.

•Don’t place appliance on bedding or on thick & long carpet where the openings may get

blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may

cause an electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet)

rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used or stored.

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs, works of art or

delicate articles of science, etc are stored.

•When the appliance has been unpacked, check it for transport damage and ensure all parts

have been delivered. If parts are missing or the appliance has been damaged, contact the

Customer Services Team.

•If your appliance does not work, or is not working properly, contact the place of purchase or

the Customer Services Team.

General Care and Safety Guide

Components

Screw Pack

Main Body x1

Model GPH100 Castor Plate and Castors x 2

Wall Top Mounting Brackets Wall Bottom Mounting Brackets

Assembly

ASSEMBLY FOR FREESTANDING

Each castor plate supplied with this heater (supplied separately in the carton) requires 3 screws

to attach them securely to the heater. Holes are pre-drilled in the base of the heater.

The castor plates come with 3 pre-drilled holes.

Carefully turn the Main Body upside-down on a scratch-free and stable surface. Be careful to

prevent damage to the cosmetic finish or your floor surfacing.

Place the plastic lugs on the castor plate into the holes on the bottom of the heater and secure

them in position with small screws provided.

Before using this appliance, it must either be wall mounted or have the castor plates and castors fitted.

The screw pack to attach the feet to your appliance will be taped to either one of the feet for your

appliance, or taped to the plug.

PLEASE NOTE: The screws supplied are one way screws so once screwed in they cannot be unscrewed

again.

Castor plate showing lugs Lugs positioned in bottom of heater

Securing Screw (3 per castor plate)

Note:2 screws for each castor plate are

already screwed into the bottom of

heater and need to be removed to put

plate on.

Castor plate securely positioned

Screws pre-inserted

INSTALLATION FOR WALL MOUNTING

Position the panel heater within one metre of a wall socket. Do not mount in front of or below

the wall socket.

Ensure the heater is mounted at least 200mm above the floor and at least 400mm from

anything to the side and 600mm from anything above the heater.

To fix the bracket and install the heater:

First mark the wall where the heater will be installed taking into account safe distances

around the heater as shown above.

Wall Top Mounting Brackets

Wall Mounting Screw Set

Wall Bottom Mounting Brackets

Measure the distance between the mounting slots on the back of the heater. Now

mount one of the wall brackets to the wall so that it is in the right location to hold

the heater. Next mount the other bracket to the wall in the correct position to

locate the other slot in heater. Ensure they are level. Also ensure these brackets

are firmly fastened to the wall.

Secure the “L” shaped wall bottom mounting brackets to the bottom of the heater

with the wall mounting part pointing down below the heater as shown below.

These mount in the same position as the castor plates except they are only held by

2 screws. These brackets will hold the heater base in the right position from the

wall.

Now mount the heater onto the top mounting brackets.

Once the heater is mounted correctly, screw the bottom wall mounting brackets

to the wall to secure them.

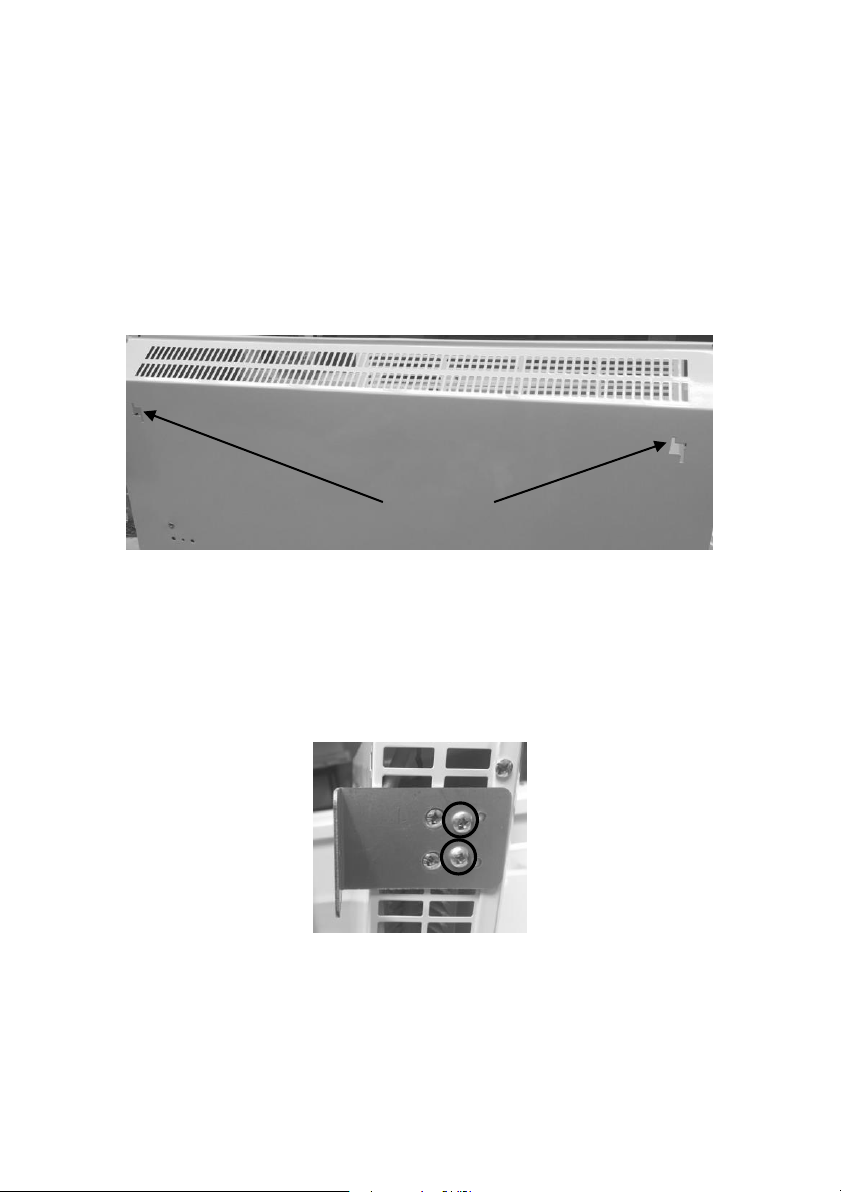

Mounting Slots

Operating Your Heater

HEAT CONTROL SWITCH

The power switches are located on the right hand side of the heater below the control panel.

To turn the heater on, switch on the power switch to the heat setting desired.

To turn the heater off, switch off the power switches.

The control switch positions are:

0 = OFF

I = Low Heat

II = High Heat

THERMOSTATIC CONTROL

1. Rotate thermostat knob clockwise until you reach the maximum position.

2. When the room reaches a temperature that is comfortable for you, slowly turn the knob anti-

clockwise until the heater just turns off (you will hear a click).

3. The heater will now cycle on and off to maintain the comfort level you have set.

4. Take note of this setting position for future use.

Always choose a safe location for the appliance, keeping in mind the safety precautions

outlined. Ensure all packaging has been removed from the unit before use. This appliance

requires no installation, it should be used solely as a portable appliance.

WARNING:In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front and 150mm

from the sides of the appliance.

WARNING: Do not use this heater with a programmer, separate timer,

remote-control system or any other device that switches the heater on

automatically, since a fire risk exists if the heater is covered or positioned

incorrectly.

WARNING: Never leave this heater unattended when in use.

If mounted on castors, ensure heater is on a flat, stable, heat-resistant surface.

WALL MOUNTED HEATERS ARE ONLY TO BE MOUNTED ON WALLS THAT

COMPLY WITH CURRENT AS/NZS SPECIFICATIONS & BUILDING REGULATIONS

Once the heater is in a safe operating position and all switches are in the off

position, insert the power plug into the mains outlet.

CAUTION: Ensure the power cord is not tight because if pulled it may

partially pull the plug from the socket. A partially inserted plug will overheat

the plug and socket and could result in fire.

TECHNICAL SPECIFICATION

Model No: GPH100

Supply: 220-240VAC 50Hz

Wattage: 1000W

Operating Your Heater

SAFETY DEVICES

This appliance has two protection devices:

•Resettable Thermal Link - this will automatically disconnect the power to the

appliance at a pre-set overheat temperature. After cooling down it will reset and

power on again. If this occurs, investigate what is causing the appliance to overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating. (It

is non resettable).

Note: The light in the power switch will remain on even after the safety devices have

activated to show there is still power to the heater

CAUTION: The heater generates heat during use. Proper precautions must

be taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

•The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure

these deposits are removed regularly by unplugging the appliance and vacuum

cleaning the air vents and grills.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and

dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

SUPPORT AND TECHNICAL ADVICE

Goldair –New Zealand

Monday –Friday 8am-5pm

Phone +64 (0)9 917 4000

Phone 0800 232 633

[email protected]

Goldair –Australia

Monday –Friday 8am-5pm

Phone +61 (0)3 9365 5100

Phone 1300 465 324

[email protected]

Table of contents

Other Goldair Heater manuals

Goldair

Goldair GCH320 User manual

Goldair

Goldair GCT320 User manual

Goldair

Goldair GEFT225 User manual

Goldair

Goldair GIR310 User manual

Goldair

Goldair GCV100 User manual

Goldair

Goldair GCW220 User manual

Goldair

Goldair GGPH205 User manual

Goldair

Goldair Platinum Series User manual

Goldair

Goldair GSCV120 User manual

Goldair

Goldair GFE340 User manual

Goldair

Goldair ecopanel GEPH215 User manual

Goldair

Goldair Select GSOC117T User manual

Goldair

Goldair GMH150 User manual

Goldair

Goldair GCH250B User manual

Goldair

Goldair GCW300 User manual

Goldair

Goldair GOC167TT User manual

Goldair

Goldair PLATINUM GPOC4115 User manual

Goldair

Goldair PLATINUM GPTF480 User manual

Goldair

Goldair GPH150 User manual

Goldair

Goldair GCW250 User manual

Goldair

Goldair ecopanelGEPH203 User manual

Goldair

Goldair Platinum GPPH610 User manual

Goldair

Goldair GSOC100 User manual

Goldair

Goldair GSMH120 Installation instructions

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
