Goldair GOC167TT User manual

Operating Instructions

Model: GOC167TT (7 Fin) & GOC1611TT (11 Fin)

Oil Column Heater with Timer and Turbo

CAUTION: In order to avoid a hazard due to inadvertent resetting of the

thermal cut-out, this appliance must not be supplied through an external

switching device, such as a timer, or connected to a circuit that is regularly

switched on and off by the utility.

•This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they are supervised or have been given instruction

concerning the use of the appliance by a person responsible for their safety.

•Children should be supervised to ensure that they do not play with the

appliance.

•If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard.

WARNING: You must not cover this heater. Covering this heater presents

fire risk and will activate the safety fuse; permanently disabling the unit.

WARNING: Do not use this heater in small rooms when they are occupied

by persons not capable of leaving the room on their own, unless constant

supervision is provided.

WARNING: To reduce the risk of fire, keep textiles, curtains, or any

flammable material a minimum distance of 1 metre from the air outlet.

WARNING: In order to avoid overheating or fire, do not cover the heater.

This appliance is filled with a precise quantity of special oil. Repairs requiring

opening of the oil container are only to be made by the manufacturer who

should be contacted if there is an oil leak.

When scrapping the appliance, follow the regulations concerning disposal of

oil.

General Care and Safety Guide

YOUR SAFETY IS IMPORTANT TO US. PLEASE ENSURE YOU TAKE NOTE OF THE

INSTRUCTIONS AND WARNINGS OUTLINED IN THIS MANUAL.

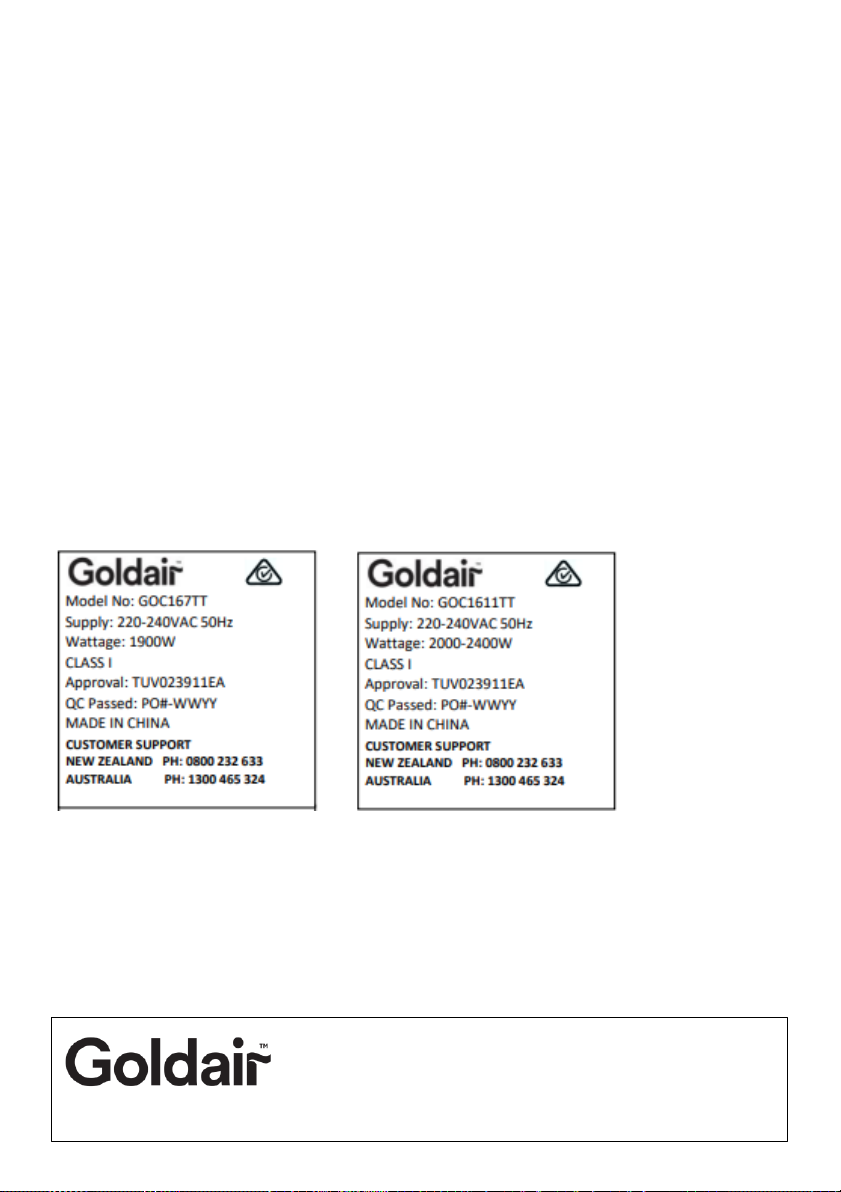

•Use only the voltage specified on the rating label of the appliance.

•The heater must not be located immediately below a socket outlet.

•Keep all objects at least 1 metre from the front, sides and rear of the appliance.

•This appliance is intended for household use only and not for commercial or industrial use.

•Indoor use only.

•Use this appliance only as described in this manual. Any other use is not recommended by

the manufacturer and may cause fire, electric shock or injury.

•Do not use the heater if it has been dropped or damaged.

•Never use the appliance to dry clothes.

•The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these

deposits are removed regularly by unplugging the appliance and vacuum cleaning the air

vents and grills.

•Always unplug appliance when not in use.

•When the appliance has been unpacked, check it for transport damage and ensure all parts

have been delivered. If parts are missing or the appliance has been damaged, contact the

Customer Services Team.

•Do not use if there are visible signs of damage to the heater.

•Do not connect the appliance to mains supply until completely assembled and adjusted.

•Ensure hands are dry before handling the plug or main unit.

•Ensure heater is on a flat, stable, heat-resistant surface.

•Do not operate with cord set coiled up as a heat build up is likely, which could be sufficient to

become a hazard.

•Carry out regular checks of the supply cord to ensure no damage is evident

•Do not operate this appliance with a damaged cord, plug or after the appliance malfunctions

or has been dropped or damaged in any manner. Return to a qualified electrical person for

examination, electrical service or repair.

•Do not twist, kink or wrap the cord around the appliance, as this may cause the insulation to

weaken and split. Always ensure that all cord has been removed from any cord storage area

and is unrolled before use.

•It is recommended that this heater is plugged directly into the wall socket. Power boards are

not rated to supply power to high wattage appliances.

•A correctly specified, undamaged extension cord may be used with this heater provided it is

used in a safe manner.

•Do not remove plug from power socket until the appliance has been switched off.

•Do not remove plug from power socket by pulling cord; always grip plug.

•Do not place cord under carpet or cover with rugs or furniture. Arrange the cord so it cannot

be tripped over.

•Don’t place appliance on bedding or on thick & long carpet where the openings may get

blocked.

•Switch off and use handle provided when moving

•Do not place appliance close to radiant heat source.

•Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may

cause an electric shock, fire or damage to the appliance.

•Do not sit on the appliance.

•Do not use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet)

rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.

•Do not operate in areas where petrol, paint or other flammable liquids are used or stored.

•Do not use this appliance in the immediate surrounds of a bath, a shower, or a swimming

pool or other liquids.

•The appliance must not be immersed in any liquids.

•There are no user serviceable parts installed in the unit.

•Do not place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

•This unit is not supposed to be used in or around locations where foodstuffs, works of art or

delicate articles of science, etc. are stored.

•If your appliance does not work, or is not working properly, contact the place of purchase or

the Customer Services Team.

General Care and Safety Guide

Components

Assembly

Before using this appliance, it must have the castor plates and castors fitted. The screw pack

to attach the feet to your appliance will be taped to either one of the feet for your

appliance, or taped to the plug.

Carefully turn the Main Body upside-

down on a scratch-free and stable

surface. Be careful to prevent damage

to the cosmetic finish or your floor

surfacing (Fig.1).

Fit the wheel assemblies onto the Main

Body by placing the U-shaped bolts

between the outermost fins on each

side of the Main Body (see Fig.2 - 4).

Securely fasten the wheel assemblies

onto the Main Body by screwing the

wing nuts onto the U-shaped bolts (see

Fig. 5).

WARNING: Operate the appliance in normal upright position only with wheel

assemblies attached to the bottom. Any other position could create a hazardous

situation.

Operating Your Heater

HEATER CONTROL SWITCH

The control switch positions are:

O Off

●Minimum heating

●● Medium heating

●●● Maximum heating

Maximum heating + fan heater

Fan heater only

THERMOSTATIC CONTROL

1. Rotate thermostat knob clockwise until you reach the

maximum position.

2. When the room reaches a temperature that is

comfortable for you, slowly turn the knob anti-

clockwise until the heater just turns off (you will hear a

click).

3. The heater will now cycle on and off to maintain the

comfort level you have set.

4. Take note of this setting position for future use.

WARNING: In order to avoid overheating or fire, do not cover the heater.

WARNING: Keep all objects at least 1 metre from the front, sides and rear of

the appliance.

WARNING: Do not use this heater with a programmer, separate timer,

remote-control system or any other device that switches the heater on

automatically, since a fire risk exists if the heater is covered or positioned

incorrectly.

WARNING:Never leave this heater unattended when in use.

Ensure heater is on a flat, stable, heat-resistant surface.

Once the heater is in a safe operating position and all switches are in the off

position, insert the power plug into the mains outlet and switch on.

CAUTION: Ensure the power cord is not tight because if pulled it may

partially pull the plug from the socket. A partially inserted plug will overheat the

plug and socket and could result in fire.

Always choose a safe location for the heater, keeping in mind the safety precautions

outlined. Ensure all packaging has been removed from the unit before use.

Please follow the below instructions.

TIMER

(This function can only be used once a heat level has been selected ; see thermostat

section).

You must set the time prior to programming the Timer. To do this; turn the outer dial

of the timer in a clockwise direction until the time of the day (24-hour clock)

corresponds with the triangular marking. Example if it is 2pm (1400 hours) then set

the triangular mark in line with 14. One complete turn of the dial corresponds to 24

hours.

There are 96 “riders”, positioned around the dial, each rider represents 15 minutes.

Where all the “riders” are pushed to the outside of the timer the heater will be ON

continuously.

To set a specific time for example:

If you want the heater to be on from 9am to 1pm, then set all the riders from 9 to 13

(0900 hours to 1300 hours) to the outside of the rim and all other riders to the inside

of the timer. The unit will then turn on automatically at 9am and off again at 1pm.

WARNING: Take care in positioning your heater, using the Timer will

mean the heater will come on automatically. Fire may result if placed next

to combustible material.

Operating Your Heater

SAFETY DEVICES

This appliance has three protection devices:

•Tilt Switch - this will automatically turn the appliance off if the appliance is not in

the correct operating position.

•Resettable Thermal Link - this will automatically disconnect the power to the

appliance at a pre-set overheat temperature. After cooling down it will reset and

power on again. If this occurs, investigate what is causing the appliance to overheat.

•Thermal Fuse - this disconnects the appliance permanently in case of overheating.

(It is non resettable).

CAUTION: The appliance generates heat during use. Precautions must be

taken to prevent the risk of burns, scalds, fires or other damage to persons.

CARE AND CLEANING

The heater requires regular cleaning to ensure trouble free operation:

•Unplug the heater from the mains supply before cleaning.

•Ensure that the heater has been allowed to cool down completely before cleaning.

•The common cause of overheating is deposits of dust or fluff in the appliance.

Ensure these deposits are removed regularly by unplugging the appliance and

vacuum cleaning the air vents and grills.

•Use a damp cloth (not wet) to wipe the exterior of the heater to remove dust and

dirt.

•Never use solutions such as petrol, thinners or polishing agents.

•Ensure the heater is dry before plugging back into the mains supply.

This appliance cannot be serviced. Do not attempt to dismantle.

There are no user serviceable parts. For service or repair, contact an authorised

electrical service technician.

When disposing of the appliance, follow the regulations concerning disposal of oil.

SUPPORT AND TECHNICAL ADVICE

Goldair –New Zealand

Monday –Friday 8am-5pm

Phone +64 (0)9 917 4000

Phone 0800 232 633

[email protected]

Goldair –Australia

Monday –Friday 8am-5pm

Phone +61 (0)3 9365 5100

Phone 1300 465 324

info@cdbgoldair.com.au

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase.

This manual suits for next models

Table of contents

Other Goldair Heater manuals

Goldair

Goldair Platinum GPPH610 User manual

Goldair

Goldair 3508W User manual

Goldair

Goldair GCT110 User manual

Goldair

Goldair GPCT440 User manual

Goldair

Goldair Select GSOC117T User manual

Goldair

Goldair GECO260 User manual

Goldair

Goldair GCW220 User manual

Goldair

Goldair GCT360 User manual

Goldair

Goldair GPH110 User manual

Goldair

Goldair GSOC1118 User manual

Goldair

Goldair GPPH500 User manual

Goldair

Goldair GCV340 User manual

Goldair

Goldair ecopanelGEPH203 User manual

Goldair

Goldair 3514TC User manual

Goldair

Goldair GSCV120 User manual

Goldair

Goldair PLATINUM GPCV330 User manual

Goldair

Goldair PLATINUM GPCW100 User manual

Goldair

Goldair FFH222 User manual

Goldair

Goldair GPOC418 User manual

Goldair

Goldair PLATINUM GPTF480 User manual

Goldair

Goldair Platinum GPPH620 User manual

Goldair

Goldair GCT200 User manual

Goldair

Goldair GCT340 User manual

Goldair

Goldair Platinum GPOC407 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
