gofanco Prophecy PRO-HDExtIP-TX User manual
PRO-HDExtIP-TX
PRO-HDExtIP-TX
PRO-HDExtIP-RX
PRO-HDExtIP-RX
4K HDMI over IP extender(TX/RX) with POE
®
Made in Taiwan
User‘s Guide
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
Congratulaons for owning a gofanco product. Our products
aim to meet all your connecvity needs wherever you go.
Have fun with our products!
Please read this manual carefully before rst use.
If you need more informaon about our products, please visit
www.gofanco.com.
For technical support, please email us at
support@gofanco.com.
For drivers/manuals download, please go to
hp://www.gofanco.com/download.
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
3
1. Introduction
The PRO-HDExtIP-TX/RX HDMI2.0 over IP Multicast System with
Video Wall support & PoE support boosts up your video/audio
transmission distance up to 120m(396ft) in UHD 4K2K format.
With cost eective Ethernet cable, users can readily extend UHD
sources from DVD players, Blu-ray Disc player, PS3, PC, and any
other HDMI sources broadcasting to distant display monitors in-
cluding HDMI or DVI enabled TV sets or LCD PC monitors. In addi-
tion, PRO-HDExtIP-TX/RX is HDCP compliant, and supports PoE, IR
and RS-232 pass-through path.
With broadcasting management software and Gigabit Ethernet
network switch (supporting IGMP), PRO-HDExtIP-TX/RX is a com-
plete UHD video broadcasting solution for digital signage. It can
transmit Full HD 4K2K60 HDMI video broadcasting over IP network.
The broadcasting format can be Point to Point, Point to Many, and
Multi-Casting. Multi-casting is based on Managed Gigabit Switch
with 802.1Q VLAN function which provides control remotely and
so multi video sources are allowed and supported.
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
4
• 1x PRO-HDExtIP-TX
• 1x IR blaster cable
• 1x User Manual
• 1x PRO-HDExtIP-RX
• 1x IR receiver cable
• 1x User Manual
3. Package Contents
2. Features
• Supports HDMI input up to 4K2K@60 4:4:4 8bits
• Supports HDMI output up to 4K2K@30 RGB
• Supports High Dynamic Range (HDR)
• HDMI 2.0a, HDCP 2.2 compliant
• Supports PoE (Power over Etherent)
• Flexible and scalable UHD Video Broadcasting by Gigabit Ether-
net LAN/Switch(IGMP function required)
• one to one, one to many & multi-casting broadcasting architecture
• Bi-directional IR path, IR signal from 20KHz to 60KHz
• Full Duplex RS-232 control up to 115,200 bps through connector
• Up to 1,023 Groups Multi-Casting
• Latency: 1080P60: 23ms
• Supports Video Wall function
• Supports 180 and 270 clockwise image rotation
• Supports USB2.0
PRO-HDExtIP-TX PRO-HDExtIP-RX
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
4. Specications
Item Description
Technical PRO-HDExtIP-TX PRO-HDExtIP-RX
HDMI compliance HDMI
HDCP compliance Yes
Input Video support Up to 4K2K@60 (4:4:4 8bits)
Output Video sup-
port Up to 4K2K@30 (RGB)
Latency 2 frames (33 ms) maximum
HDMI over UTP
transmission [24-bit] Ultra HD (4K2K60)-120m (396ft) [CAT.X]
Audio support Surround sound (up to 7.1ch) or stereo digital audio
Input TMDS signal 1.2 Volts [peak-to-peak]
Input DDC signal 5 Volts [peak-to-peak, TTL]
ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV
[contact discharge]
IR pass-thru Full-duplex bi-directional
RS-232 support Yes
Input 1x HDMI+2x 3.5mm+1x USB 1x RJ45+1x HDMI+1x 3.5mm
Output 1x RJ45+1x HDMI+1x 3.5mm 1x HDMI+2x 3.5mm+2x USB
In/ Out 1x DIN9 1x DIN9
HDMI source control Controllable via IR pass-through from RX to TX and
from TX to RX with IR extenders
IR remote control Electro-optical characteristics: = 25° / Carrier frequency:
20-60kHz
HDMI connector Type A [19-pin female]
Min DIN connector DIN-9
RJ45 connector WE/SS 8P8C with 2 LED indicators
3.5mm connector IR blaster & IR receiver
5
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
6
Mechanical PRO-HDExtIP-TX PRO-HDExtIP-RX
Housing Metal enclosure
Dimensions
[L x D x H]
Model 170 x 101 x 29mm
[6.7“ x 3.9“ x 1.1“]
170 x 101 x 29mm
[6.7“ x 3.9“ x 1.1“]
Package 198 x 137 x 74mm
[7.8" x 5.4" x 2.9"]
198 x 137 x 74mm
[7.8“ x 5.4“ x 2.9“]
Carton 420 x 400 x 300mm
[1'4"x 1'3" x 11.8"]
420 x 400 x 300mm
[1‘4“x 1‘3“ x 11.8“]
Weight Model 451g [1lbs] 451g [1lbs]
Package 744g [1.6lbs] 744g [1.6lbs]
Fixedness Wall-mounting case with screws
Power supply 5V 2A DC / 48V POE
Power consumption 6 Watts [max] 5 Watts [max]
Operation temperature 0~40°C [32~104°F]
Storage temperature -20~60°C [-4~140°F]
Relative humidity 20~90% RH [no condensation]
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
7

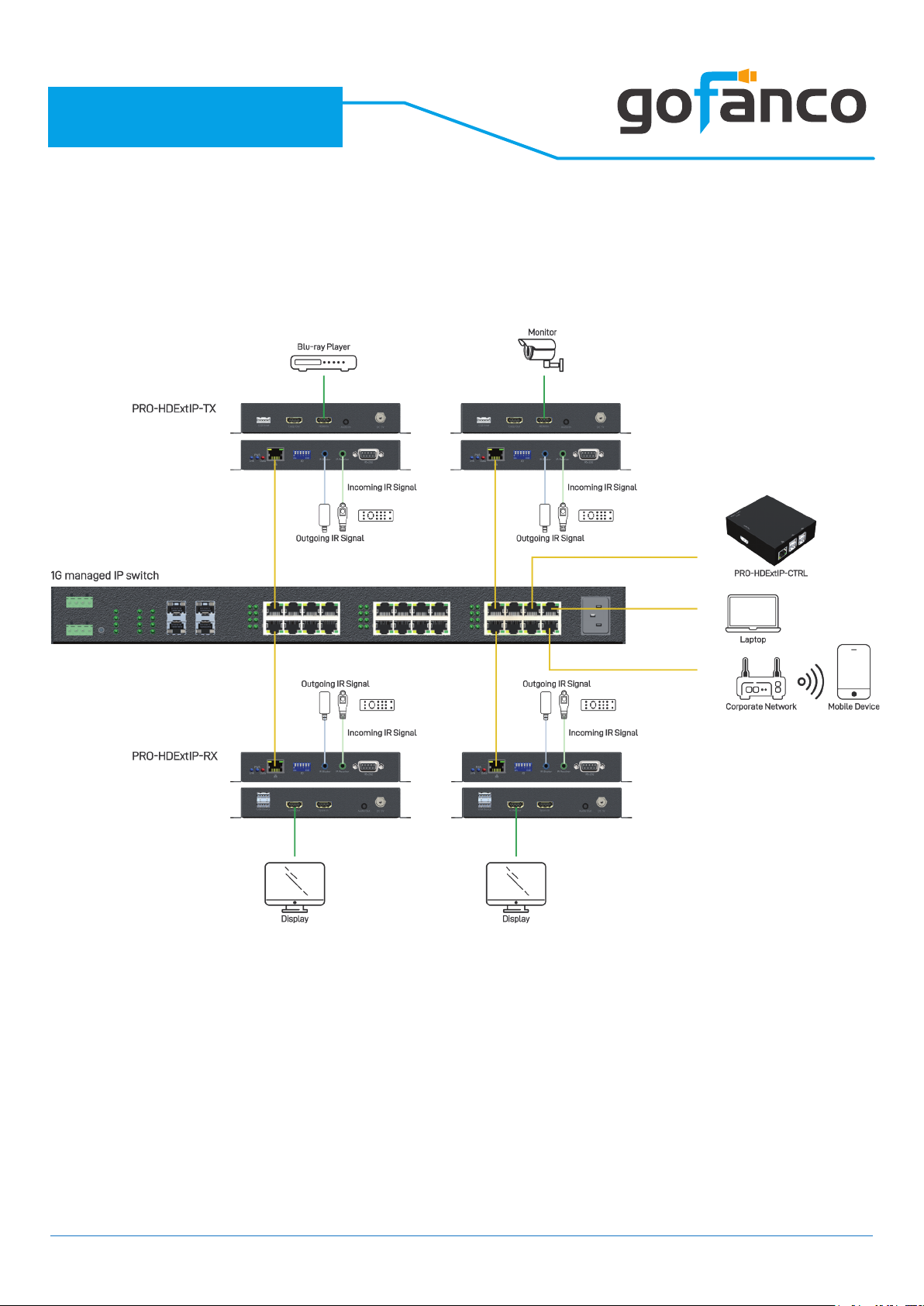

5. Connection Diagram
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
8
1. USB: Connect to upstream USB host
2. HDMI loopout: Connects to a HDMI display with a HDMI male-male
cable.
3. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
4. Analog audio line in: Connect to upstream speaker output
5. +5V DC: Connect to 5V DC power supply
6. Panel Description
1 2 3 4 5
Front Panel
Rear Panel
PRO-HDExtIP-TX
6 7 8 9 1110 12 13
6. Link LED indicator:
[Blink] When unit connect a Cat-5/5e/6 cable
[Shine] When transmitting unit connect to a HDMI source and lin-
ked to the receiving unit
7. System LED indicator:
[Blink] When unit connect a power supply unit
[Shine] After booting, when device become stably
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
9
8. Info LED indicator: When user click the LED button from software,
the LED light will blink 30 seconds.
9. RJ-45: Gigabit Ethernet port
Bottom Panel 14
10.Dip Switch: Video channel selection
11.IR Blaster: Infrared 3.5mm socket for plugging in the extension
cable of IR blaster
12.IR Receiver: Infrared 3.5mm socket for plugging in the extension
cable of IR receiver
13.RS-232: Connect to PC serial port with a DSUB-9 male-male cable
here
14.Dip Switch: RS-232 mode selection, [ON] debug mode; [OFF]
bypass mode
®
PRO-HDExtIP-TX
PRO-HDExtIP-RX
10
1. USB(USB 2.0 downstream port): Connect to USB ash driver or
other USB devices
2. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable
3. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
4. Analog audio line out: Connect to downstream headphone output
5. +5V DC: Connect to 5V DC power supply
1 2 3 4 5
Front Panel
Rear Panel
PRO-HDExtIP-RX
6 7 8 9 1110 12 13
6. Link LED indicator:
[Blink] When unit connect a Cat-5/5e/6 cable
[Shine] When transmitting unit connect to a HDMI source and lin-
ked to the receiving unit
7. System LED indicator:
[Blink] When unit connect a power supply unit
[Shine] After booting, when device become stabl
